Please watch videos for 20 inch 48V 1000W front hub motor bike conversion kits that only show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..
20 inch hub motor kit
Share Video:
20 inch bike motor kit
* The 20 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

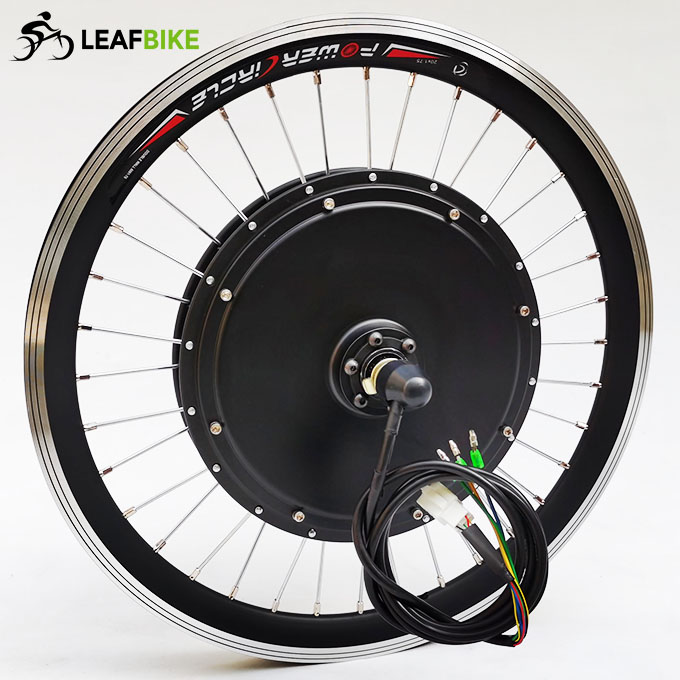

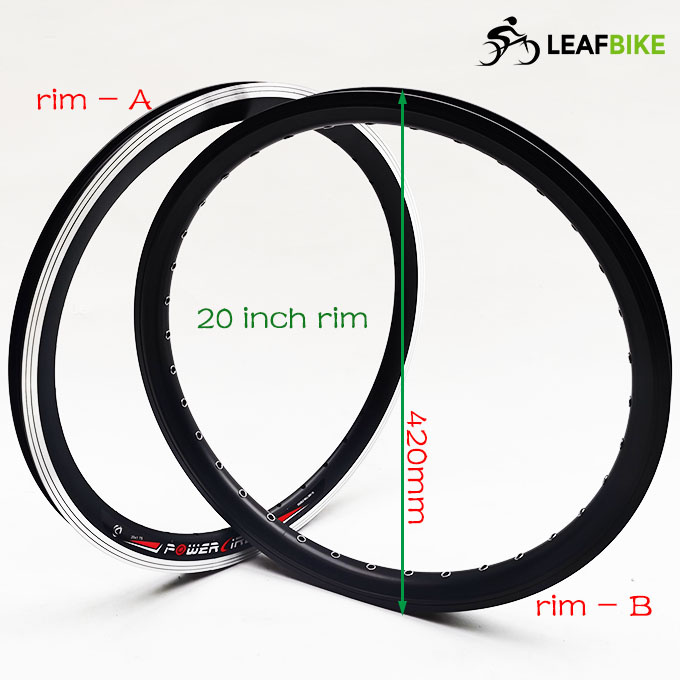

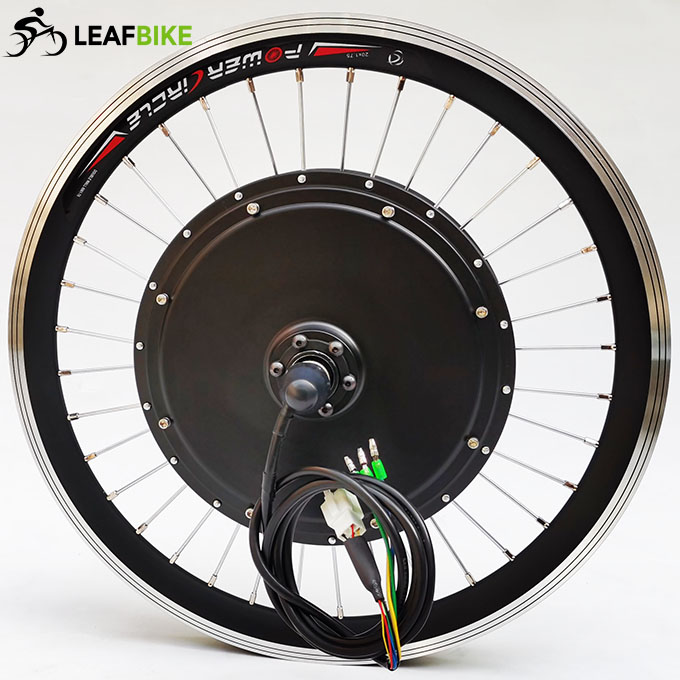

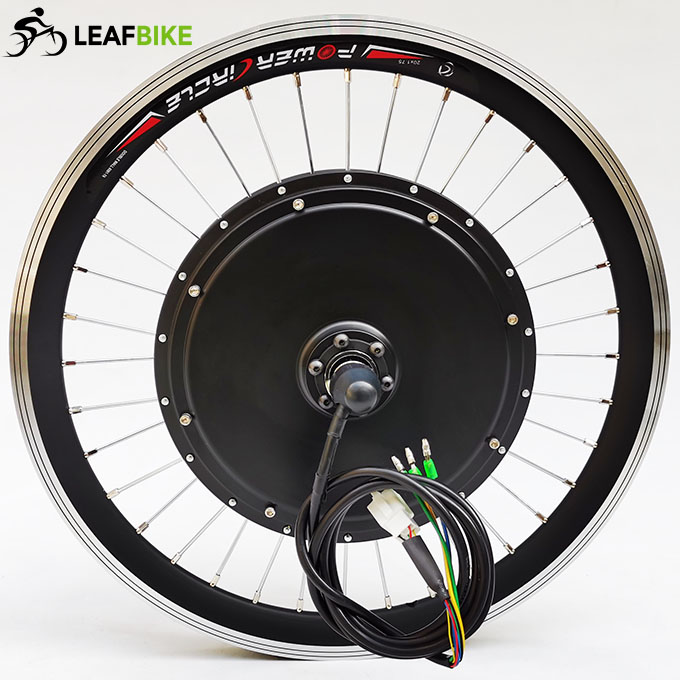

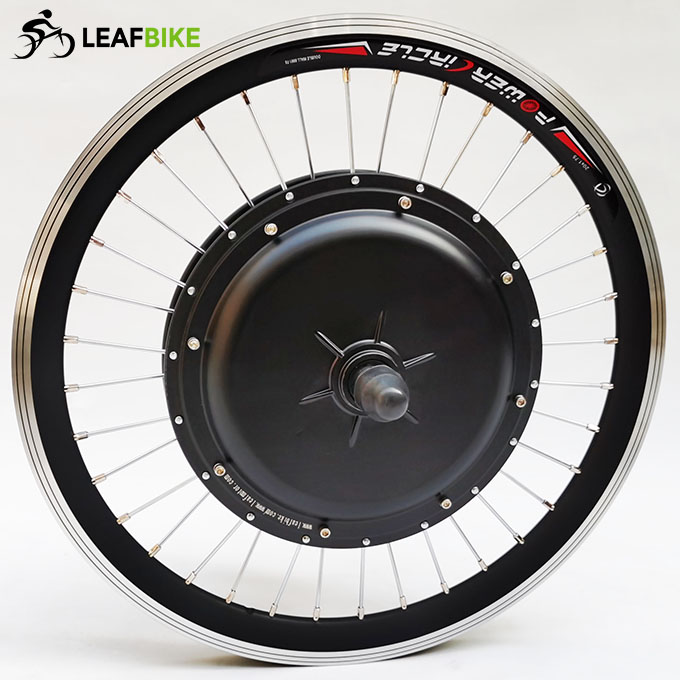

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

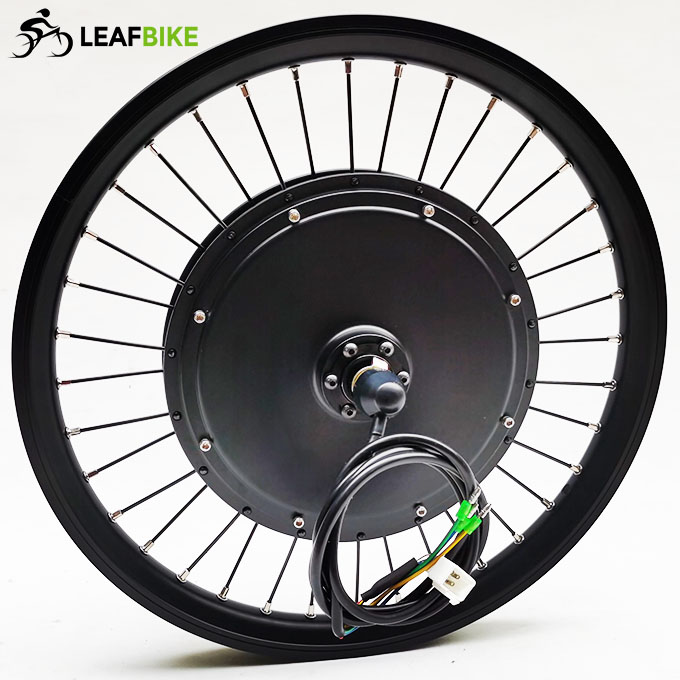

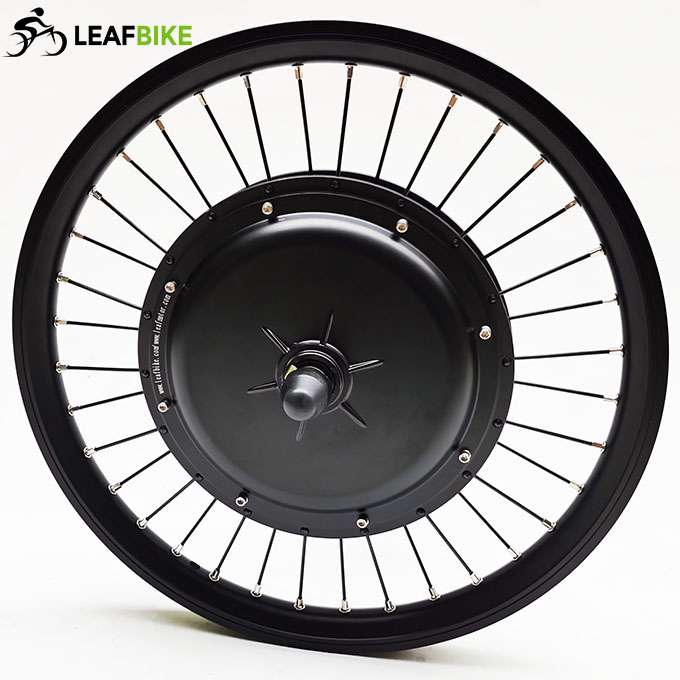

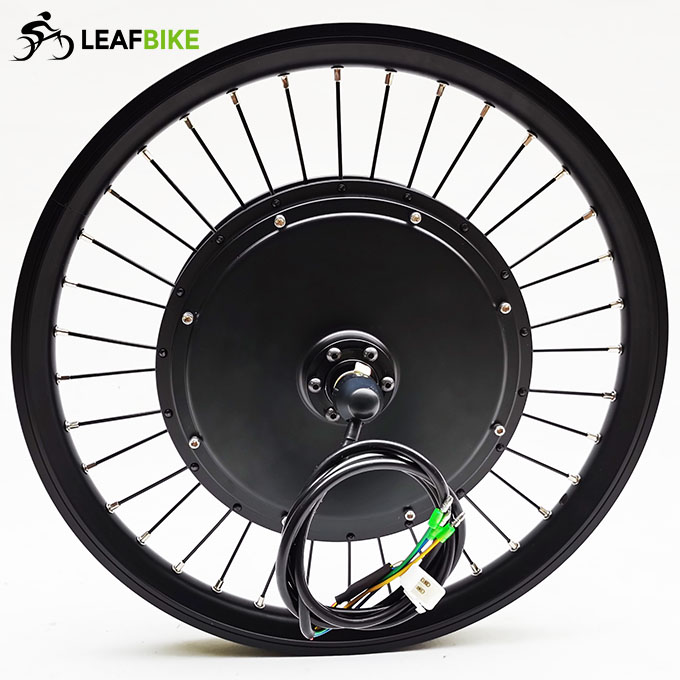

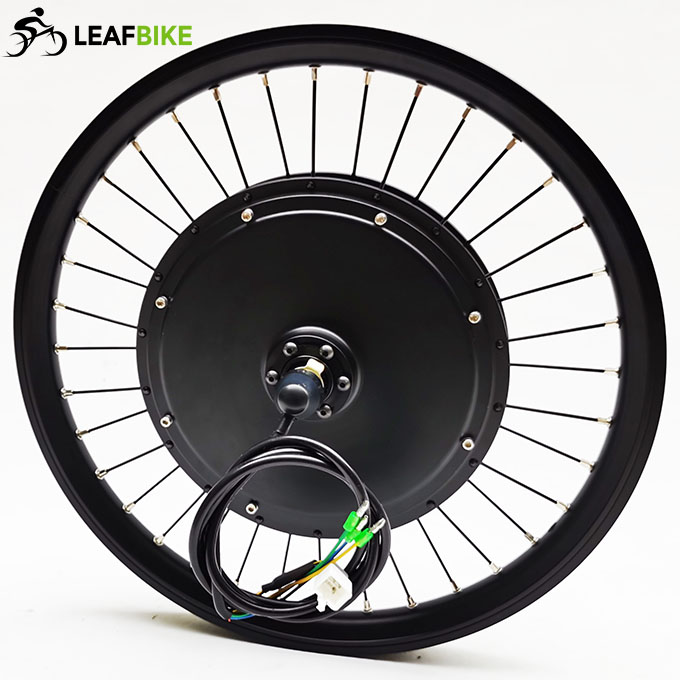

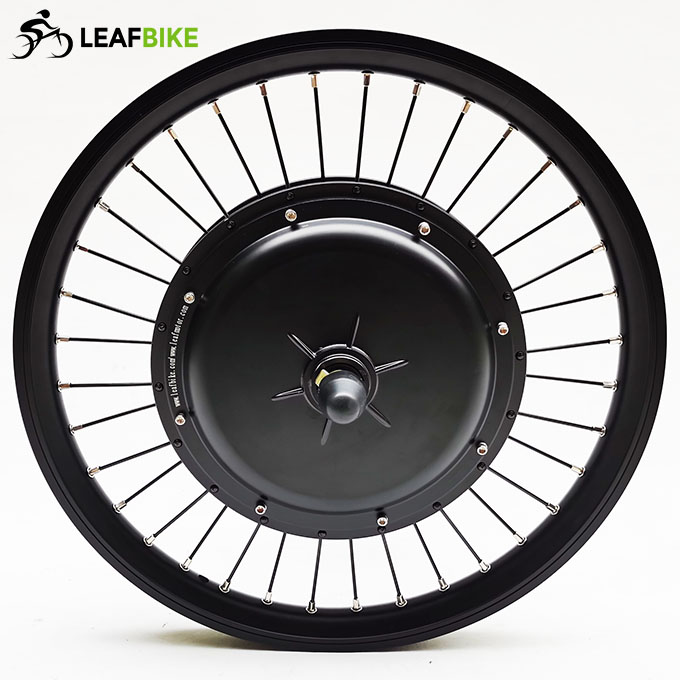

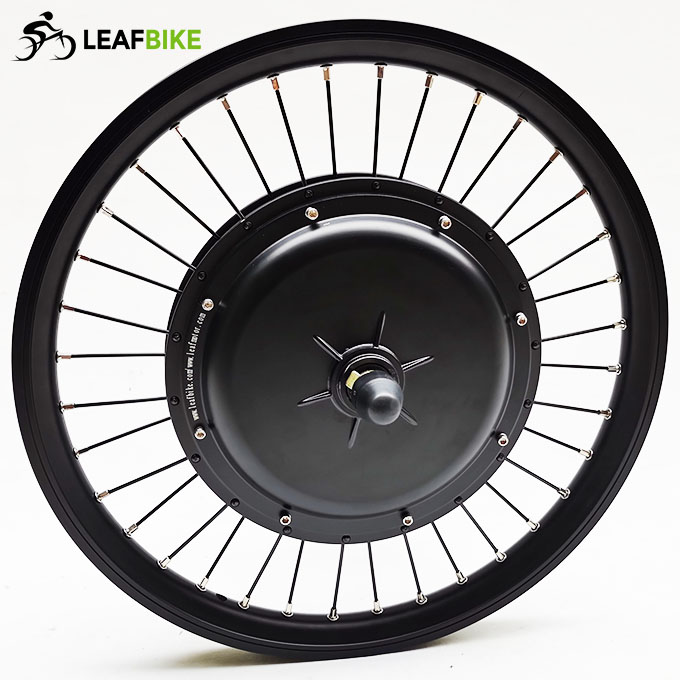

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs
>. Engine : Hub Motor
>>. Voltage: 48V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 39mph Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork (Min 100mm to Max 120mm)
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H
With LCD, More function:
* Cruise - Green switch to control
* Forward & Backward (Optional) - Yellow switch to control
* Kmh & mph (Optional)
* Set max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

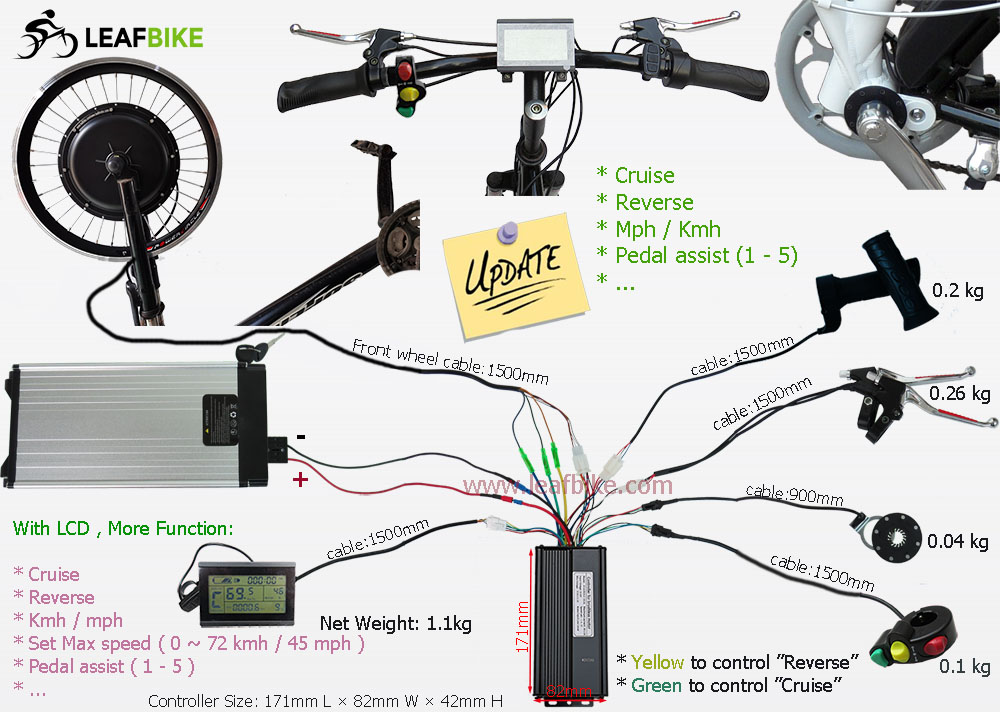

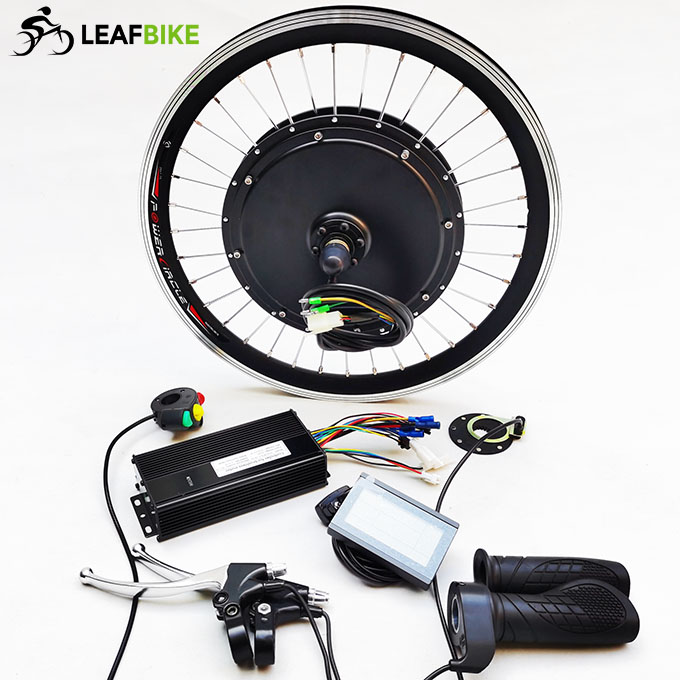

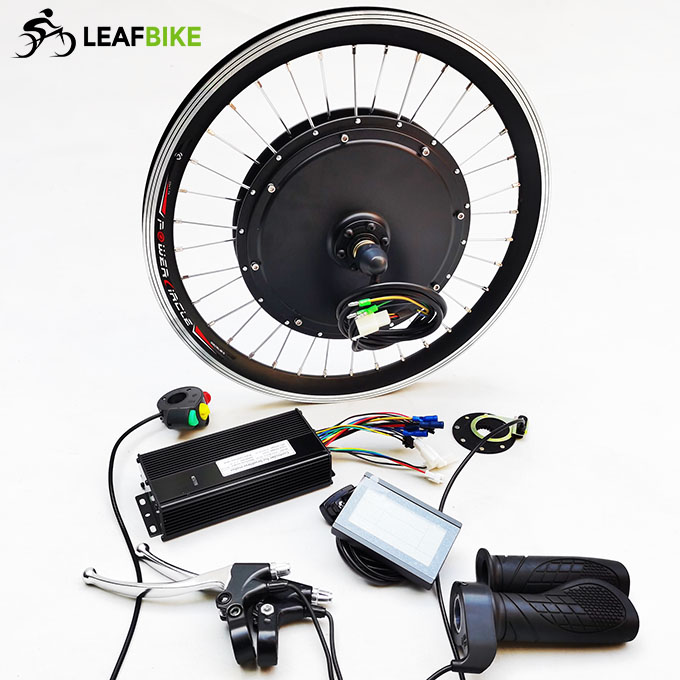

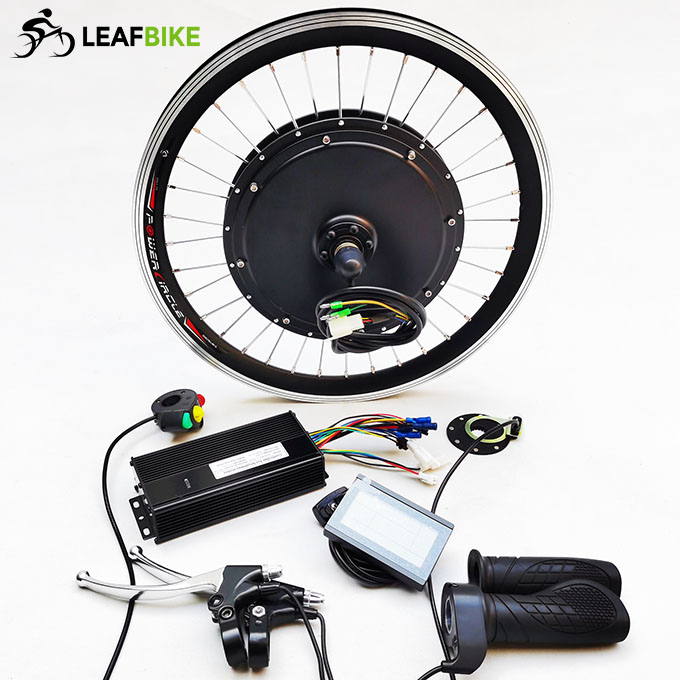

Package Content:
1 x 20 inch 48V 1000W front hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise,reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 9.36 kg / 20.6 lbs
Package Size: 50cm L x 50cm W x 23cm H / 19.7" L x 19.7" W x 8.7" H
Package Type: Cardboard Box
