Please watch video for 20 inch 48V 1000W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
This 20 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque bike Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

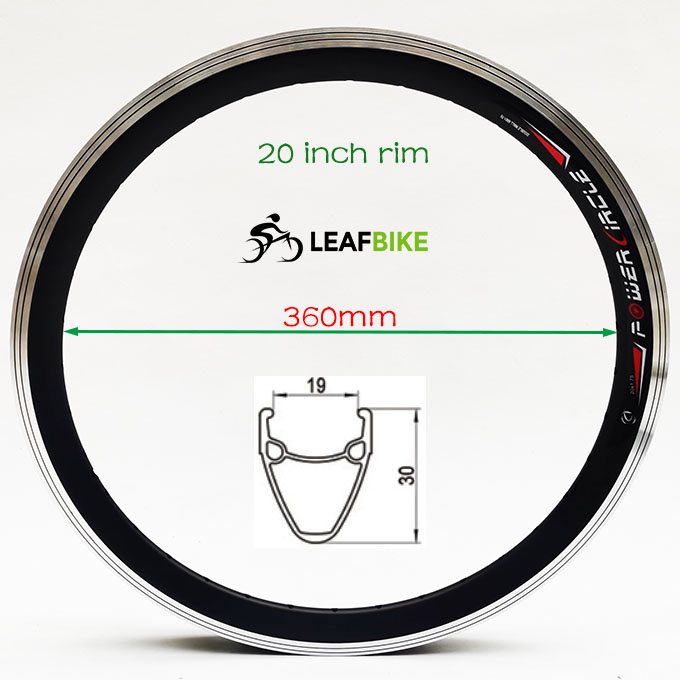

Rim: 20 inch Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
Hub motor: brushless gearless dc motor
Controller: LCD display
Max speed: 48.6 kmh -- 30.1 mph
Mechanical brake: Disk, Drum or V
Install: spacing of 135mm fork

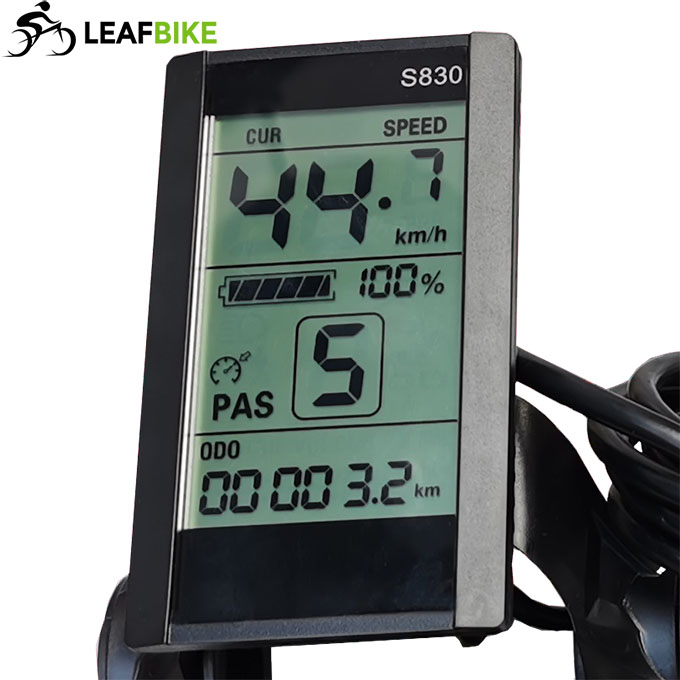

LCD-830, More Function:
* Cruise
* Reverse
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest speed. "5" is the fastest speed.
* ...

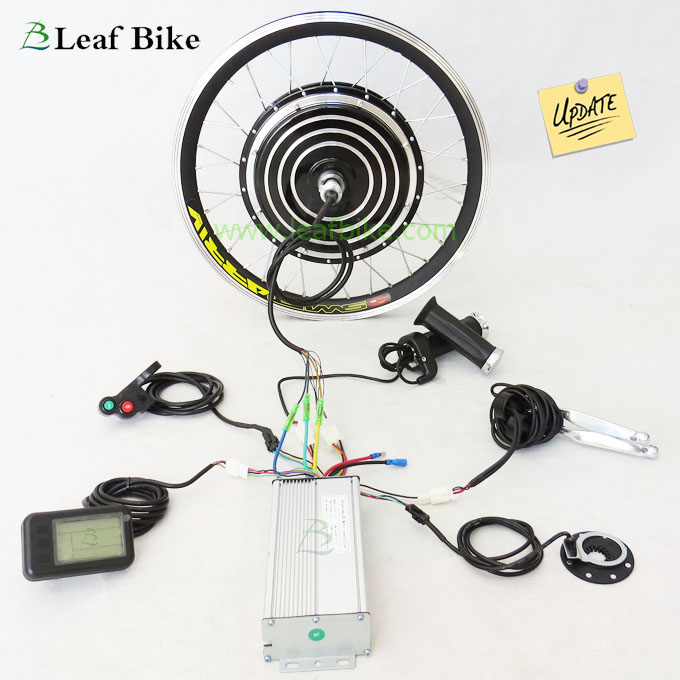

Package Content:

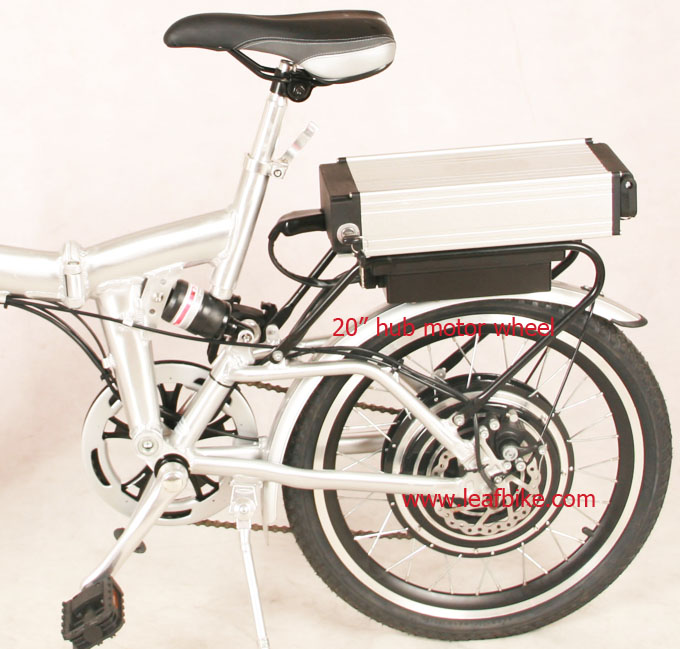

1 x 20 inch 48V 1000W rear hub motor wheel

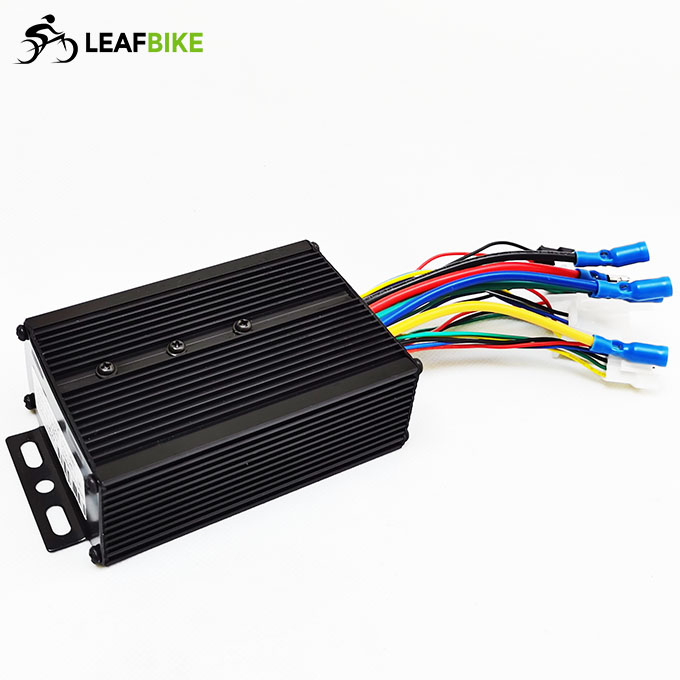

1 x 48V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise... )
1 x Pedal assist
Net Weight: 10.25 kg / 22.6 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

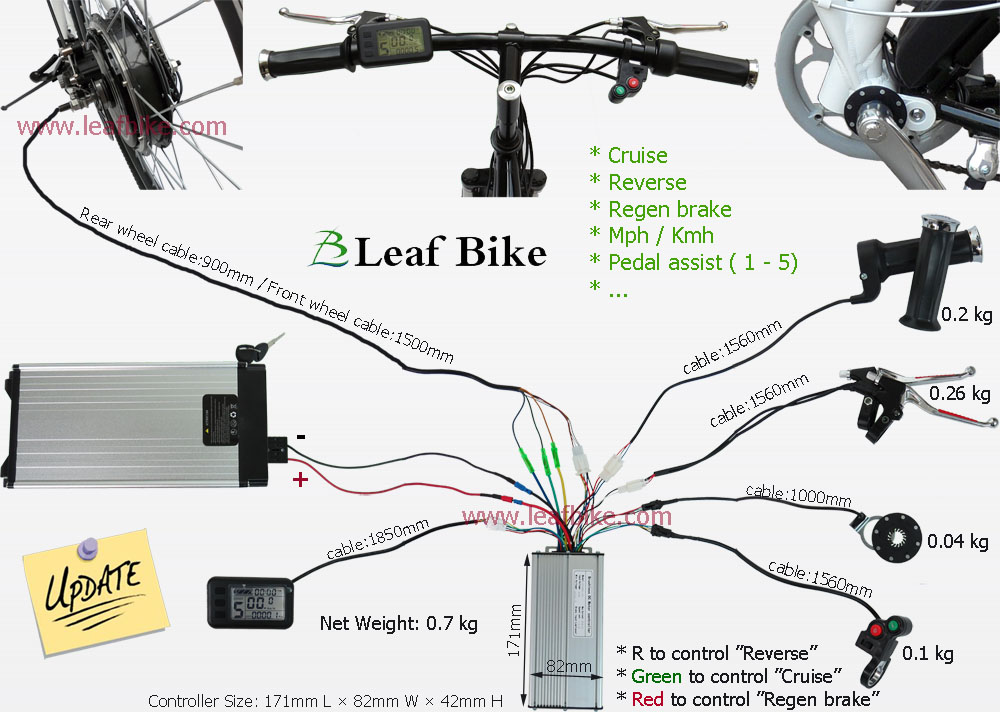

Wire Diagram:
1000W Rear Drw.
Performance Data:
