The 20 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

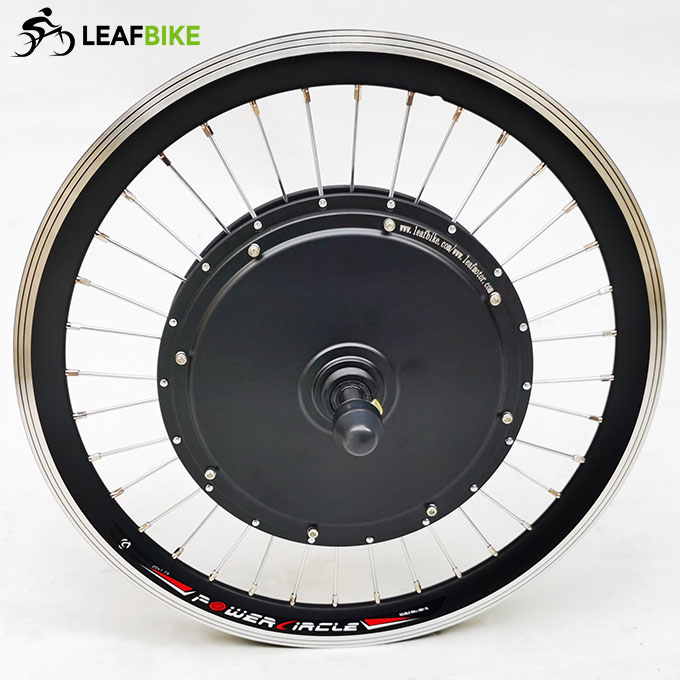

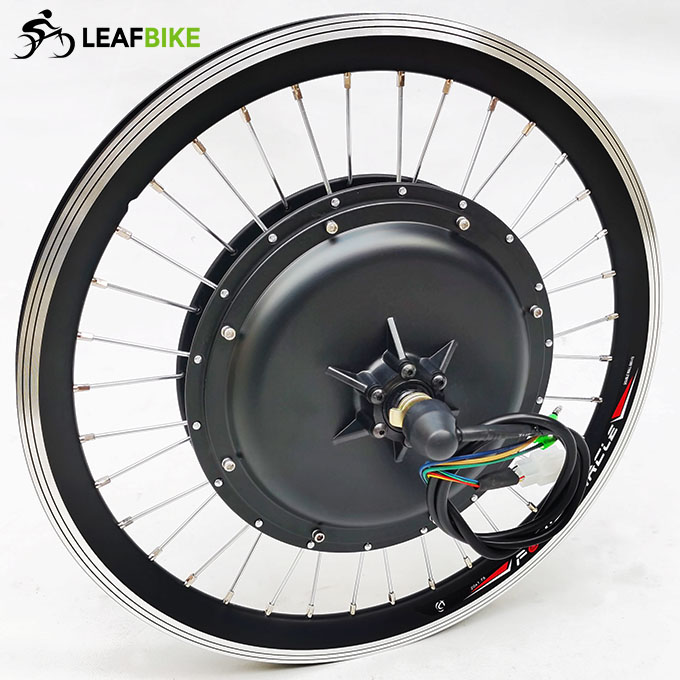

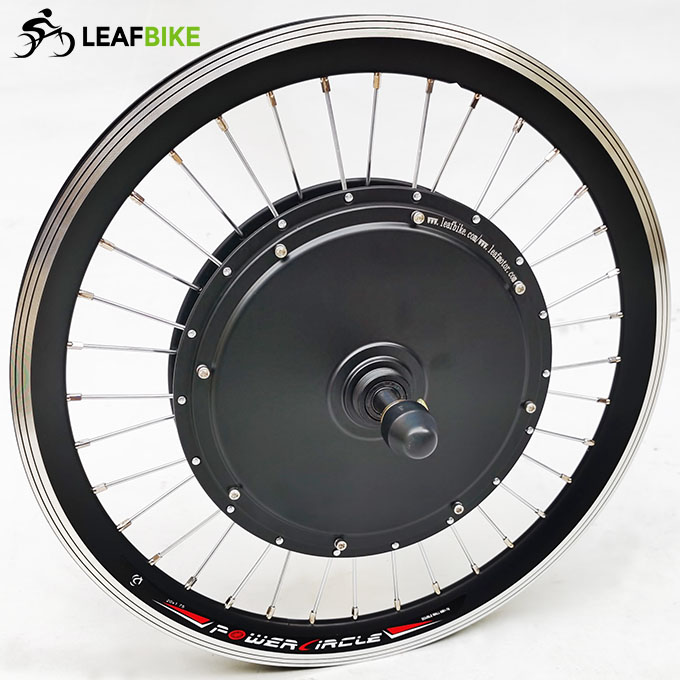

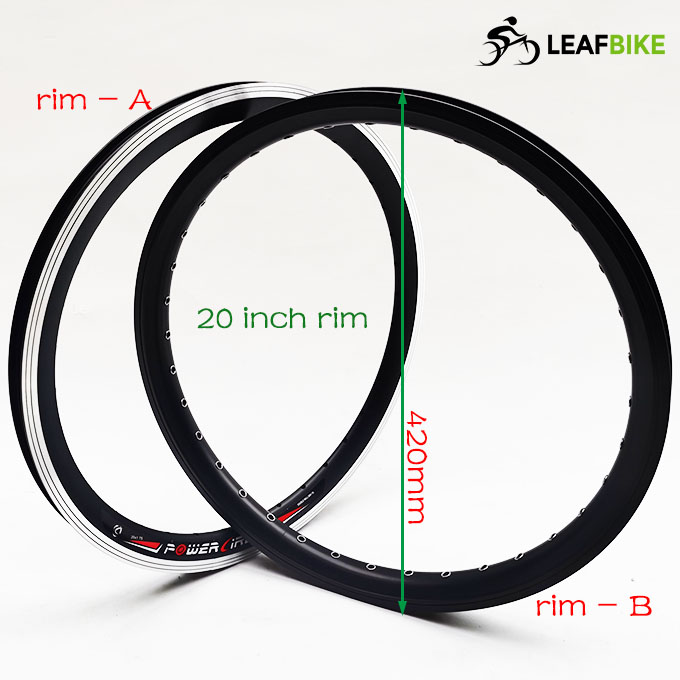

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

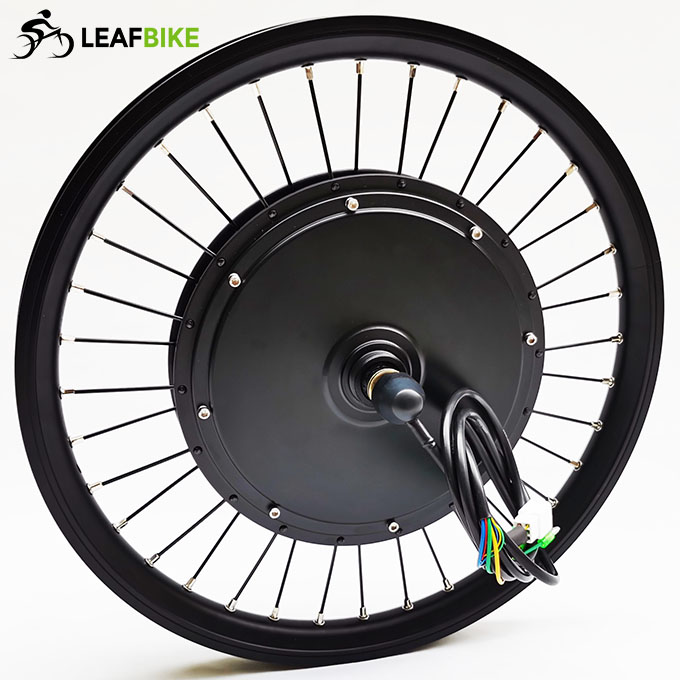

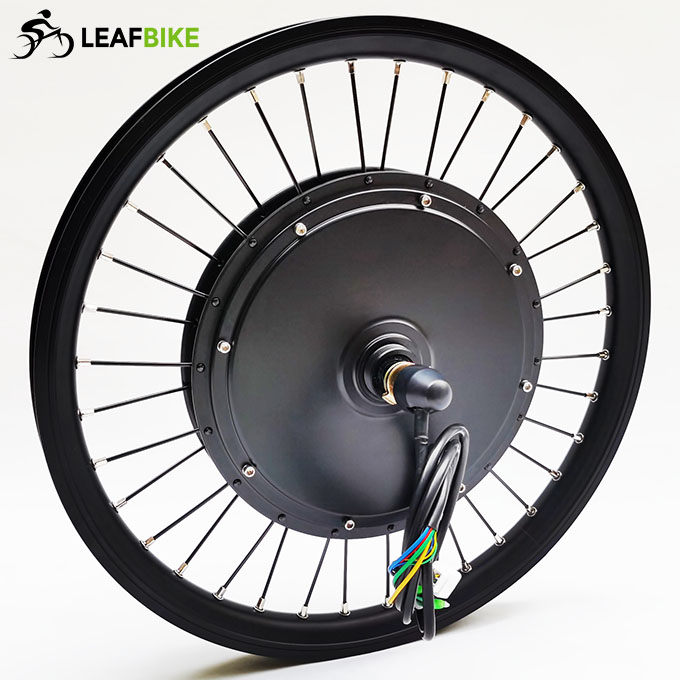

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs
>. Engine : rear hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 28 mph Default (Optional other speed: 20mph,15mph...please leave message)
>>. Mechanical brake: Disc or V
>>. Freewheel: Max 7 speed
>>. Cable location: shaft end, Left
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: 36V controller & LCD
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H
With LCD, More Function:
* Cruise -- Green switch to control
* Forward & Backward (Optional) -- Yellow switch to control
* Kmh & mph (Optional)
* Speeds ( 0 - 5 ) "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

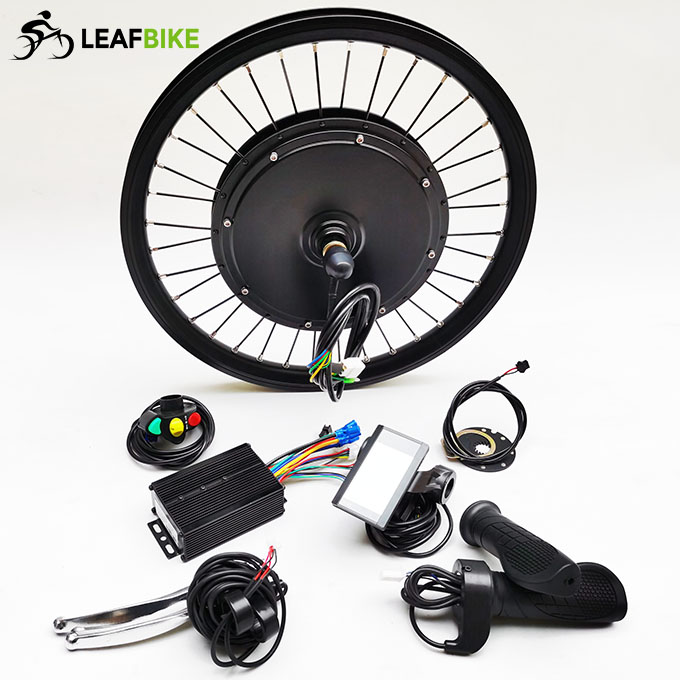

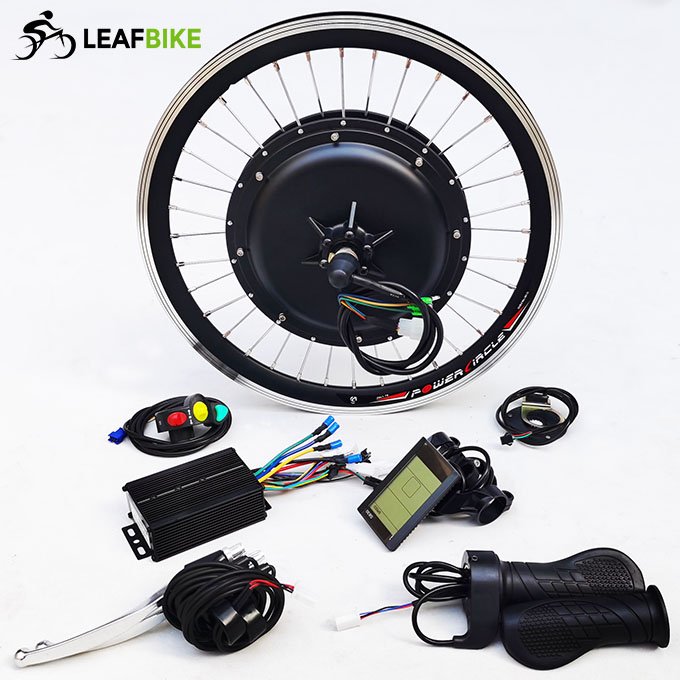

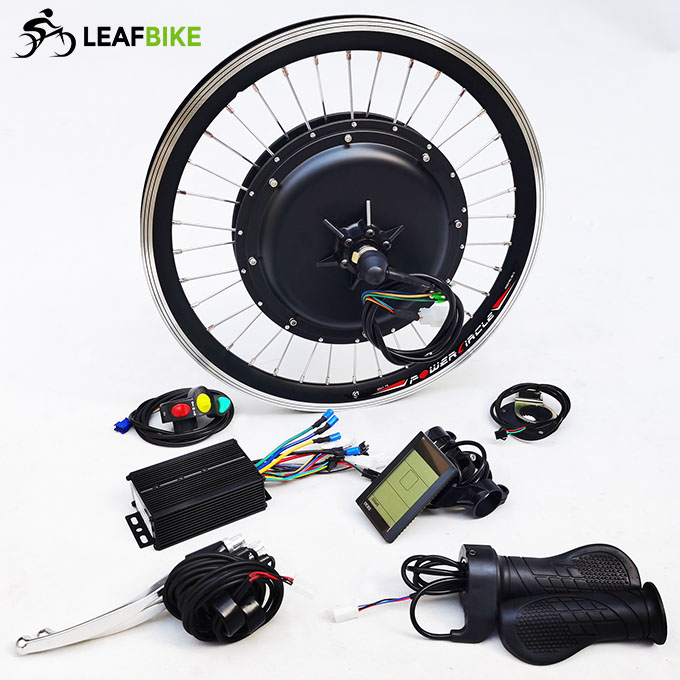

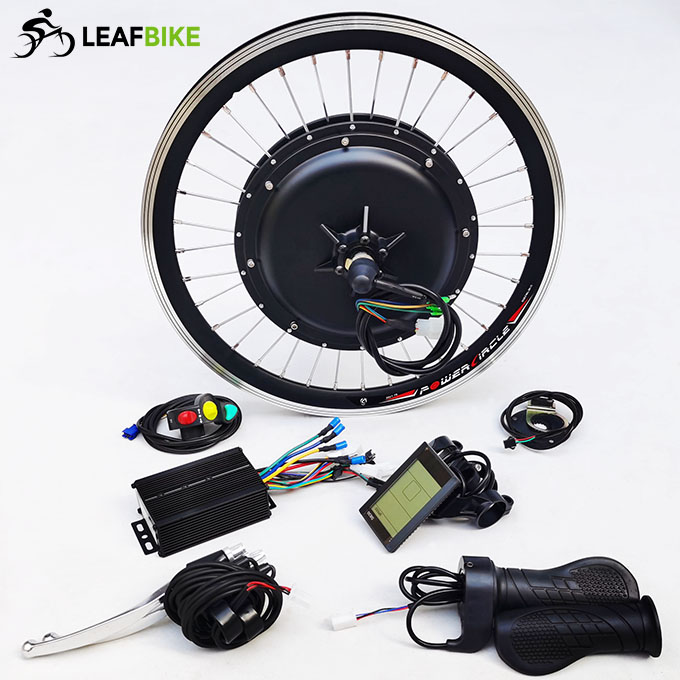

Package Content:

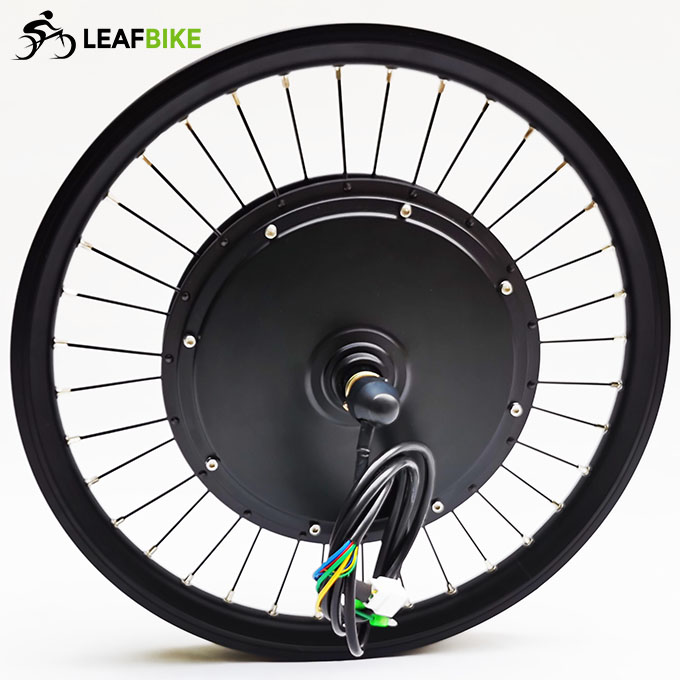

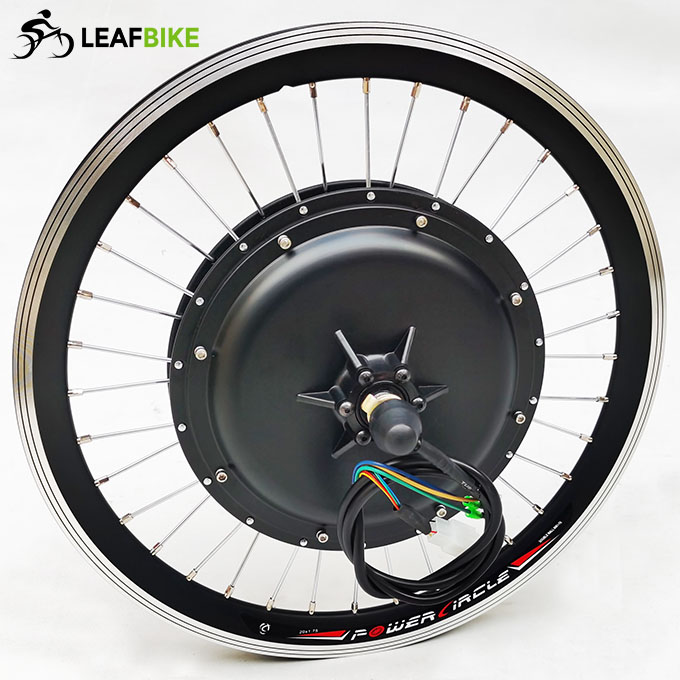

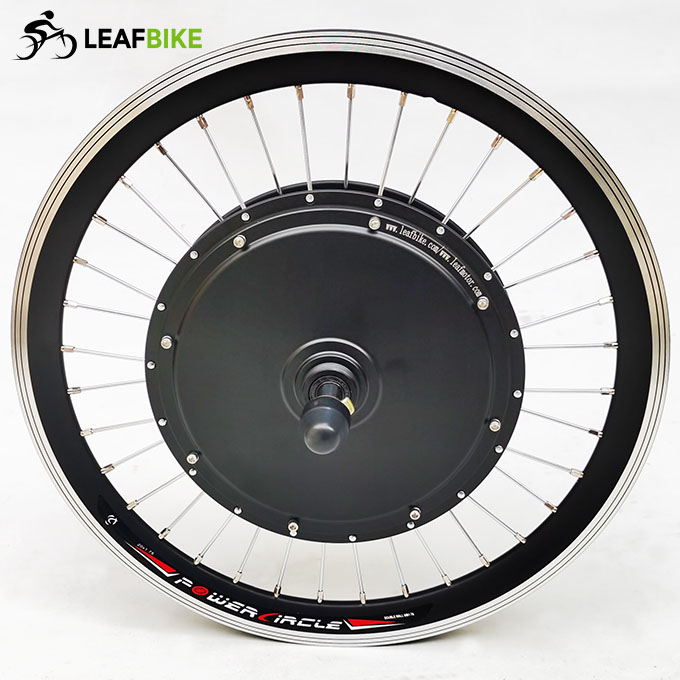

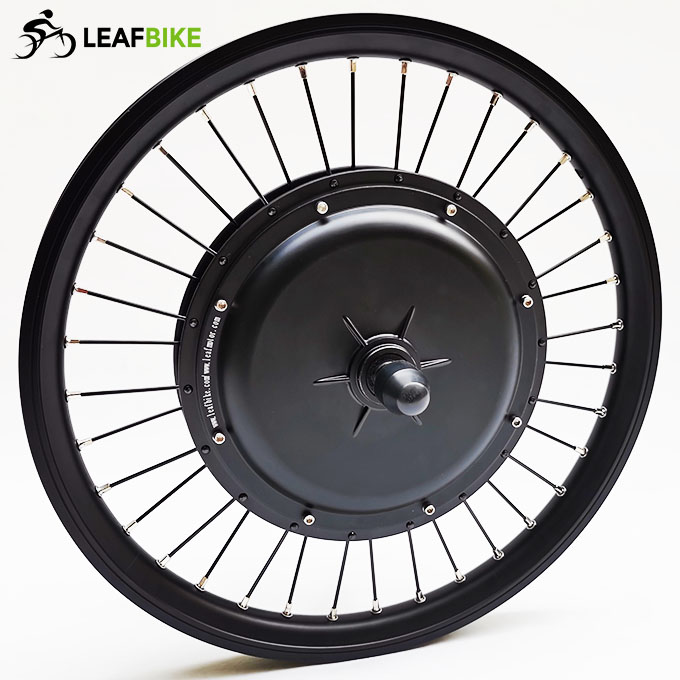

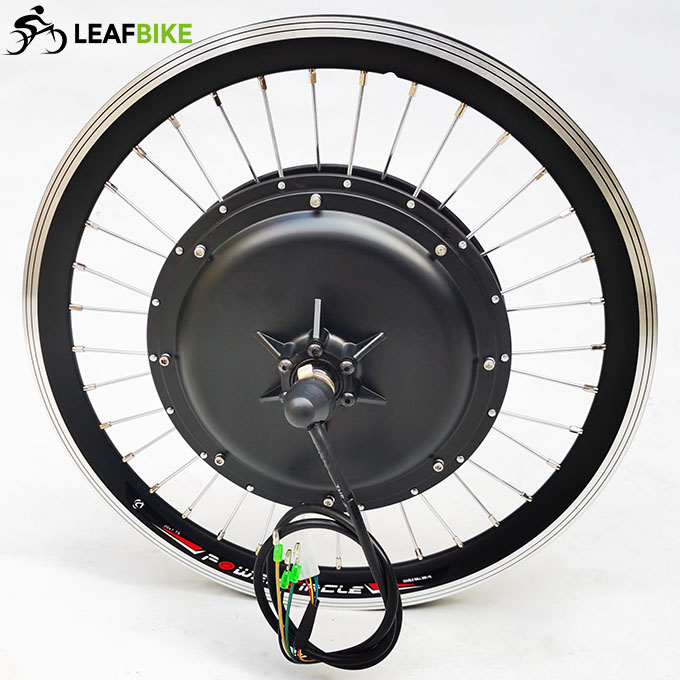

1 x 20 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 9.8 kg / 21.6 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
750w rear Motor Drw.
750W Cassette Drw.
Performance Data:
