20 inch 36V 750W rear casted hub motor - electric bike conversion kit

Name: 20 inch 36V 750W rear casted hub motor - electric bike conversion kit
Brand: Leaf Bike
SKU: LBCK2036750RML
Price: 325 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2036750RML

$325.00 ~~$390.00~~

Maybe You Need These

Description

Please watch video for 20 inch 36V 750W rear casted hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

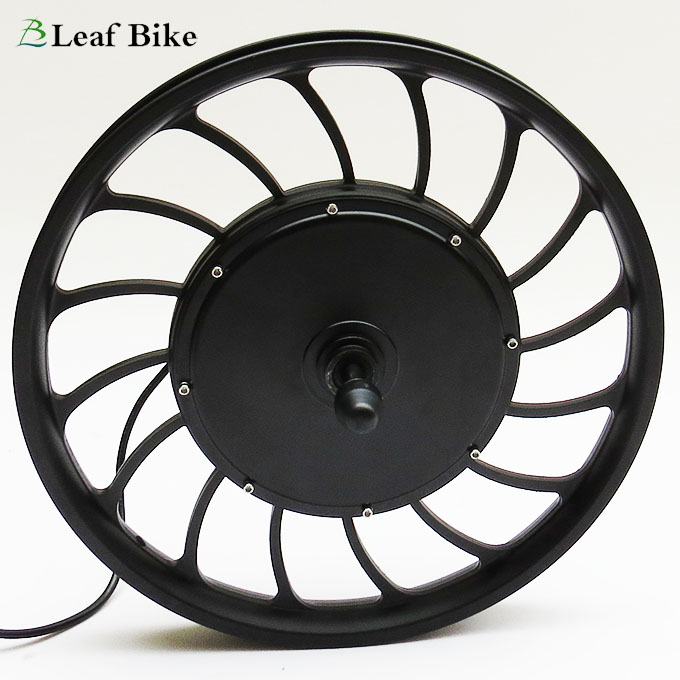

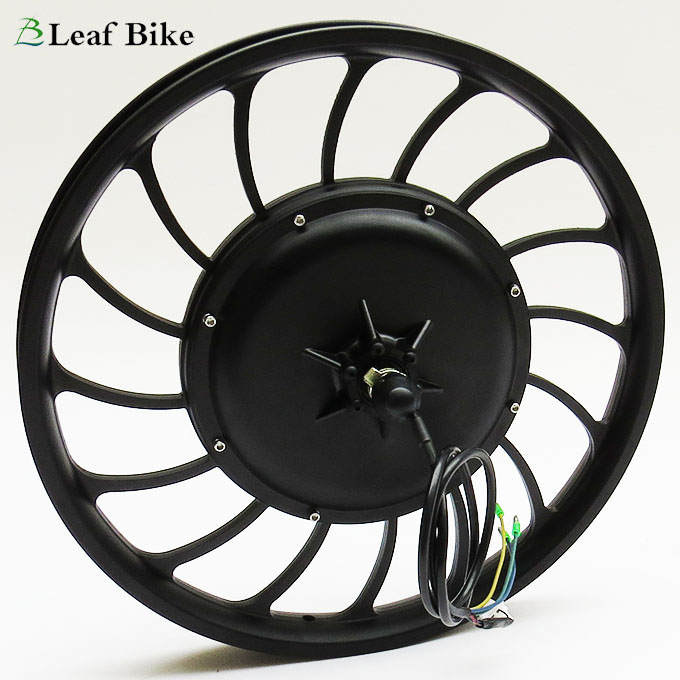

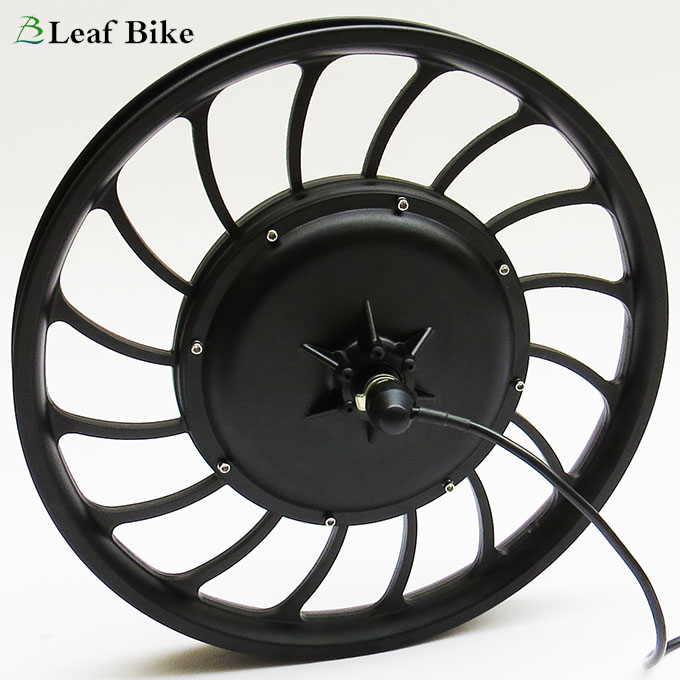

20 inch rear hub motor - electric bike conversion kit

This 20 inch rear electric bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Hub: Ø420mm Aluminum casted (Hub Fit For: 20 × 2.125" ~ Max 2.5" tire)

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 53.5 kmh – 33.2 mph
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 1 speed ~ 7 speed
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

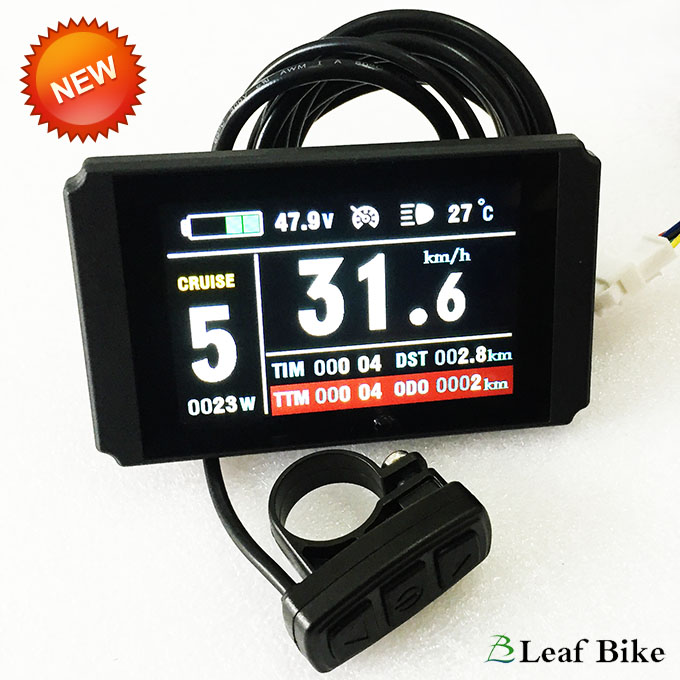

LCD-008HUP With USB Port & Color screen, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

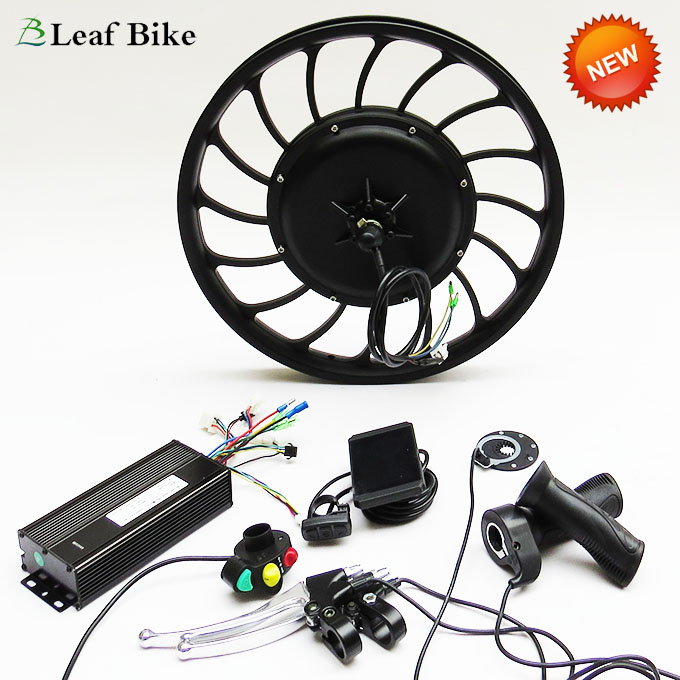

Package Content:
1 x 20 inch 36V 750W rear casted hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-008HUP With USB Port & Color screen
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 9.7 kg / 21.3 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

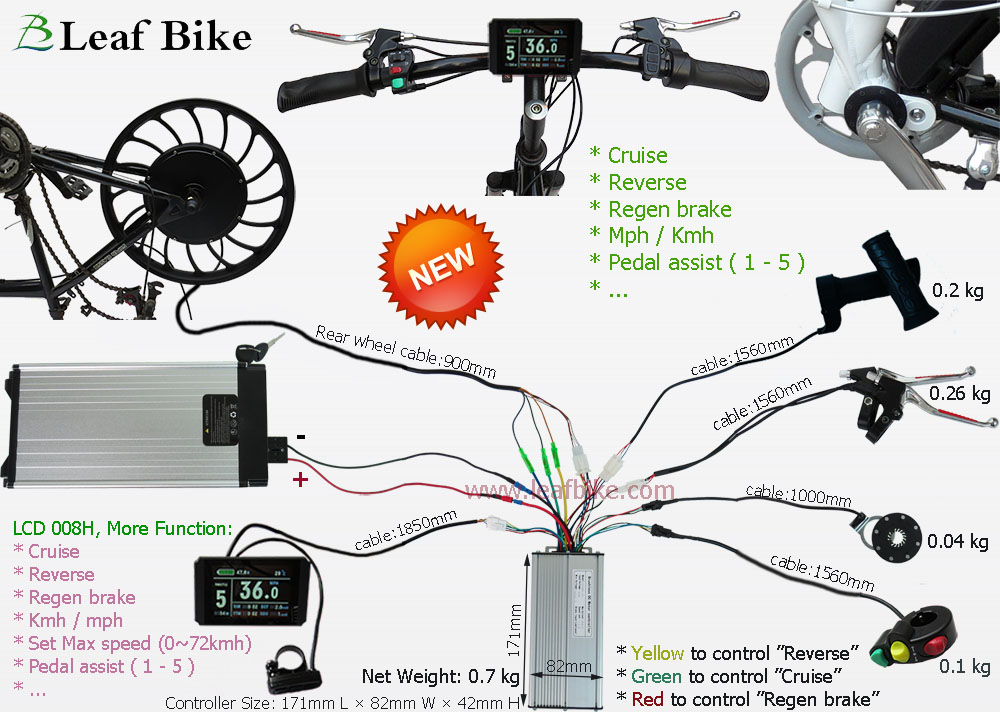

Wire Diagram:

20 inch Rear Drw.

Performance Data:
