BMX 20 inch 60V 2000W rear hub motor - electric bike conversion kit

Name: BMX 20 inch 60V 2000W rear hub motor - electric bike conversion kit
Brand: Leaf Bike
SKU: LBCK20602000RNB
Price: 393 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20602000RNB

$393.00 ~~$438.00~~

Wholesale :

Quantity :

1 * $393 = $393

Maybe You Need These

Description

This 20 inch BMX bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

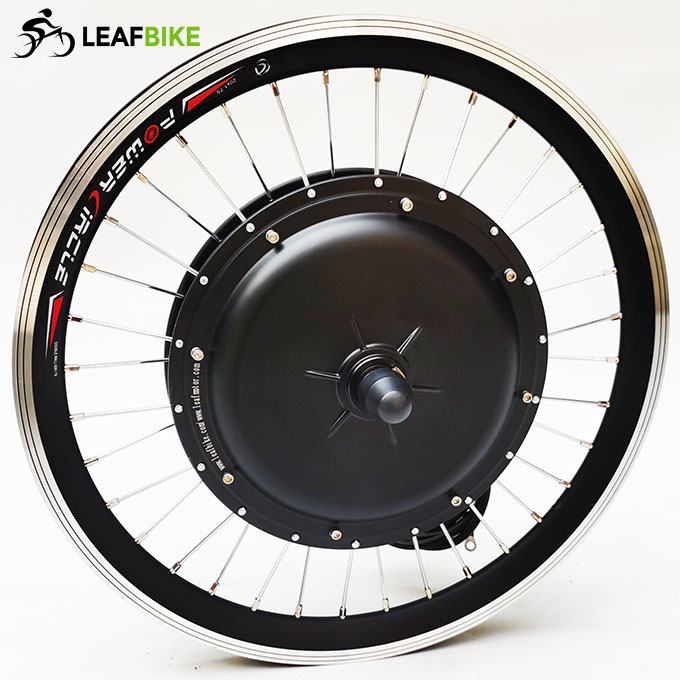

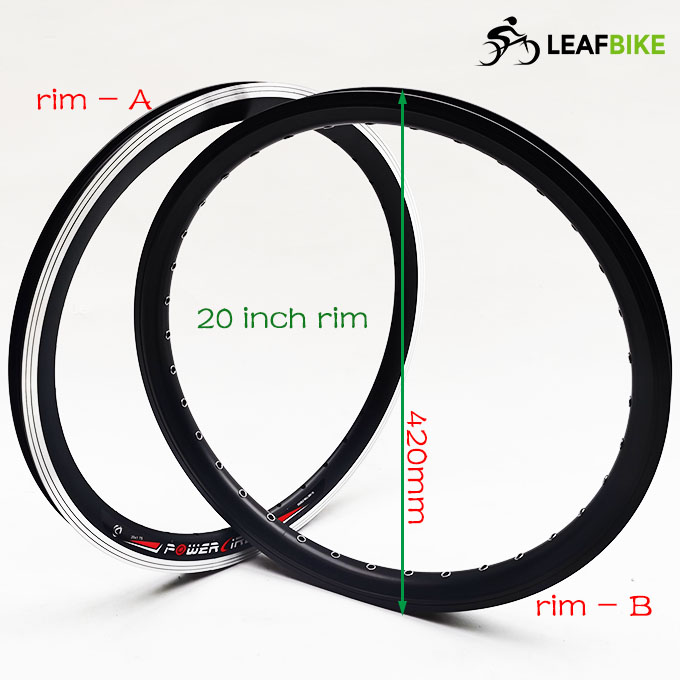

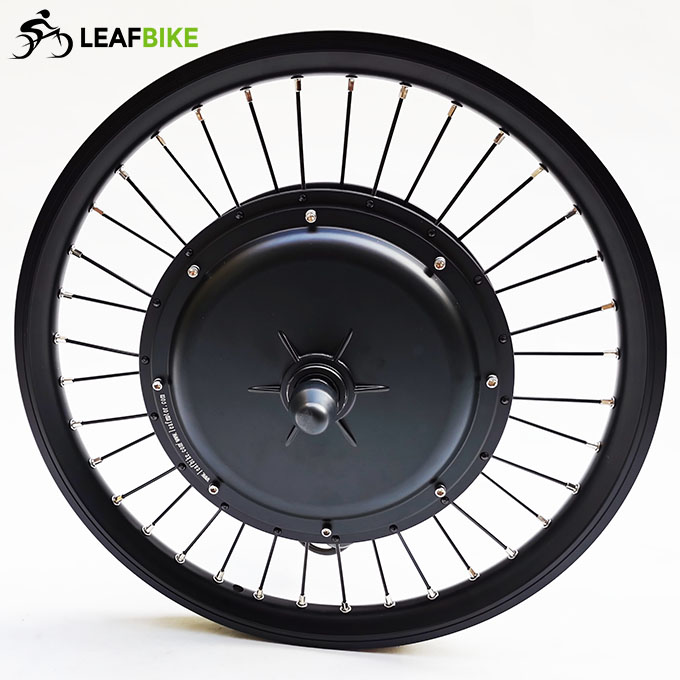

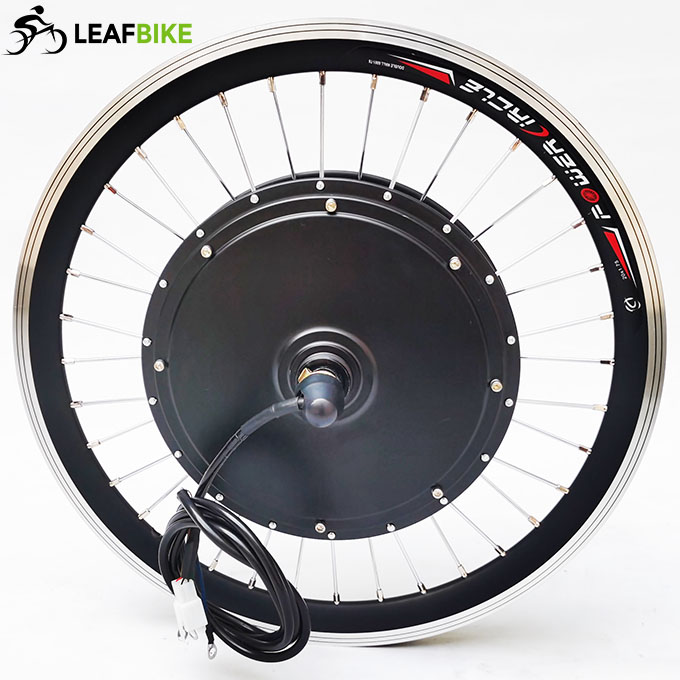

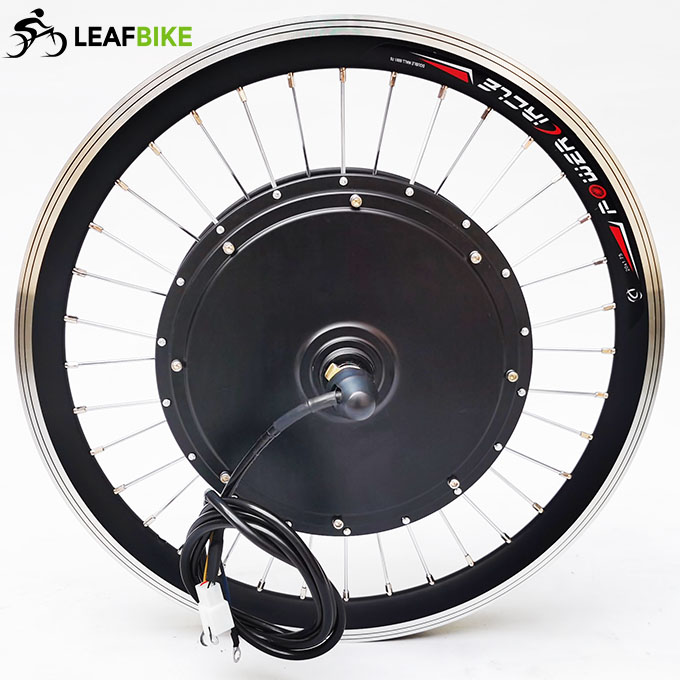

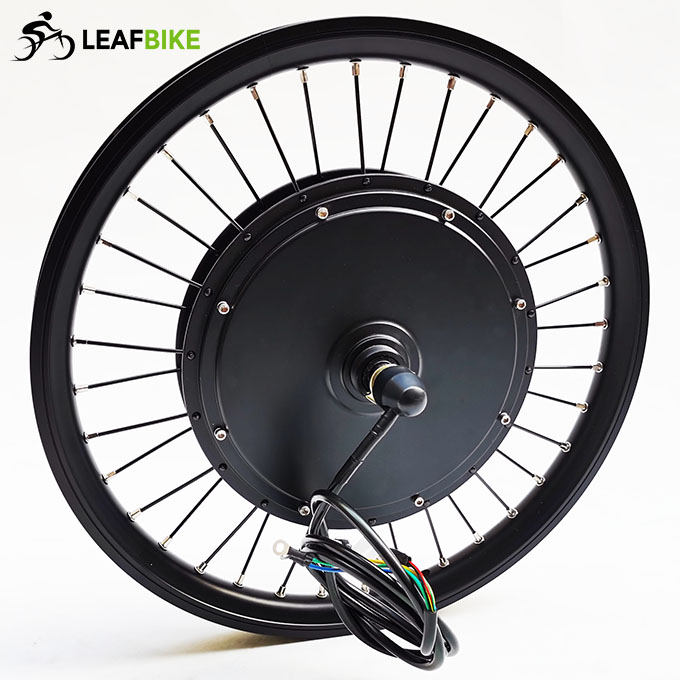

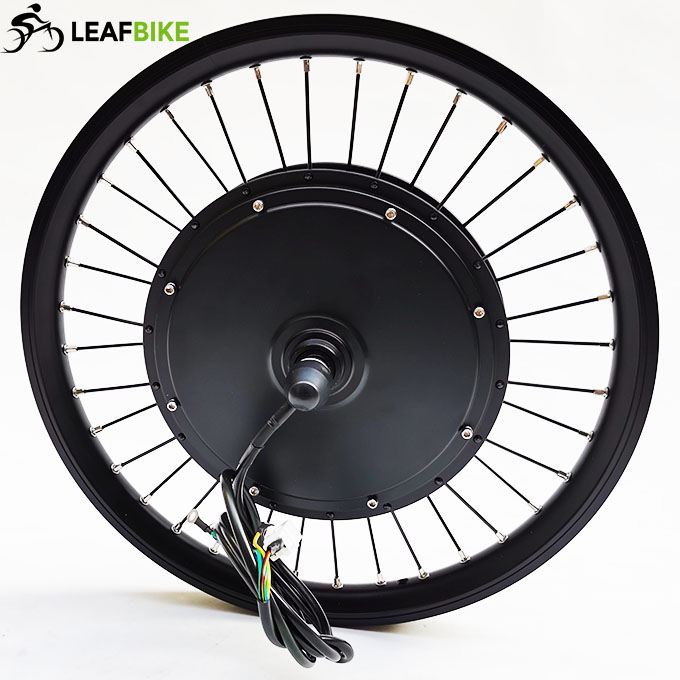

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.35" / 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

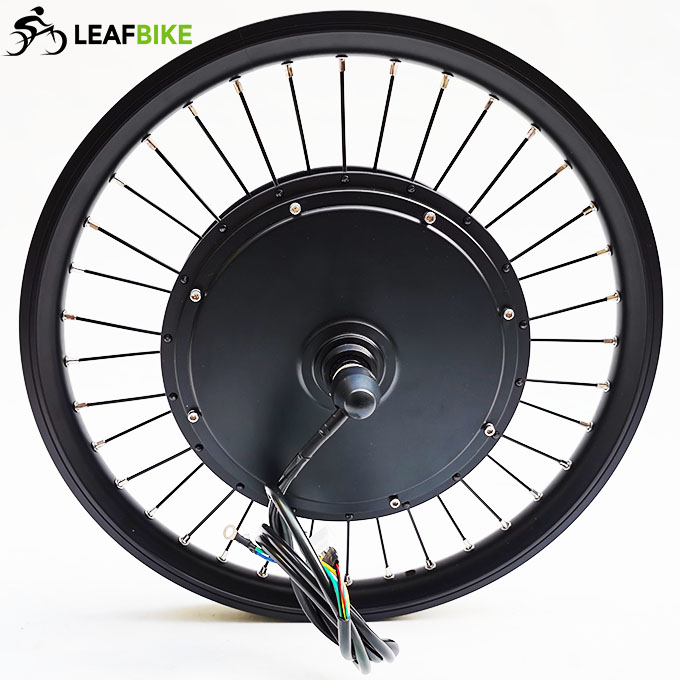

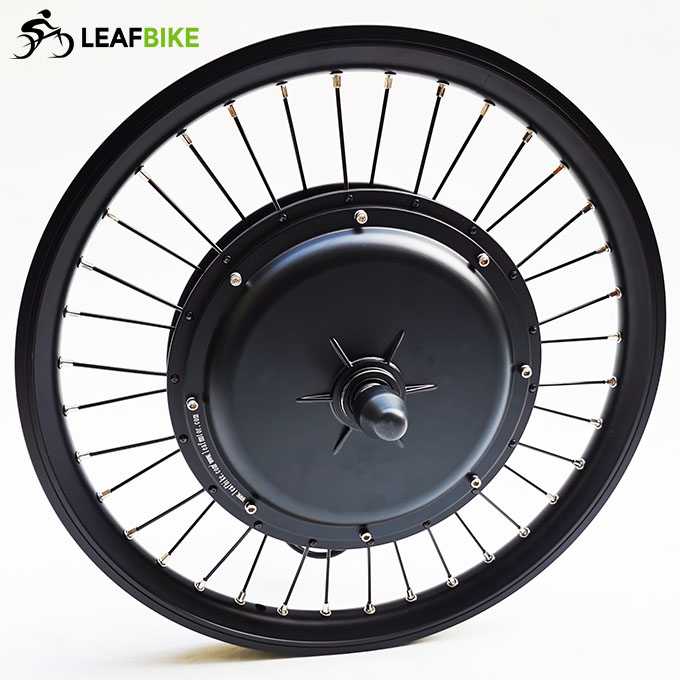

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 40mph
>>. Mechanical brake: V
>>. Freewheel: single speed cog
>>. Cable location: Shaft end, Right
>>. Cable length:150cm / 60"
>>. Install: spacing of 110mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

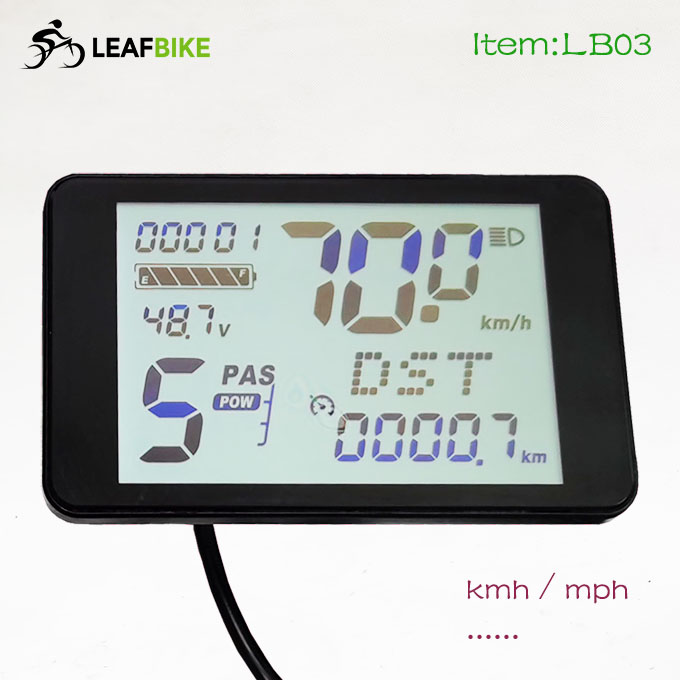

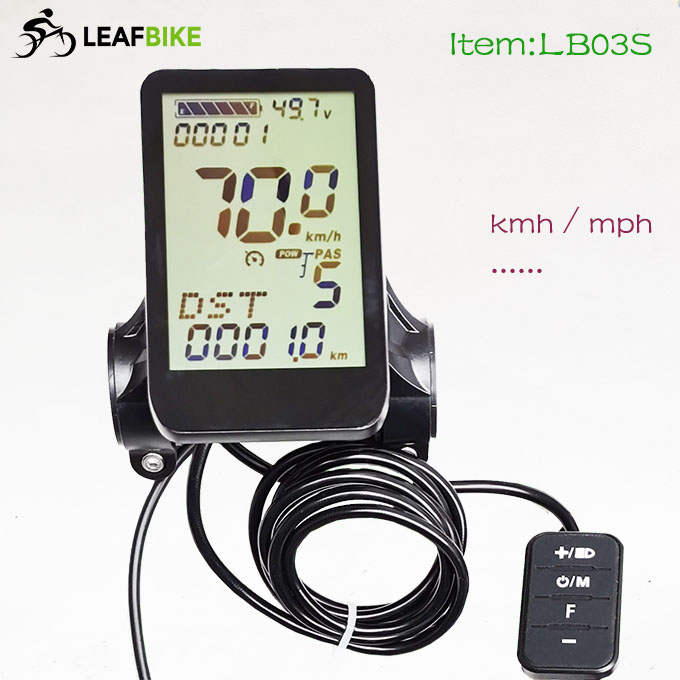

With LCD, More function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ...

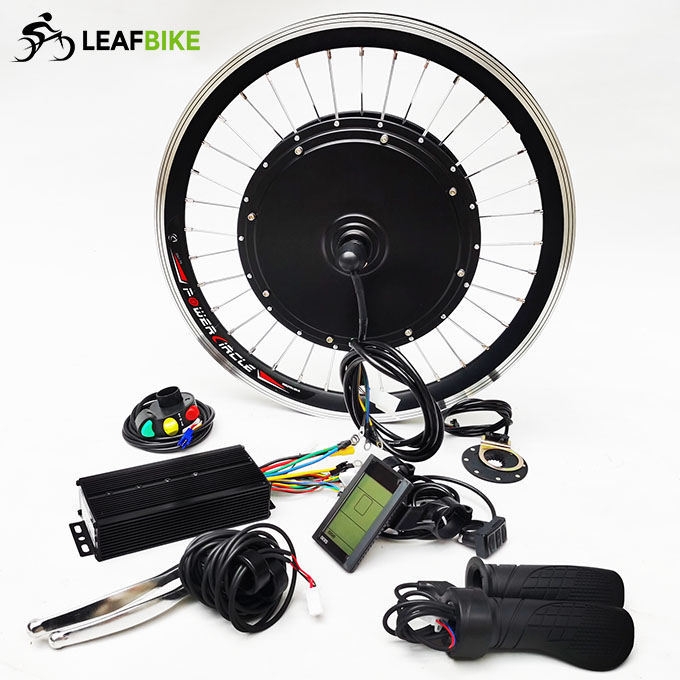

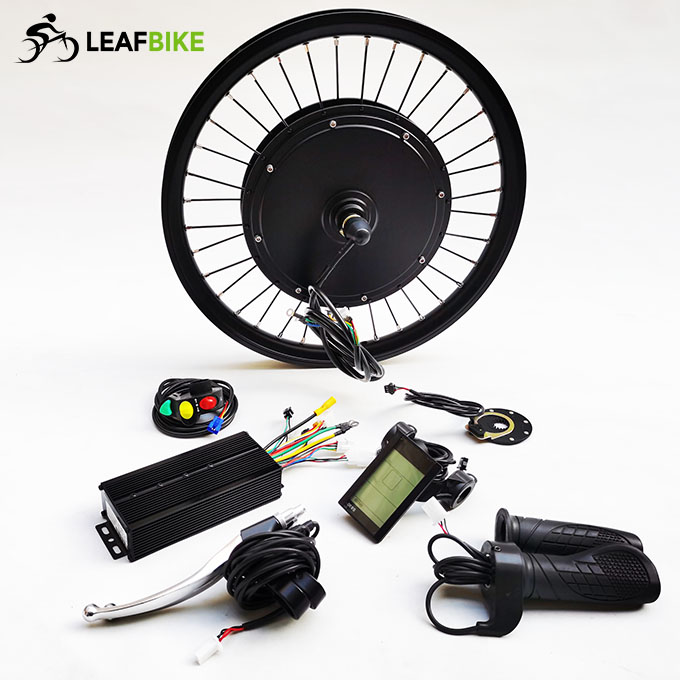

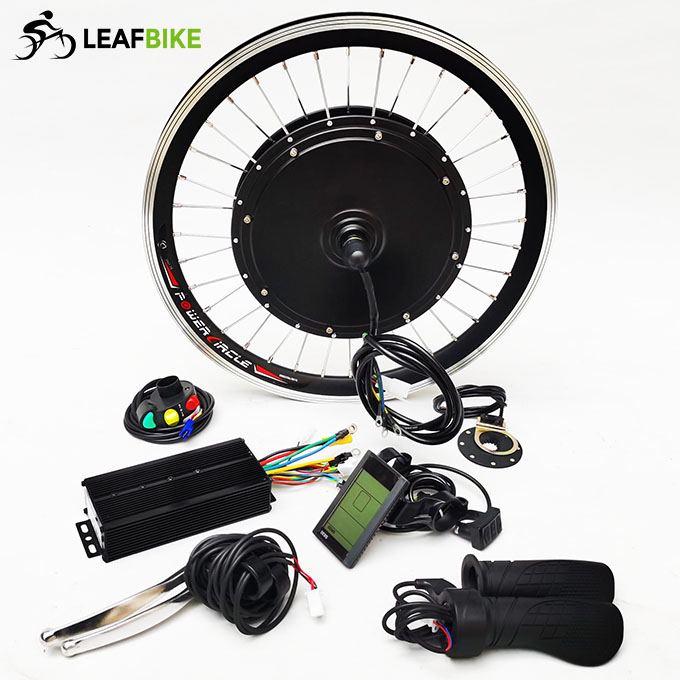

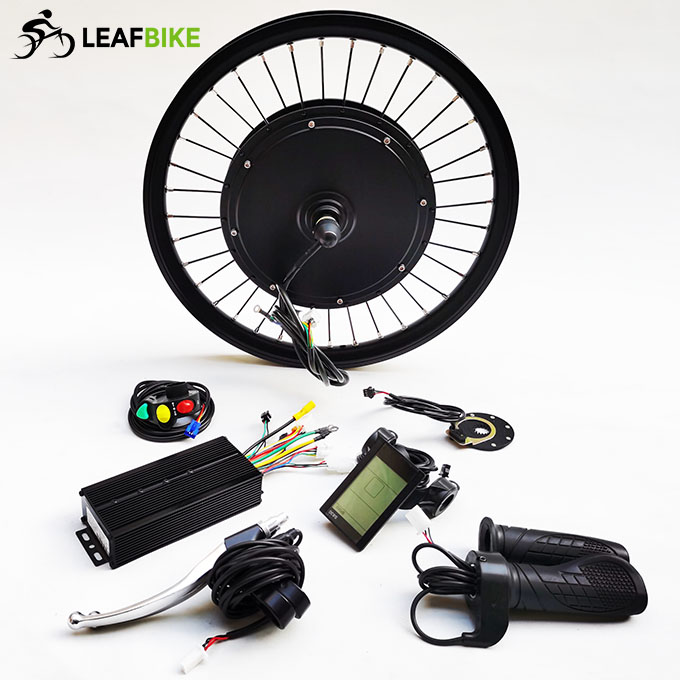

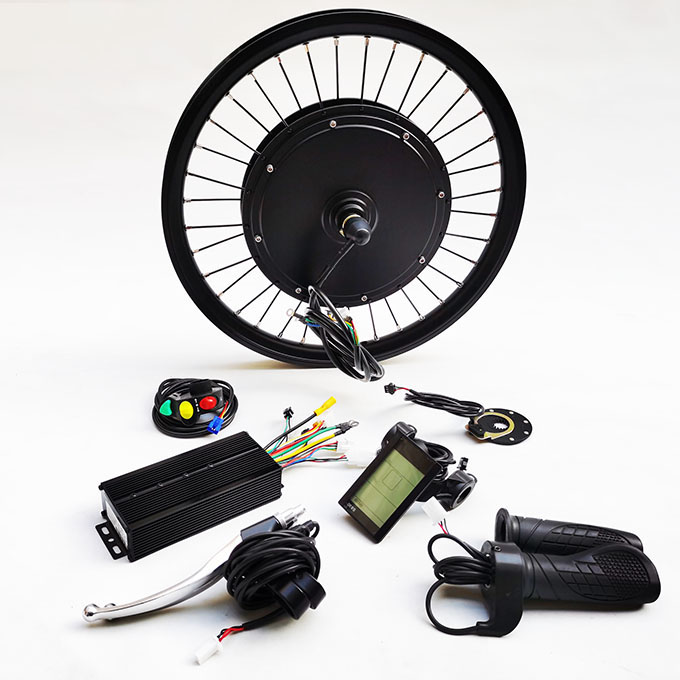

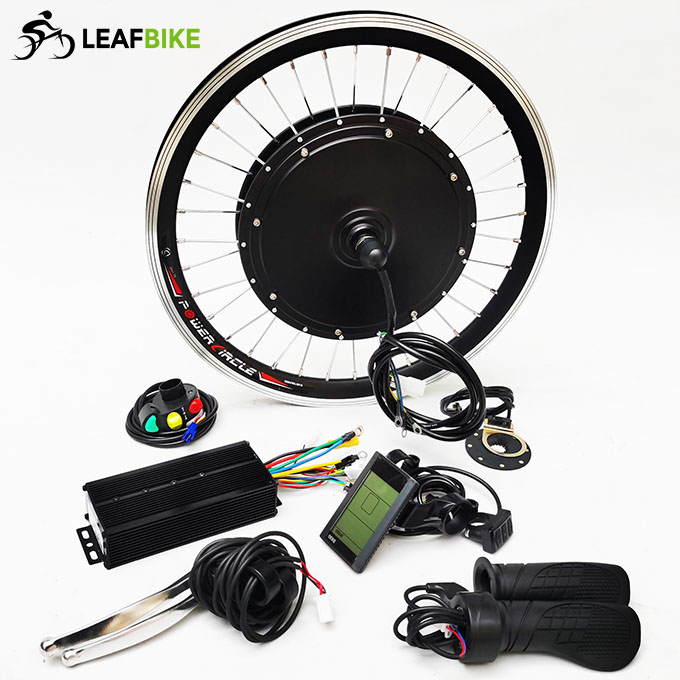

Package Content:

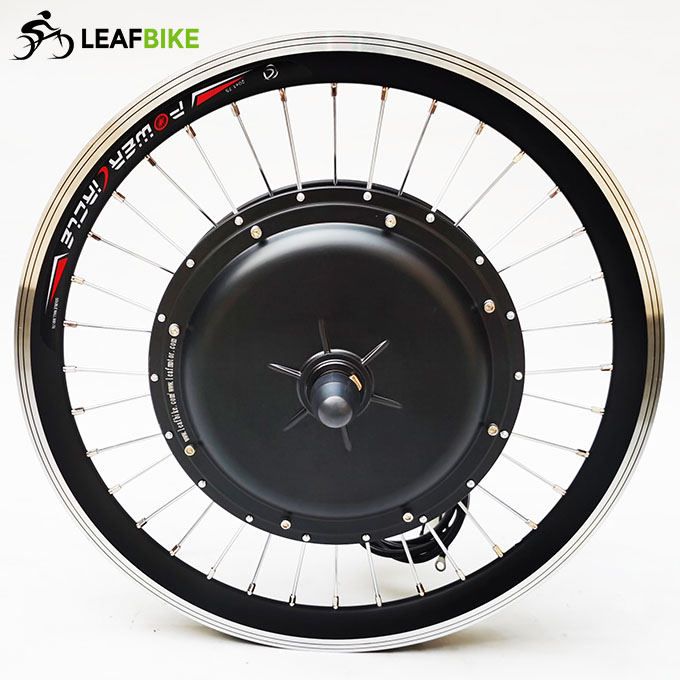

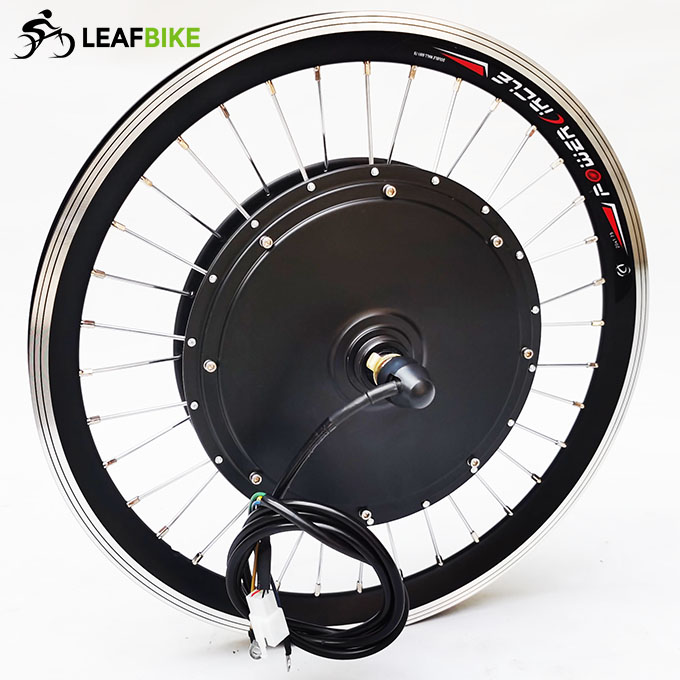

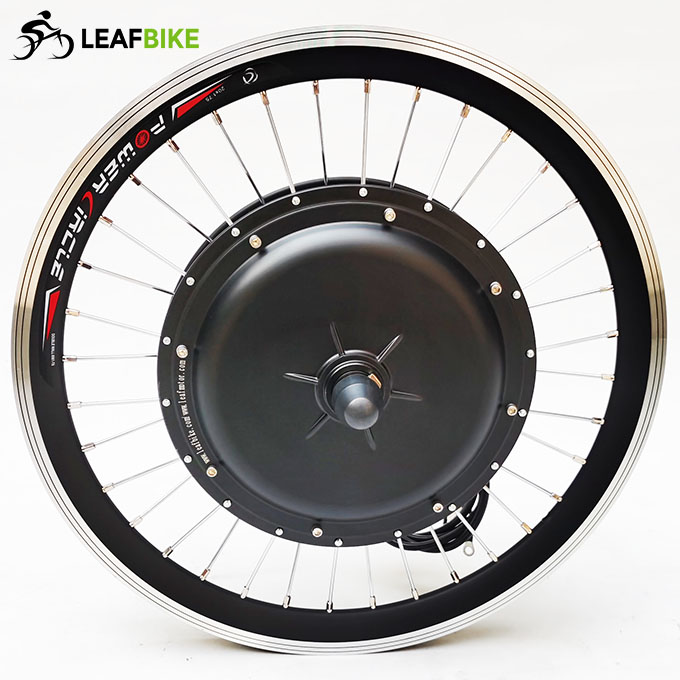

1 x BMX 20 inch 60V 2000W rear hub motor wheel (Fit for 110mm rear dropout)
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.0 kg
Package Size: 50cm L x 50cm W x 23cm H
Package Type: Cardboard Box

Wire Diagram:

BMX Motor Drw.
