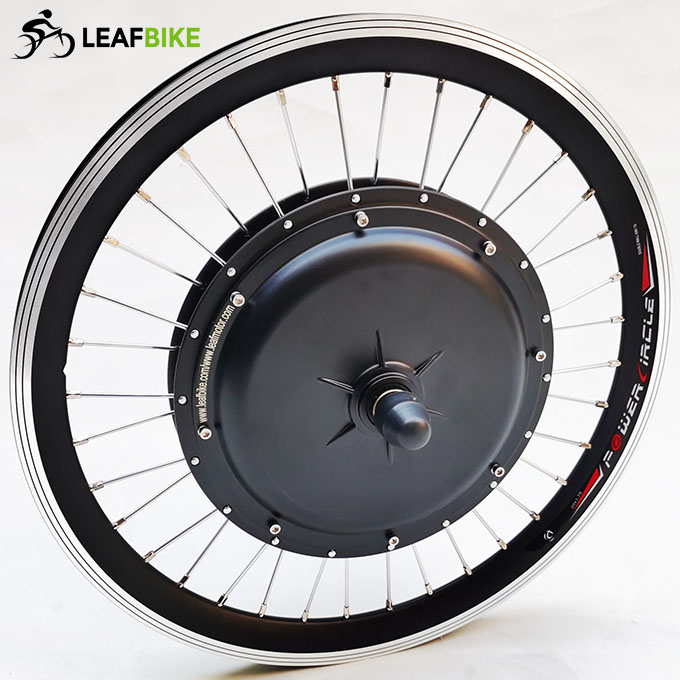

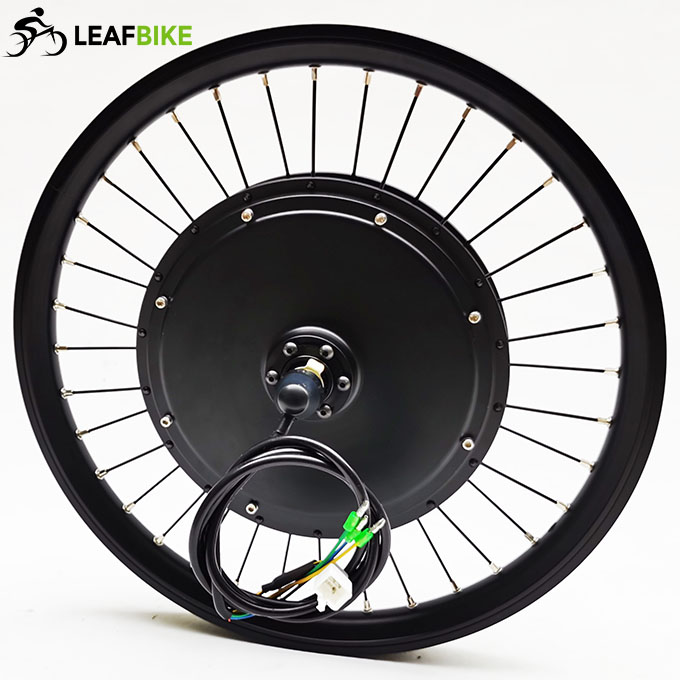

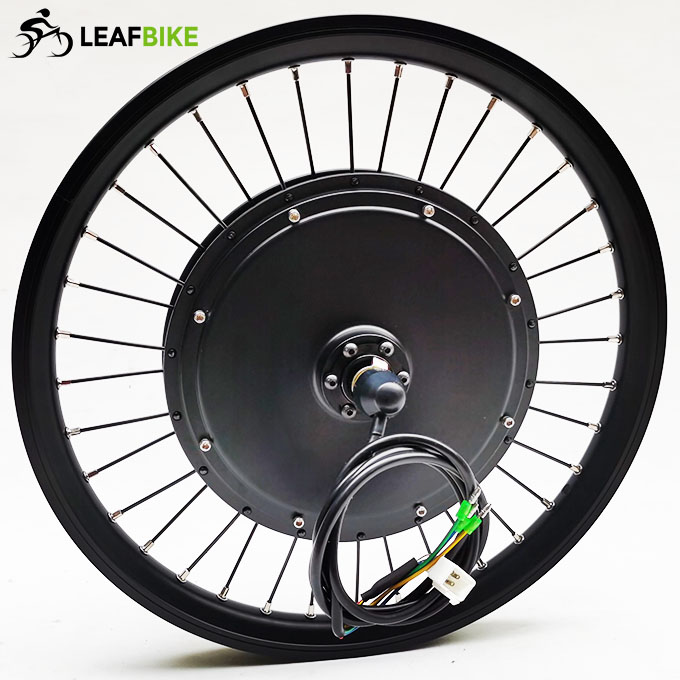

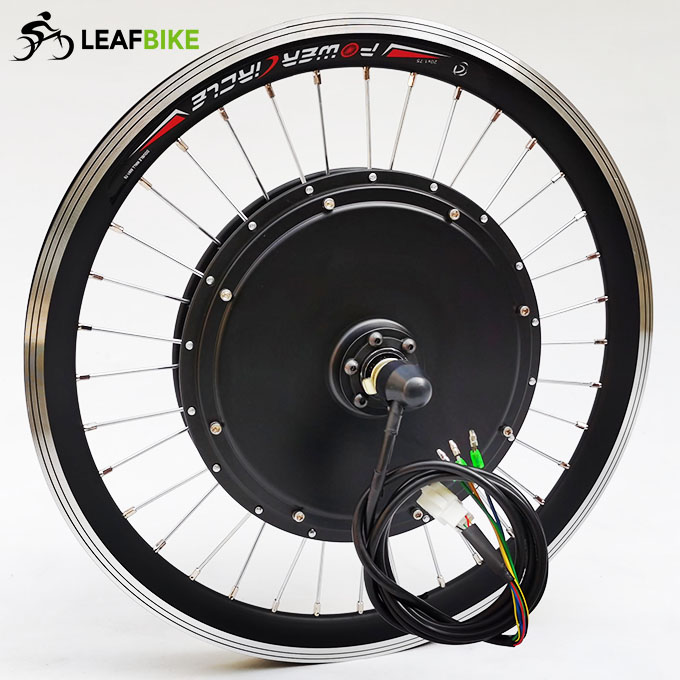

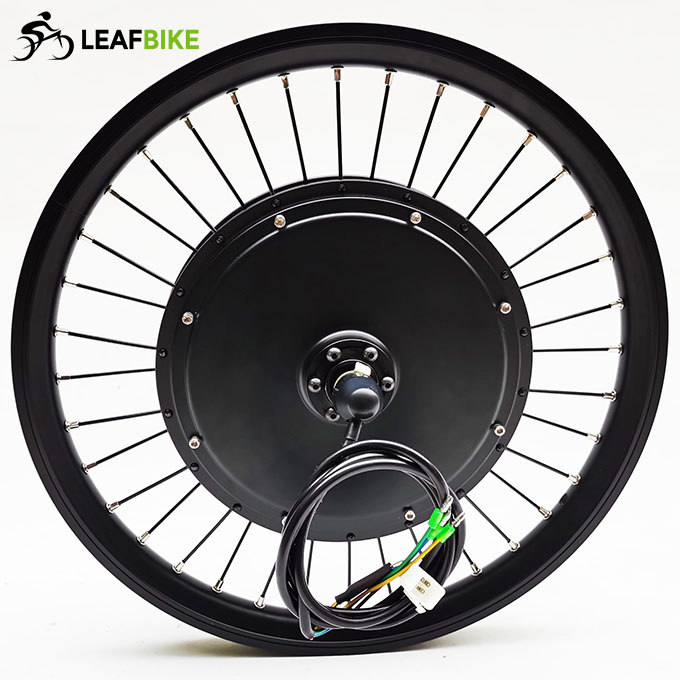

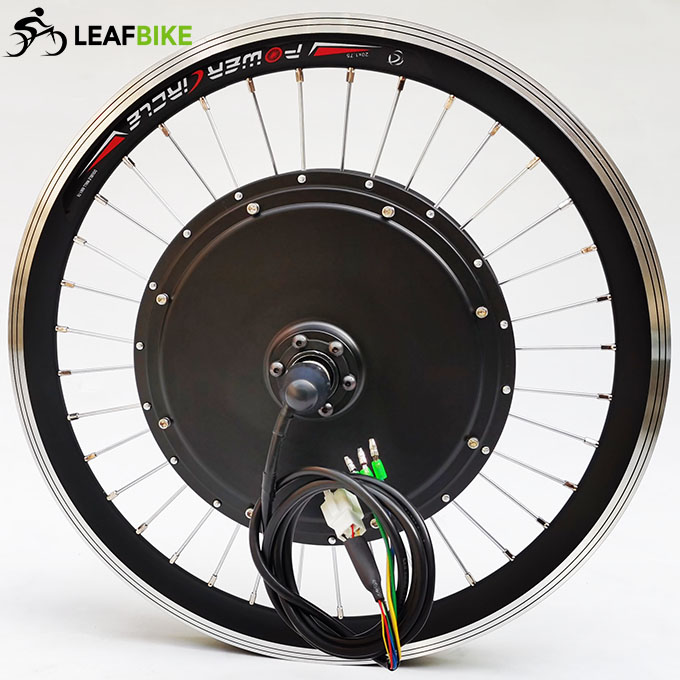

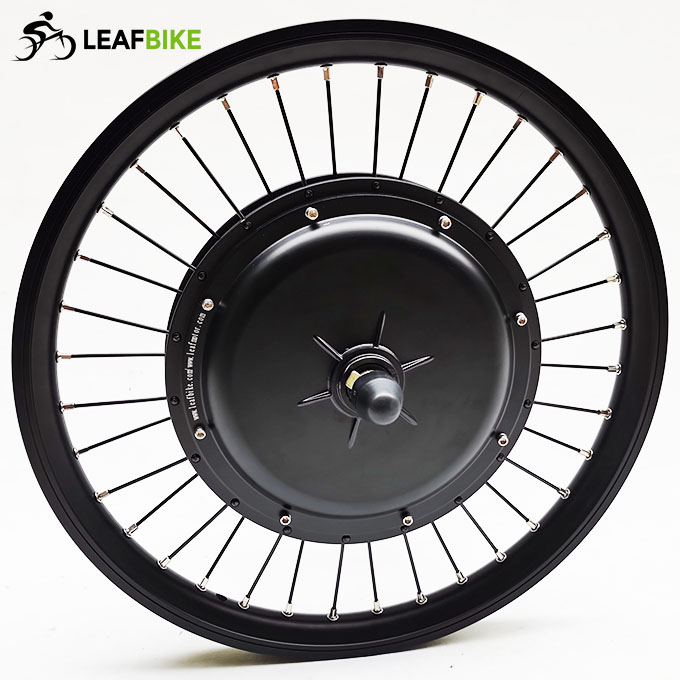

20 inch 36V 750W electric bike kit - front wheel

Item ID #LBCK2036750FN
$301.00 $350.00
    Please select the information you wantX
  • Tyre Size :
    20 x 1.5" / 1.75"
    20 x 1.95" / 2.0" / 2.1" ~ 2.5"
  • LCD :
    S830
    SW900
    08HU
    08SU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch videos for 20 inch 36V 750W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
20 inch 36v 750w front hub motor kit video
Share Video:
20 inch 36v 750w front hub motor kit
Share Video:
20 inch 36v 750w front electric hub motor - bike conversion kit

The 20 inch 36V 750W front hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

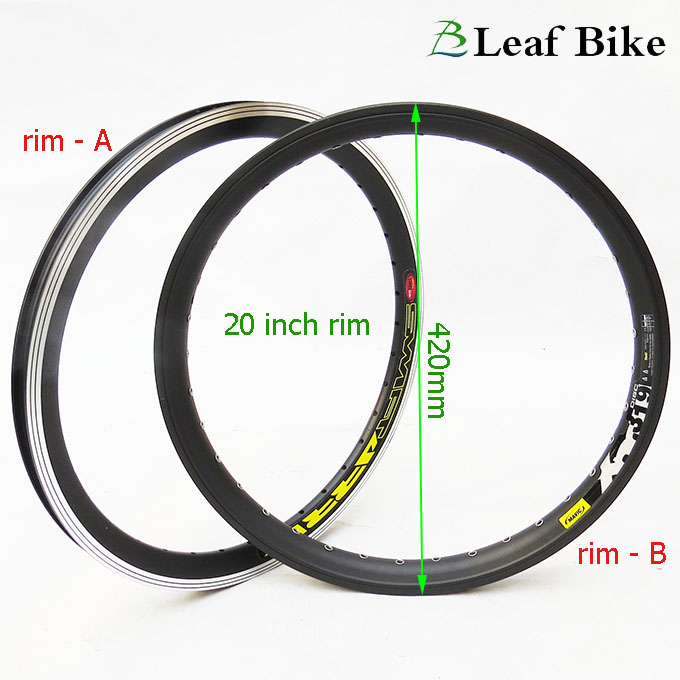

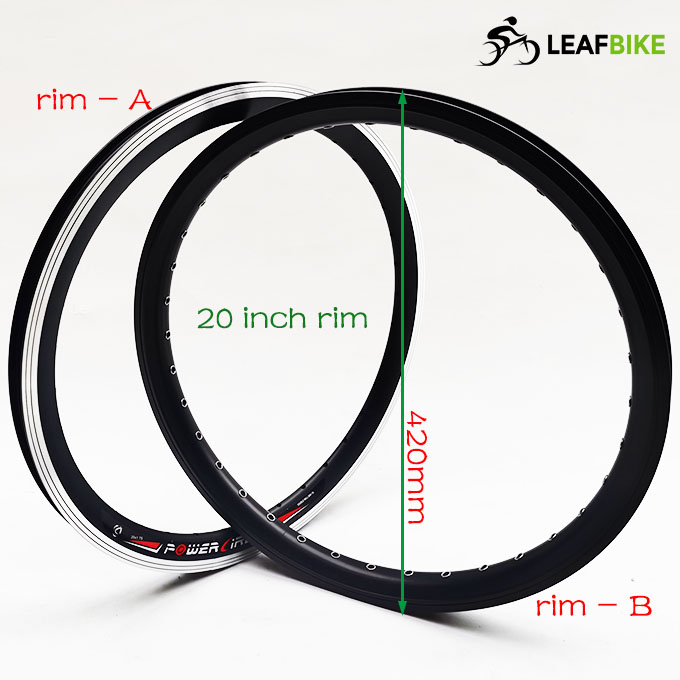

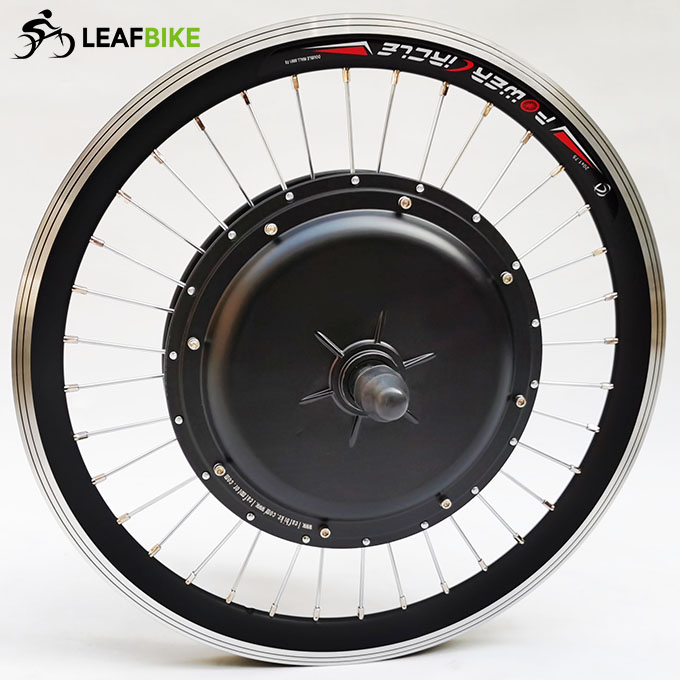

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

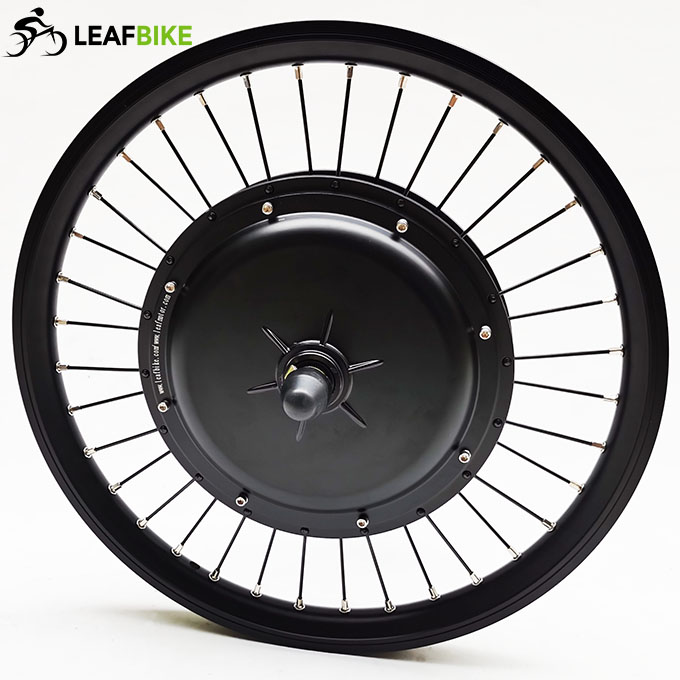

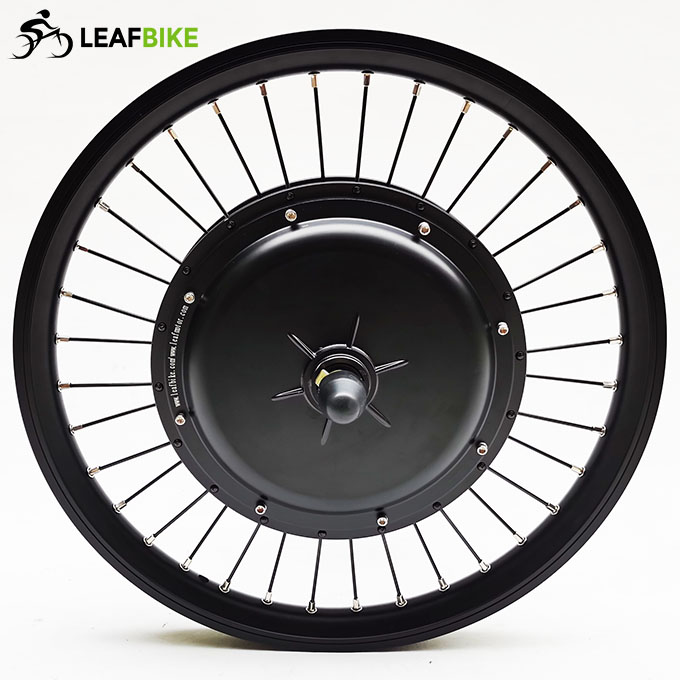

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs

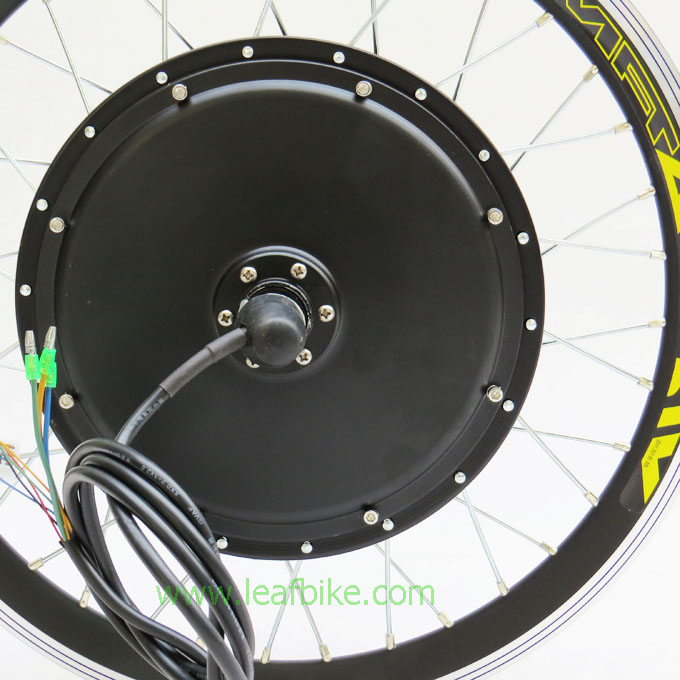

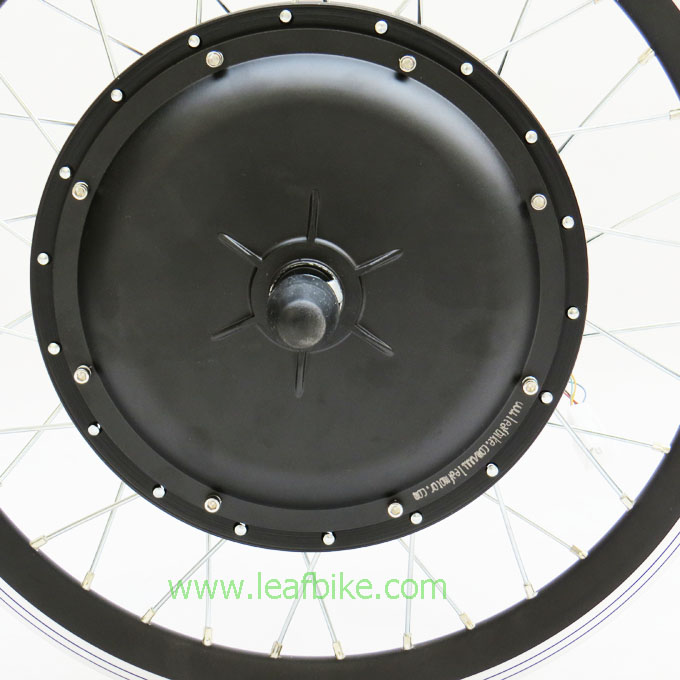

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 28 mph
>>. Mechanical brake: Disk or  V

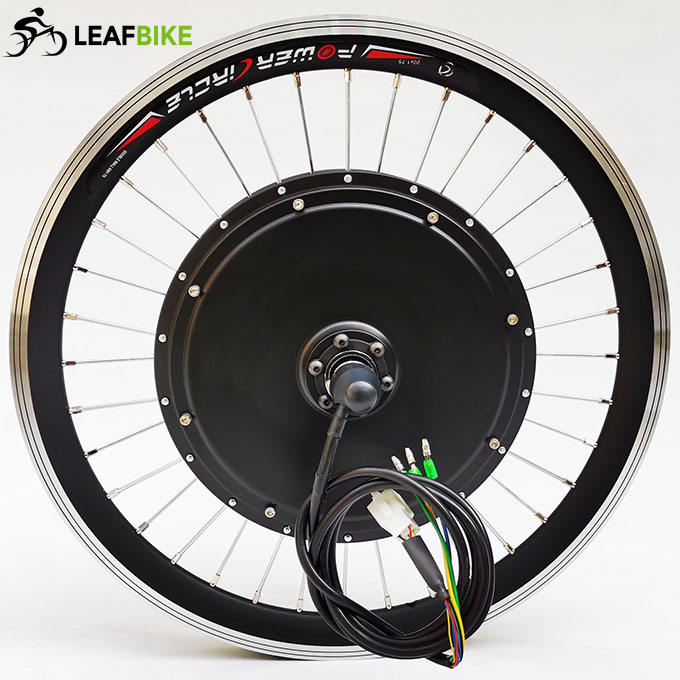

>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* ...

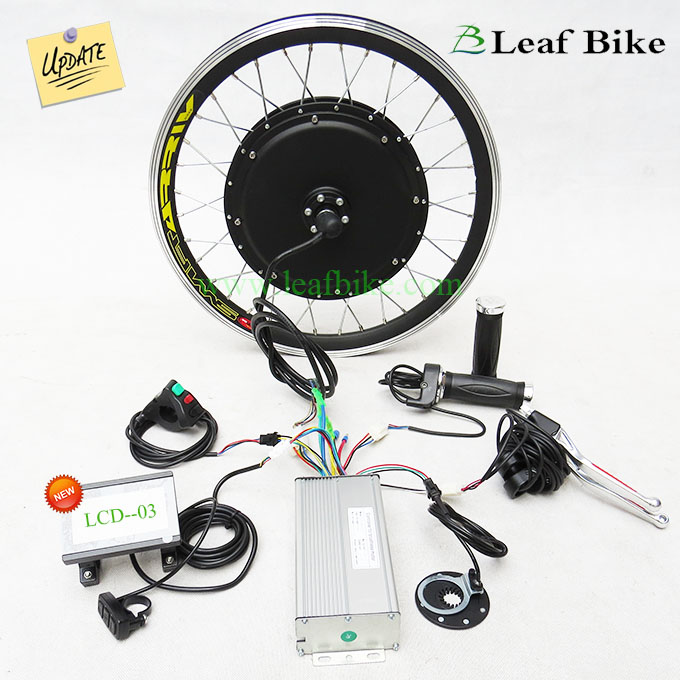

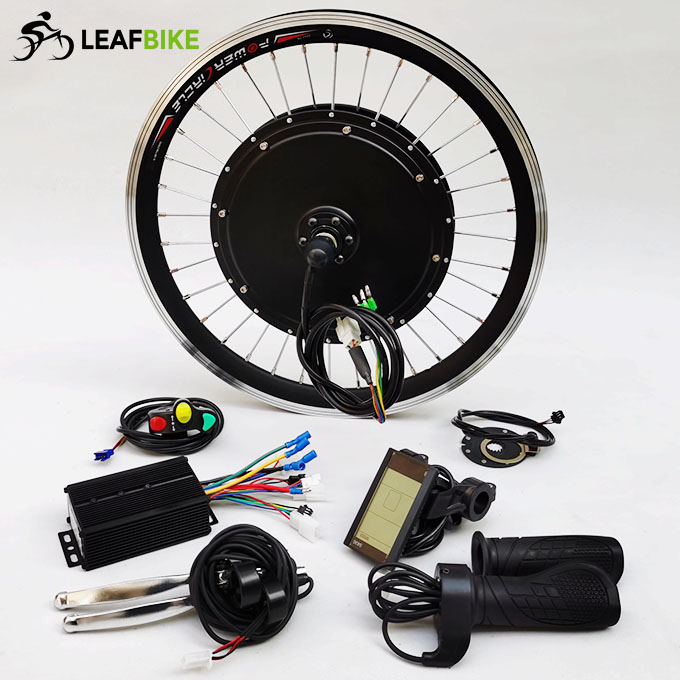

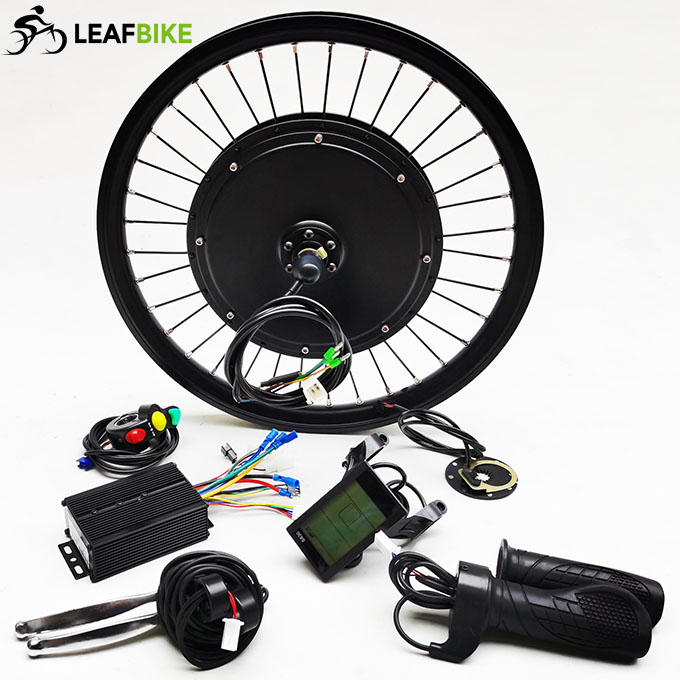

Package Content:

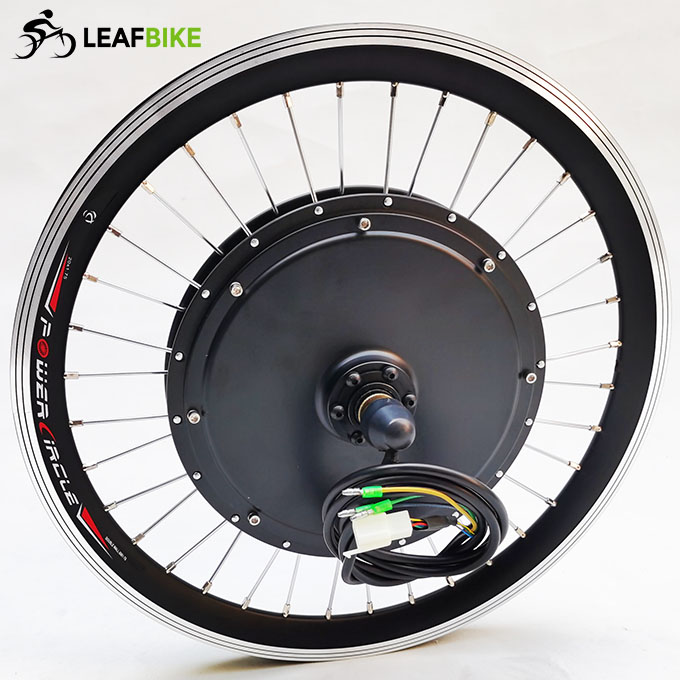

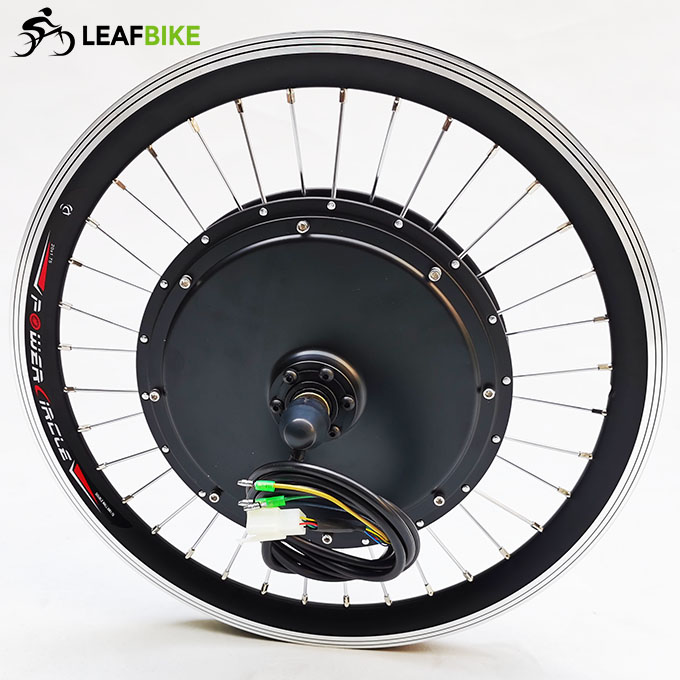

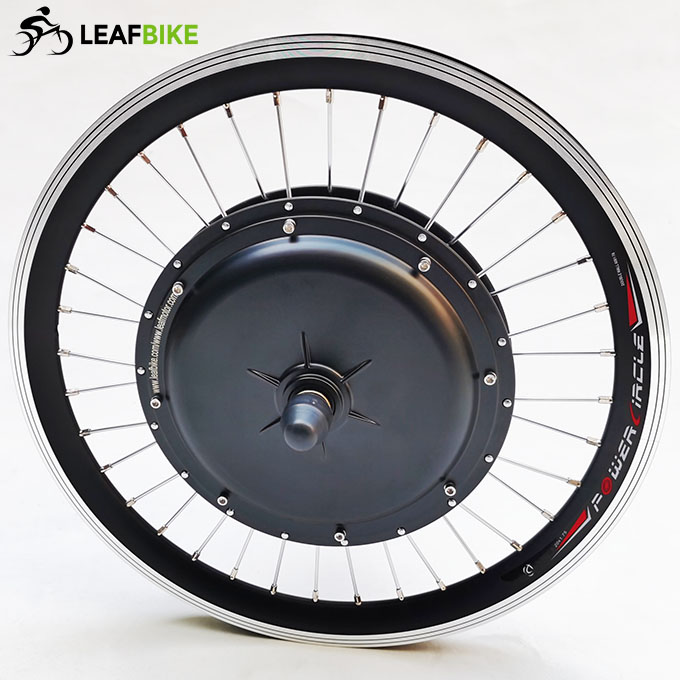

1 x 20 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 9.3 kg   /  20.5 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

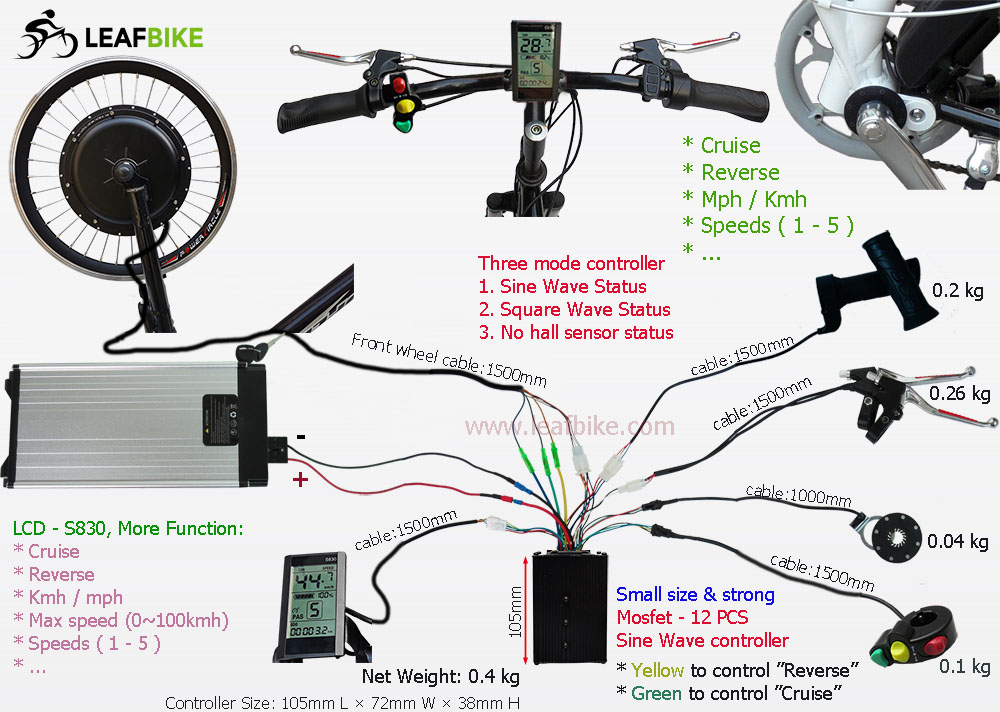

Wire Diagram:
20 inch 750w front hub motor electric bike conversion kit wire diagram
750w Front Drw.
36v 750w front hub motor drawing
Performance Data:
750w-electric-hub-motor-performance-data-curve
