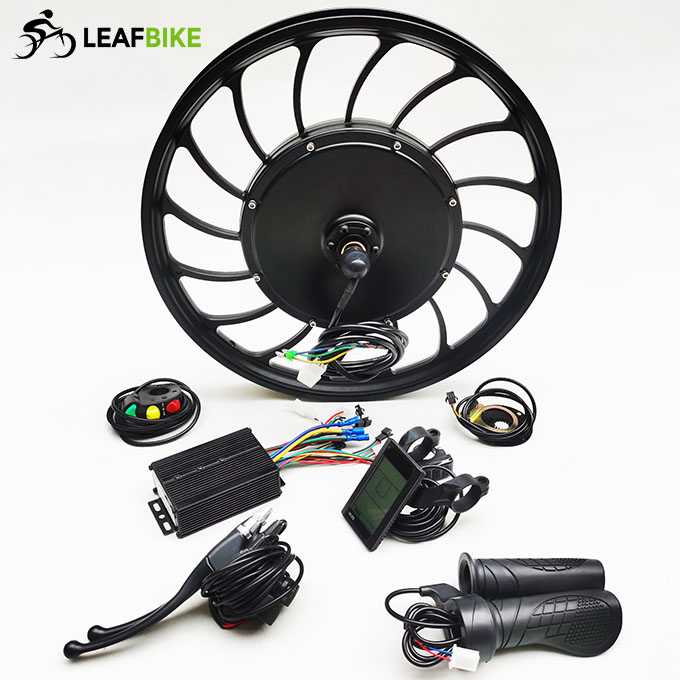

20 inch 36V 750W electric bike kit - front casted hub wheel

Name: 20 inch 36V 750W electric bike kit - front casted hub wheel
Brand: Leaf Bike
SKU: LBCK2036750FM
Price: 299 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2036750FM

$299.00 ~~$348.00~~

Maybe You Need These

Description

Please watch video for 20 inch 36V 750W front casted hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 50kmh..

Share Video:

20 inch front casted hub motor kit video

This 20 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

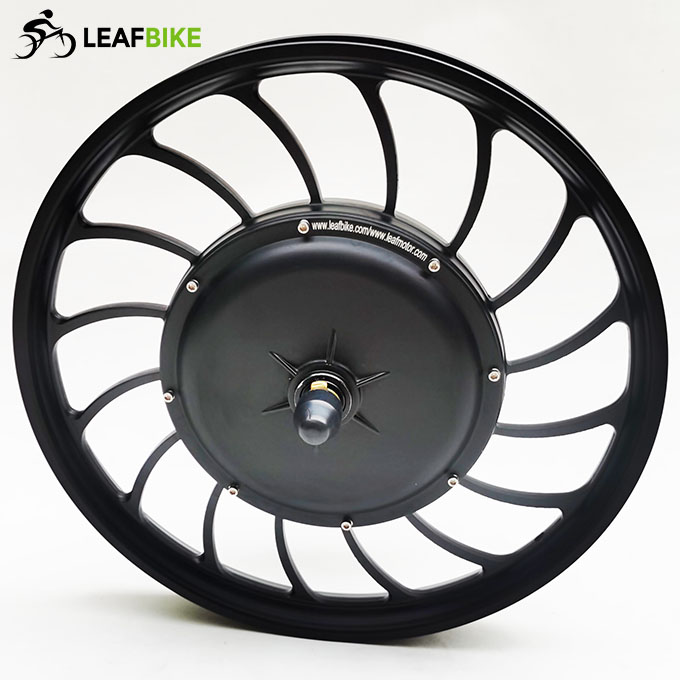

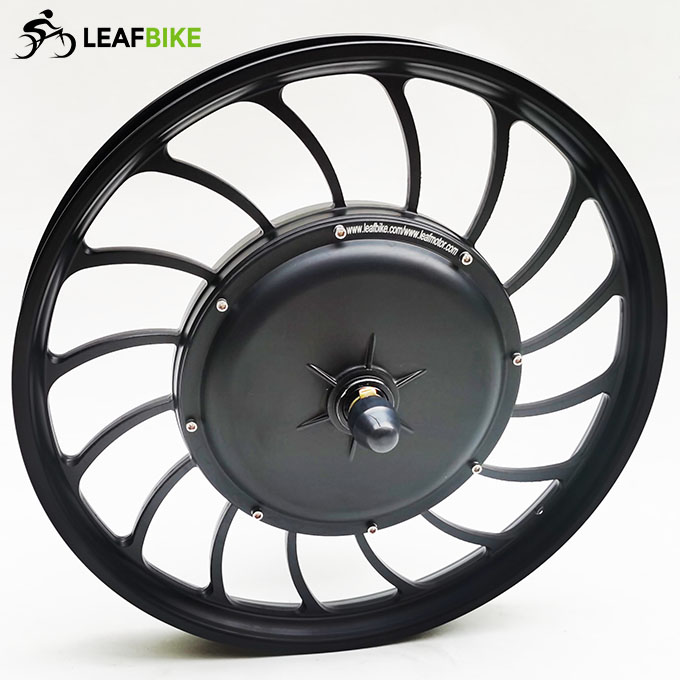

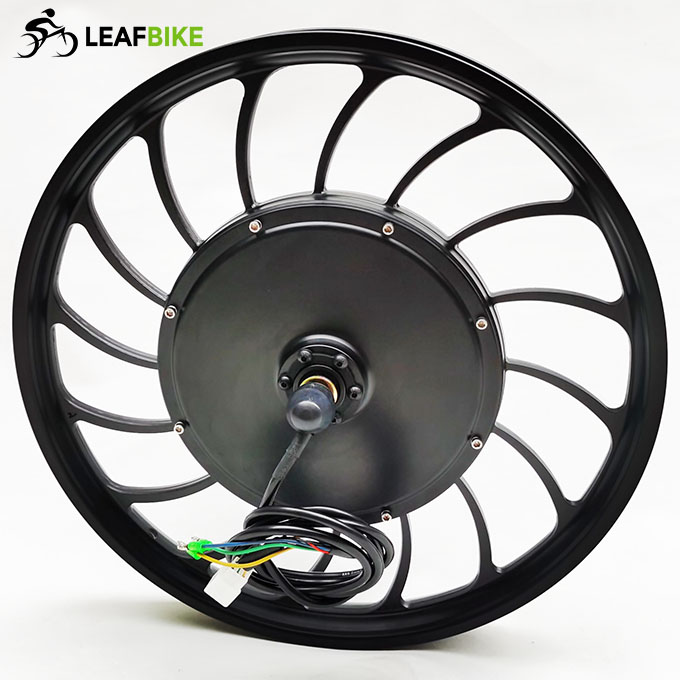

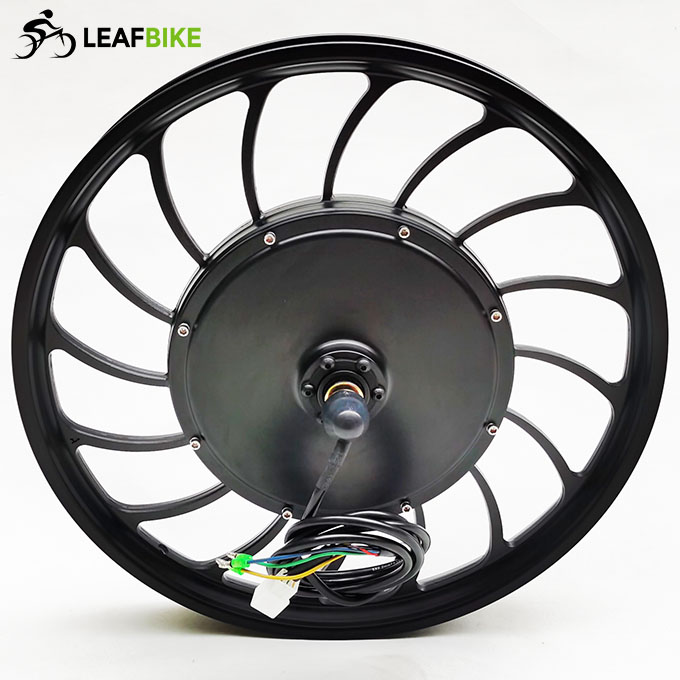

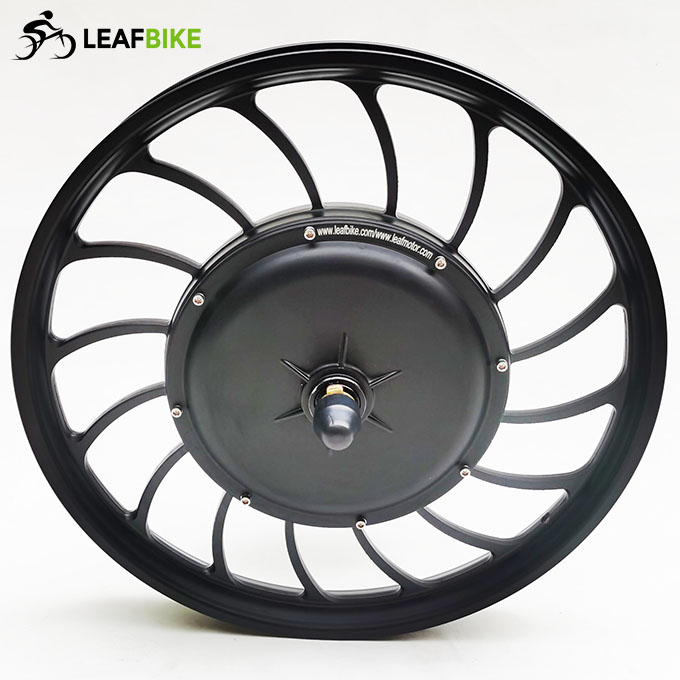

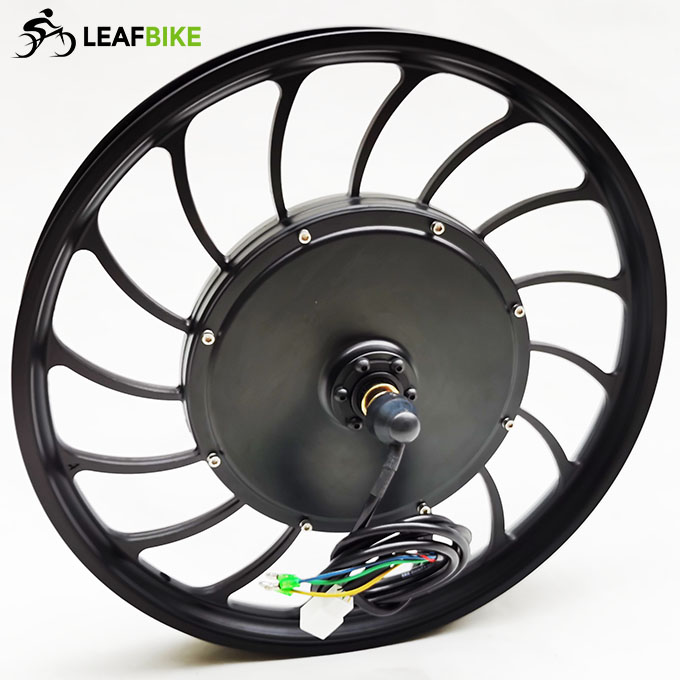

>. Hub: Ø420mm Aluminum casted (Hub Fit For: 20 × 2.1/4 or 2.1/2" tire)

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 47.3 kmh -- 29.2 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours. Please click below link:
https://www.leafbike.com/products/diy-bike-conversion-kit/20-inch-36v-750w-electric-bike-kit-front-casted-hub-motor-1216.html
* ...

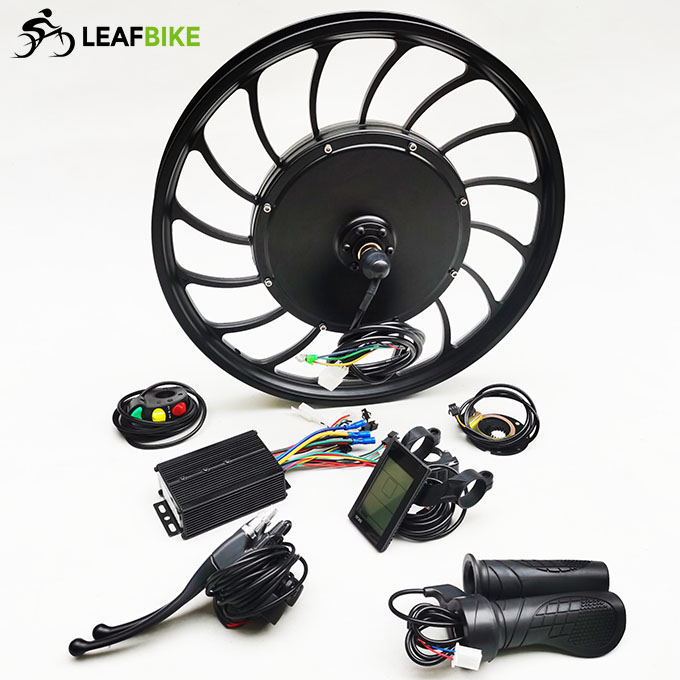

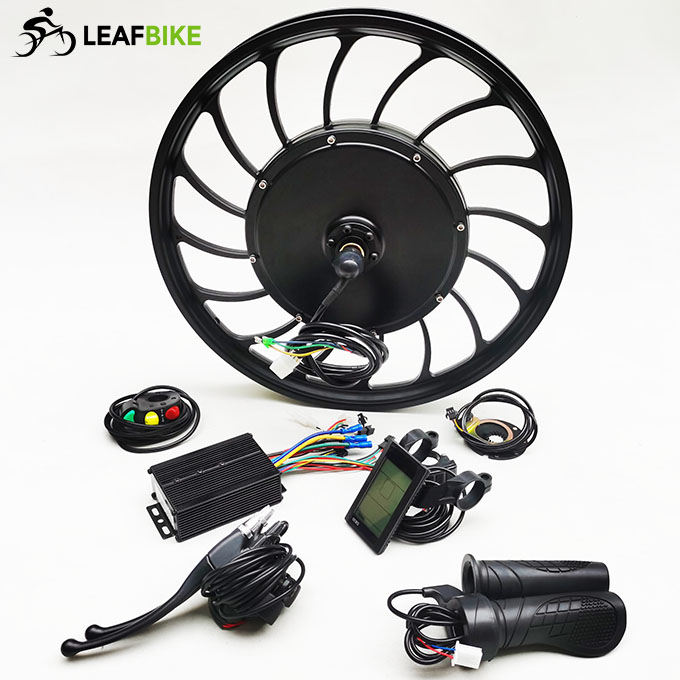

Package Content:
1 x 20 inch 36V 750W front casted hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net Weight: 9.8 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

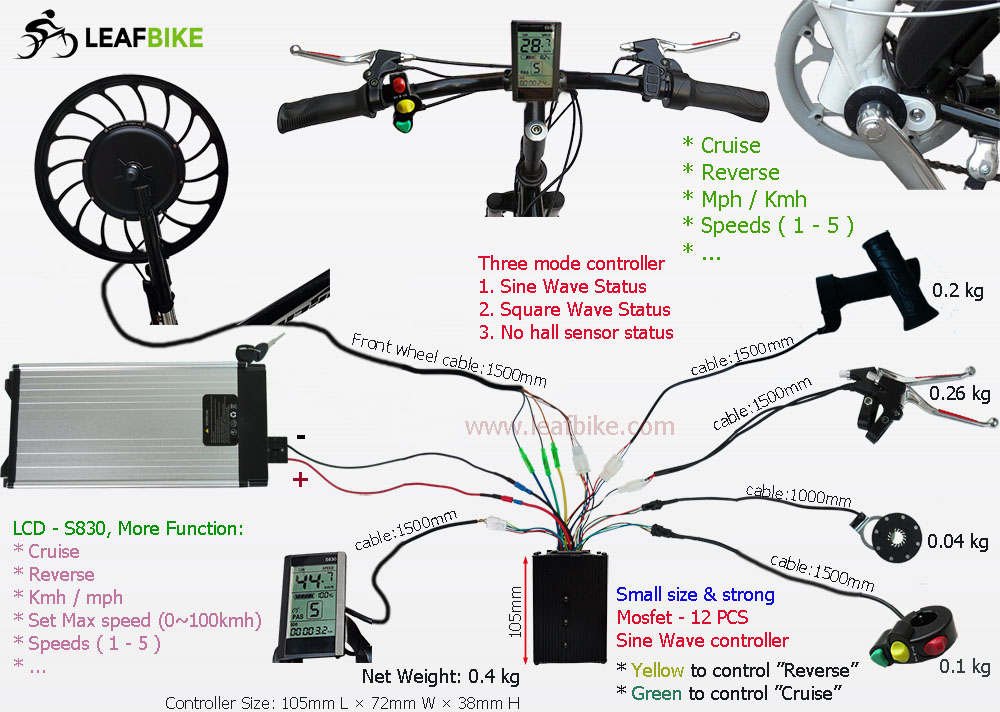

Wire Diagram:

750W Front Drw.

Performance Data:

Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
