20 inch 36V 750W electric bike kit - front casted hub motor

Name: 20 inch 36V 750W electric bike kit - front casted hub motor
Brand: Leaf Bike
SKU: LBCK2036750FMKLCD003
Price: 314 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2036750FMK

$314.00 ~~$358.00~~

Maybe You Need These

Description

Please watch videos for 20 inch 36V 750W front casted hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 50kmh ..

Share Video:

20 inch front casted hub motor kit video

Share Video:

20-inch-front-hub-motor-electric-bike-conversion-kit

Share Video:

This 20 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

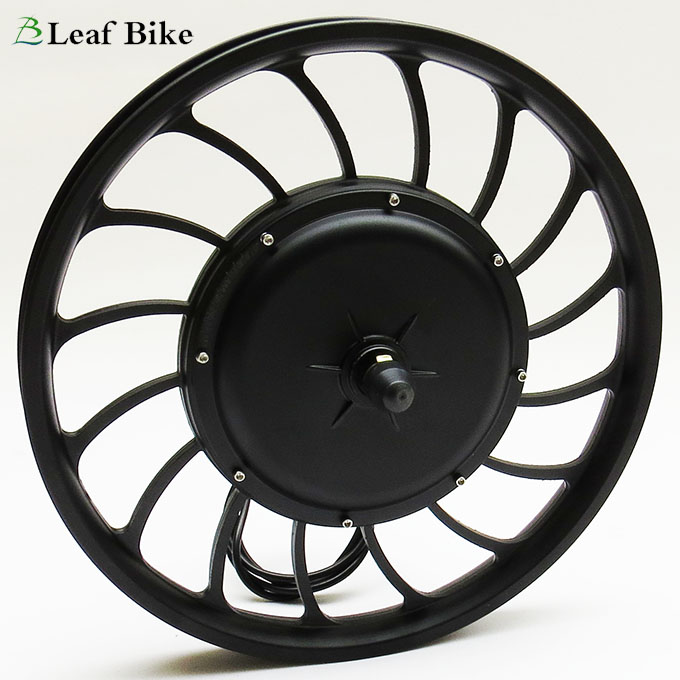

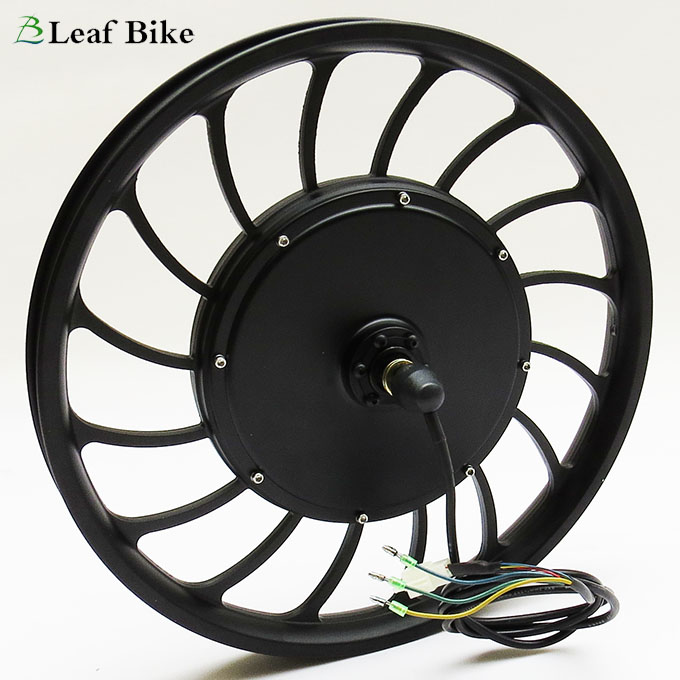

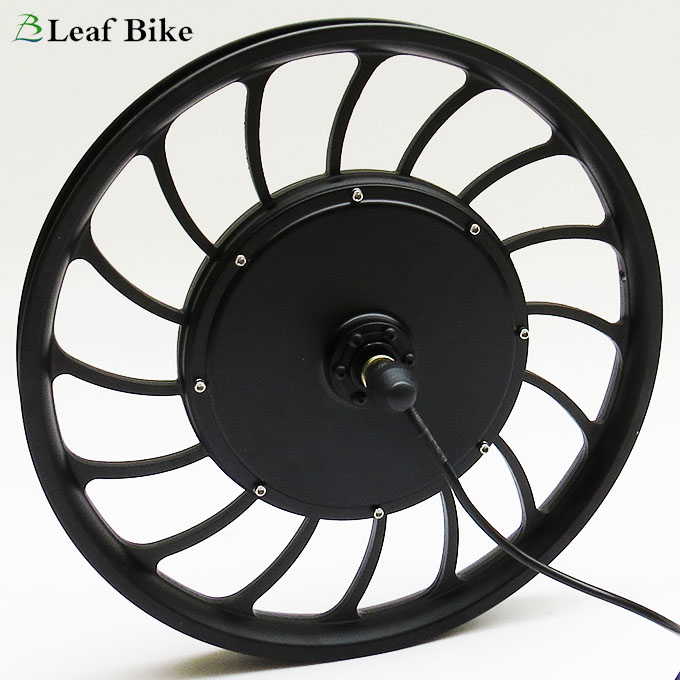

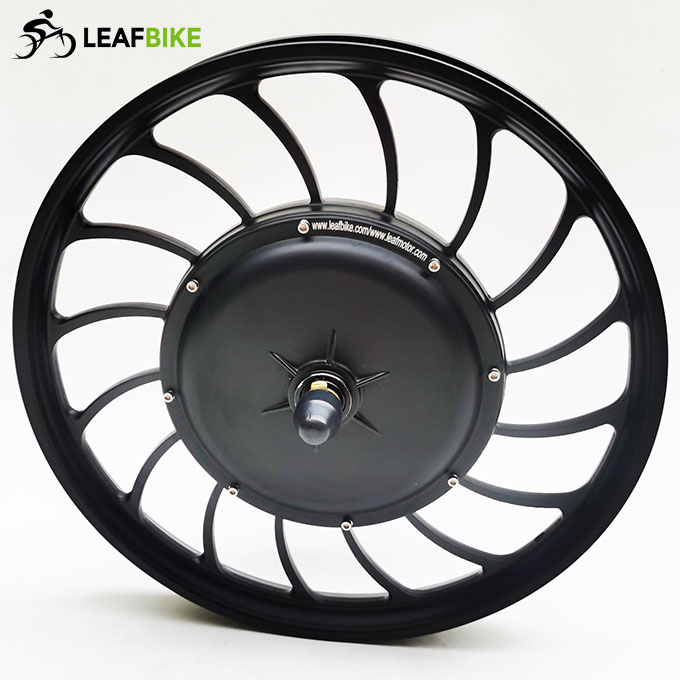

>. Hub: Ø420mm Aluminum casted (Hub Fit For: 20 × 2.1/4 or 2.1/2" tire)

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 47.7 kmh -- 29.6mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:160cm / 63"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

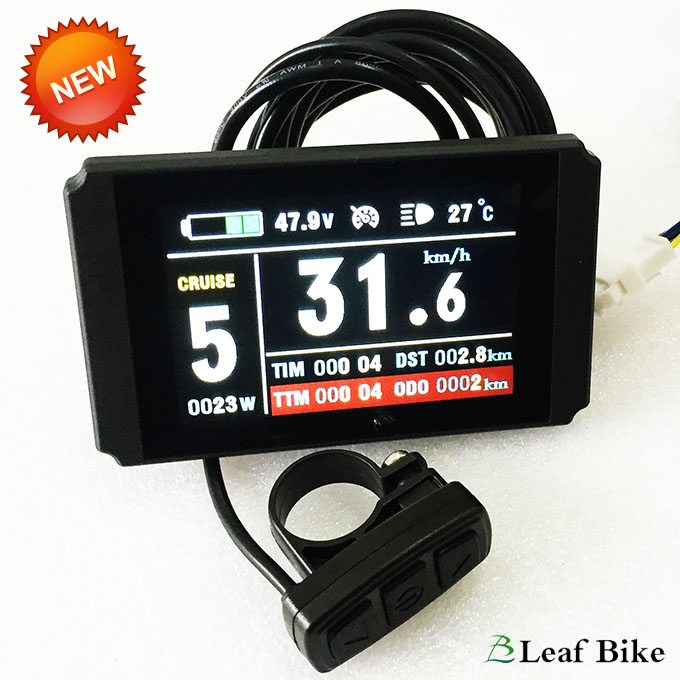

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 1 - 5 )
* ...

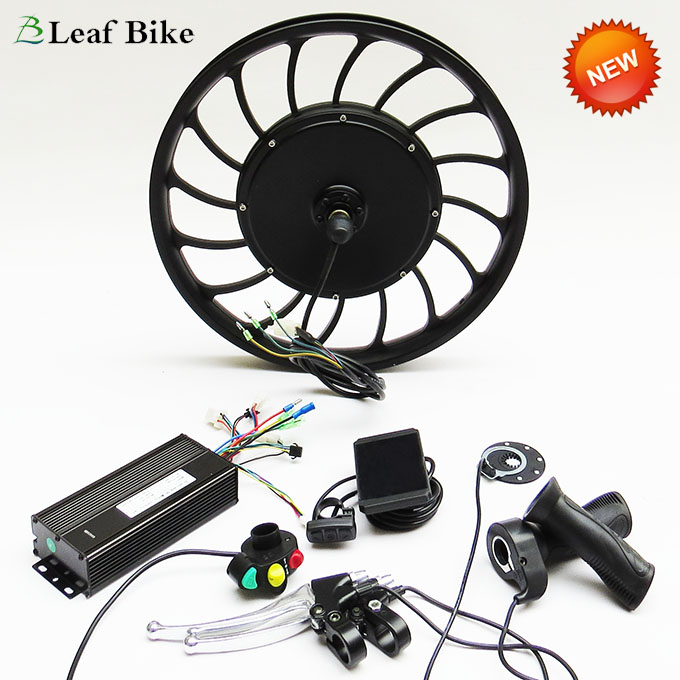

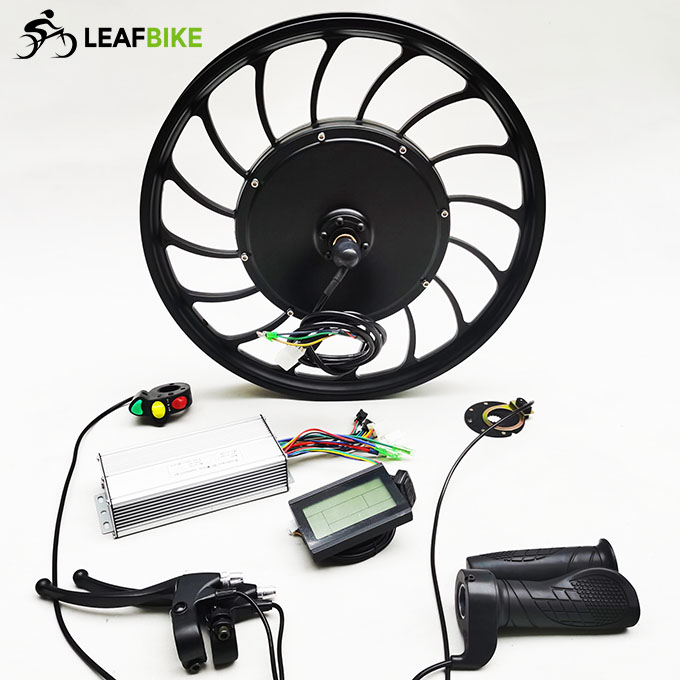

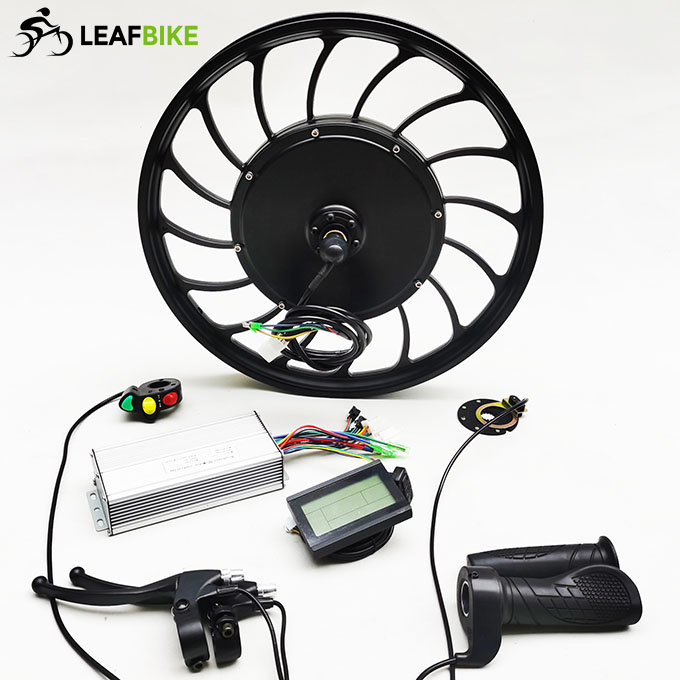

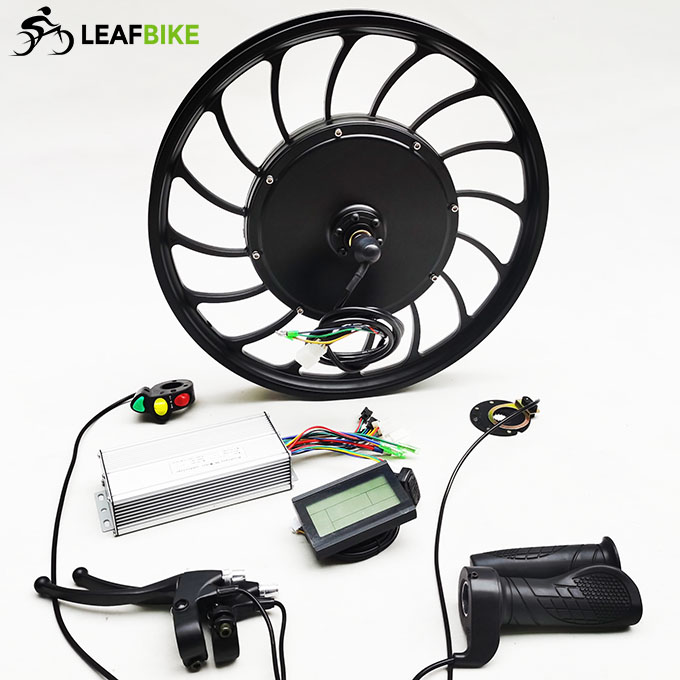

Package Content:

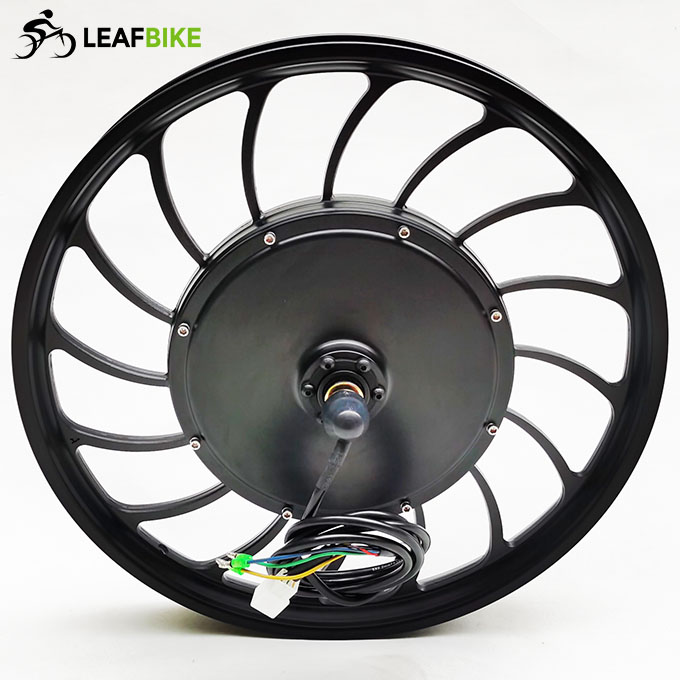

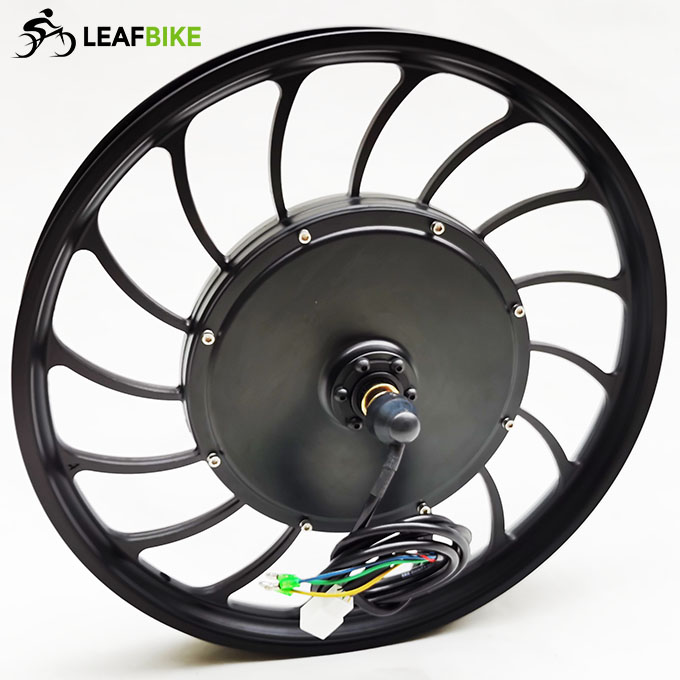

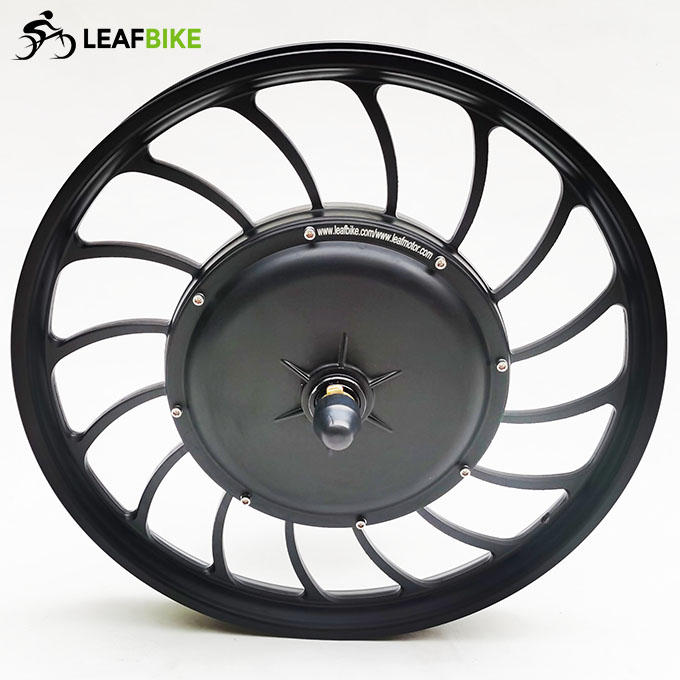

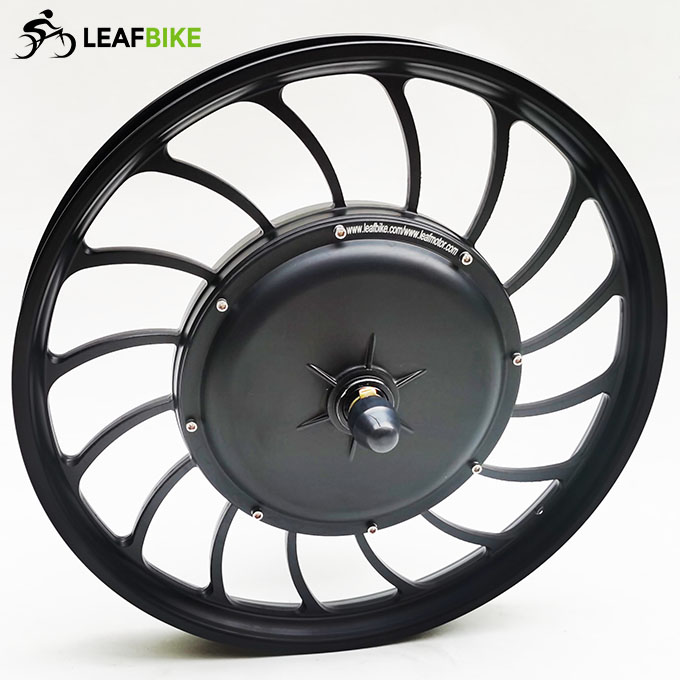

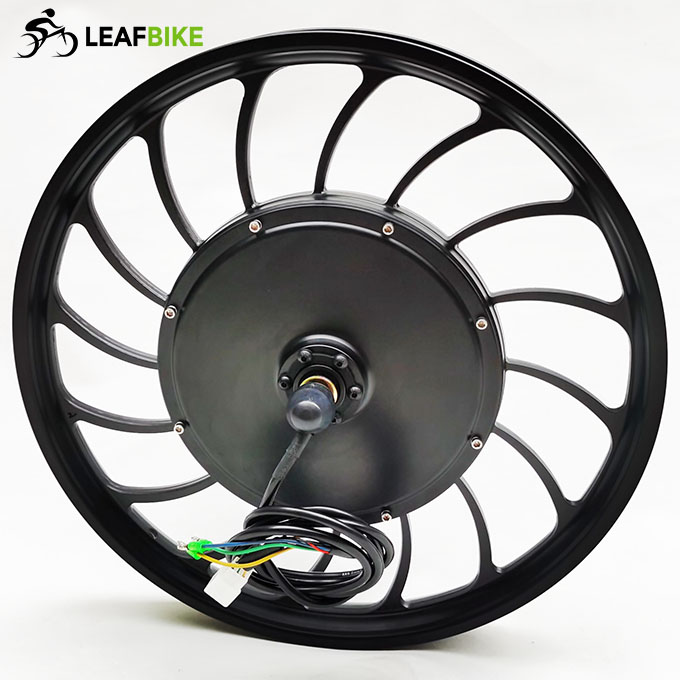

1 x 20 inch 36V 750W front casted hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net Weight: 9.8 kg
Package Size: 50cm L x 50cm W x 23cm H
Package Type: Cardboard Box

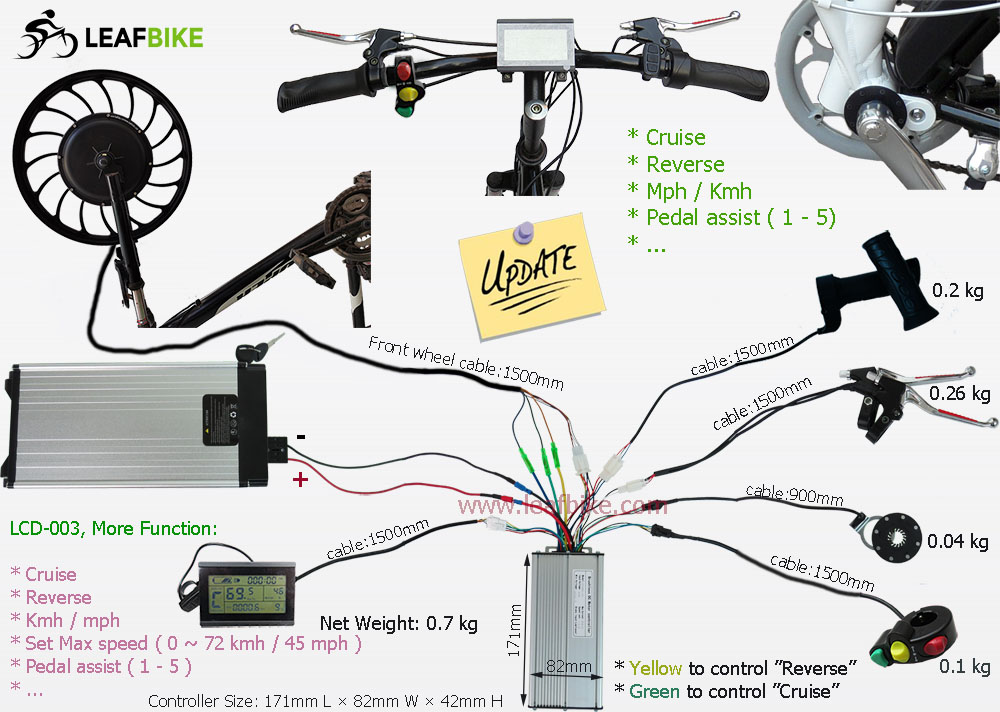

Wire Diagram:

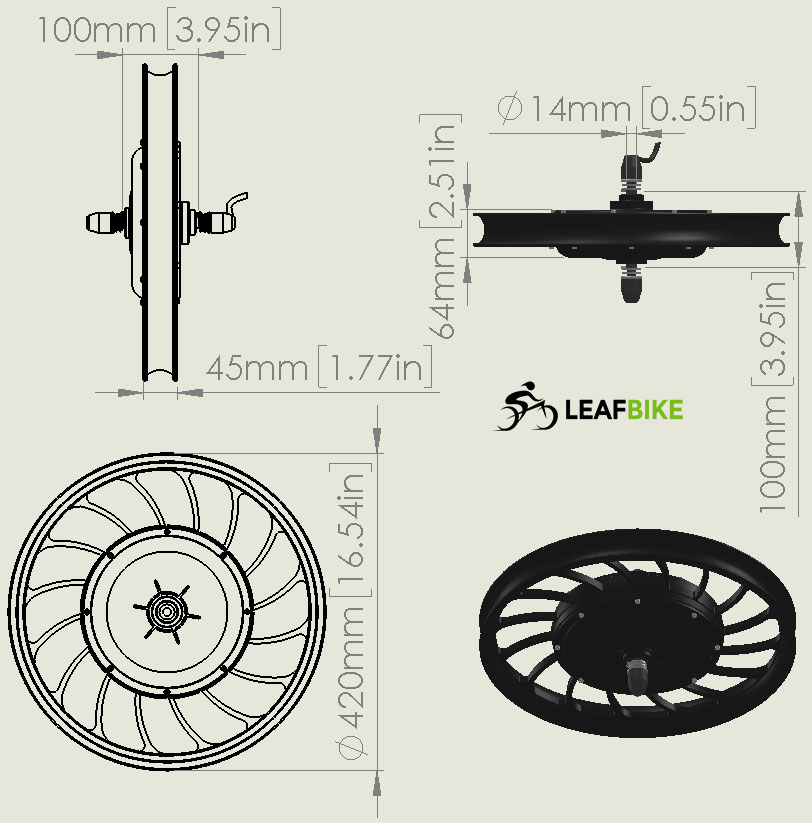

20 inch Front Drw.

Performance Data:
