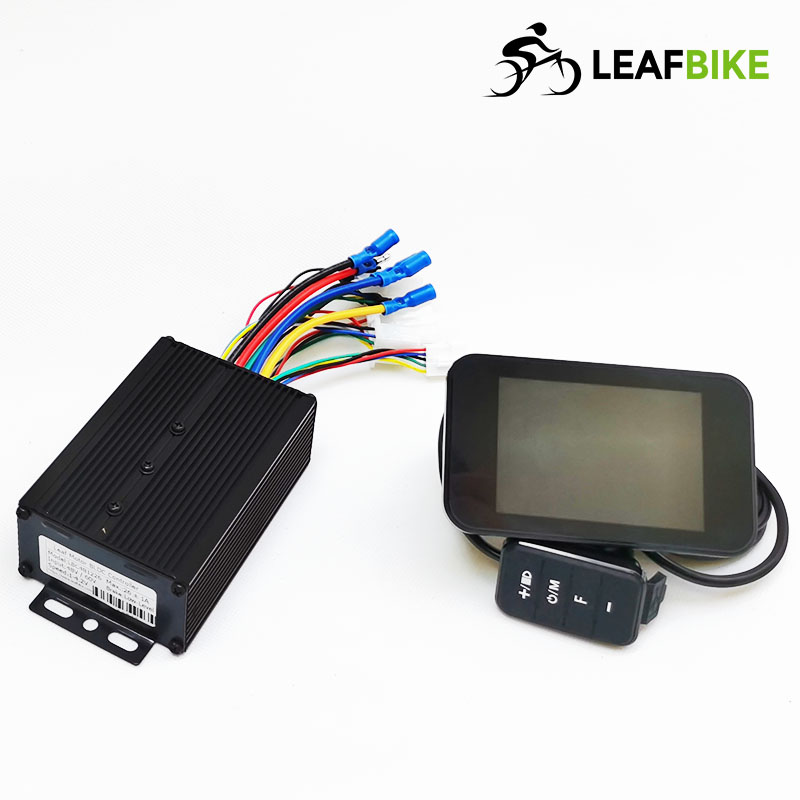

48V 52V 1000W electric hub motor controller with color screen LCD

Item ID #LBC481226C1
$139.00 $139.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

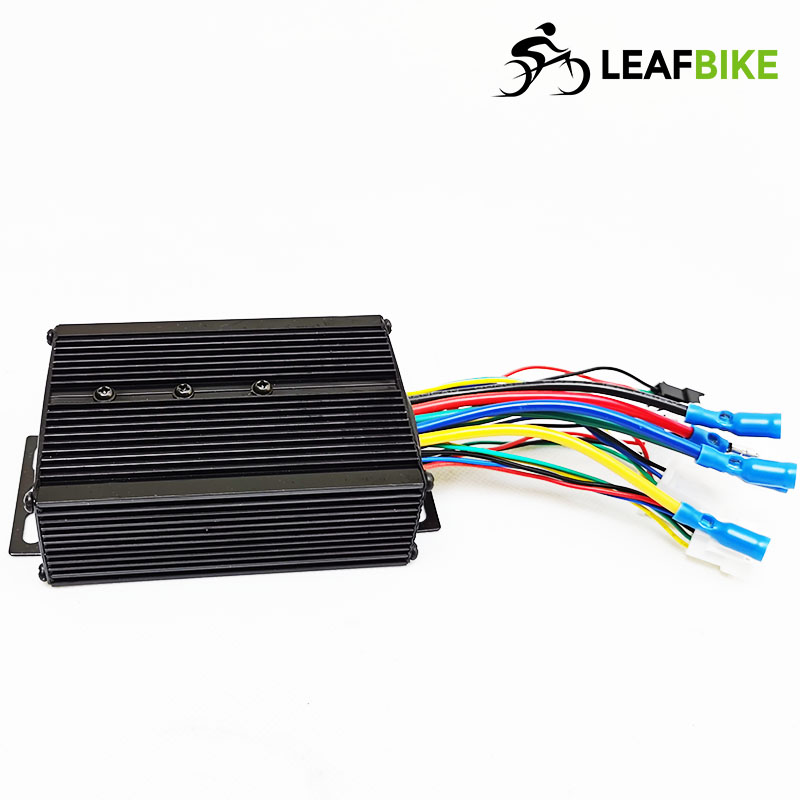

48V 52V 1000W Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 12-MOSFET
It's fit to drive 48V 800W ~ 1000W brushless with hall sensor hub motor.


Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 48 / 52 Volts
Min. Voltage: DC 40 ± 0.5 V
Rated power: 1000 Watts
Casing material: aluminium
Maximum Current: 26 A ± 1 Amps
Thermal: aluminum shell and the substrate - Black color

3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 105 mm L × 72 mm W × 38 mm H
Weight: 0.6 kg

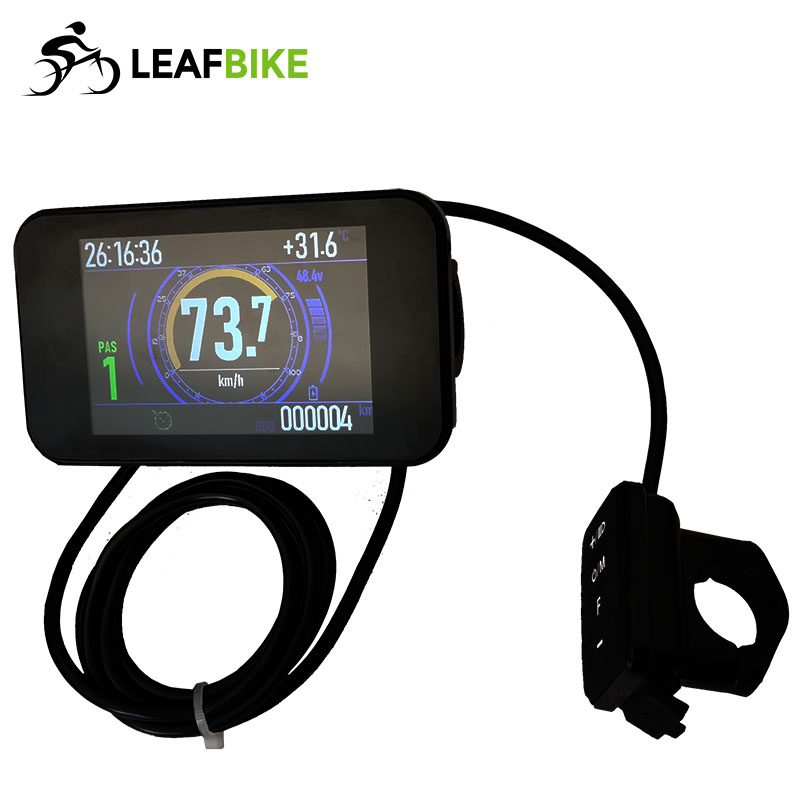

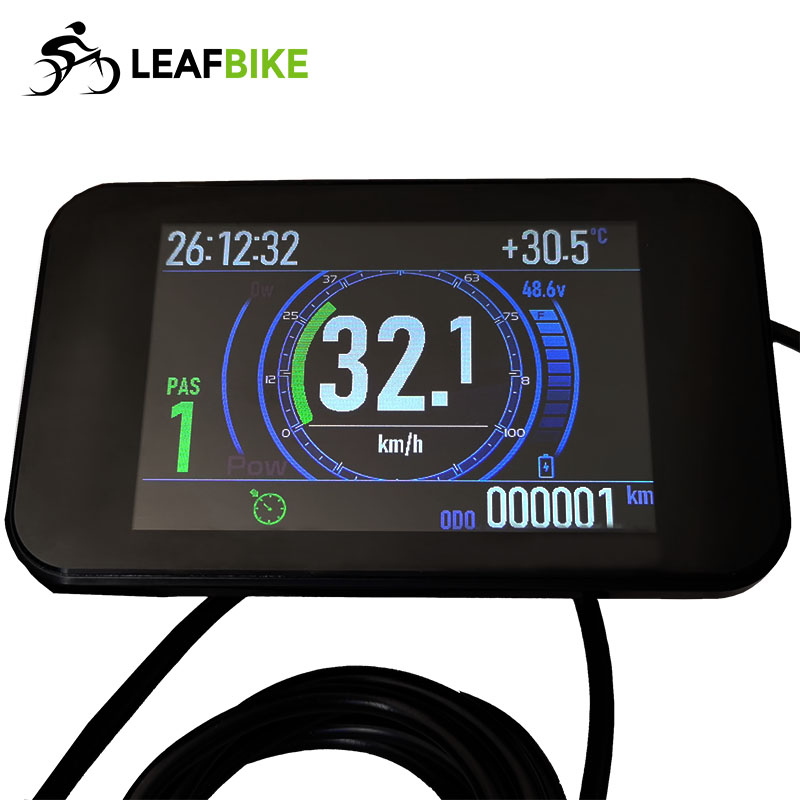

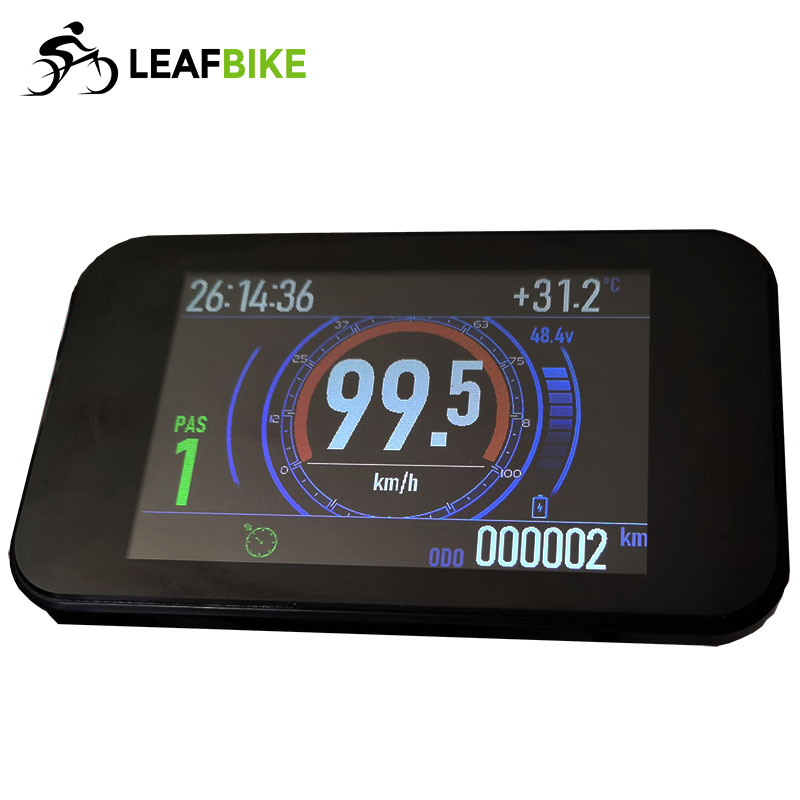

Working with Color screen LCD with USB port
Display: speed, mileage, battery gauge...

Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection

Additional features:
* Cruise
* Reverse
* Speeds ( 1 - 5 )
* Mph / kmh
* ....
