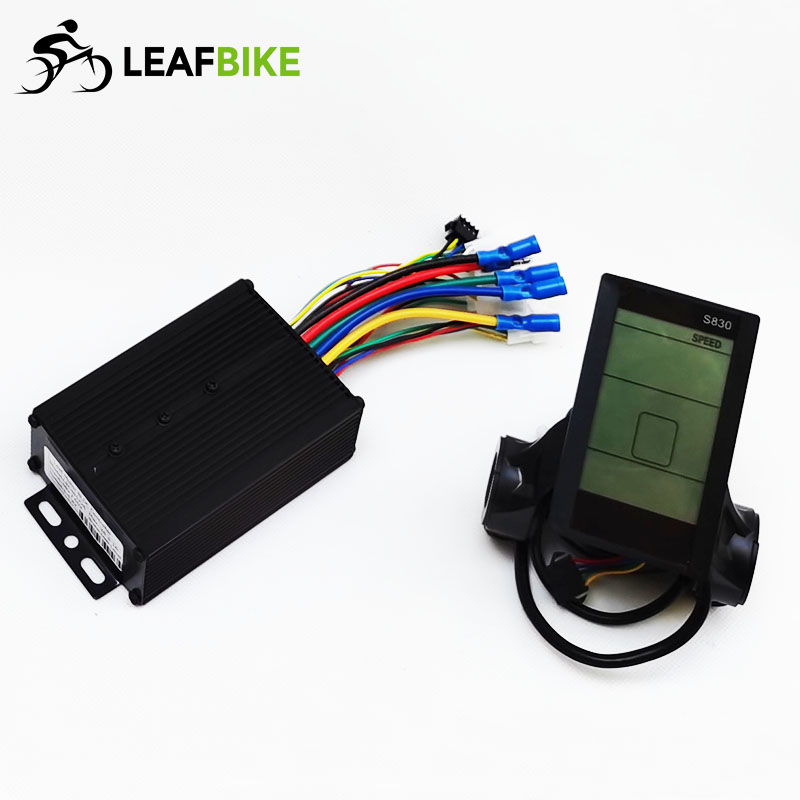

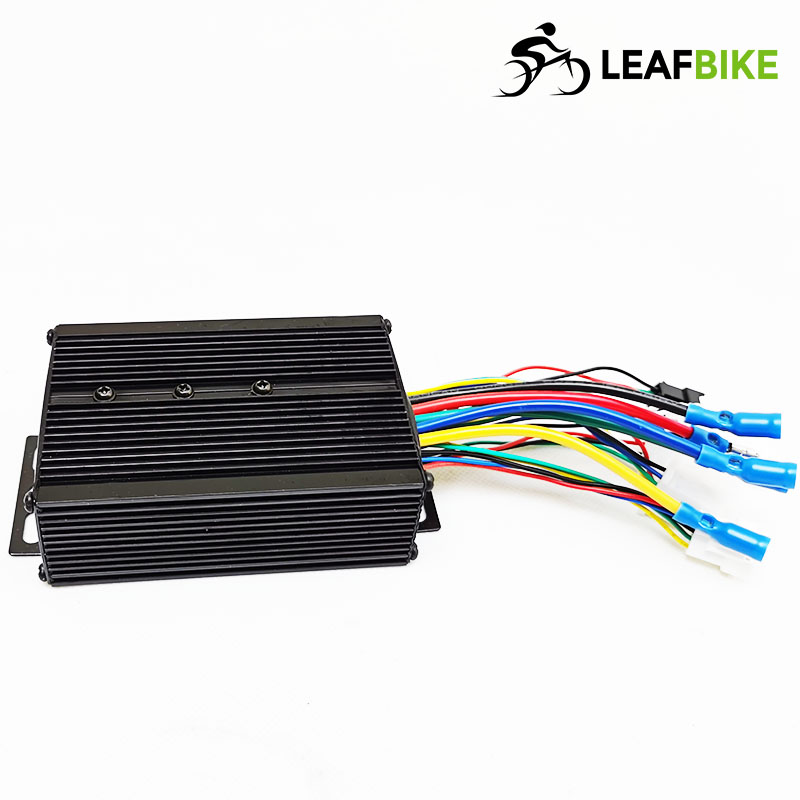

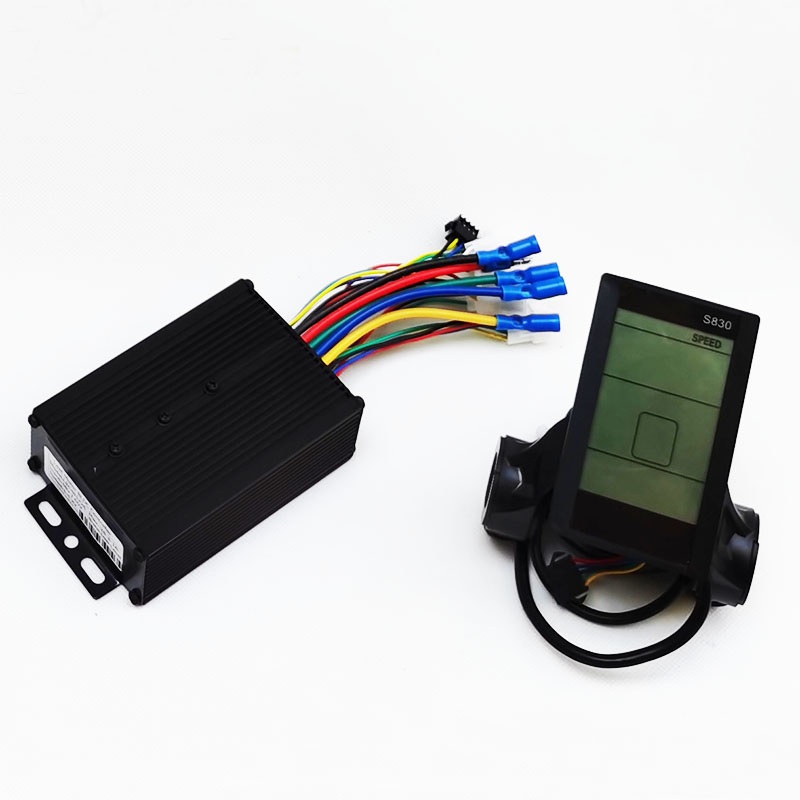

48V 52V 1000W Electric Bicycle Brushless Motor Controller For E-bike & Scooter --
12-MOSFET
It's fit to drive 48V 800W ~ 1000W brushless with hall sensor hub motor.
Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 48 / 52 Volts
Min. Voltage: DC 40 ± 0.5 V
Rated power: 1000 Watts
Casing material: aluminium
Maximum Current: 26 A ± 1 Amps
Thermal: aluminum shell and the substrate - Black color
3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 105 mm L × 72 mm W × 38 mm H
Weight: 0.65 kg

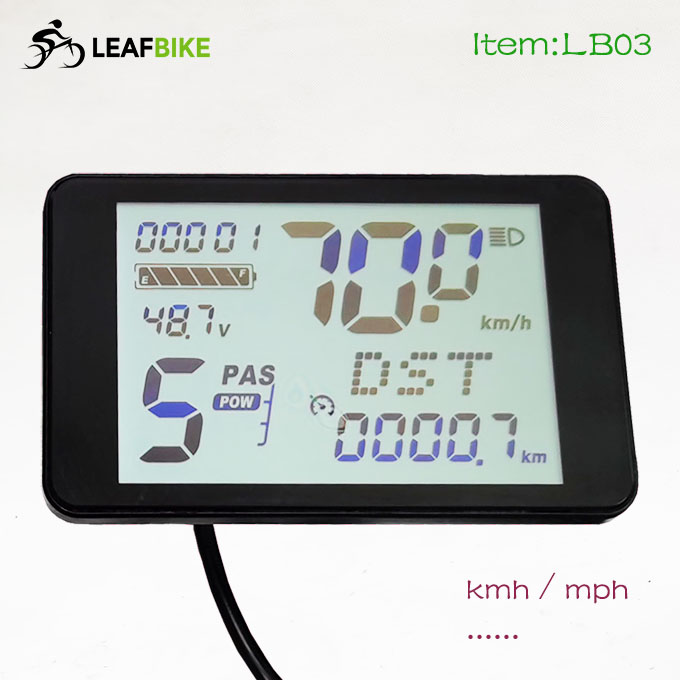

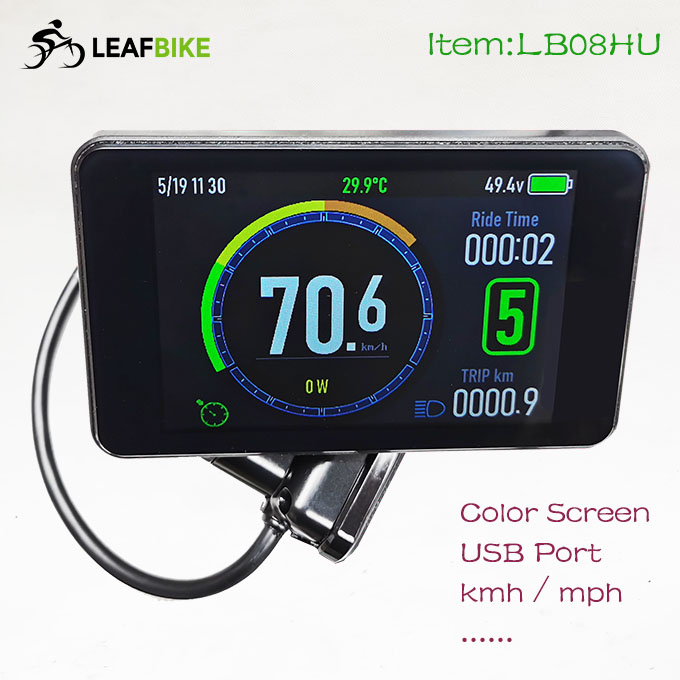

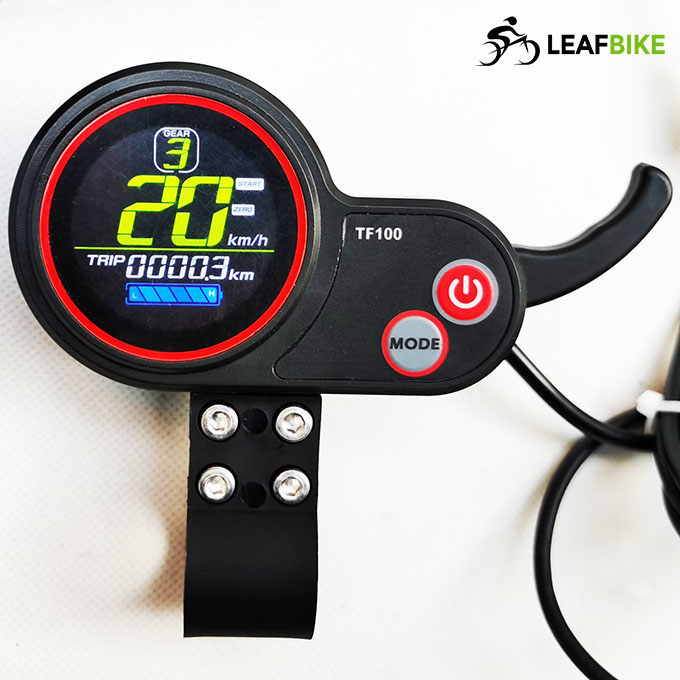

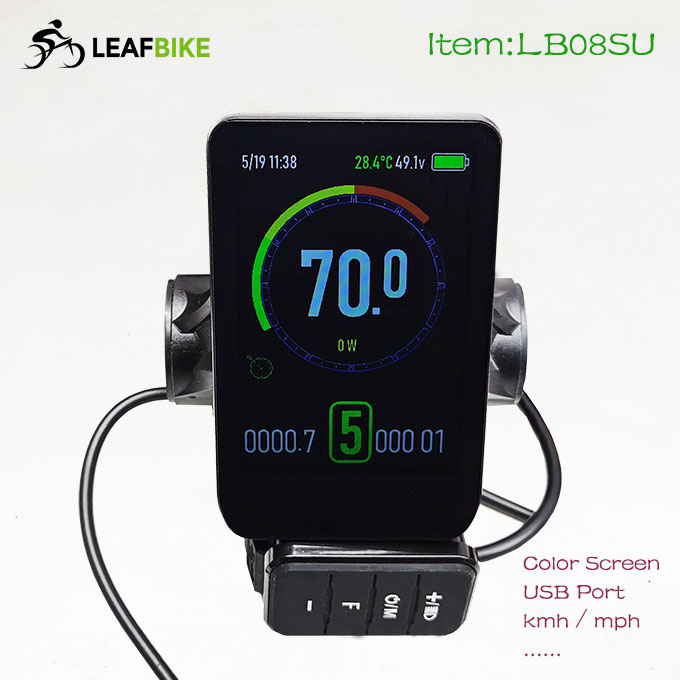

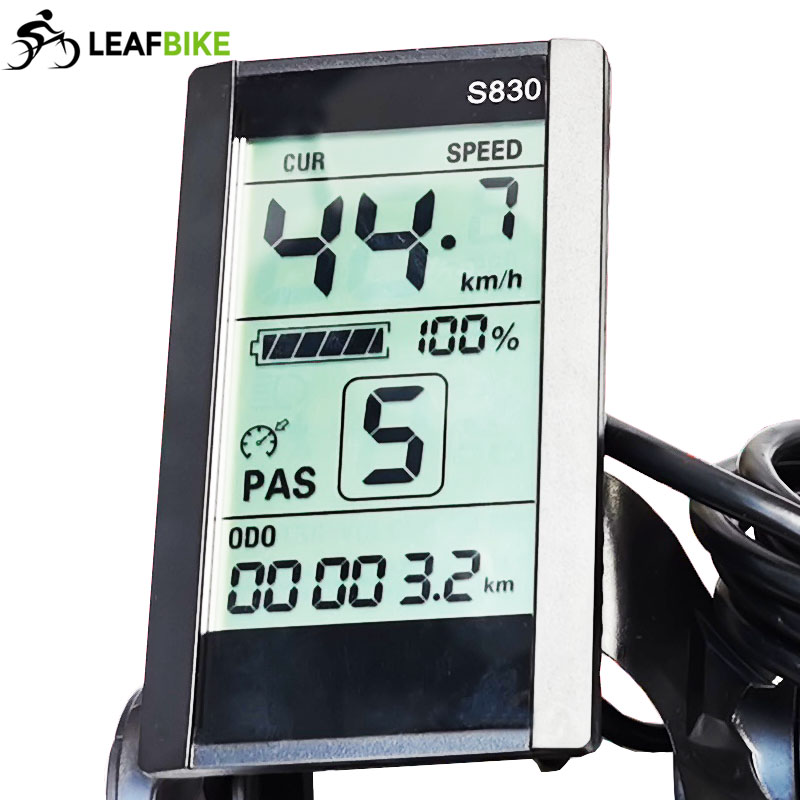

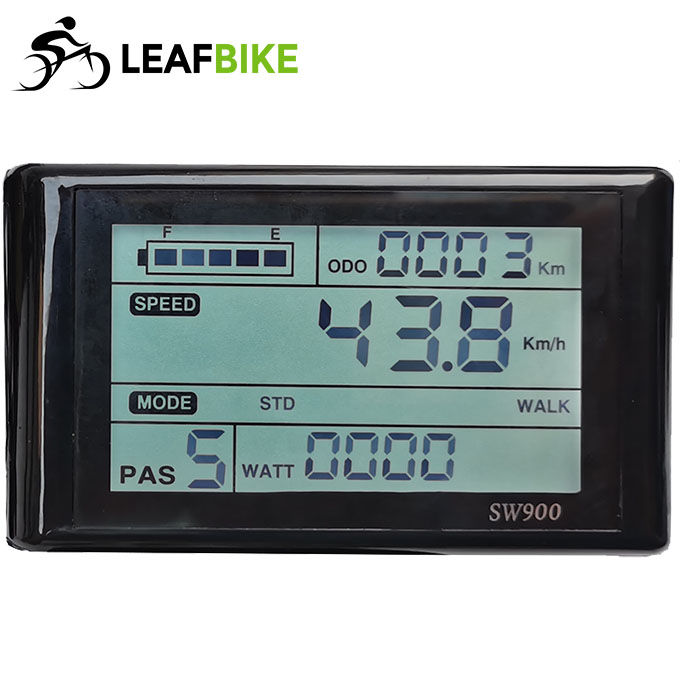

Working with LCD
Display: speed, mileage, battery gauge...
Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection
Additional features:
* Cruise
* Reverse
* Regen brake
* Pedal assit ( 1 - 5 )
* Mph / kmh
* ....
