12 inch electric hub motor 20 inch 48V / 50/ 16 inch feont -1' OR 3 441-441-1 Brushless motor bike kit

24 inch 60V 3000W rear hub motor - Beach Snow Fat Tire bike conversion kit

Name: 24 inch 60V 3000W rear hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK24603000RSK
Price: 529 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK24603000RSK

$529.00 ~~$577.00~~

Maybe You Need These

Description

The 24 inch fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 24 inch fat bike conversion kit works with a 60V battery.

Main Features:
>. Rim: 24 × 3 inch double wall Alloy (Rim Fit For: 24 × 4.00" tire)
>. Spoke: Black 12 gauge / 135mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 3000W
>>. Efficiency: 90.5%
>>. Max speed: 73.1 kmh -- 45.4 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length: 100cm / 40" (6mm phase wire with 2 sets of hall sensor)
>>. Rear frame fork / Install: spacing of 170mm or 190mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 50 ± 0.5 V
>>. Rated power: 3000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 2 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H

LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 ~ 5 )
* Battery gauge
* ...

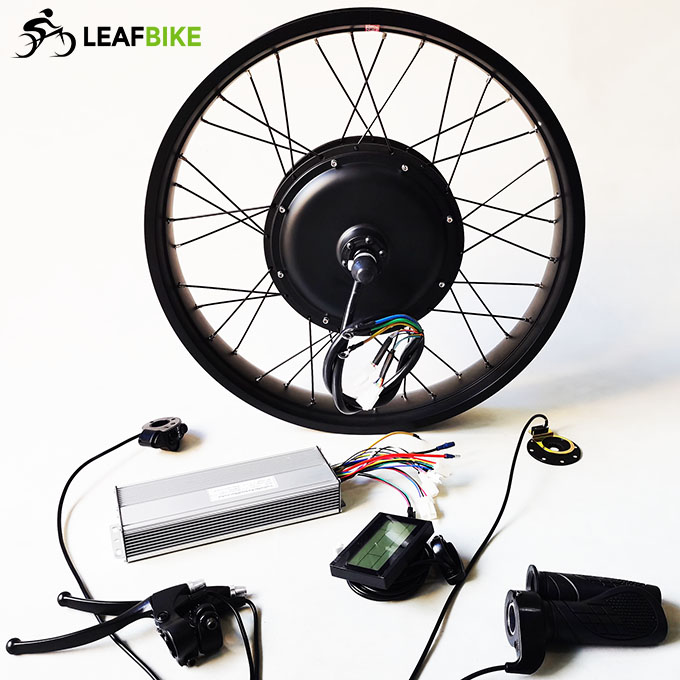

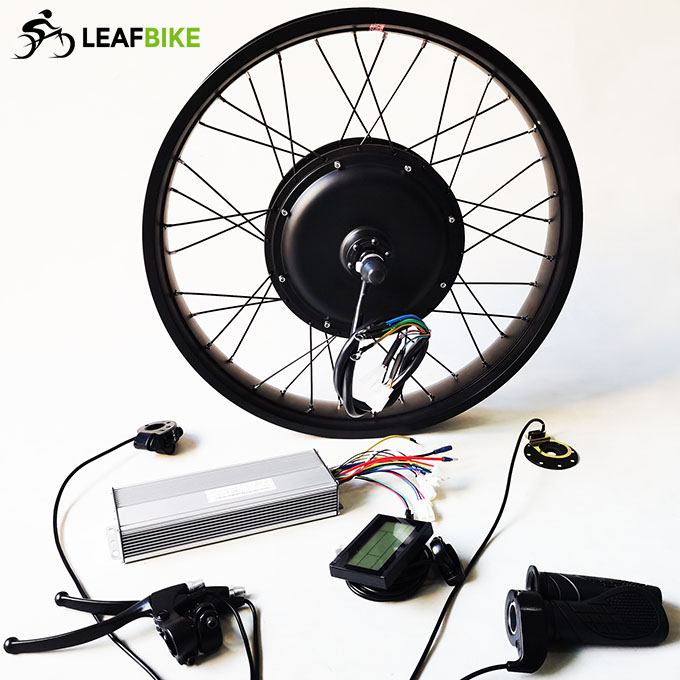

Package Content:
1 x 24 inch 60V 3000W rear beach snow fat hub motor wheel - (Rim Fit For: 24 × 4.00" fat tire)
1 x 60V 18-MOSFETmotor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 10.9 kg
Package Size: 56cm L x 56cm W x 28cm H
Package Type: Cardboard Box

Cassette Video:

24 inch 190mm cassette 60V 3000W rear hub motor electric bike conversion kit beach snow fat tire video

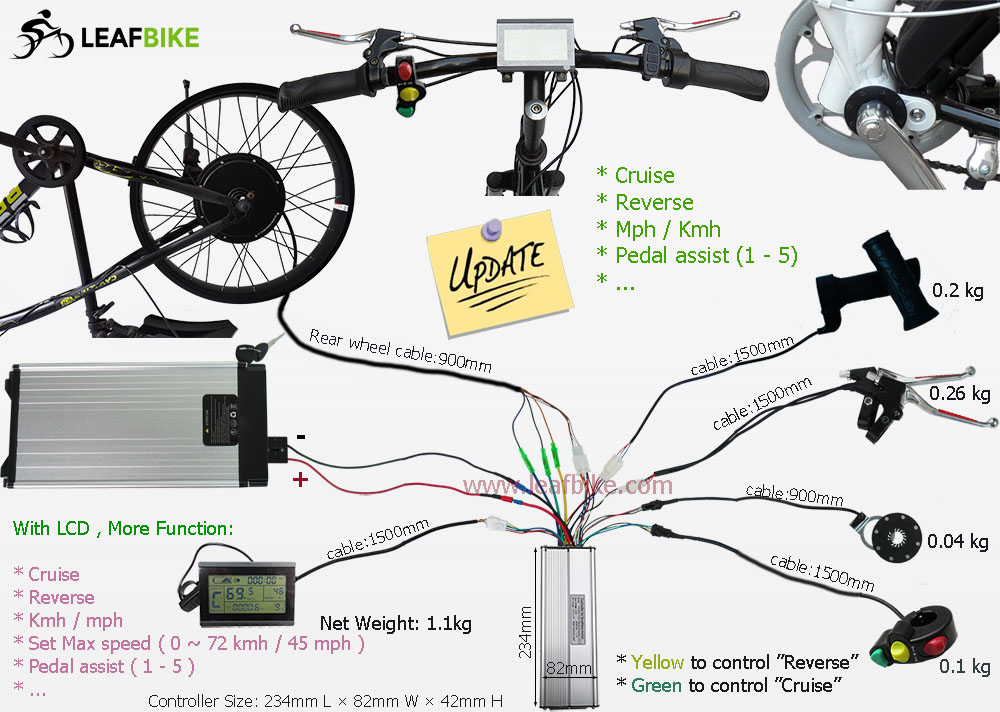

Wire Diagram:

170mm dropout Drw.

170mm dropout beach snow fat bike motor drawing

190mm dropout Drw.

190mm dropout beach snow fat bike motor drawing
