24 inch 48V 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor conversion kit

Name: 24 inch 48V 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor conversion kit
Brand: Leaf Bike
SKU: LBCK2448750RB
Price: 368 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2448750RB

$368.00 ~~$490.00~~

Quantity :

Maybe You Need These

Description

Please watch videos for 24 inch 48V 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh..

Share Video:

24 inch rear geared fat bike motor kit video

Share Video:

24 inch front geared fat bike motor kit video

24 inch 48V 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor conversion kit combines the full E-bike technology: direct drive Brushless Gear high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
>. Rim: 24 x 3.00 double wall Alloy (Rim Fit For: 24 × 4.00 tire)
>. Spoke: Black 12 gauge / 170 mm Length × 36 pcs

>. Engine: Hub Motor
>>. Voltage: 48V / 52V
>>. Power: 500 / 750 / 1000W
>>. Efficiency: 90.5%
>>. Max speed: 40 kmh -- 25 mph Default (Optional other speed:15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, Right
>>. Cable length: 90cm / 35"
>>. Install: spacing of 135mm front fork
spacing of 170mm or 190mm rear fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More function:
* Cruise - Green switch to control
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

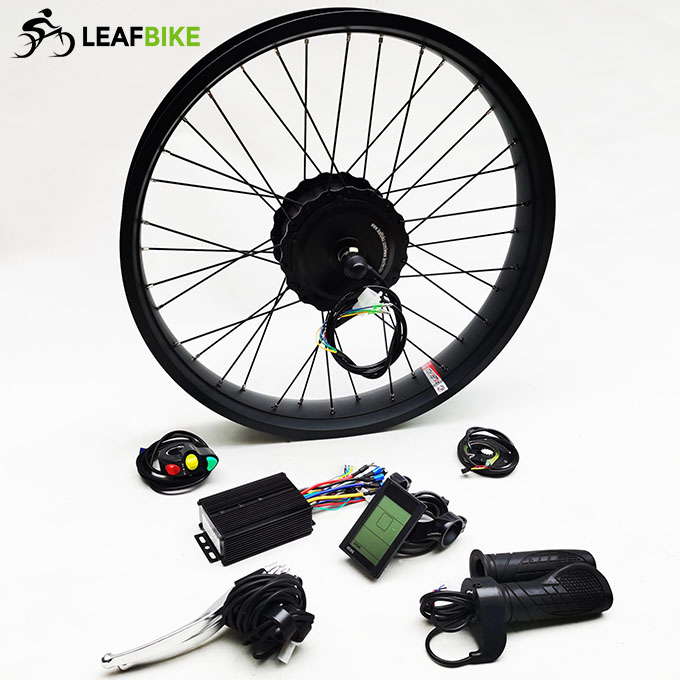

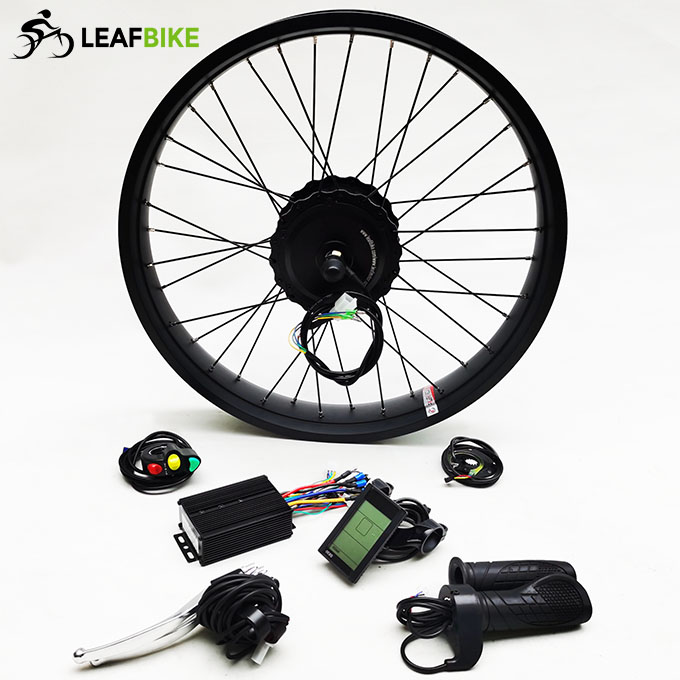

Package Content:

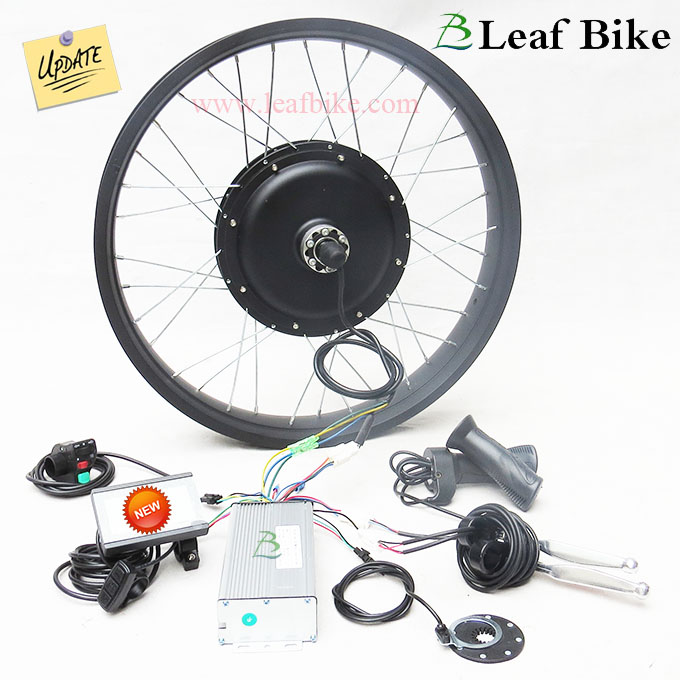

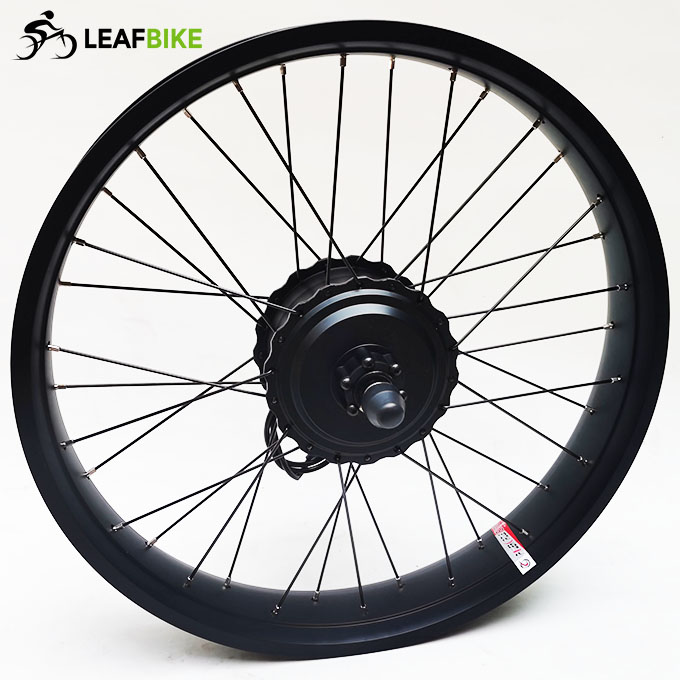

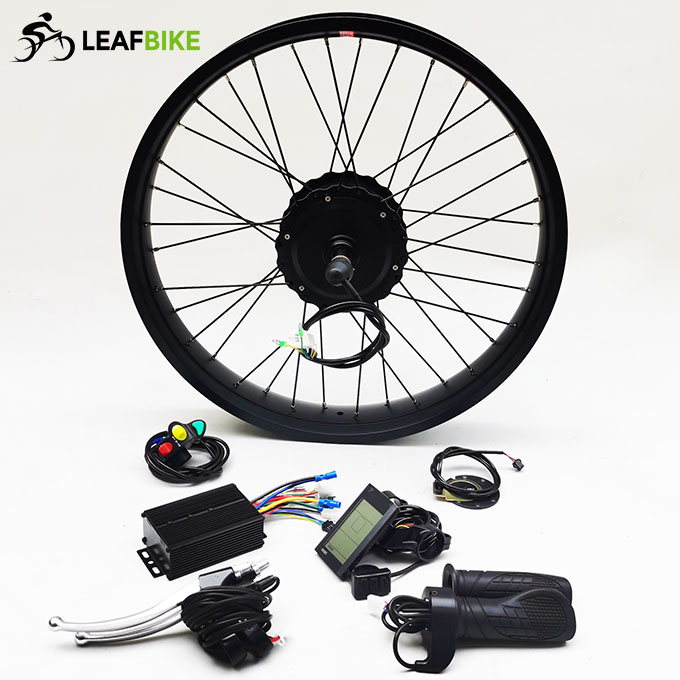

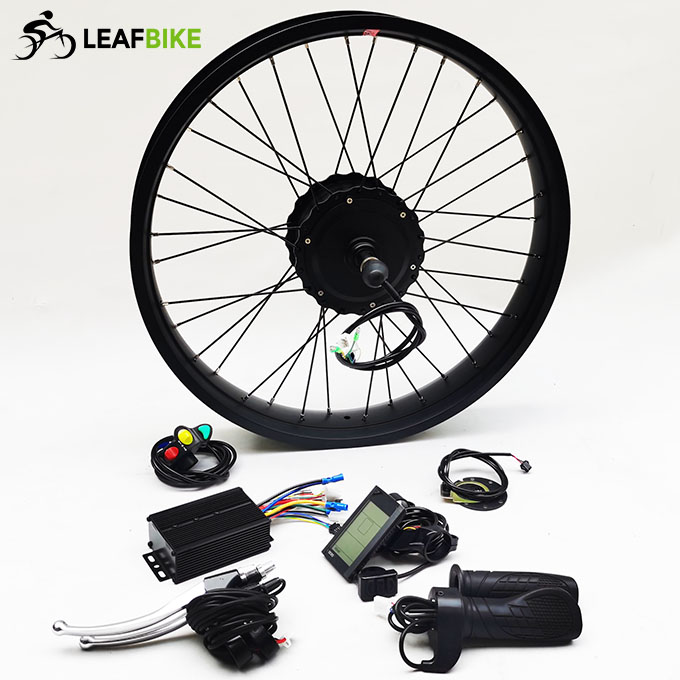

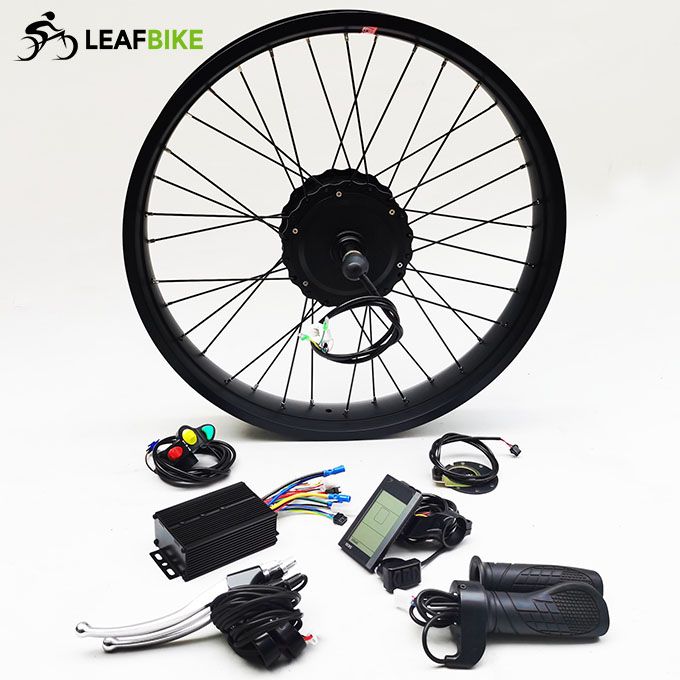

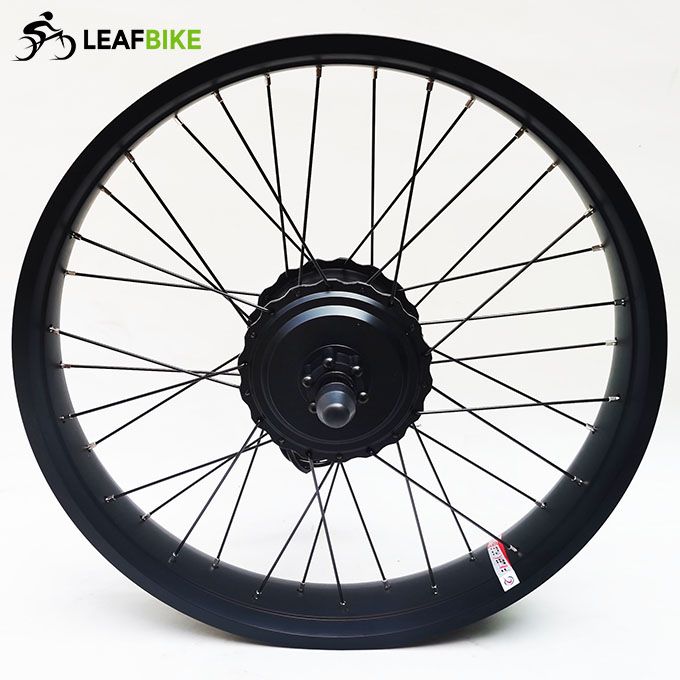

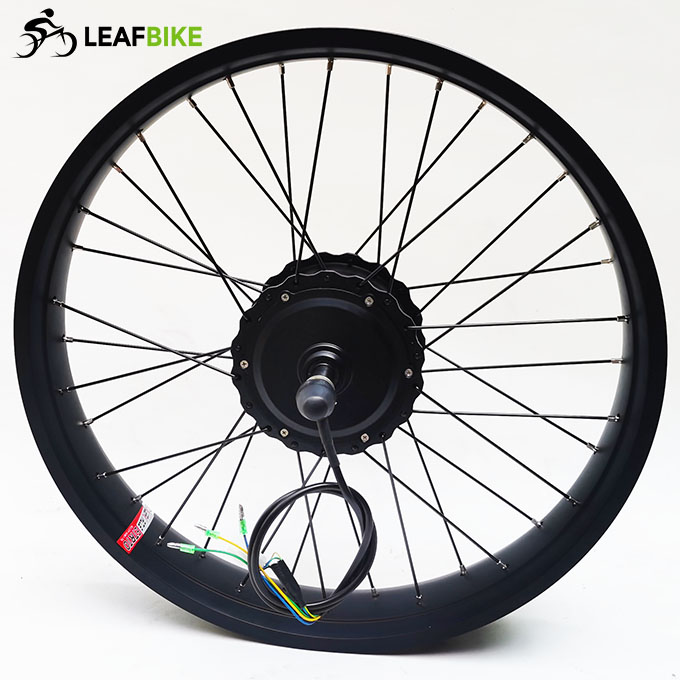

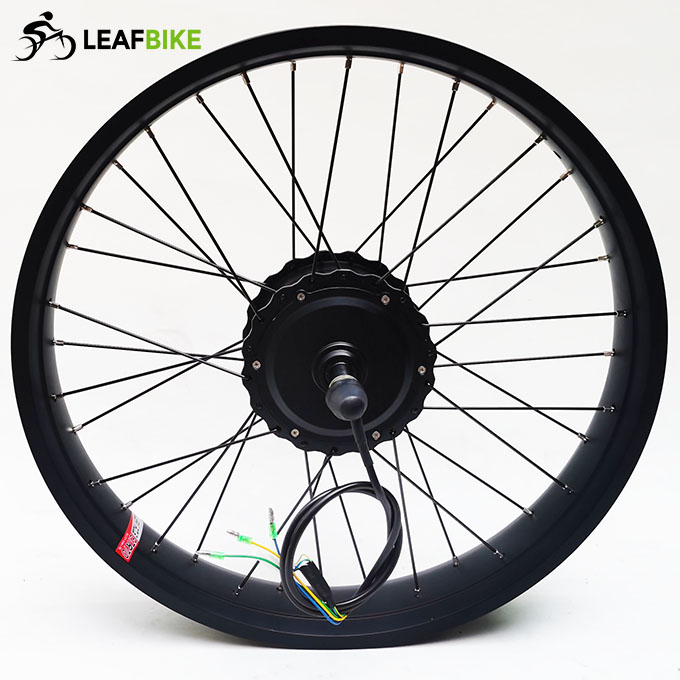

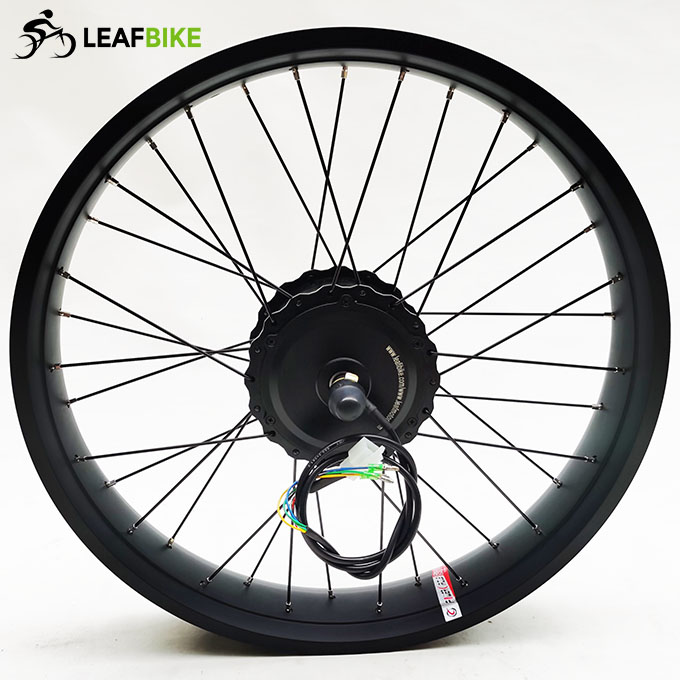

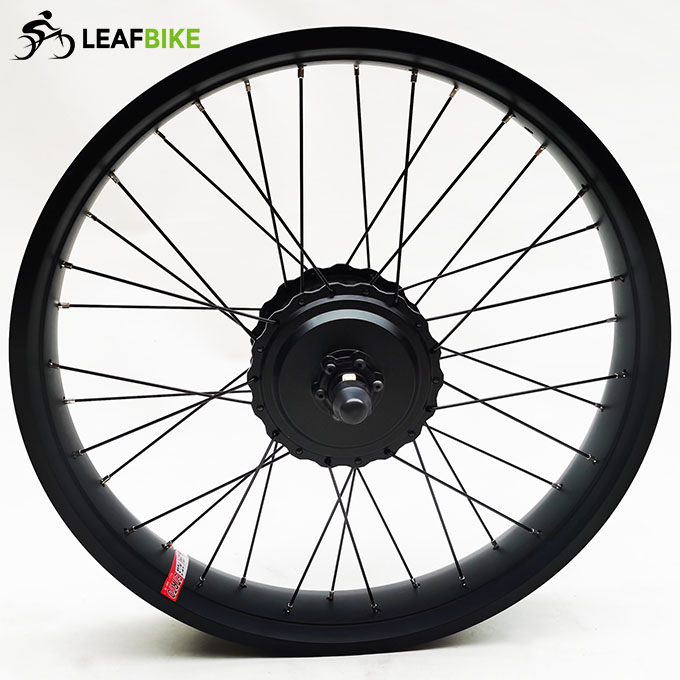

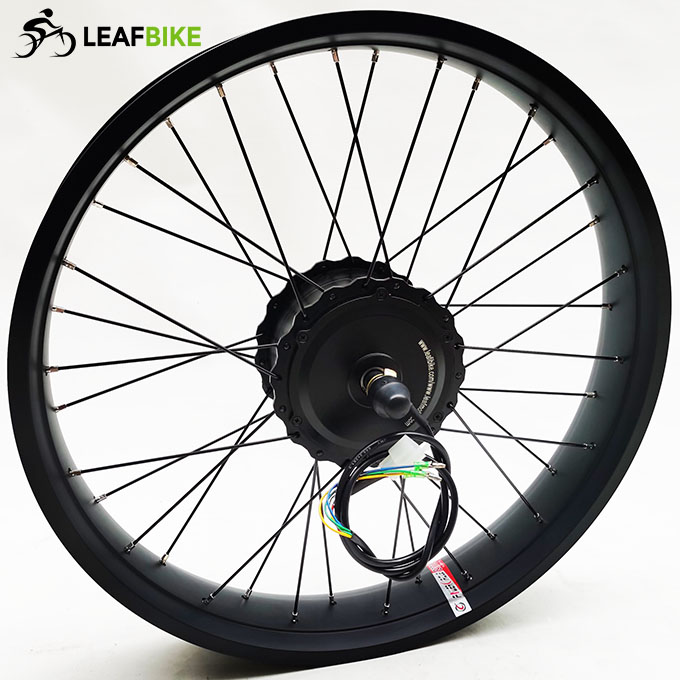

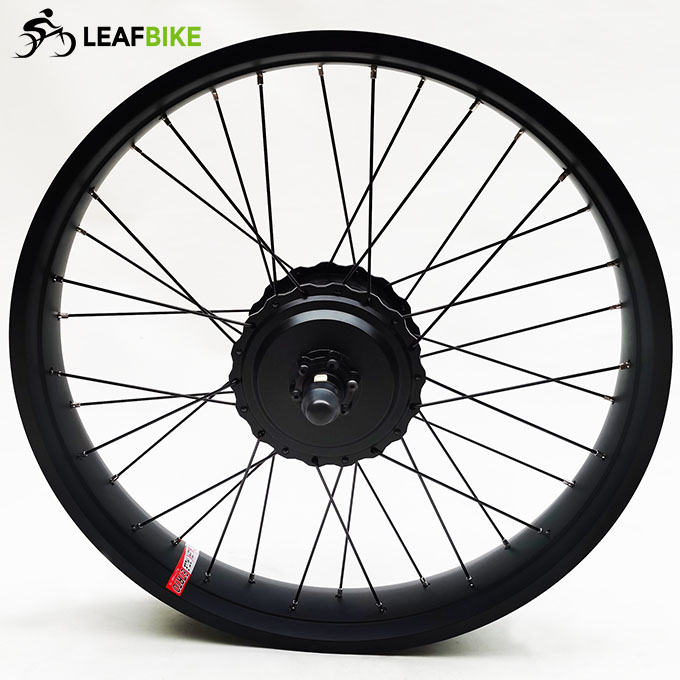

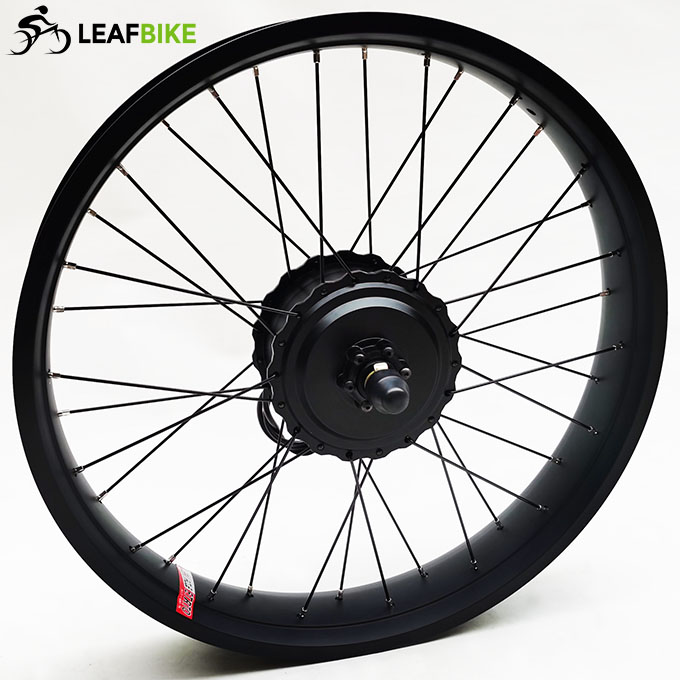

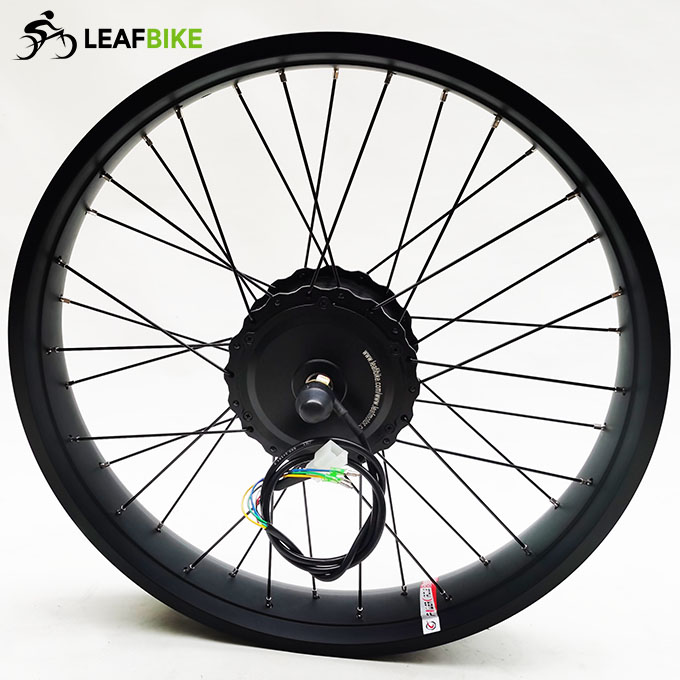

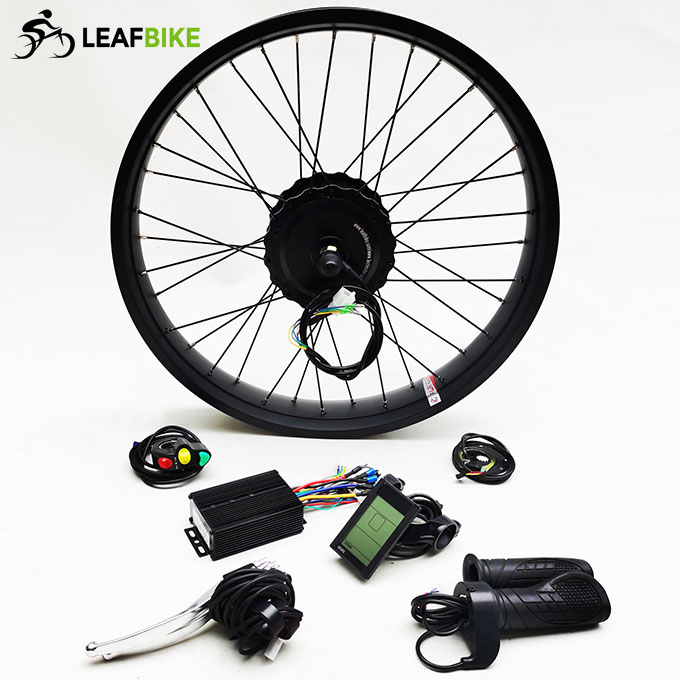

1 x 24 inch 48V / 52V 500W 750W 1000W freewheel Cassette beach snow fat bike hub motor wheel
1 x 48V / 52V 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 9.36 kg / 20.6 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

135mm Front:

170mm Freewheel:

190mm Freewheel:

190mm Cassette:
