Please watch video for 24 inch 48V 52V 2000W rear hub motor Beach Snow Fat Tire bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:

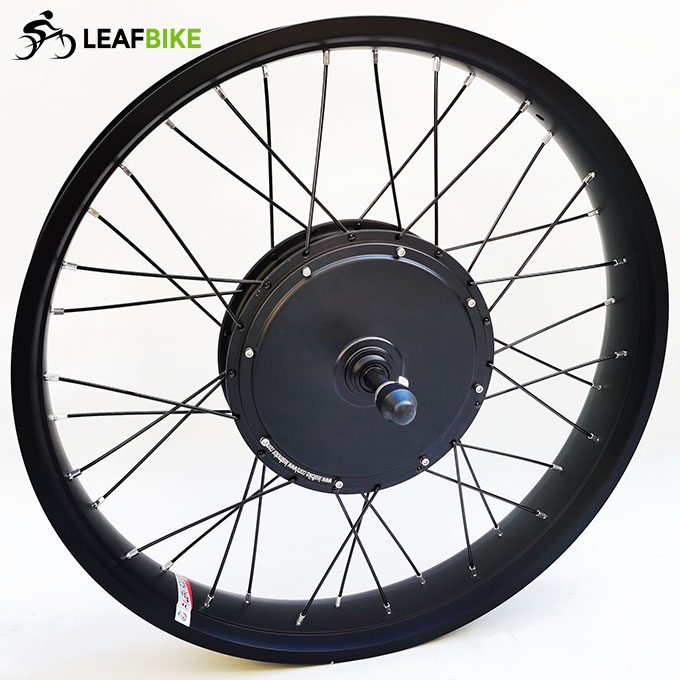

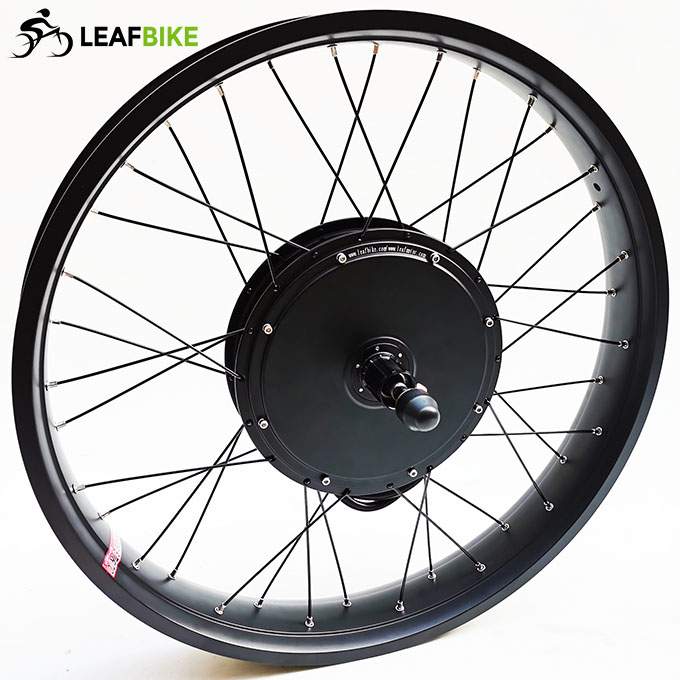

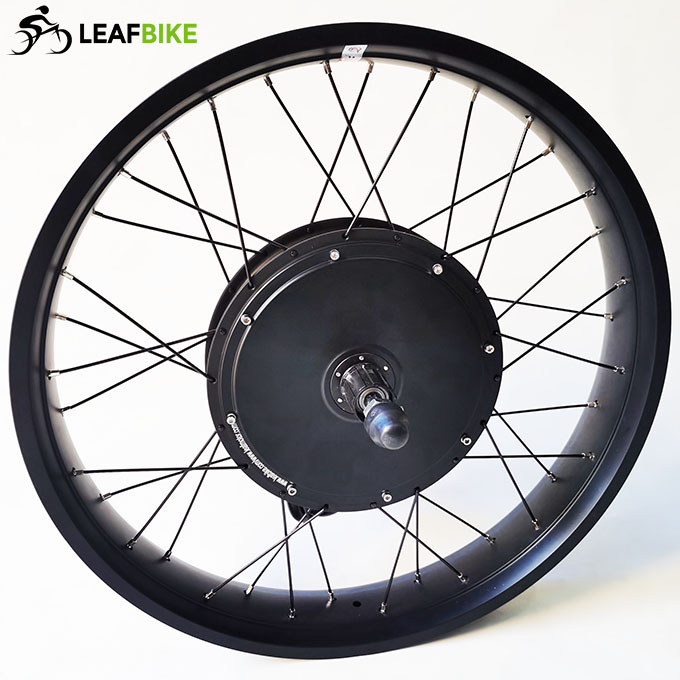

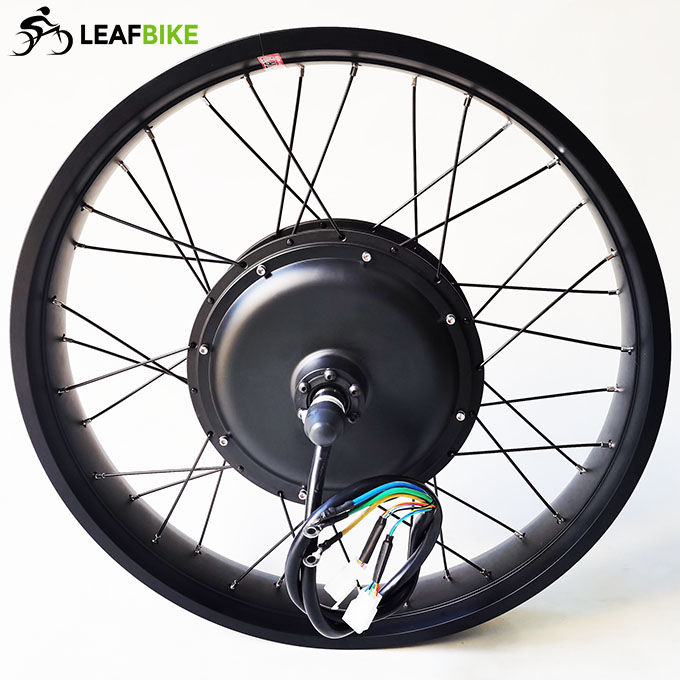

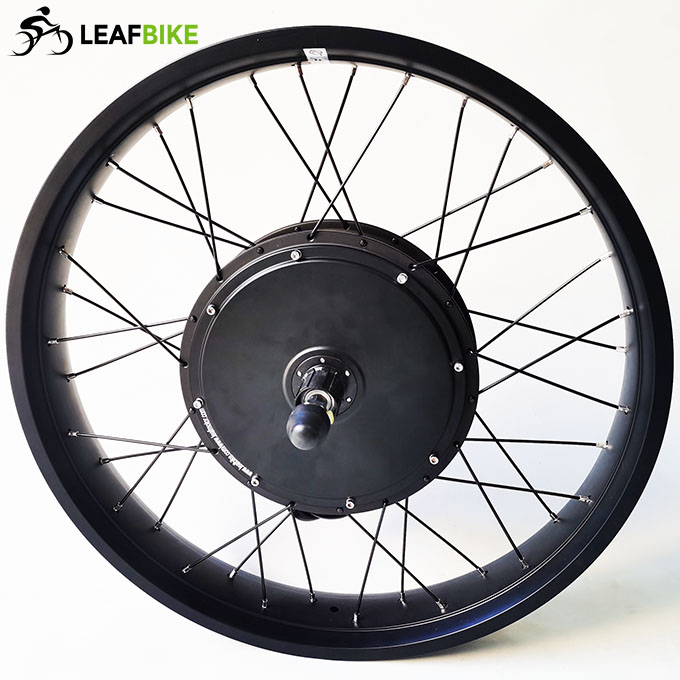

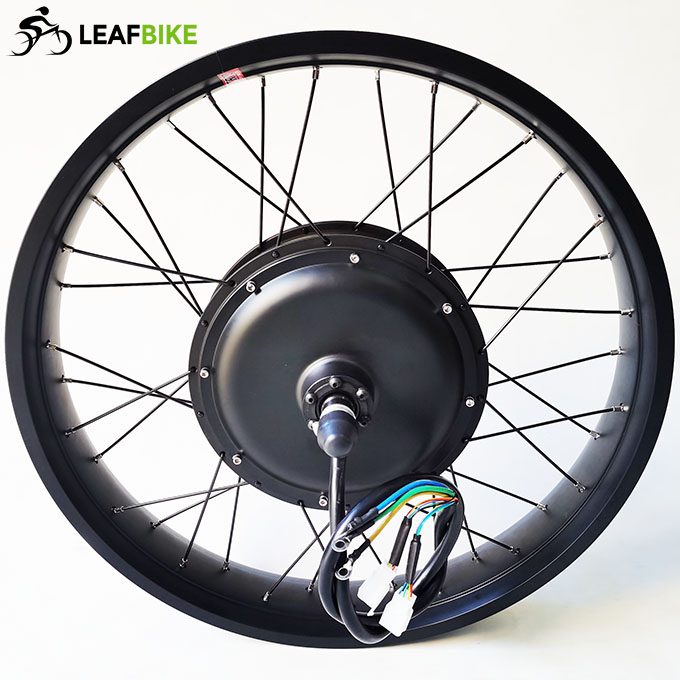

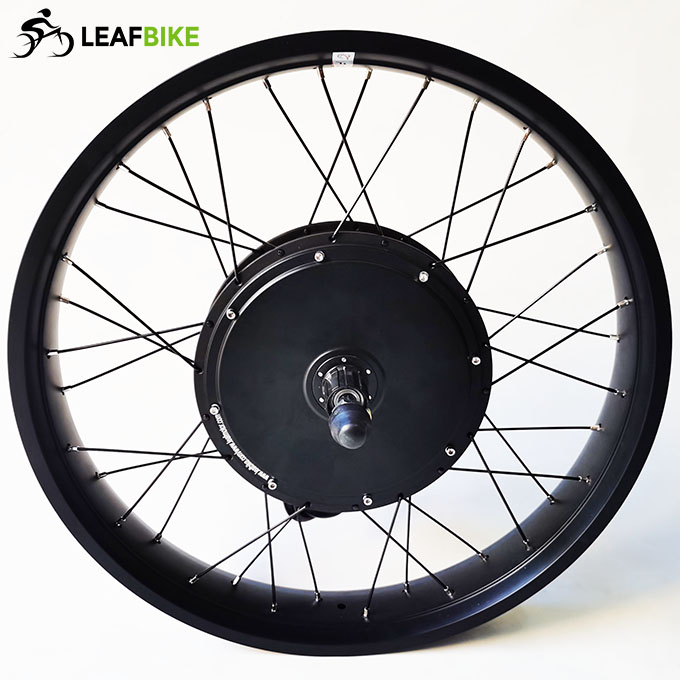

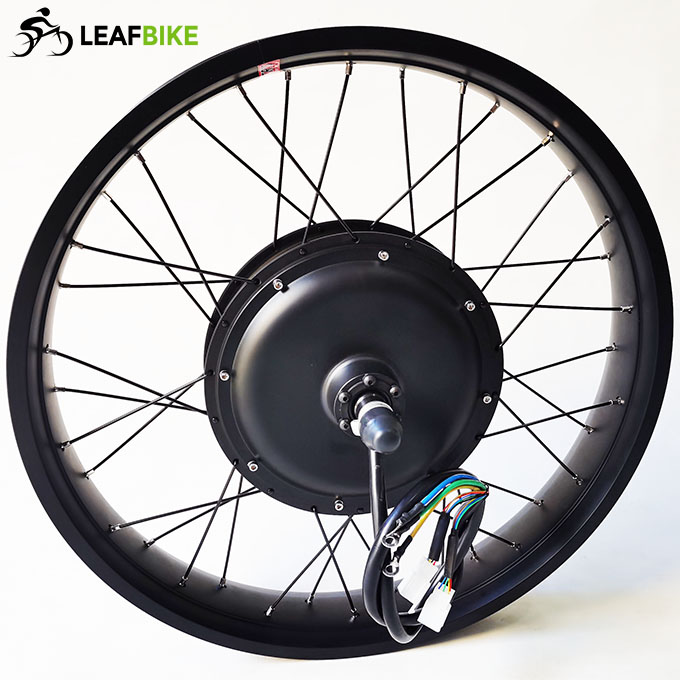

* This 24 inch 48V / 52V 2000W rear hub motor Beach Snow Fat Tire bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

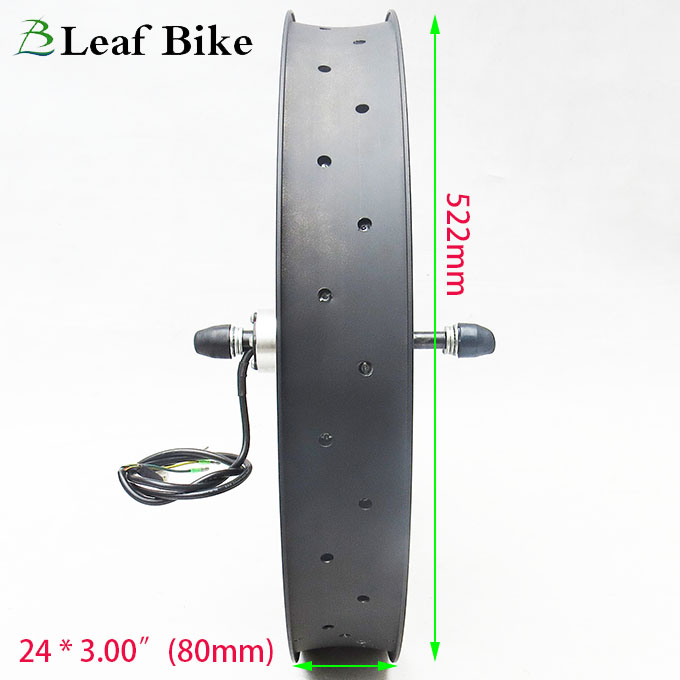

>. Rim: 24 × 3 inch double wall Alloy (Rim Fit For: 24 × 4.00" tire)
>. Spoke: 12 gauge / 135mm Length × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 45 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm or 190mm
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 45 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H
LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

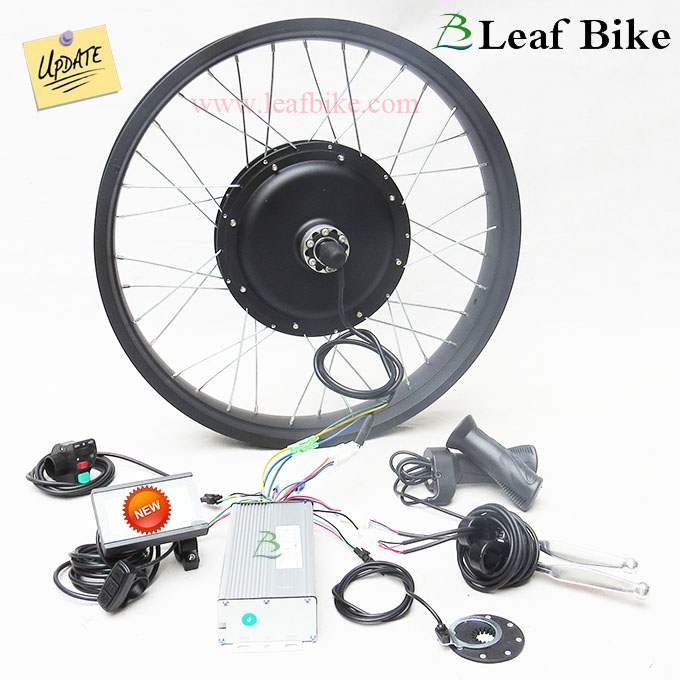

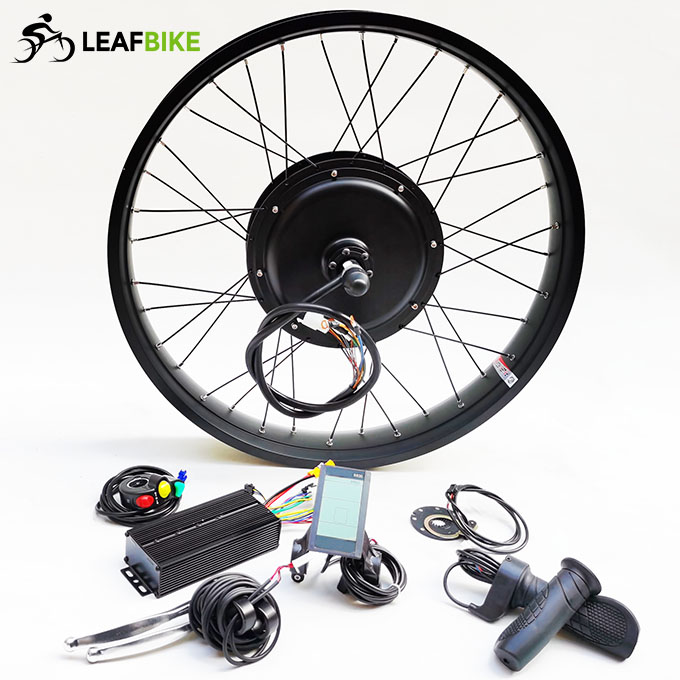

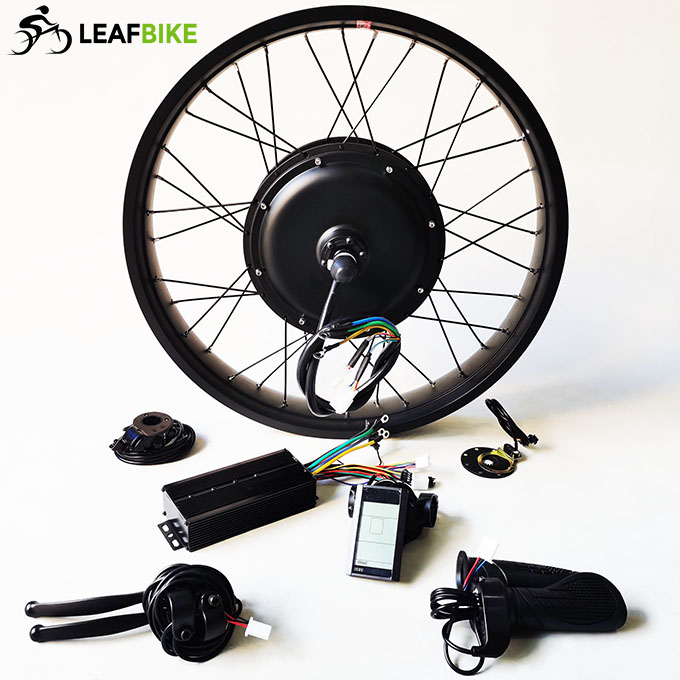

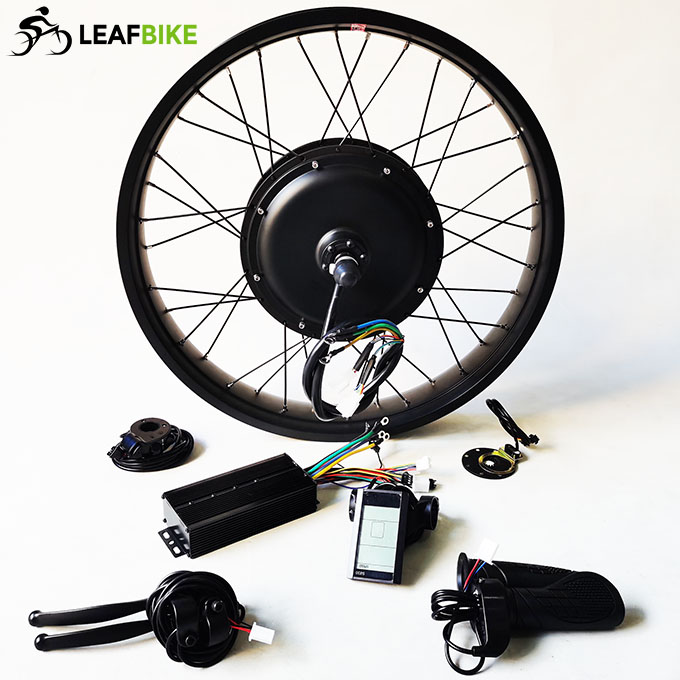

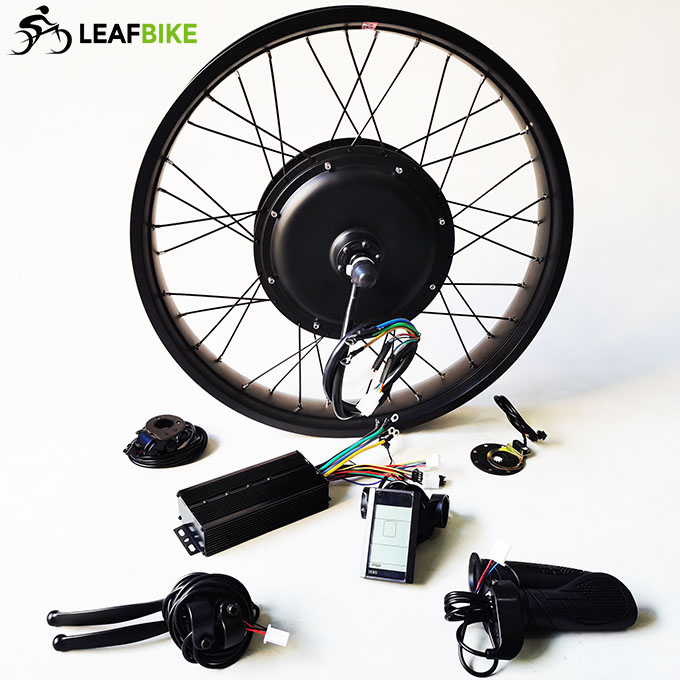

Package Content:

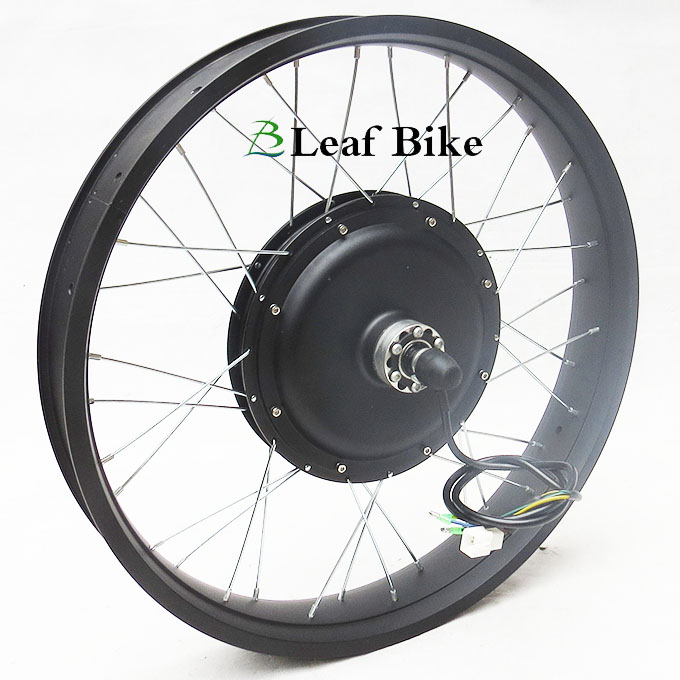

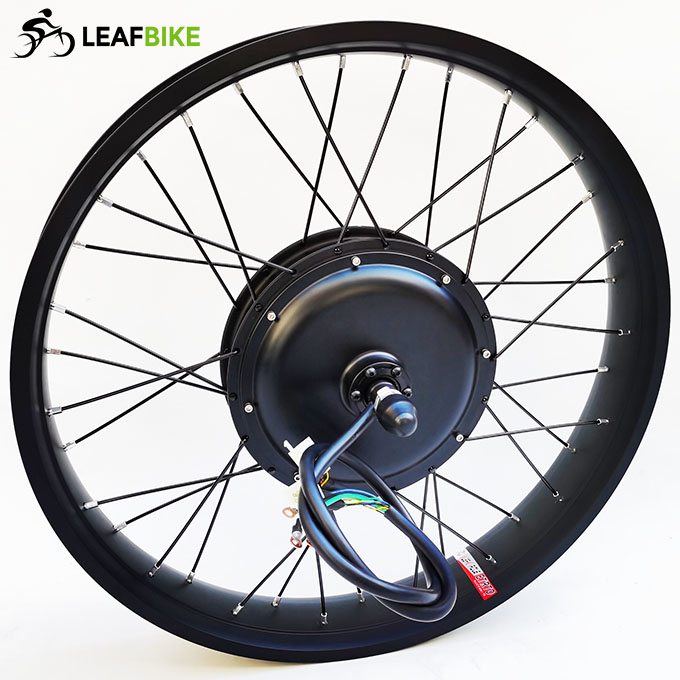

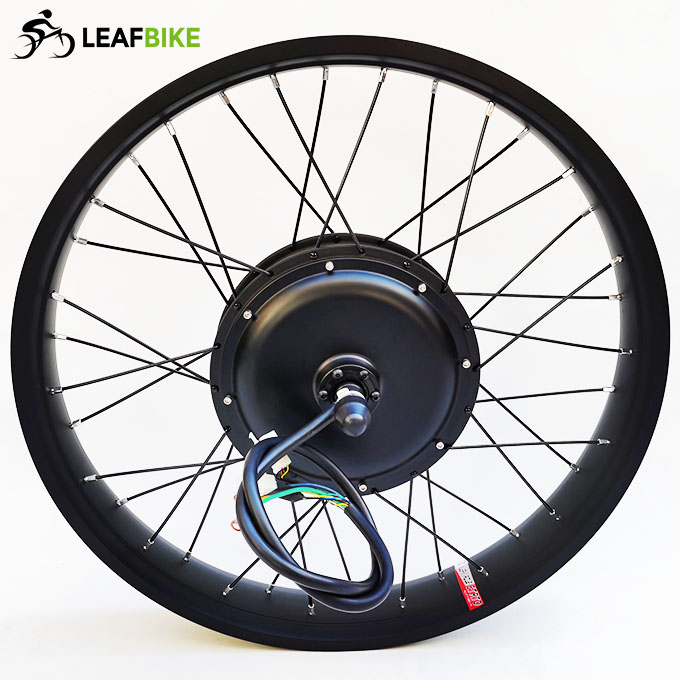

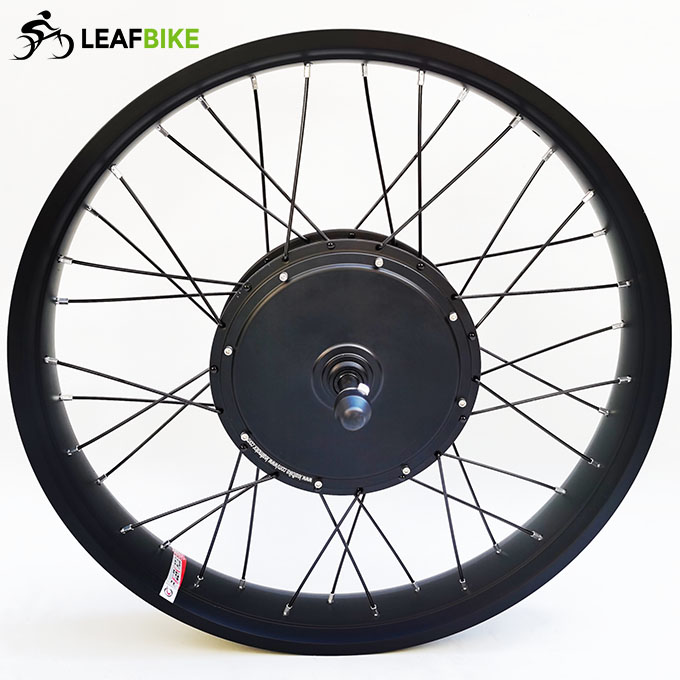

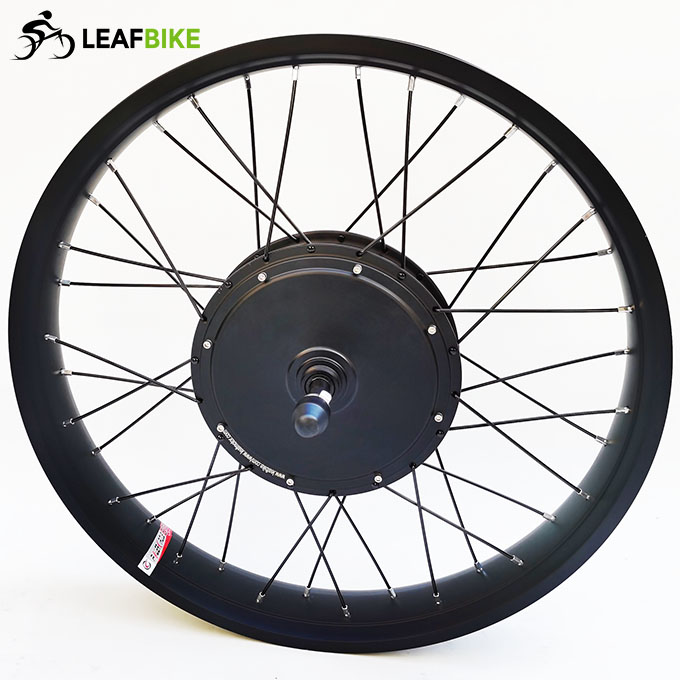

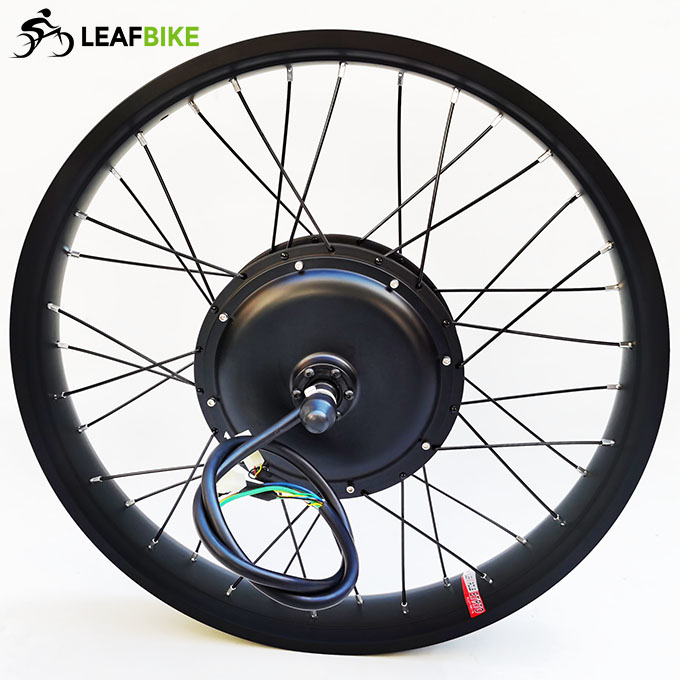

1 x 24 inch 48V / 52V 2000W rear hub motor wheel - 24 * 4.00 fat tire / snow / beach
1 x 48V / 52V 18- Mosfet motor controller
1 x LCD-S830 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 12.0 kg
Package Size: 56cm L x 56cm W x 28cm H
Package Type: Cardboard Box
Wire Diagram:
170mm dropout Drw.
170mm Cassette:
Performance Data:
190mm dropout Drw.
