Please watch videos for 20 inch 60V 3000W front fat hub motor electric bike conversion kit that only show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
* This 20 inch fat bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 3000W
>>. Efficiency: 90.5%
>>. Max speed: 45 mph Default (Optional other speed: 30mph,25mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 3000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 55 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 234 mm L × 82 mm W × 42 mm H
LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

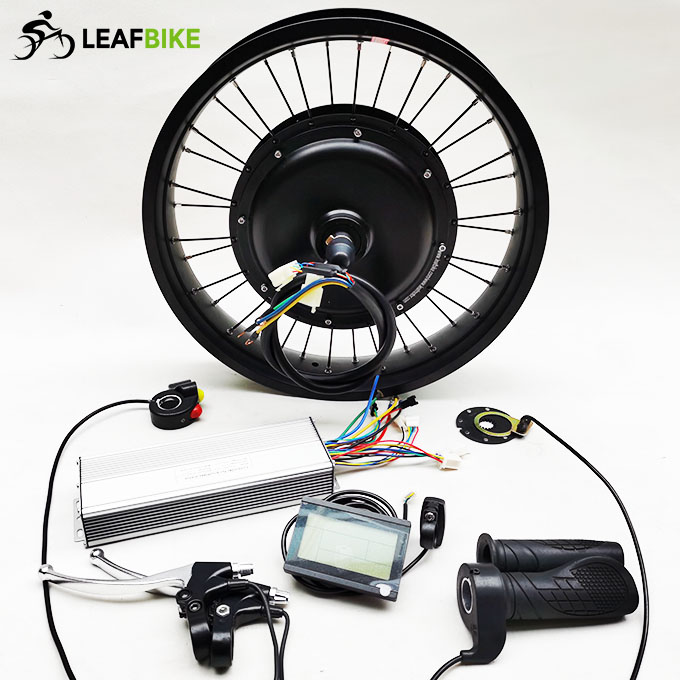

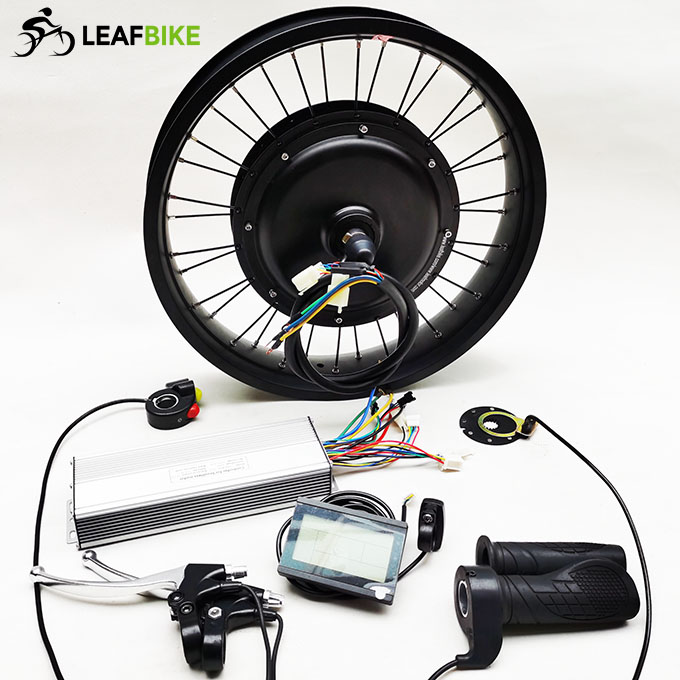

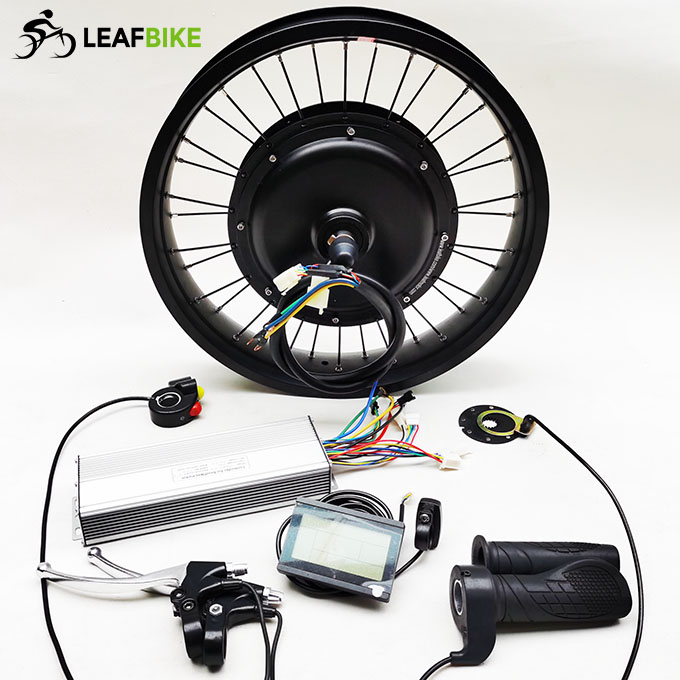

Package Content:

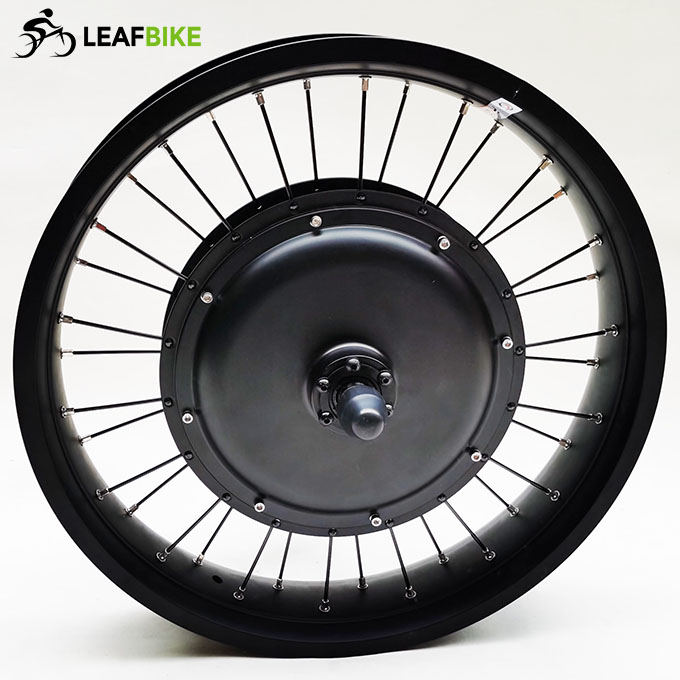

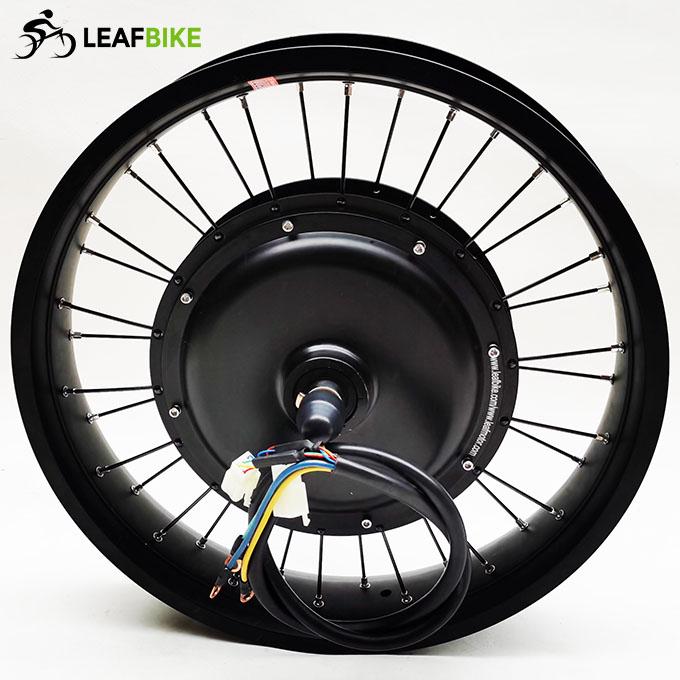

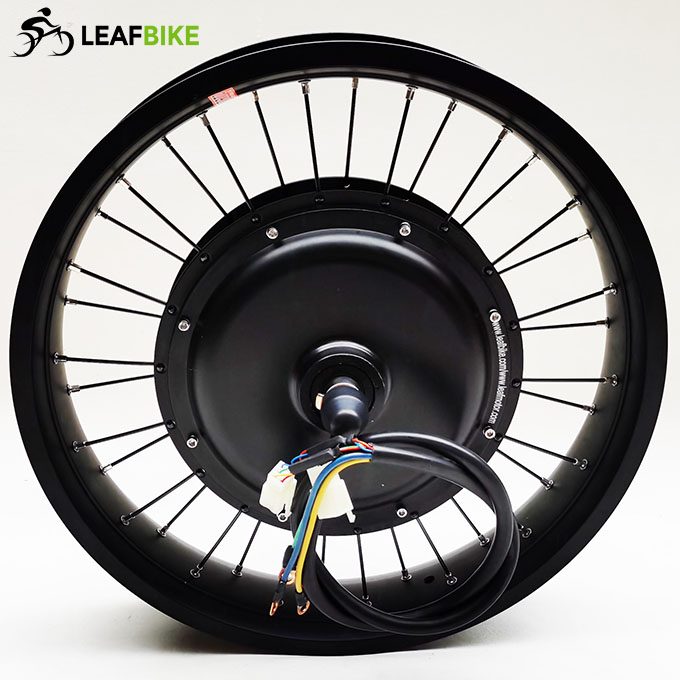

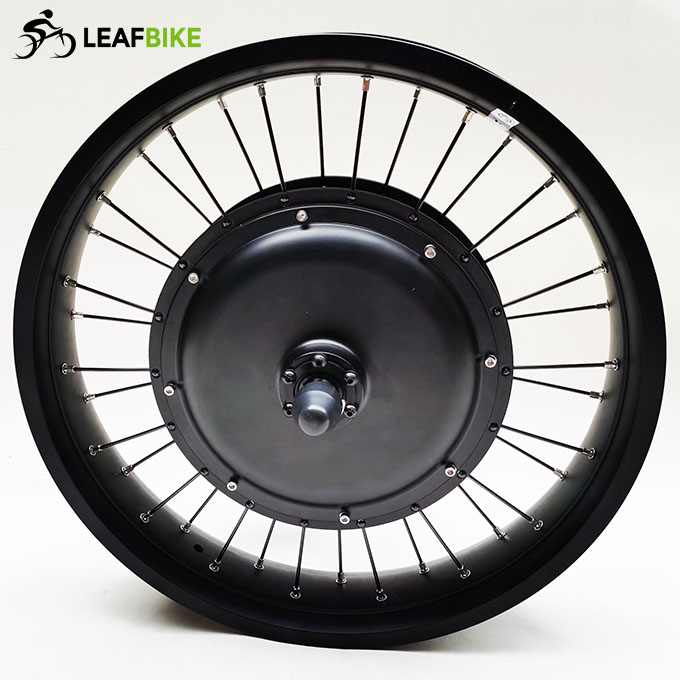

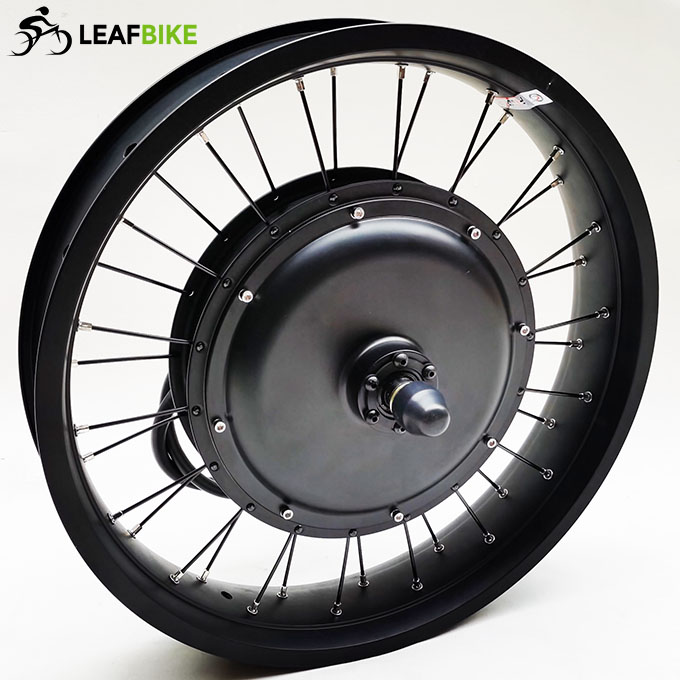

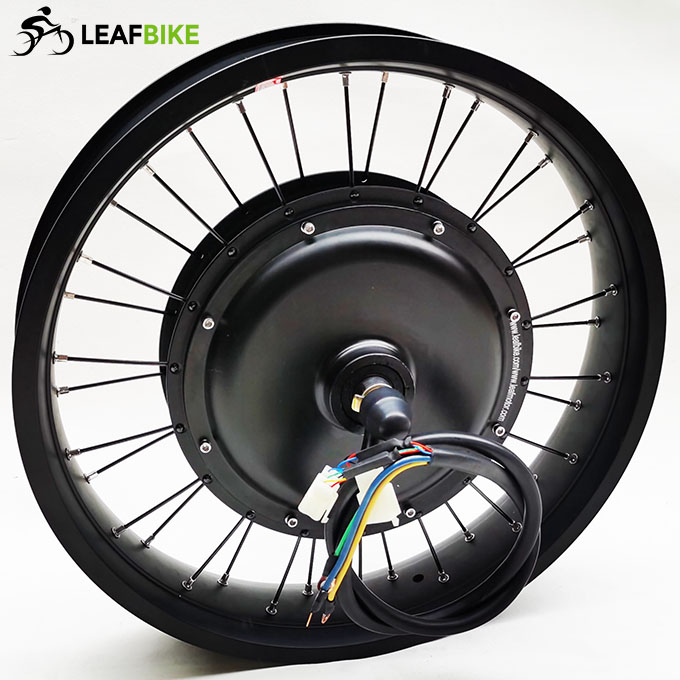

1 x 20 inch 60V 3000W front hub motor wheel - (Rim Fit For: 20 * 4.00 fat tire / snow / beach)
1 x 60V 18-MOSFET motor controller
1 x 60V LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.3 kg
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

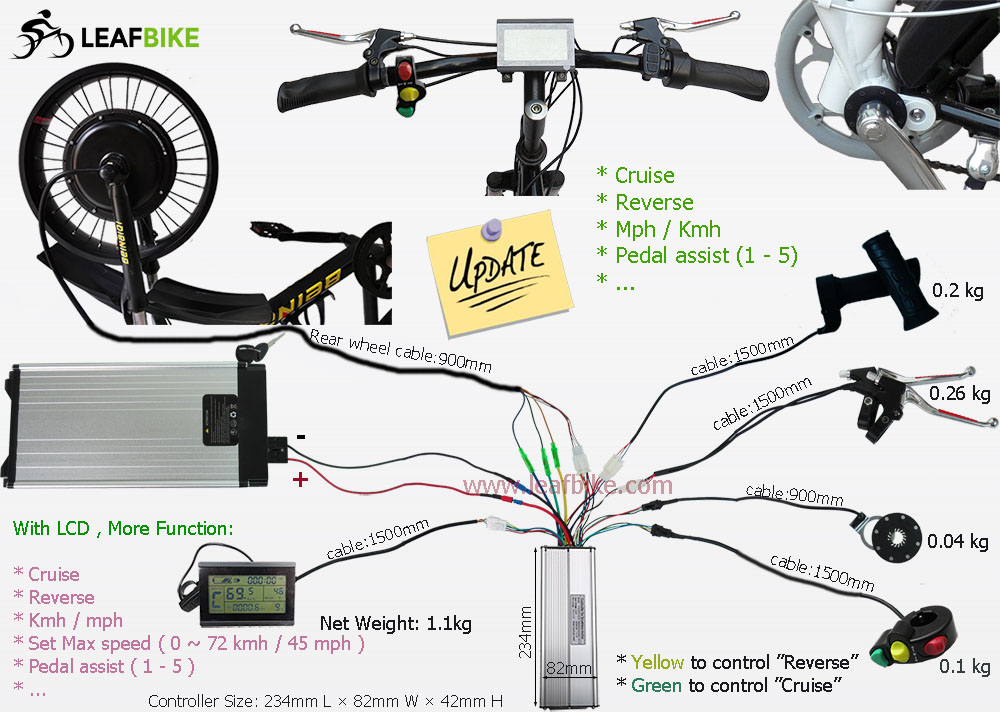

Wire Diagram:

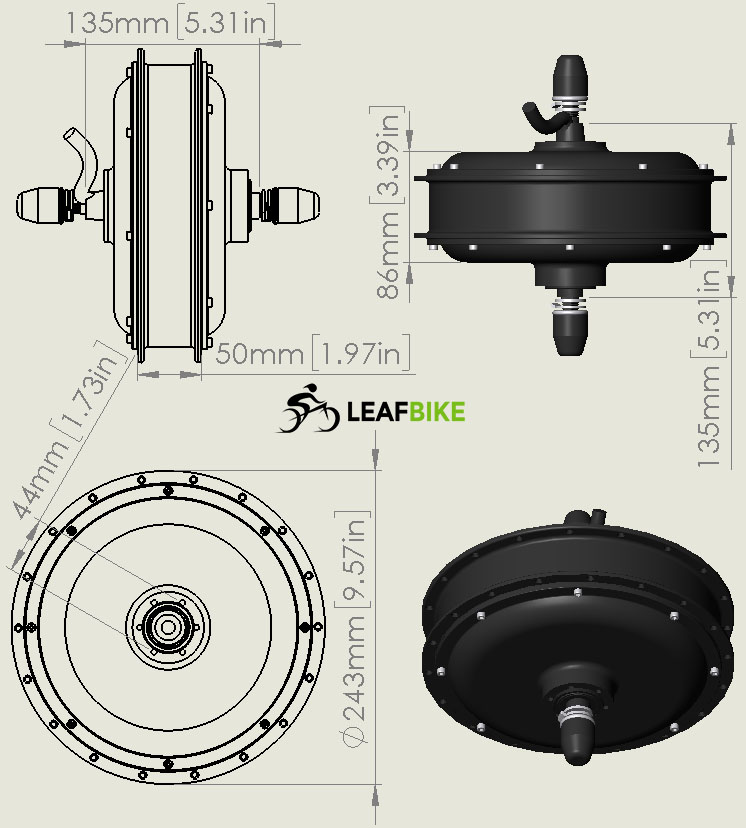

Fat Snow Front Drw.
