1.85 - 19 inch 60V 2000W rear electric motorcycle motor kit

Name: 1.85 - 19 inch 60V 2000W rear electric motorcycle motor kit
Brand: Leaf Bike
SKU: LBCK602000R1.85-19
Price: 490 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK602000R1.85-19

$490.00 ~~$540.00~~

Maybe You Need These

Description

Please watch video for 19 inch 60V 2000W rear electric motorcycle motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Aluminum Wheel:

19 inch 60V 2000W rear electric motorcycle motor kit video

* The 1.85 - 19 inch electric motorcycle motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

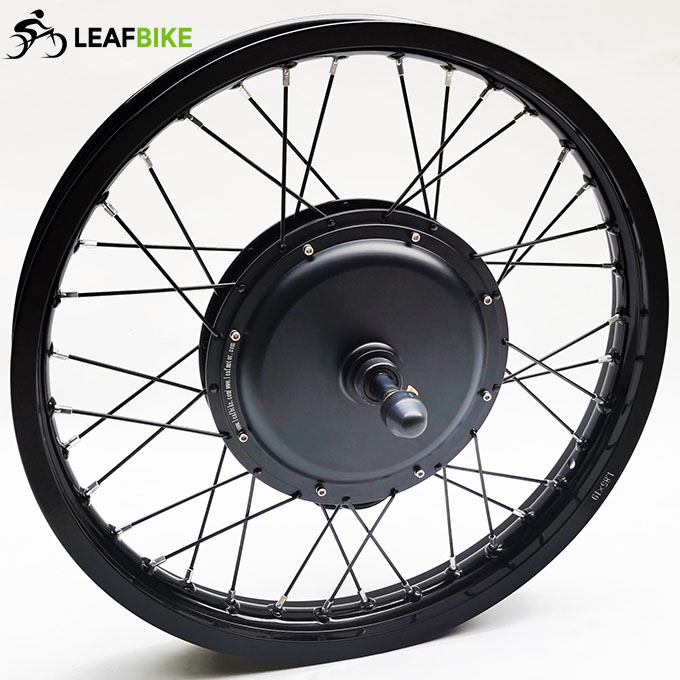

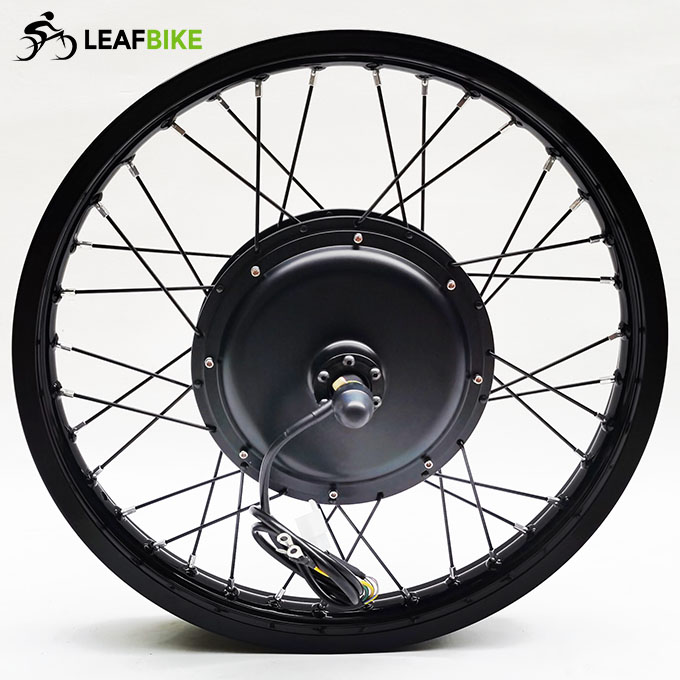

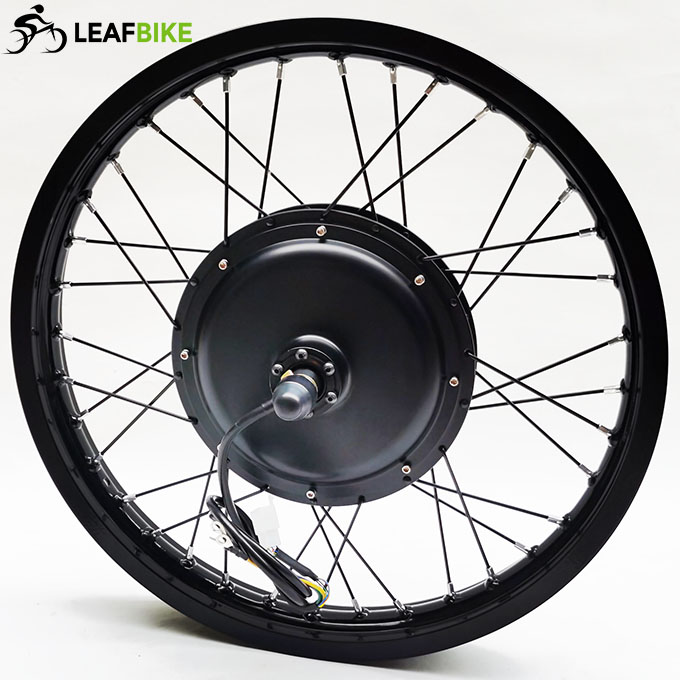

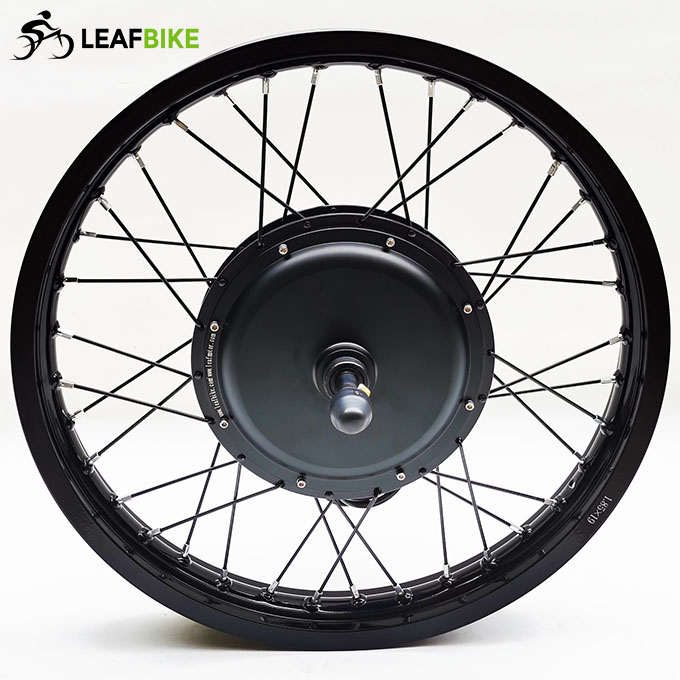

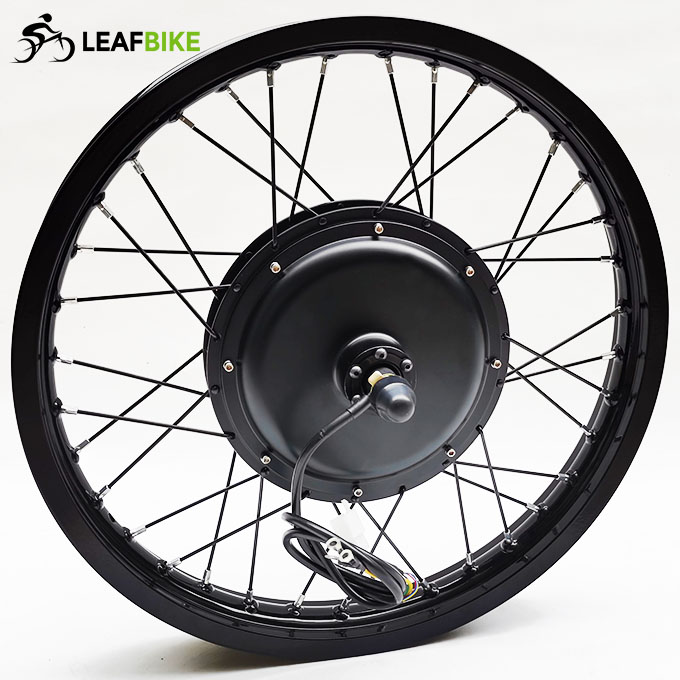

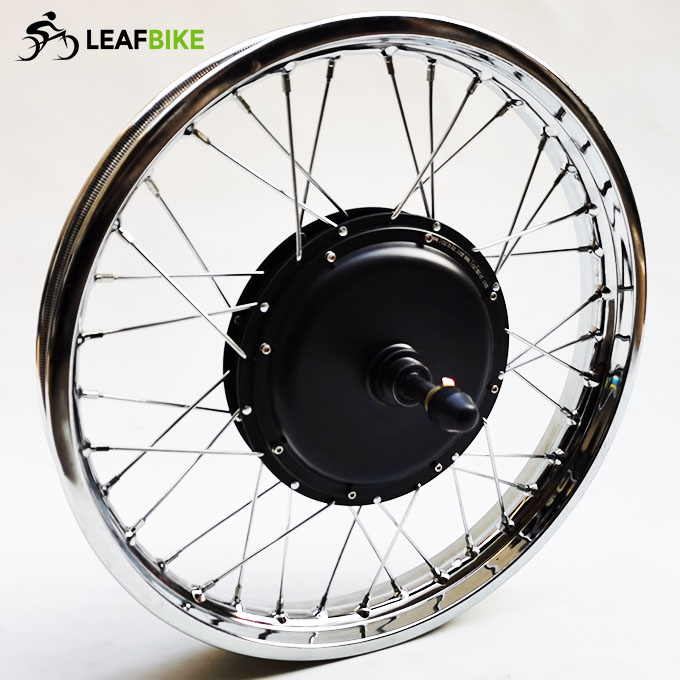

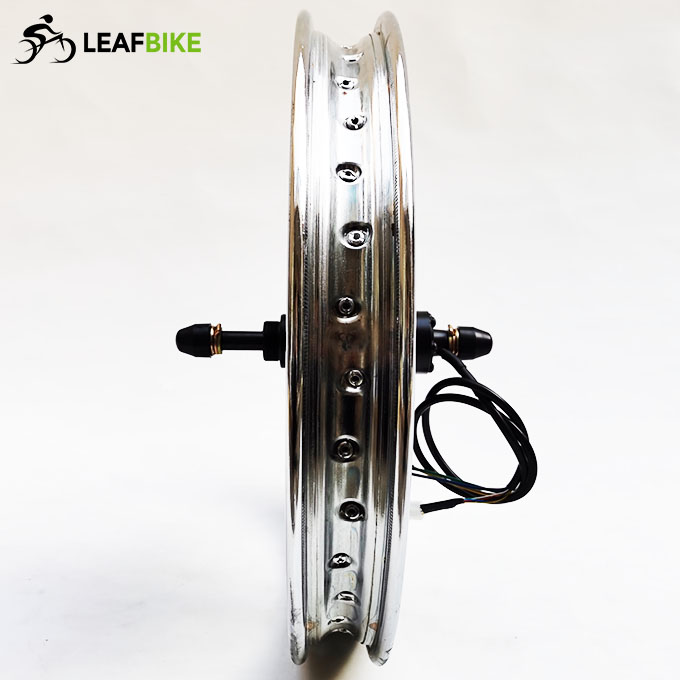

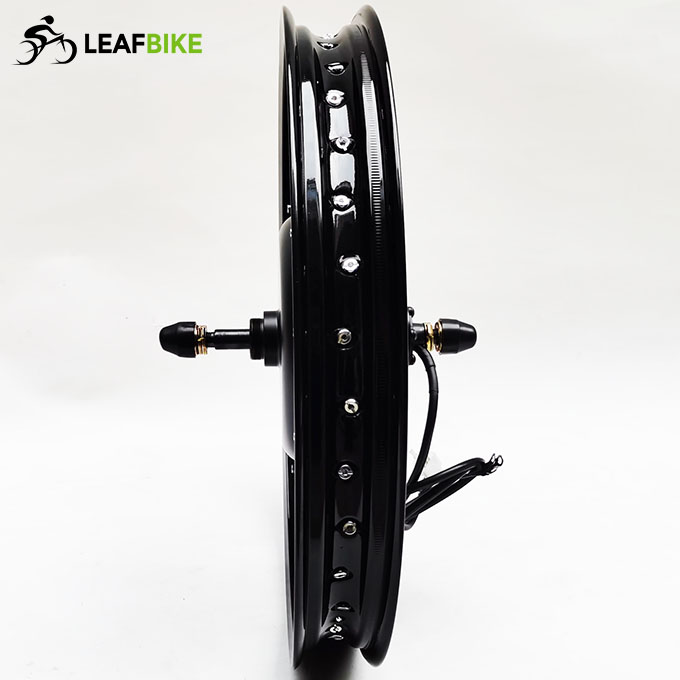

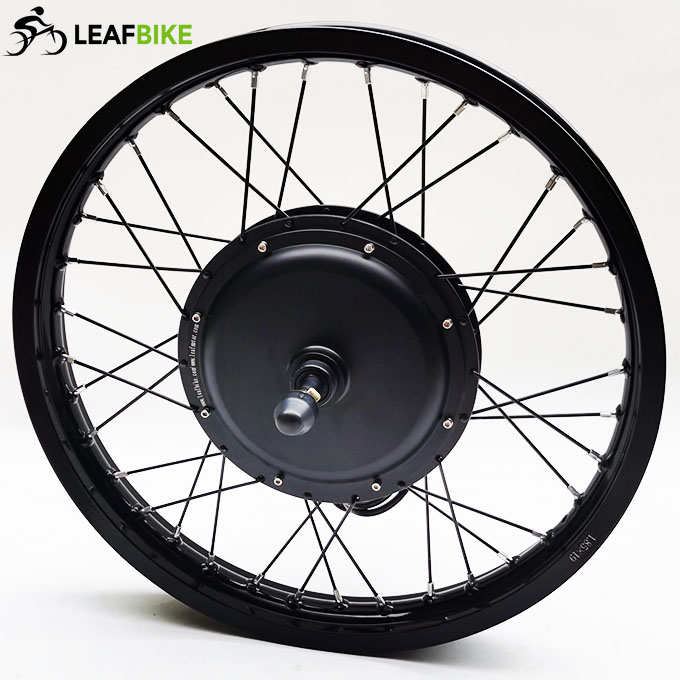

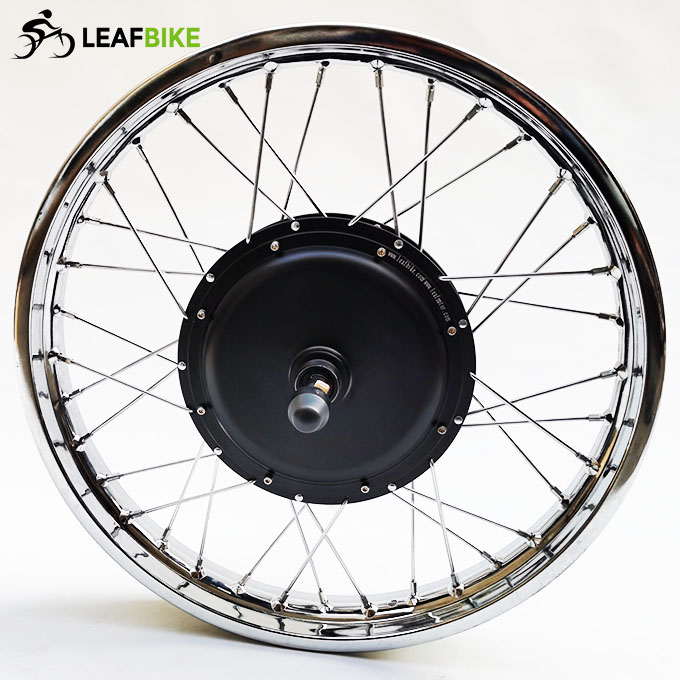

>. Wheel: 1.85 × 19" Black Aluminum Wheel or Chrome Steel Wheel
>. Spoke: 128mm 10 gauge × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 85kmh / 50mph Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Freewheel: Single speed
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 190mm or 170mm or 135mm (190mm version Default or 170mm or 135mm version optional)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

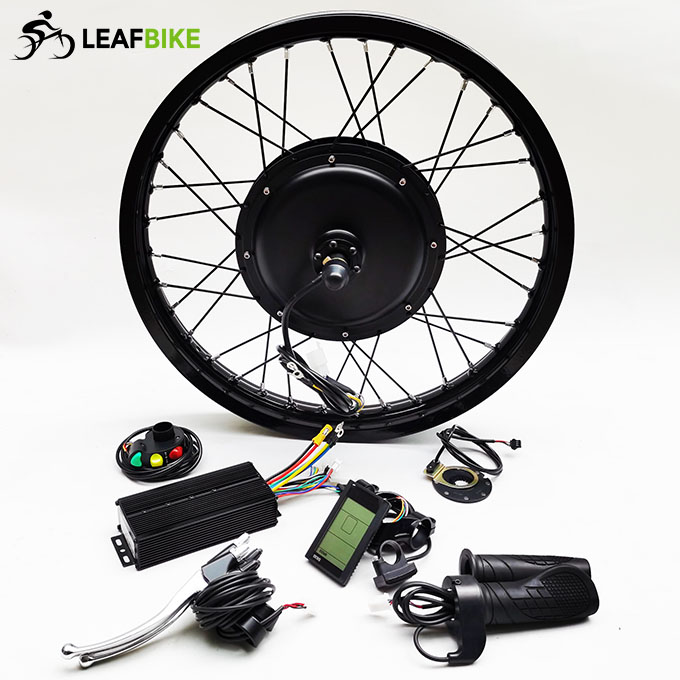

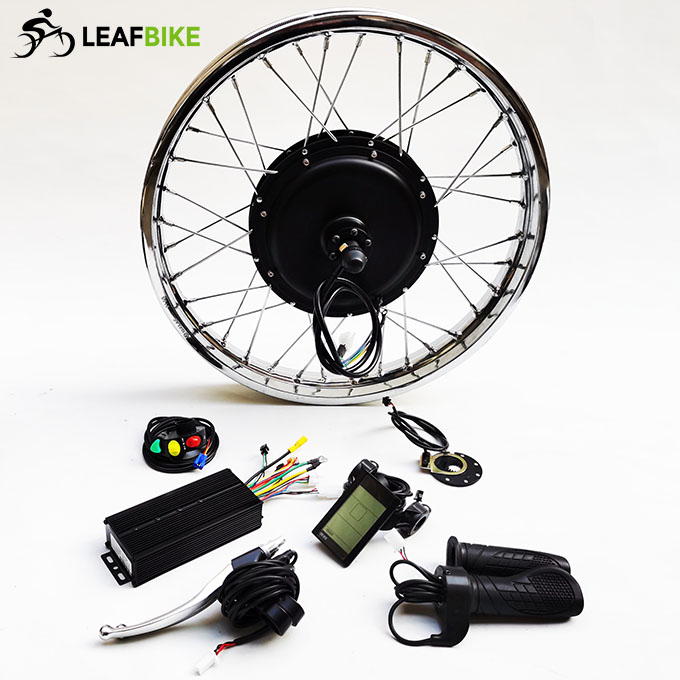

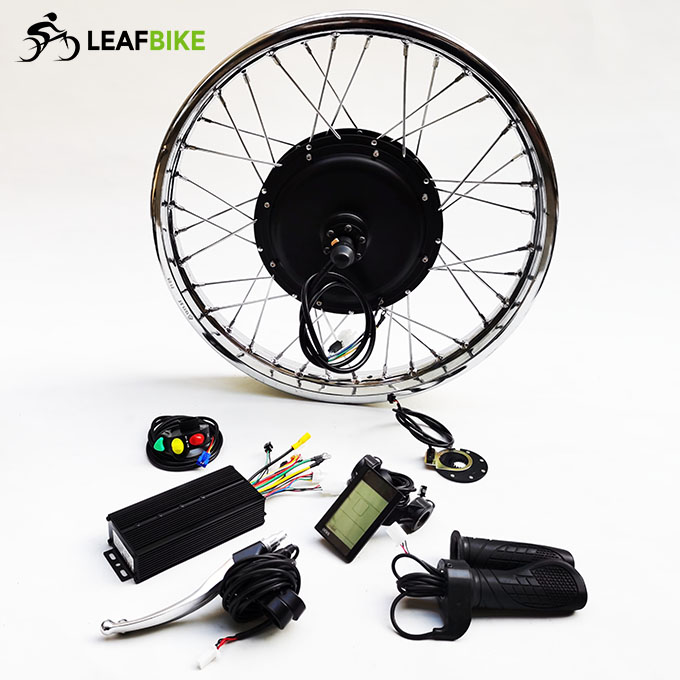

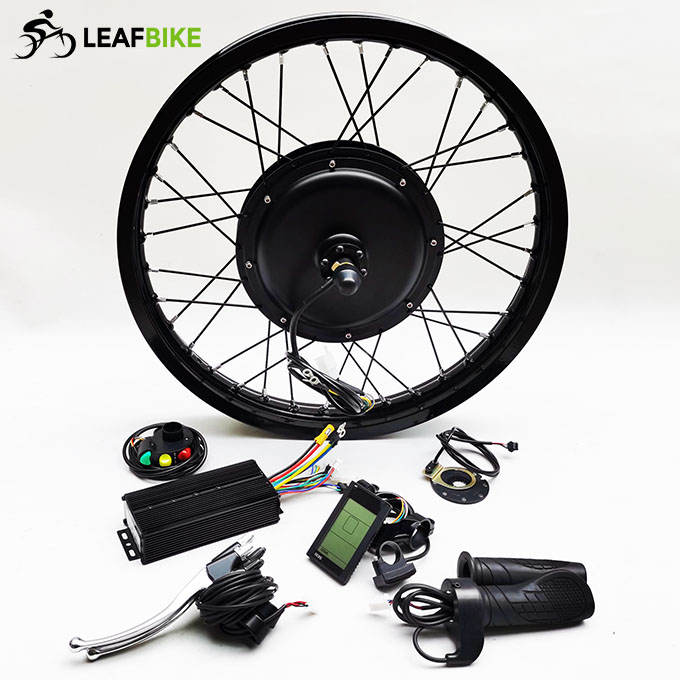

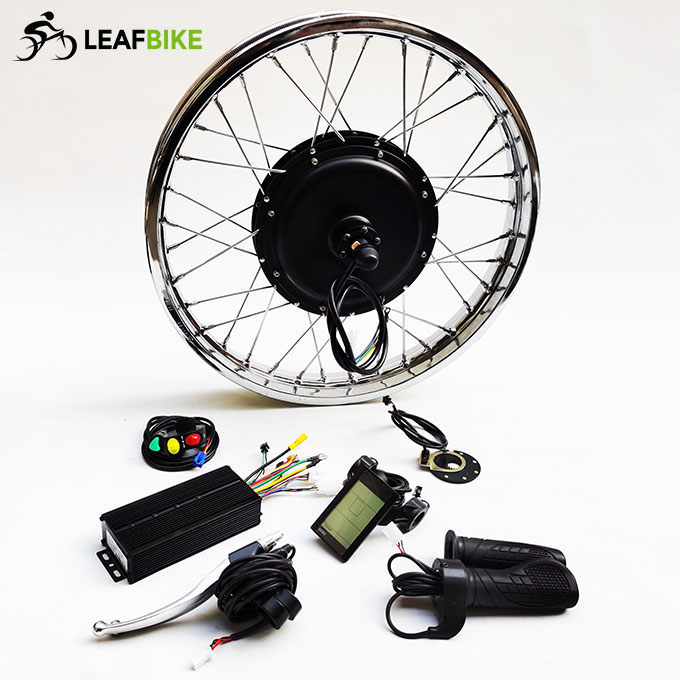

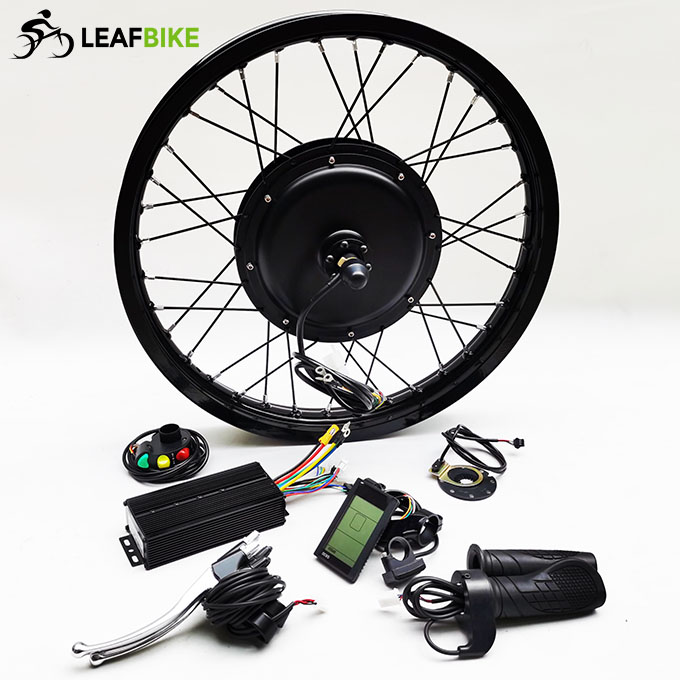

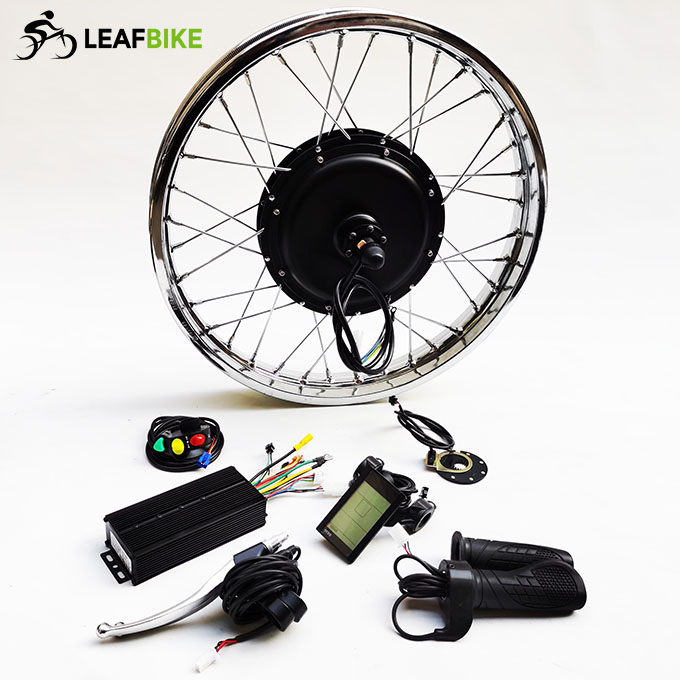

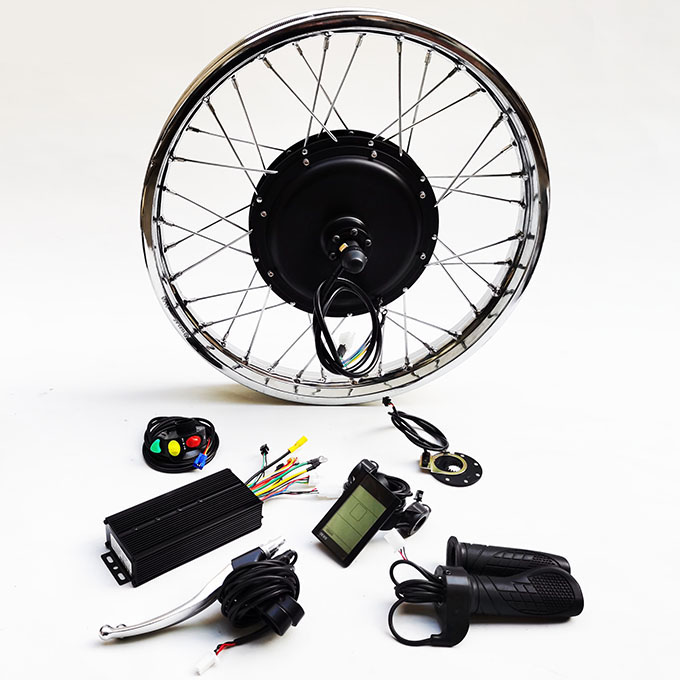

Package Content:

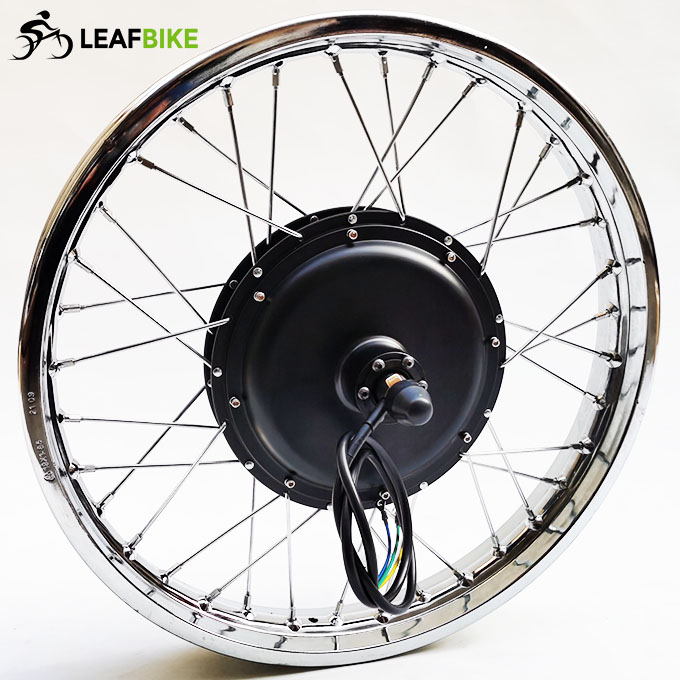

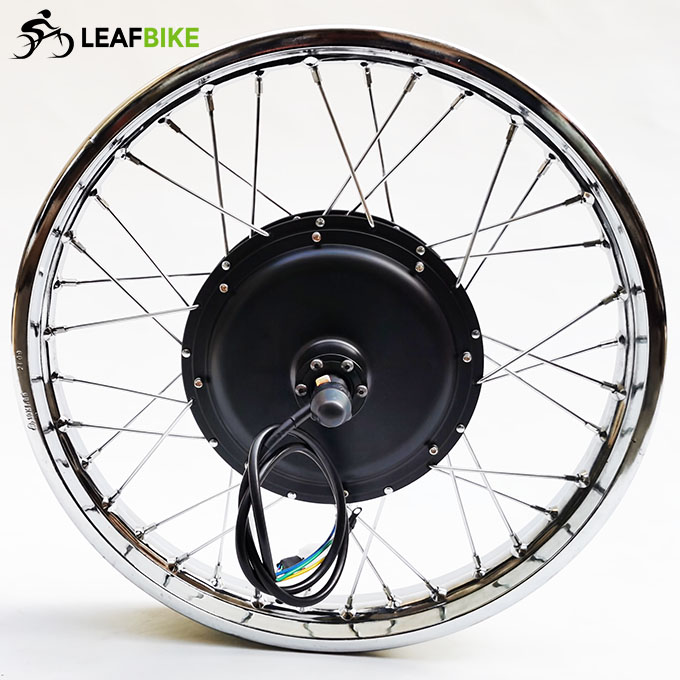

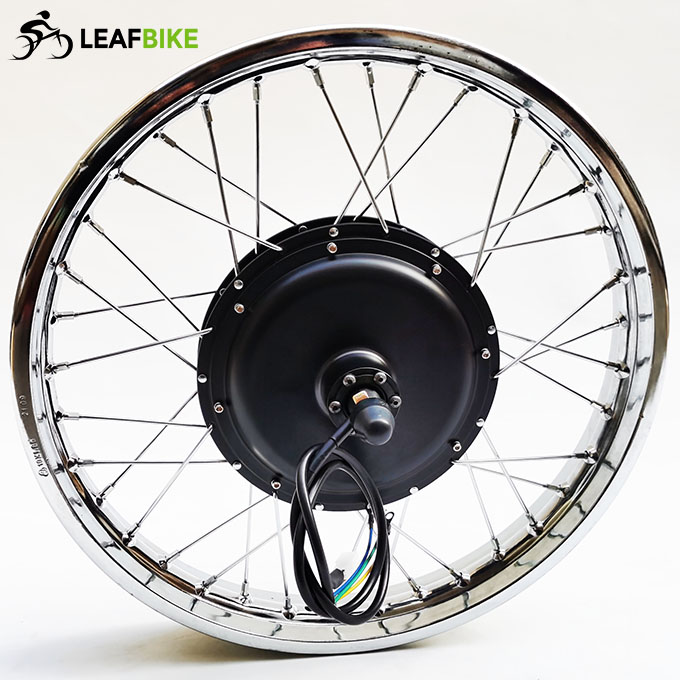

1 x 1.85 x 19 inch 60V 2000W rear electric motorcycle motor wheel
1 x 60V 18-MOSFET 40A motor controller
1 x LCD-S830
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12 kg
Package Size: 54cm L x 54cm W x 27cm H
Package Type: Cardboard Box

135mm Dropout Motor.

170mm Dropout Motor:

170mm 1500w electric motorcycle motor drawing

Wire Diagram:

Performance Data:

190mm Dropout Motor:
