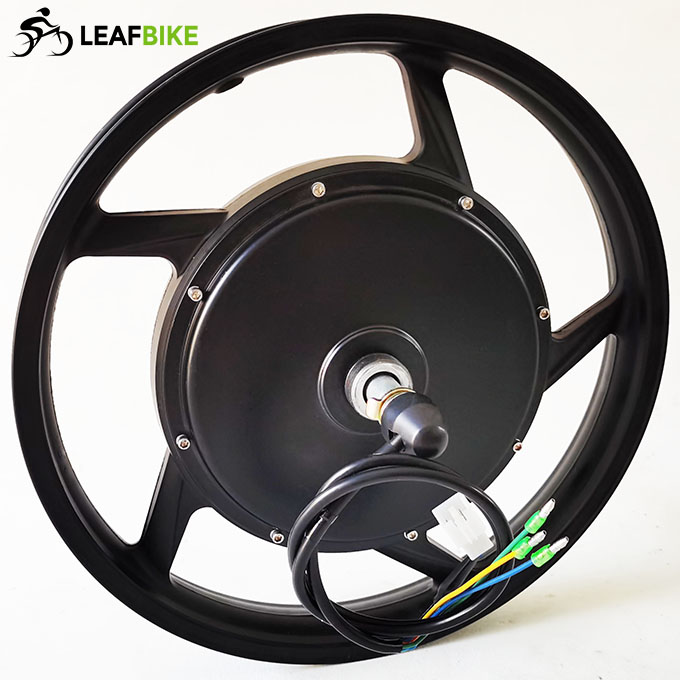

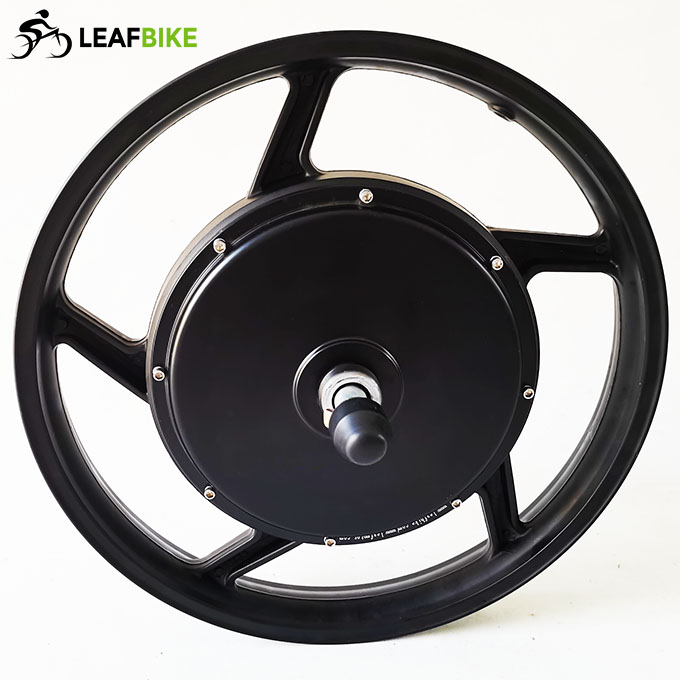

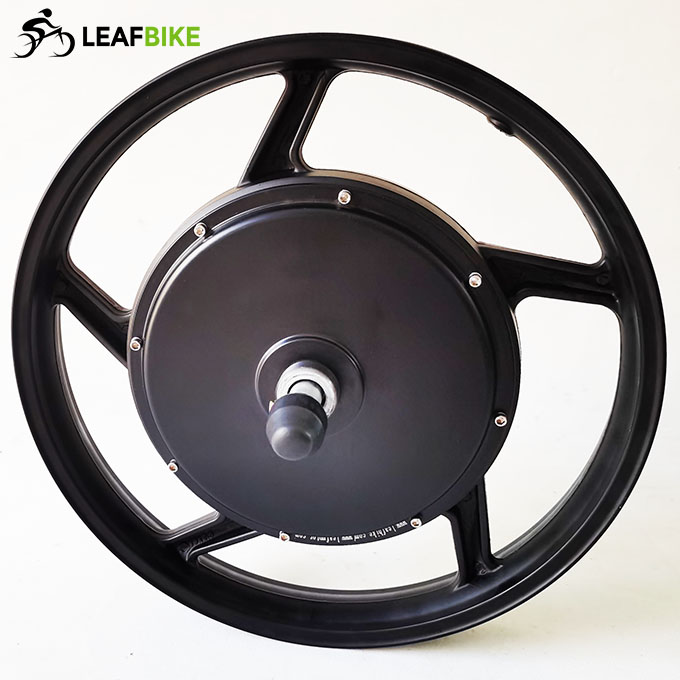

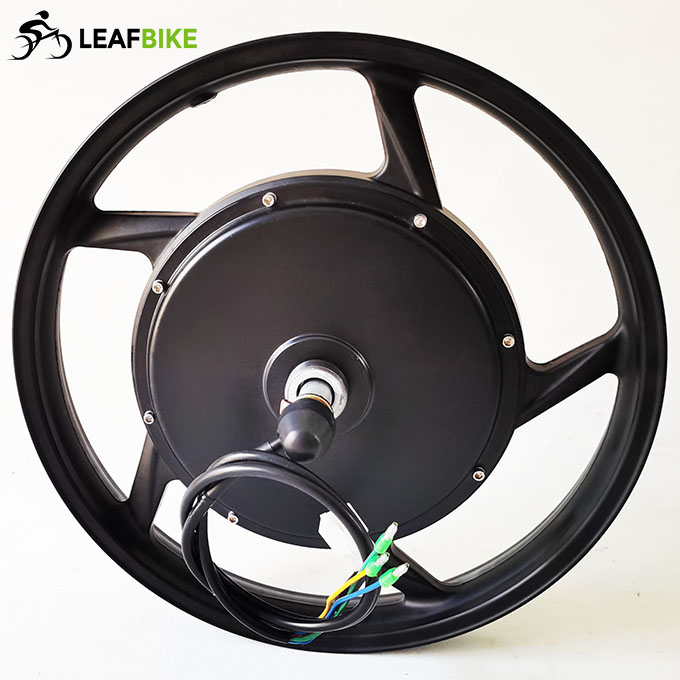

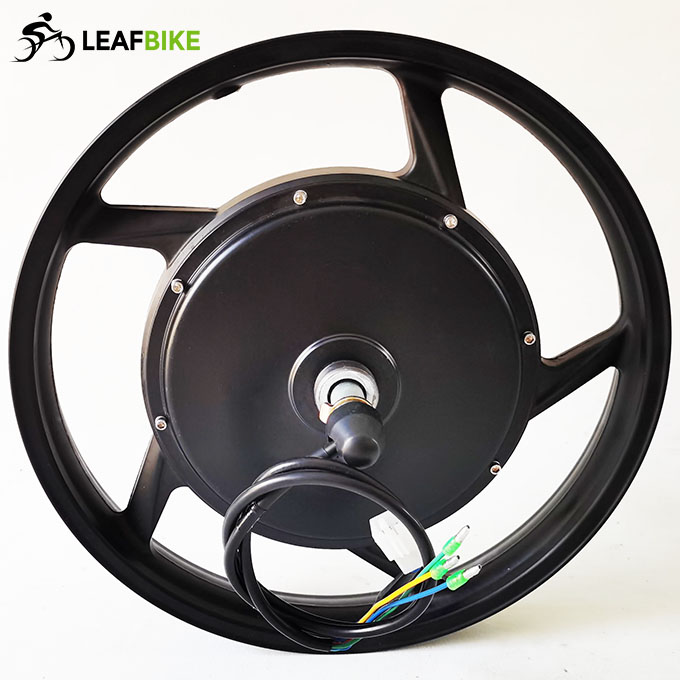

18 inch 48V 1000W rear hub motor
Item ID #LBM18481KR
List Price: $240.00€228.00£204.00AU$360.00CA$360.00S$360.00
Price: $178.00€169.10£151.30AU$267.00CA$267.00S$267.00
Quantity: Unit(s)
Description:
Detail:
Motor Type: brushless gearless dc motor
Voltage: 48V
Power: 1000W
Efficiency: ≥ 82%
Max speed: 50.4 kmh -- 30mph ( faster speed motor )
Mechanical brake: Disk / Drum ( optional )
Cable location: shaft end, left
Cable length: 110cm / 43"
Install: spacing of 135mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.26 kg / 16 lbs
Gross weight: 8.76 kg ( after packing )

Package Content:
1 x 18 inch 48V 1000W rear hub motor for electric scooter
Package Size: 46cm L x 46cm W x 31cm H
Package Type: Cardboard Box

If work with leaf LCD that can control 6 - speed:
* 50.4 km/h -- 49.9 km/h -- 40.8 km/h ( Faster speed motor, full speed, No load )
* 36.0 km/h -- 32.2 km/h -- 25.3 km/h ( Faster speed motor, limited speed, No load )


It works with leaf LCD that can control 6 - speed:
* 50.4 km/h -- 49.9 km/h -- 40.8 km/h ( Faster speed motor, full speed, No load )
* 36.0 km/h -- 32.2 km/h -- 25.3 km/h ( Faster speed motor, limited speed, No load )


Share Video: Wire Diagram:
  18 inch 1000w rear brushless hub motor     18 inch brushless hub motor wire diagram


18 inch 48V 1000W rear brushless hub motor 's drawing Performance data
 18 inch 48v 1000w rear brushless hub motor 48V 1000W rear spoke hub motor performance data
