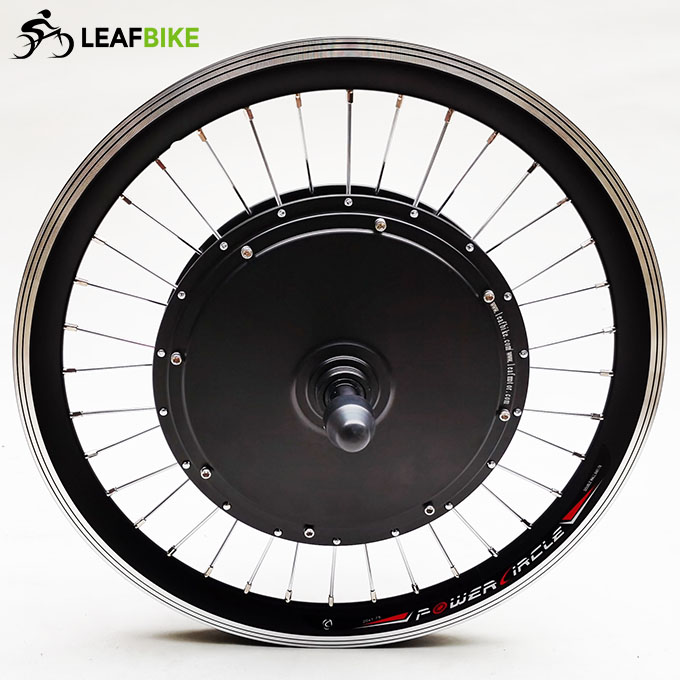

Updated 20 inch 48V 1500W rear hub motor wheel
Item ID #LBM20481500RN
List Price: $256.00€256.00£217.60AU$384.00CA$384.00S$384.00
Price: $210.00€210.00£178.50AU$315.00CA$315.00S$315.00
Quantity: Unit(s)
Description:
BRAND NEWEST LEAF BIKE 2017 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 700c , 28" & 29" sizes are available.

Detail:
Size: 20 inch Newest rear hub motor wheel
Rim: 20" double wall alloy( tire: 20 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" / 3.0" / 4.0" )
If the width of your tire / tyre is 1.5, 1.75, 3.0, 4.0..
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
Spoke: 12 gauge / 72mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Winding Rotor: 13 * 5T or 16* 4T (16 * 4T is faster than 13 * 5T)
Voltage: 48V
Power: 1500W
Efficiency: 90.5%
Max speed: 46.5 kmh -- 28.8mph
If you like faster or slower,we also can make it from min Min.80rpm to Max.780rpm. ONLY Note: Max speed when you place an order.Then we can customize it as your order.
For example:   9 * 7T - 380RPM 10 * 6T - 480RPM 13 * 5T - 580RPM 16 * 4T - 680RPM

Mechanical brake: Disk or  V
Cable location: shaft end , LEFT
Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
Install: spacing of 135mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 8.5Kg / 18.7 lbs

Package Content:
1 x 20 inch Newest 48V 1500W rear hub motor wheel
Package Size: 46cm L x 25cm W x 46cm H
Package Type: Cardboard Box


Share Video: Wire Diagram:
20 inch 48v 1500w rear hub motor video   1000w new hub motor electric bike conversion kit wire diagram


Newest 1500W rear hub motor Drw. Performance Data:
48v 1500w rear spoke hub motor 1000w-hub-motor-curve-data
Hub Motor
