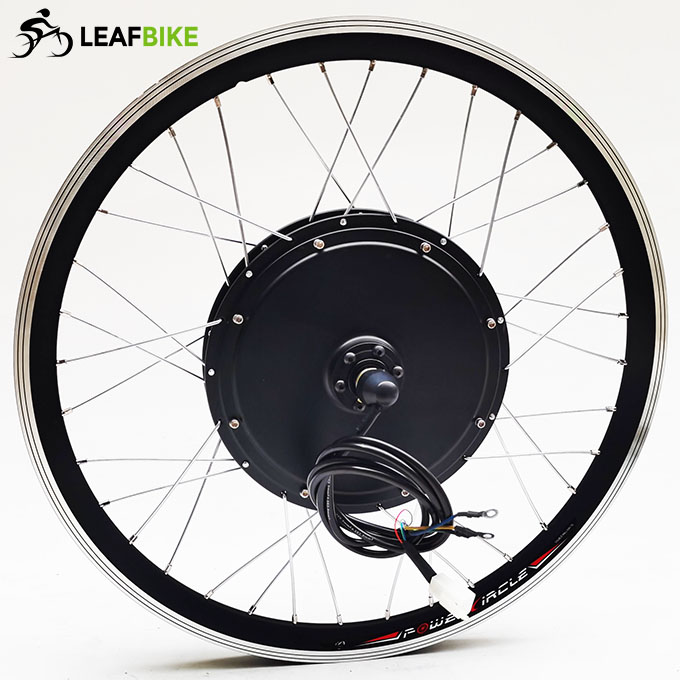

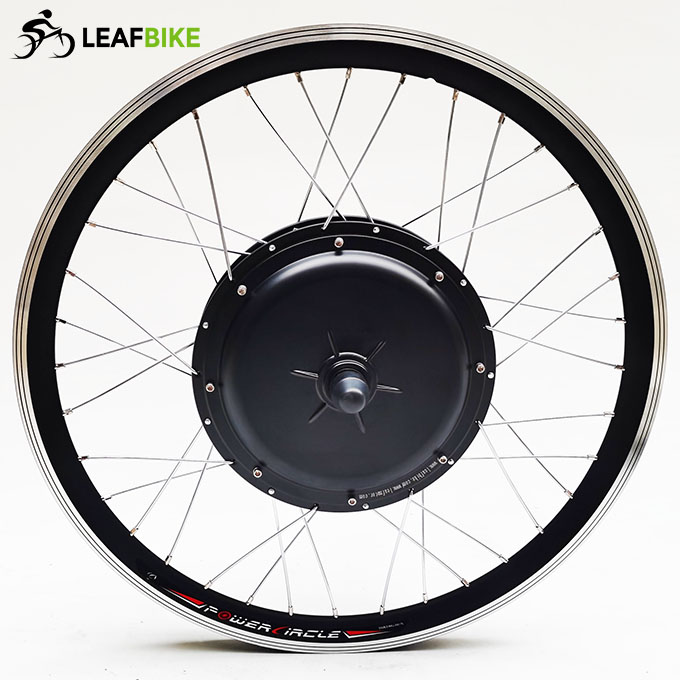

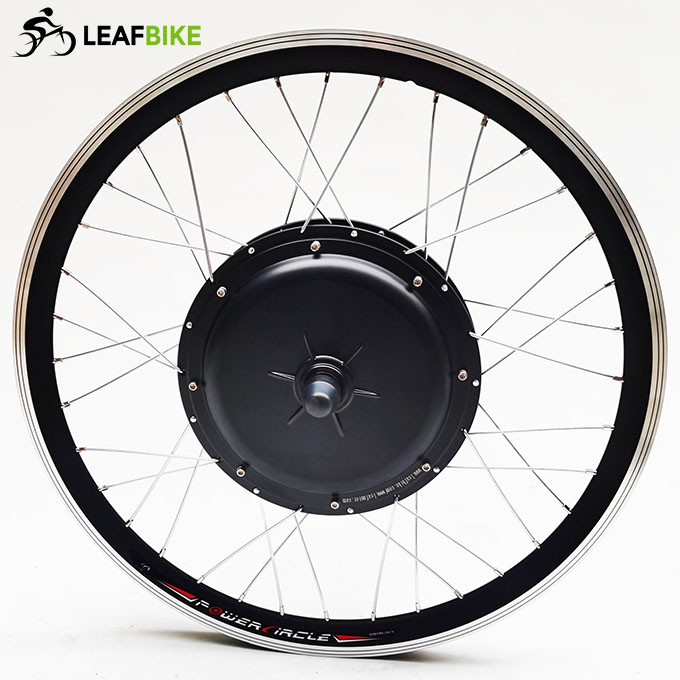

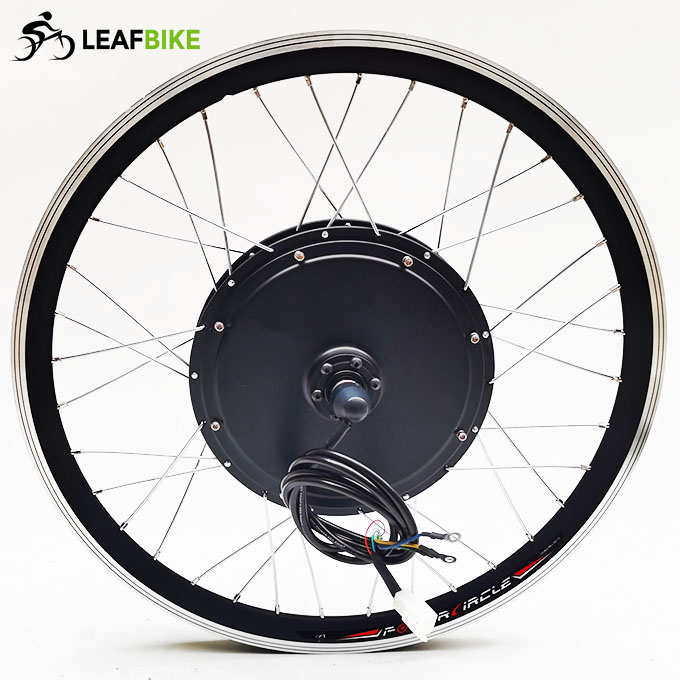

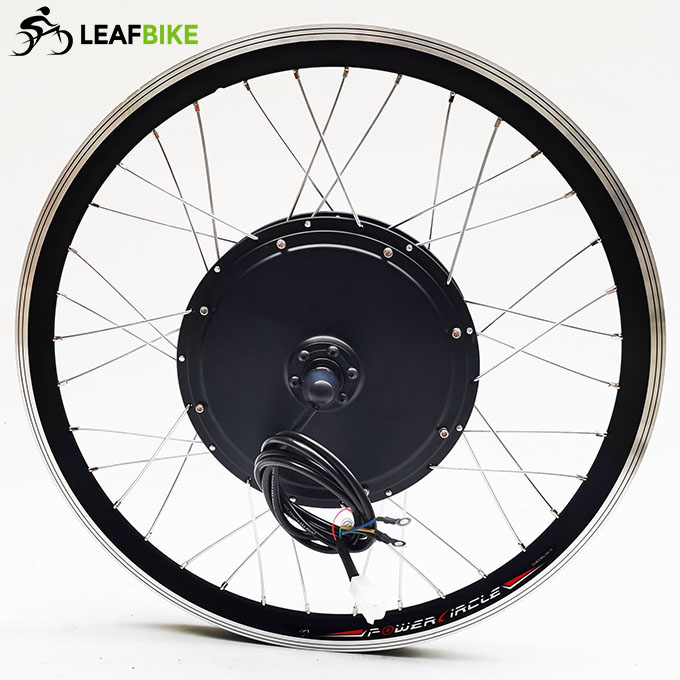

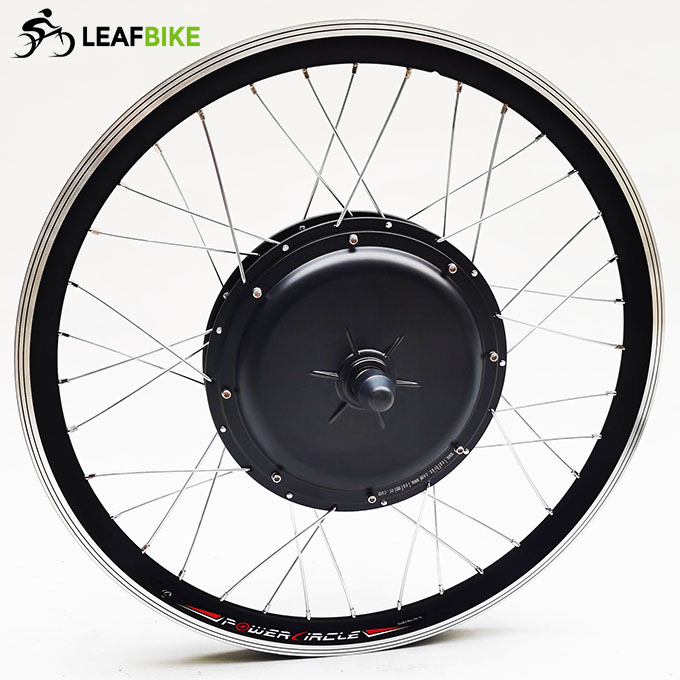

24 inch 48V 52V 1500W front hub motor wheel

Item ID #LBM24481500FN
$218.00 $259.00
    Please select the information you wantX
  • Tyre Size :
    24 x 1.5" / 1.75" / 1.95"
    24 x 1.95" / 2.0" / 2.1" ~ 2.5"
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* This 24 inch 48V 52V 1500W front hub motor wheel combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

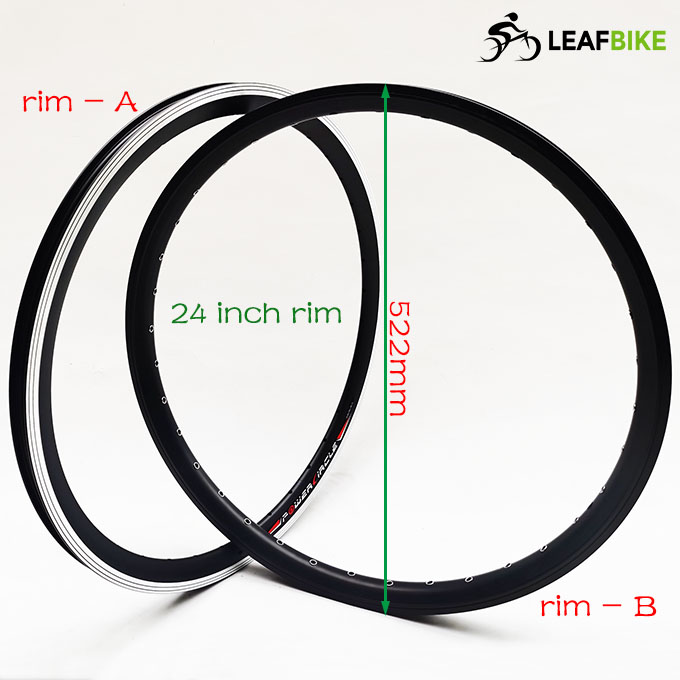

>. Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 130mm Length × 36 pcs

>. Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 135mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 64.8kmh
>>.  Mechanical brake: V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:150cm / 60"  -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

Package Content:
1 x 24 inch 48V / 52V 1500W front hub motor wheel

Net Weight: 10 kg   /  22 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
Share Video: S830
24 inch 48v 1500w front hub motor electric bike conversion kit
Wire Diagram:
48v 1500w front bike motor drawing
Performance Data:
48v-1500w-hub-motor-curve
Share Video: 08HU
24 inch 52v 1500w front hub motor electric bike conversion kit
Share Video:
24 inch 48V 1500W front hub motor - bike conversion kit
