Please watch videos for 24 inch 48V 52V 1000W front electric bike motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
08HU Video:
S830 Video:
Share Video:
BRAND NEWEST LEAF BIKE 2025 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

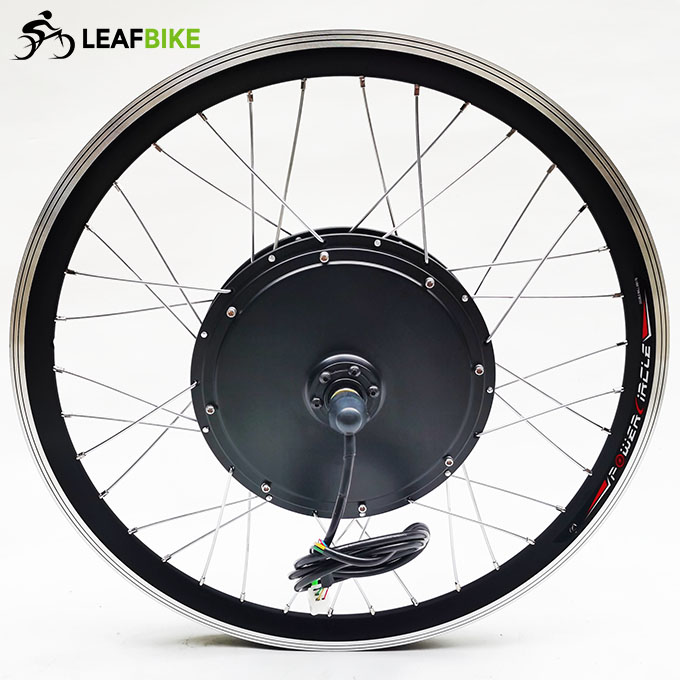

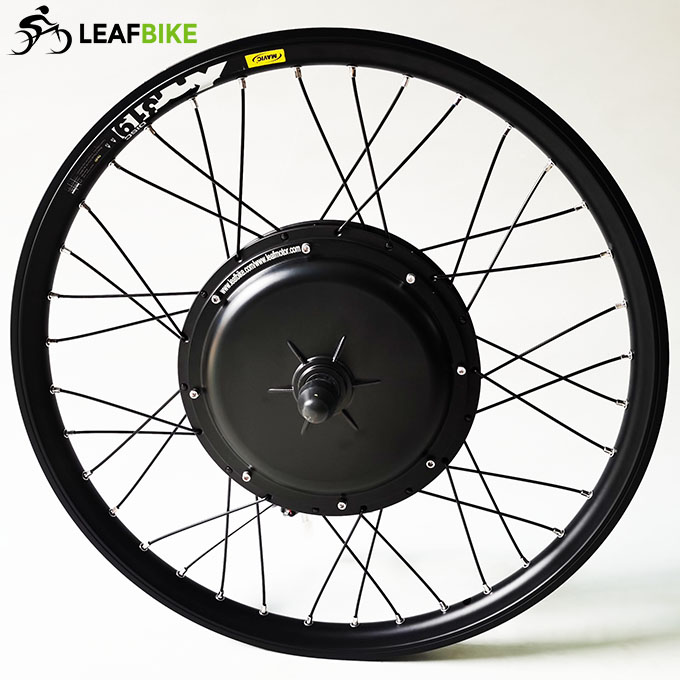

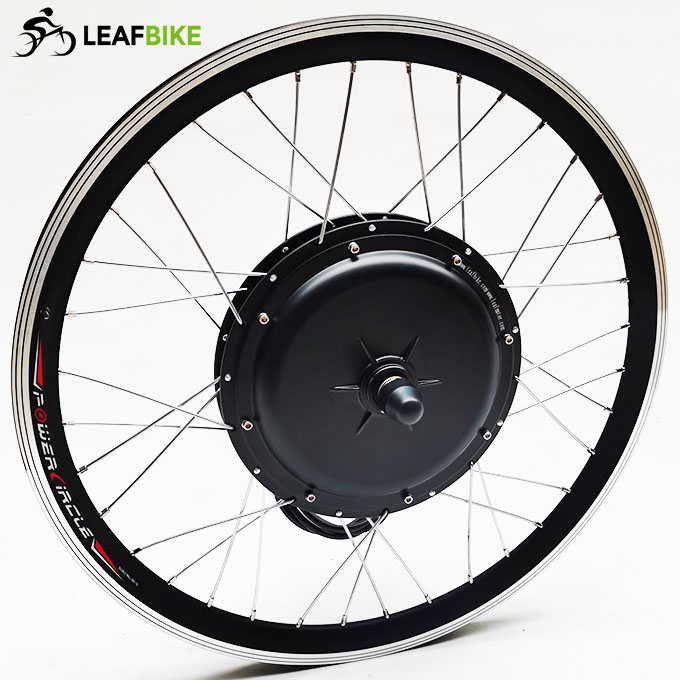

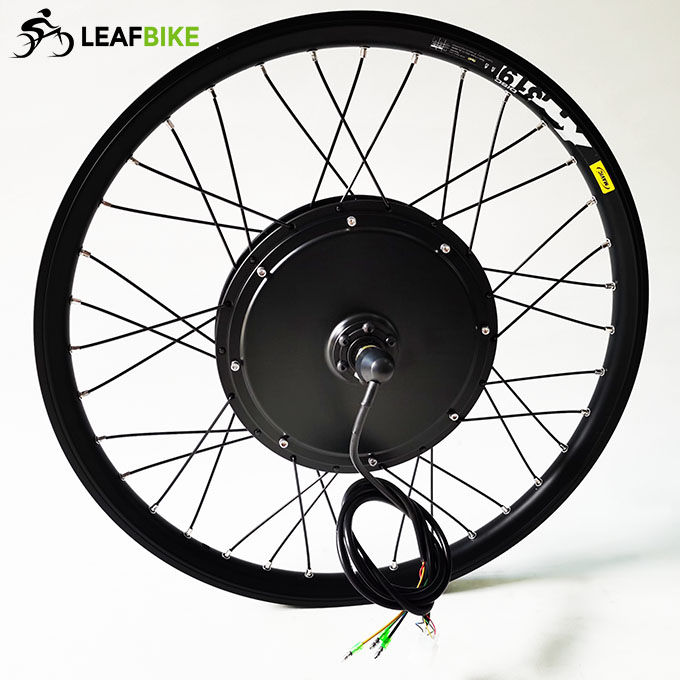

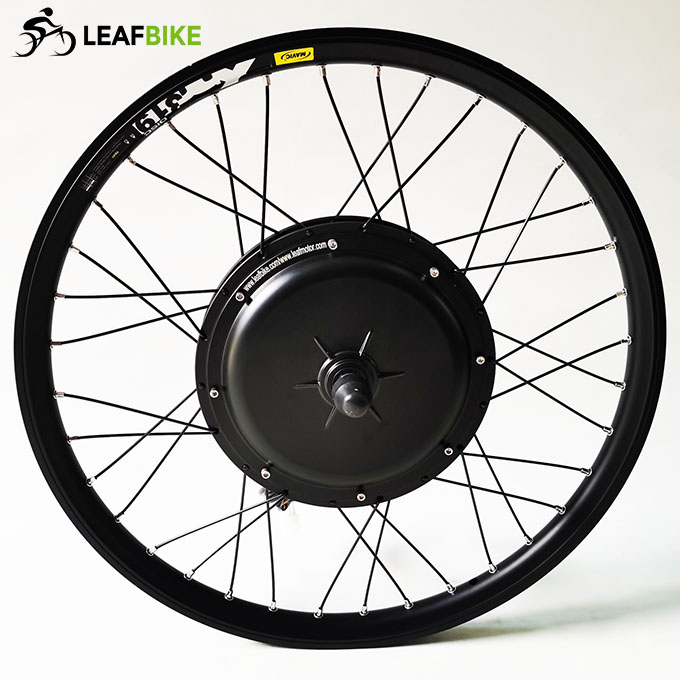

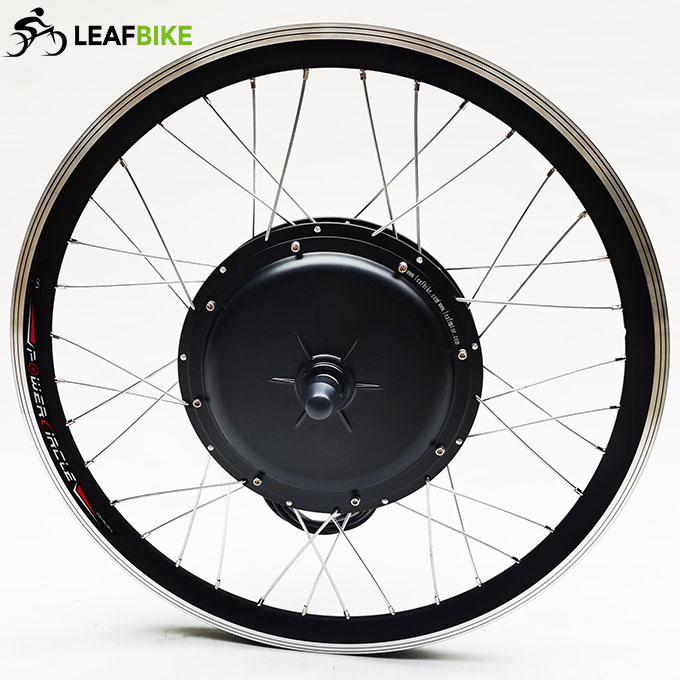

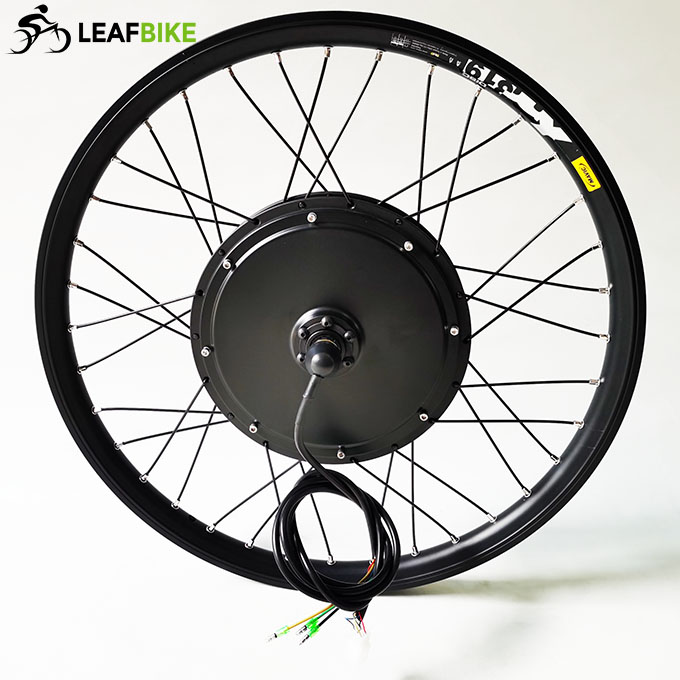

This 24 inch 48V 52V 1000W front electric bike motor wheel has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes. Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" and 29 inch sizes are available.
Detail:

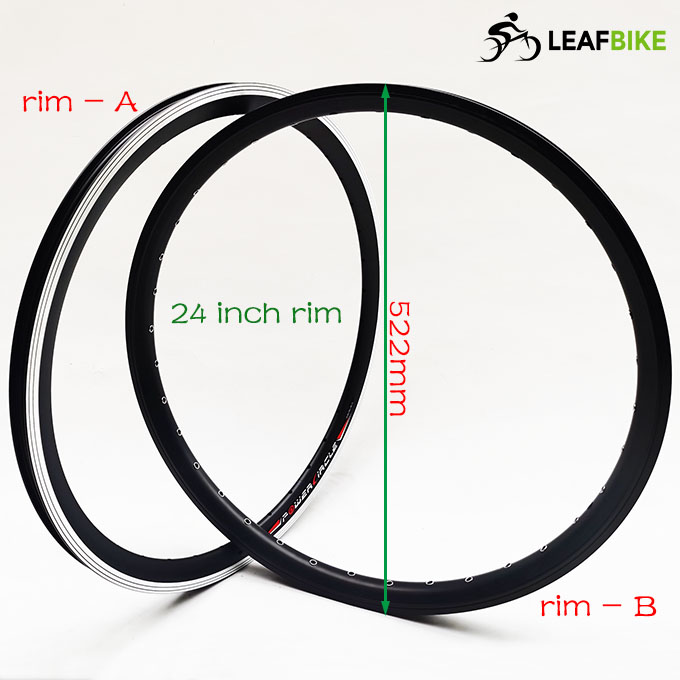

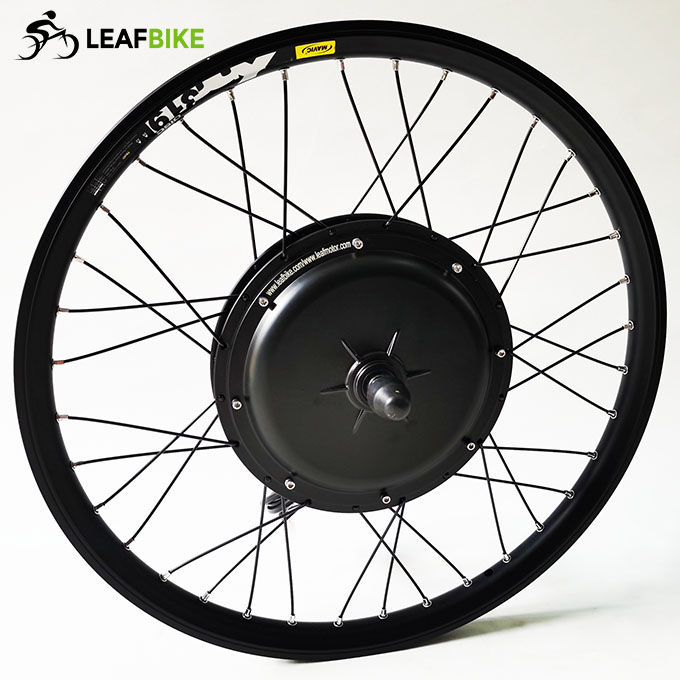

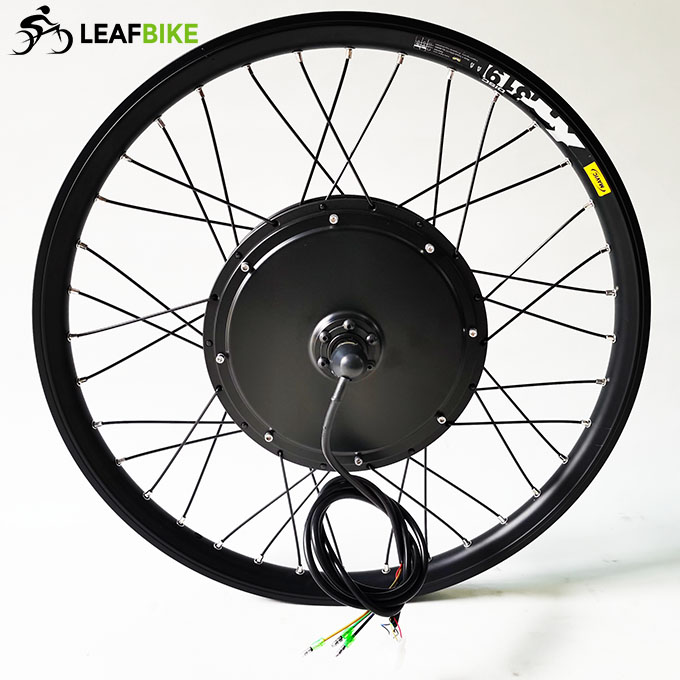

Rim A: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
Spoke: Silver 12 gauge / 130mm Length × 36 pcs

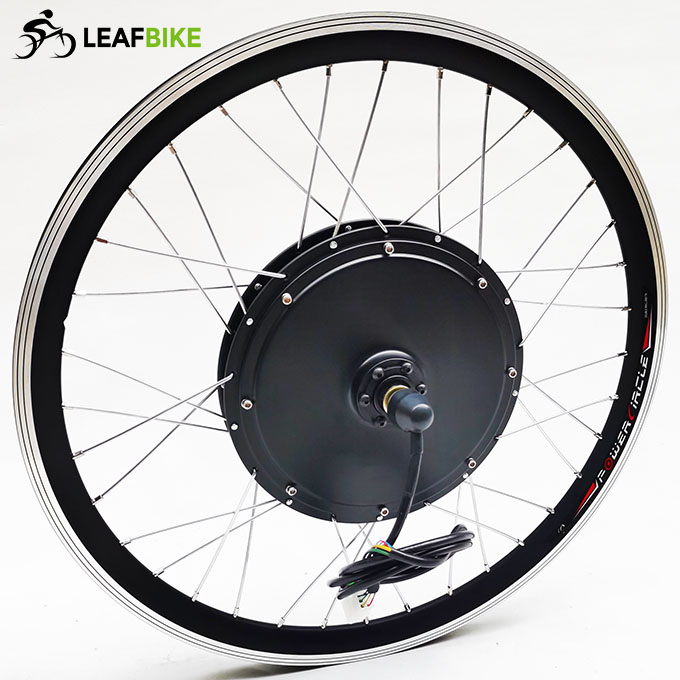

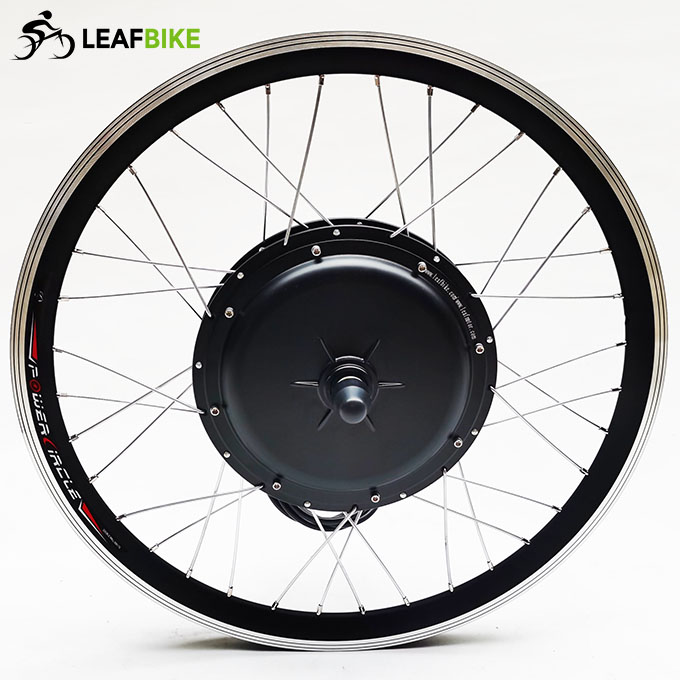

Rim B: 24 inch double wall Alloy (Rim Fit For: 24 × 1.95" / 2.0" ~ 2.5" tire)
Spoke: Black 12 gauge / 135mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Voltage: 48V / 52V
Power: 1000W
Efficiency: ≥ 90.5%
Max speed: 40mph
Mechanical brake: Disk or V
Cable location: shaft end, LEFT
Cable length:150cm / 60"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.16Kg / 15.8 lbs
Package Content:
1 x 24 inch 48V 52V 1000W front electric bike motor wheel
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
1000w Bike Motor Drw.
Performance Data:
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
