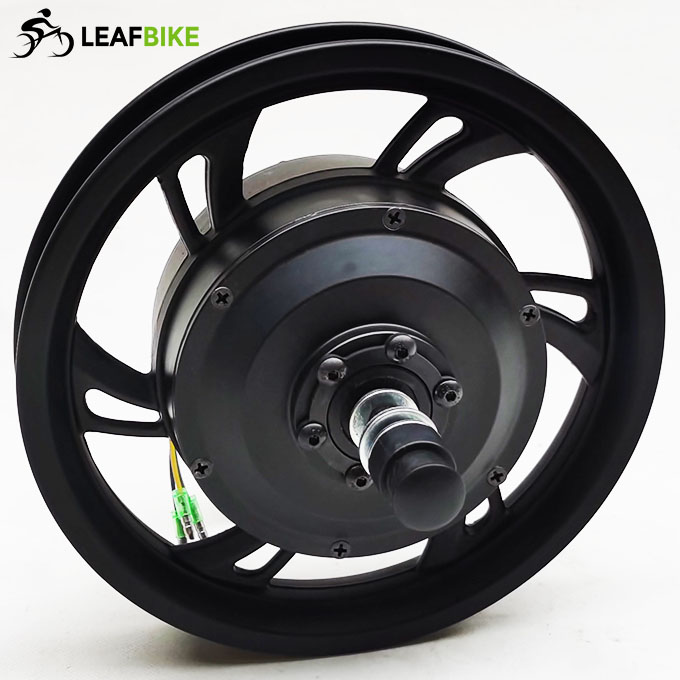

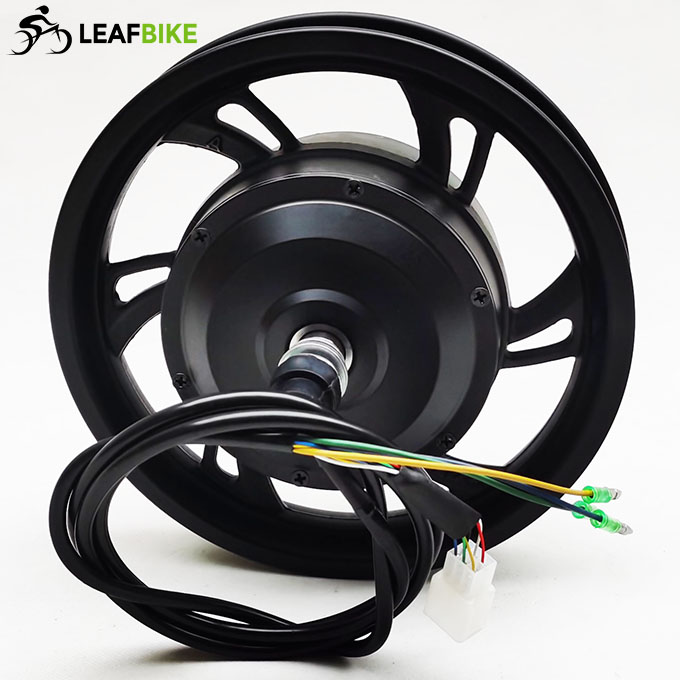

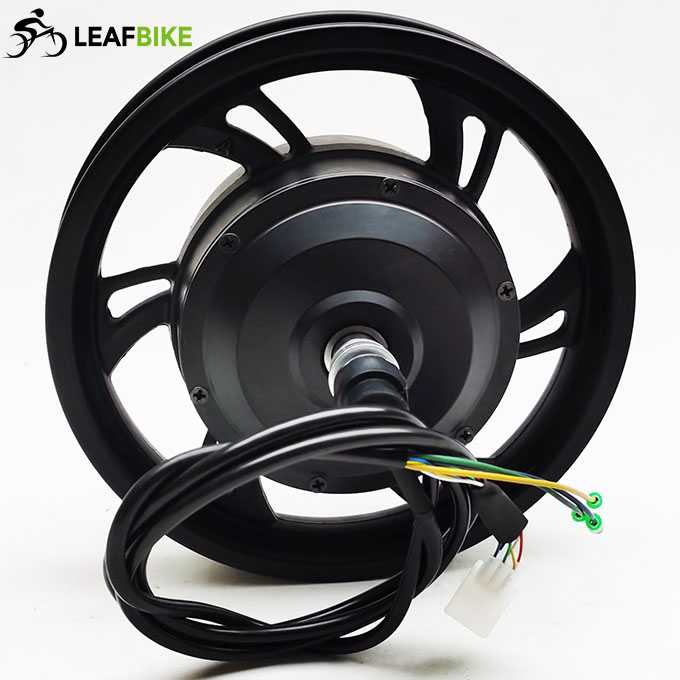

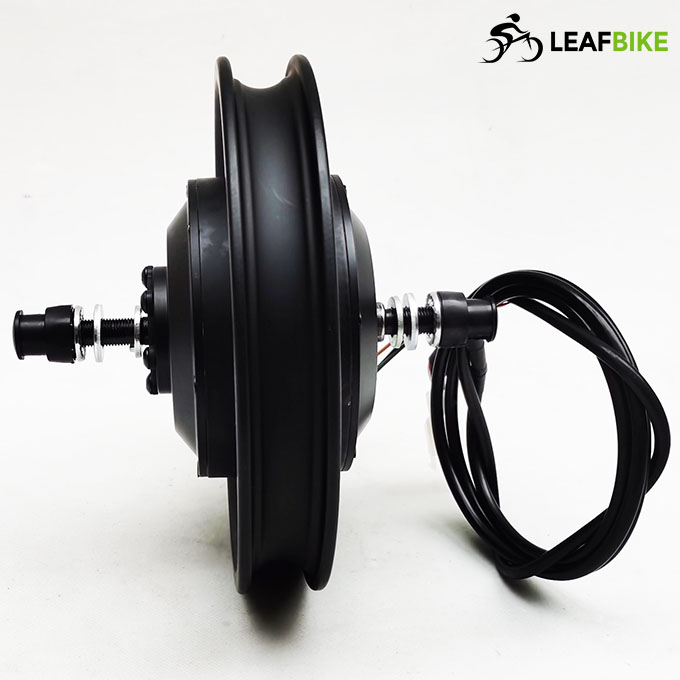

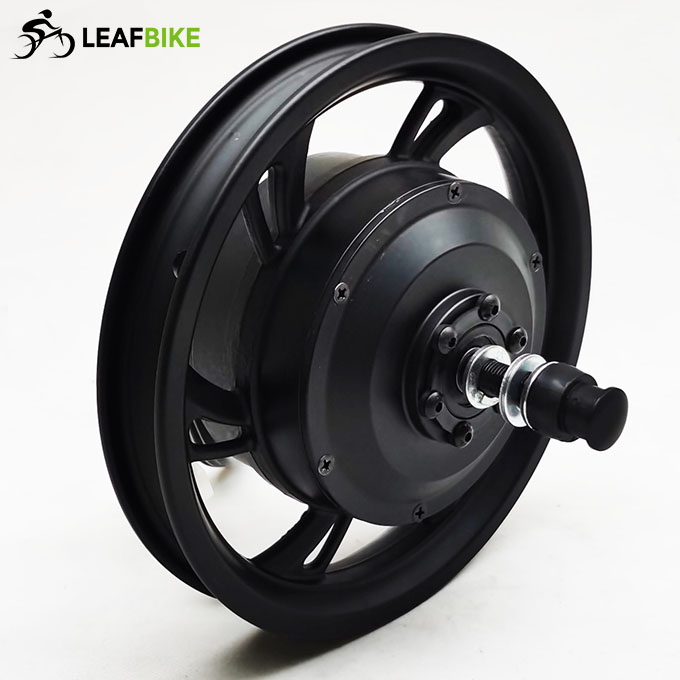

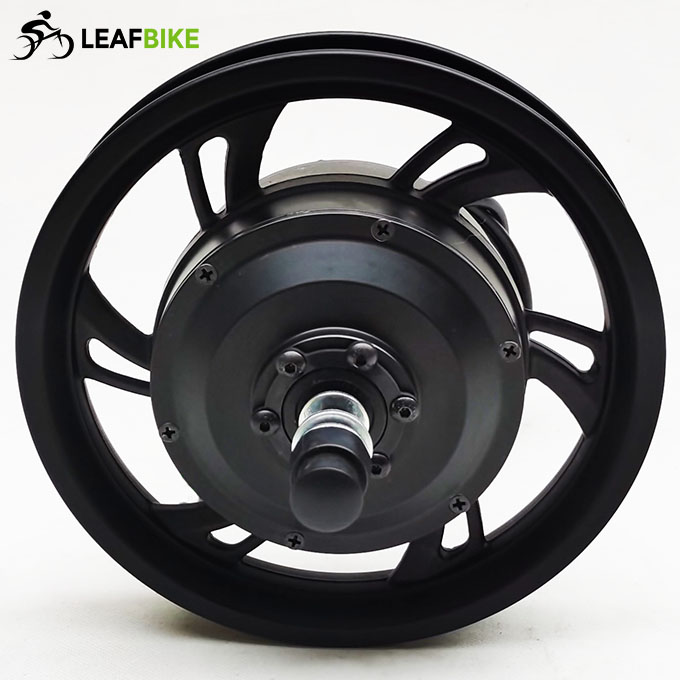

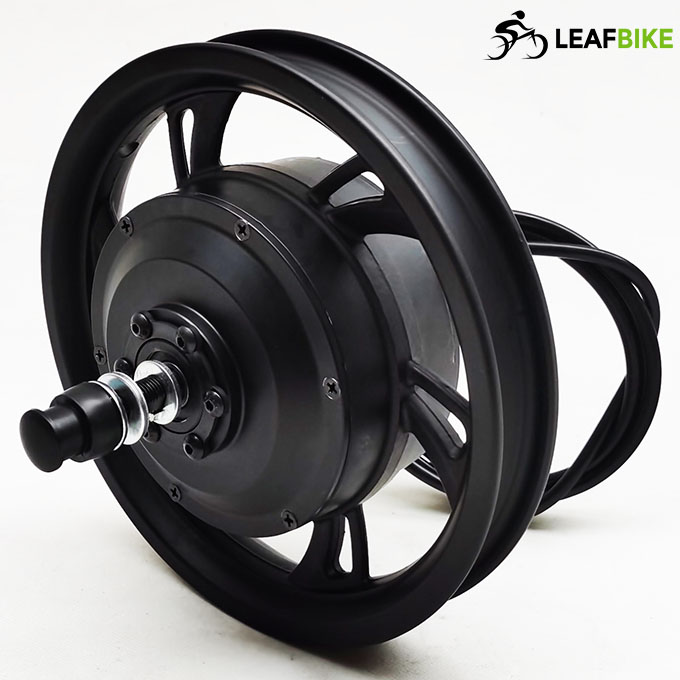

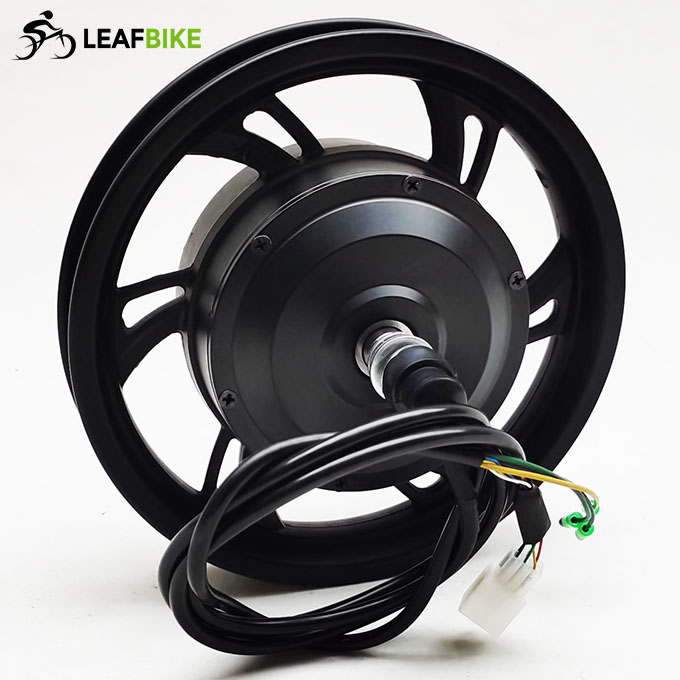

12 inch 48V 52V 500W front scooter motor

Item ID #LBM1248500FL
$189.00 $189.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

This 12 inch 48V 52V 500W front scooter motor combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Detail:
Hub: Ø218mm Aluminum casted (Hub Fit For: 12 × 2.1/4 or 2.5" tire)
Motor type: brushless with gears
Voltage: 48V
Power: 500W
Efficiency: ≥ 73%
Max speed: 20kmh
Mechanical brake: Disk or V
Cable location: shaft center, Right
Cable length:150cm / 60"
Install: spacing of 100mm front fork (Min.100mm to Max 115mm)
Noise: < 60 db
Surface: Black painted
Net weight: 4.8 kg / 10.6 lbs
Gross weight: 6.1 kg ( after packing )

Package Content:
1 x 12 inch 48V / 52V 500W front scooter motor

Net Weight: 6.6 kg / 14.5 lbs
Package Size: 28mm L x 25mm W x 30mm H
Package Type: Cardboard Box

S830 Video:
12 inch front electric hub motor bike conversion kit S830
08HU Video:
12 inch front electric hub motor bike conversion kit S830
12 inch Front Drw.
12 inch electric scooter motor drawing
