29 inch 48V / 52V 1500W rear wheel - electric hub motor kit

Item ID #LBCK29481500RN
$349.00 $428.00
    Please select the information you wantX
  • Sprocket :
    Freewheel
    Cassette
  • LCD :
    S830
    SW900
    08HU
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description

* This 29 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

This Brand New 18 - Mosfet electric motor controller with Sine wave, Square wave, No hall, three modes compatible.

What are three modes?
* First mode: Sine Wave Status - Motor without noise,Very quiet !
If one of motor hall sensor is broken, controller still can work in Sine Wave Status.

* Second mode: Square Wave Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If two of motor hall sensors are broken, controller can work in Square Wave Status.

* Third mode: No Hall Status - Motor with a little noise, < 60db, speed is about 8% faster than Sine Wave Status.
If all of three hall sensors are broken, controller can work in No hall Status.

If your motor's hall sensors are broken, don't need to replace hall sensors. Just use this controller that can recover your motor to work.
If you don't know how to match motor wires to controller.

Just plug two blues together, controller into learning status and looking for correct working way. After 1-2 seconds, it can find correct working way,then disconnect these two blue wires' plugs. From now on,it always works with this kind of correct way.


Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 x 1.95" / 2.0" / 2.1" ~ 2.5" tire)
>. Spoke: Silver 12 gauge / 190mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine : Bldc electric hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 62.9 kmh -- 39.0mph Default (Free customization other speeds: 42mph or 35mph, 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Max speed: about 55kmh -- 35mph (Ride on flat road)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed..6 speed or max 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: Brushless motor controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminum
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise?-- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse?-- Yellow button Control ("Left side & mid / forward -- "Right side / backwards")
* Regen brake?-- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 100 kmh / 60 mph )?--  If set be "32", Max speed will be 20mph / 32kmh
* Speed ( 0 - 5 )?-- "0" is off. "1" is the slowest speed ~ "5" is the fastest speed.
* ...

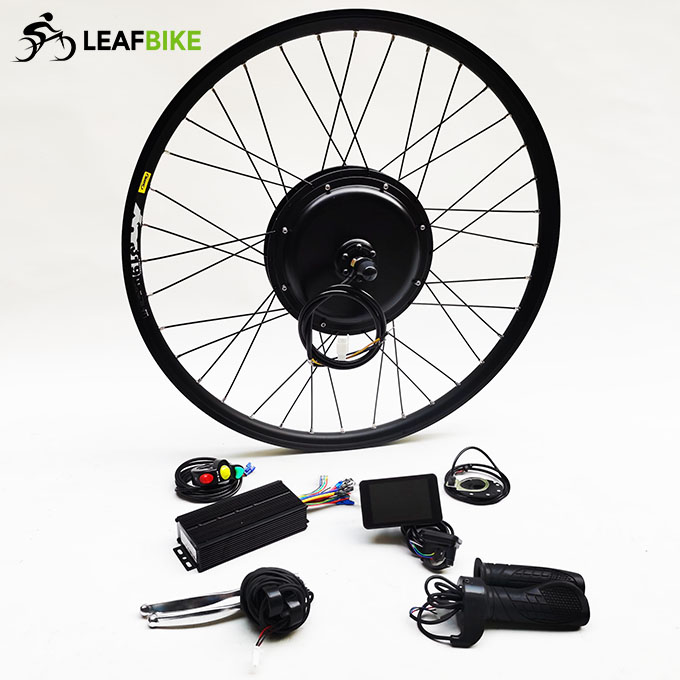

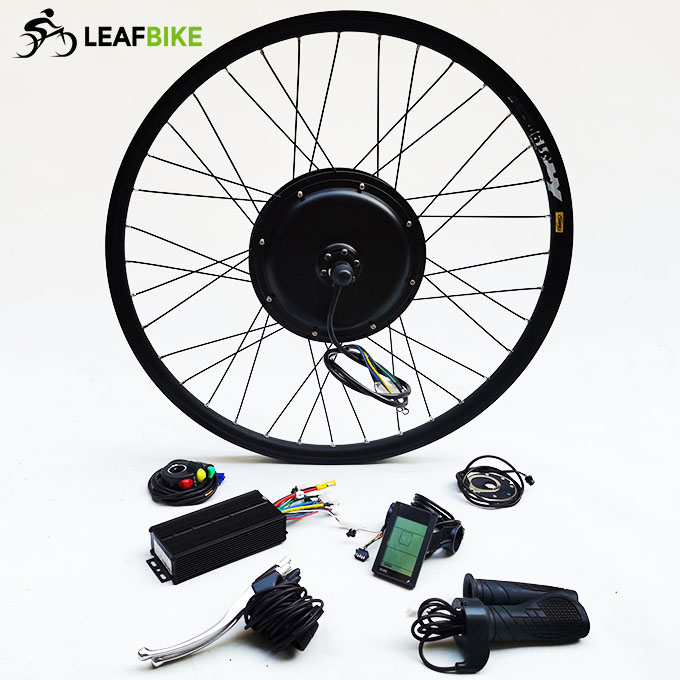

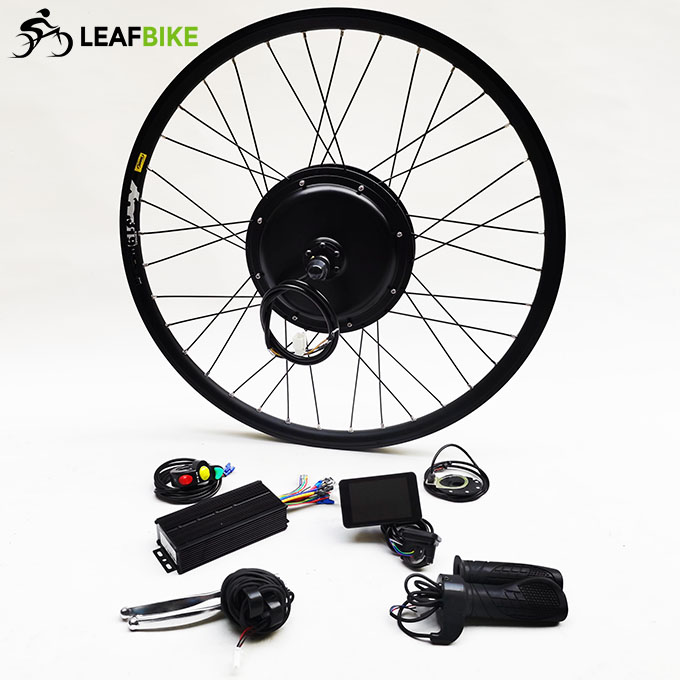

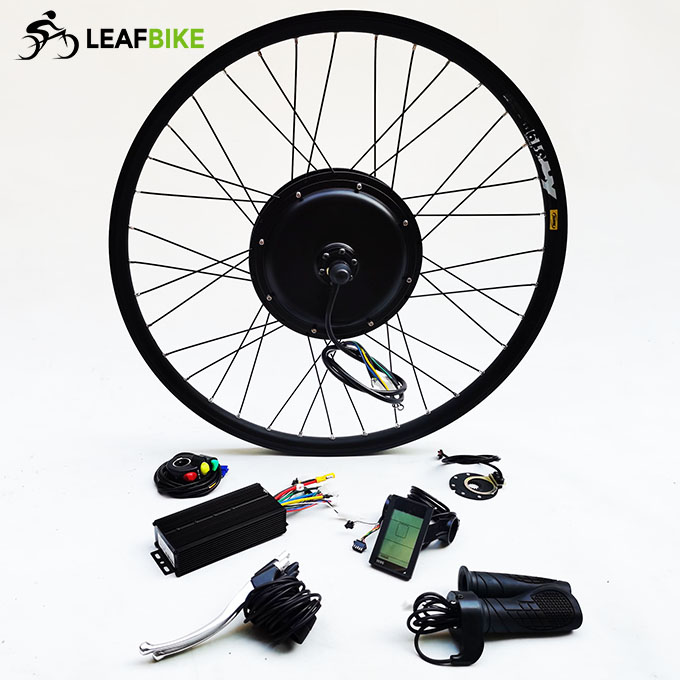

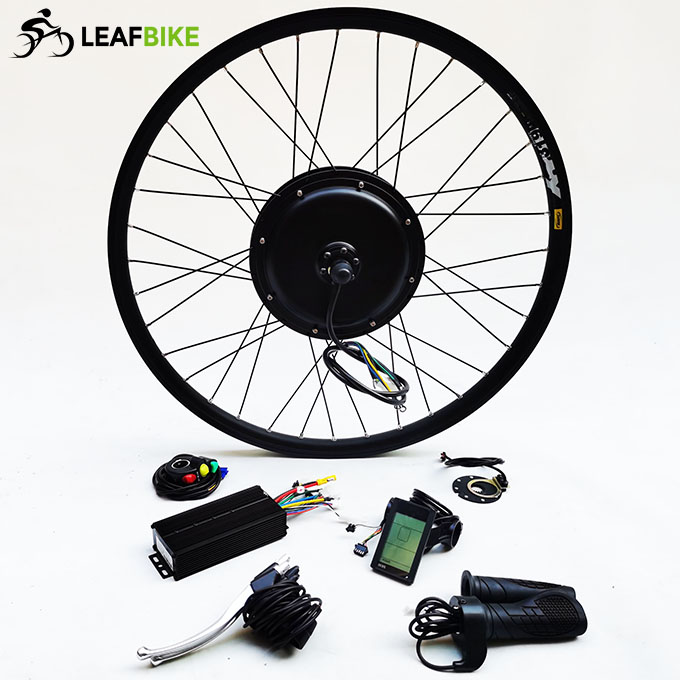

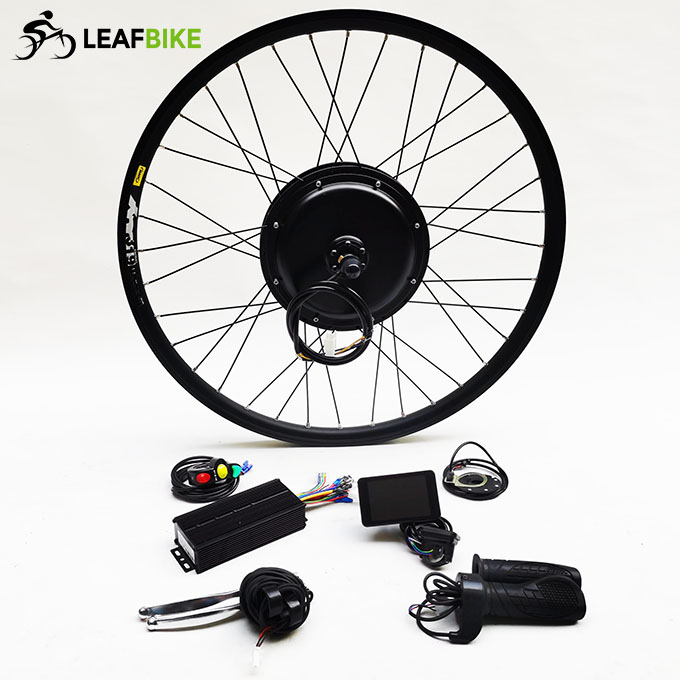

Package Content:

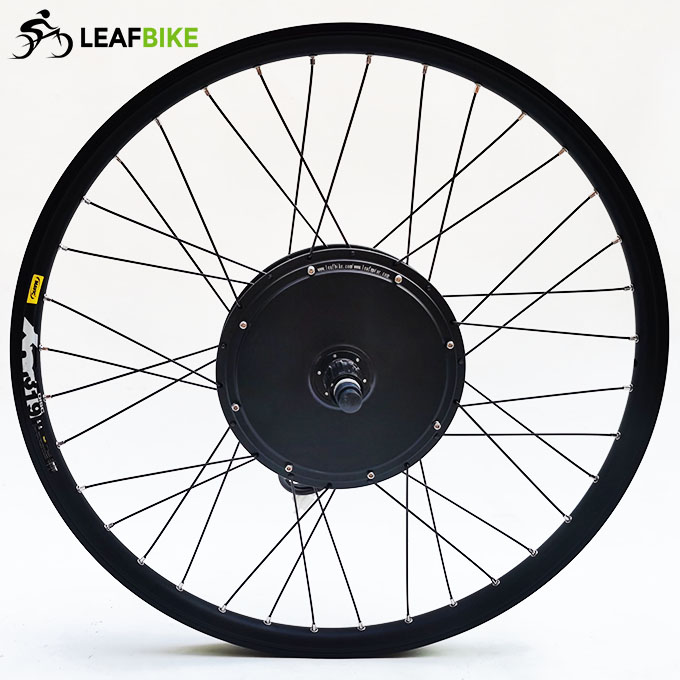

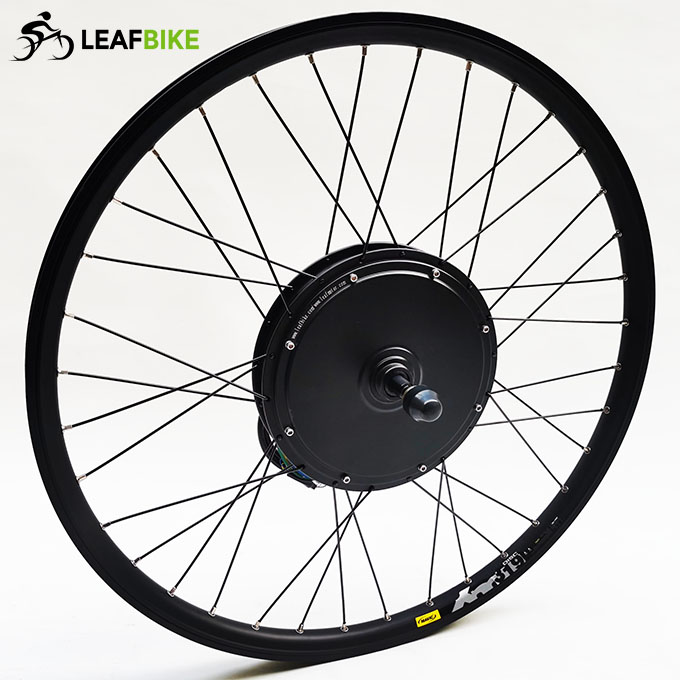

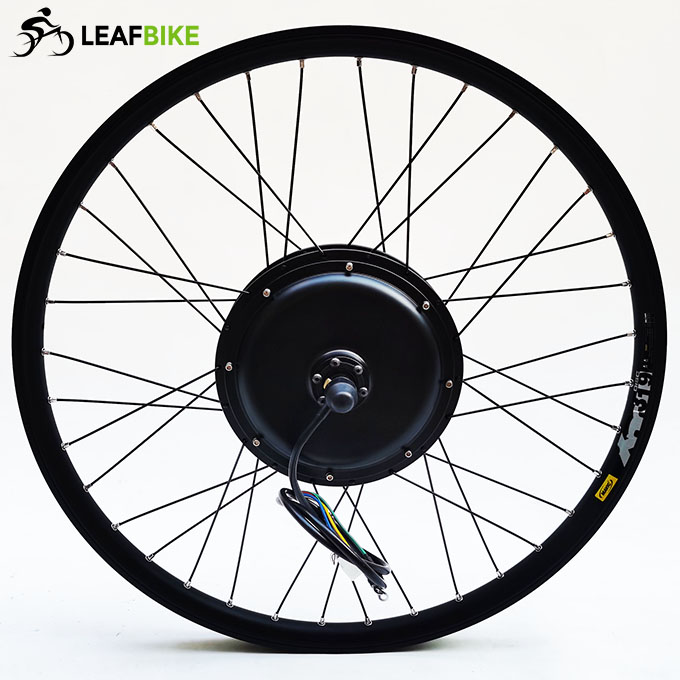

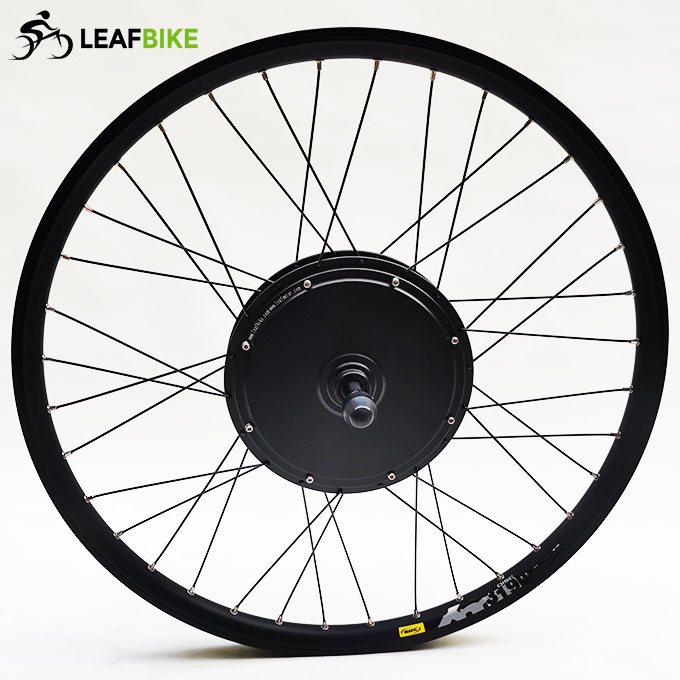

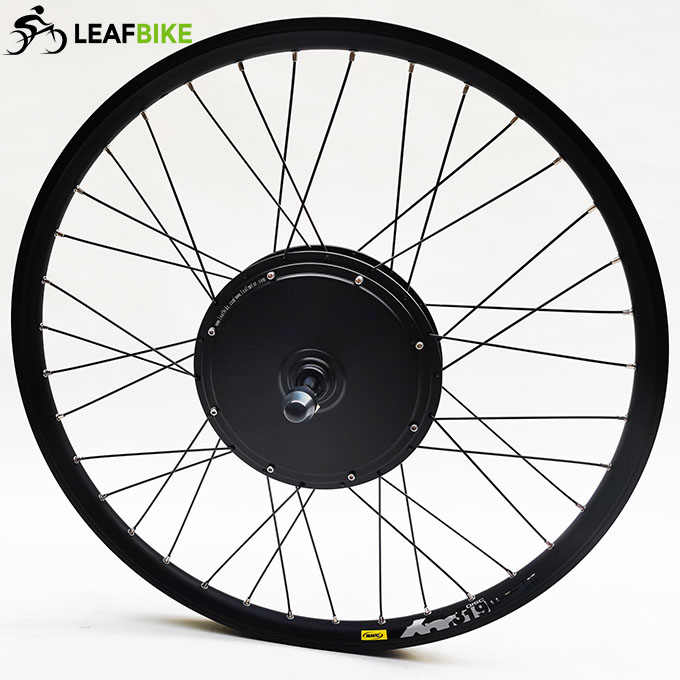

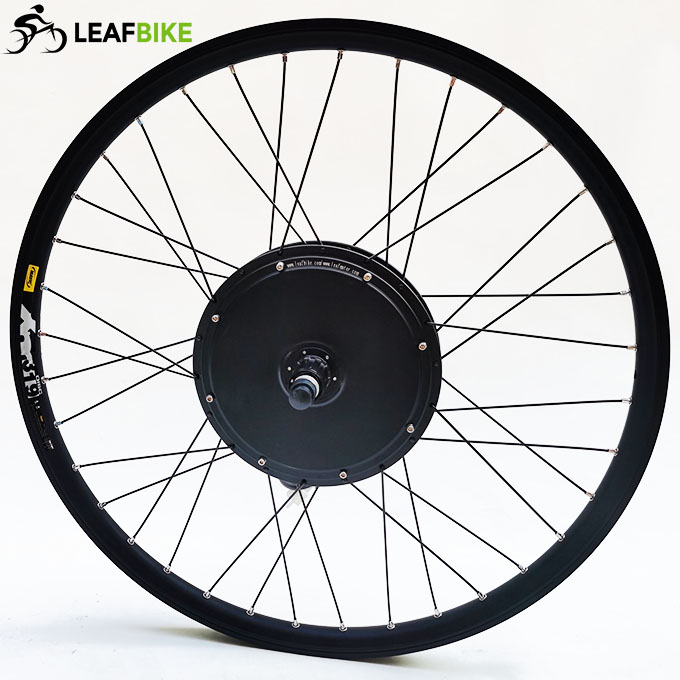

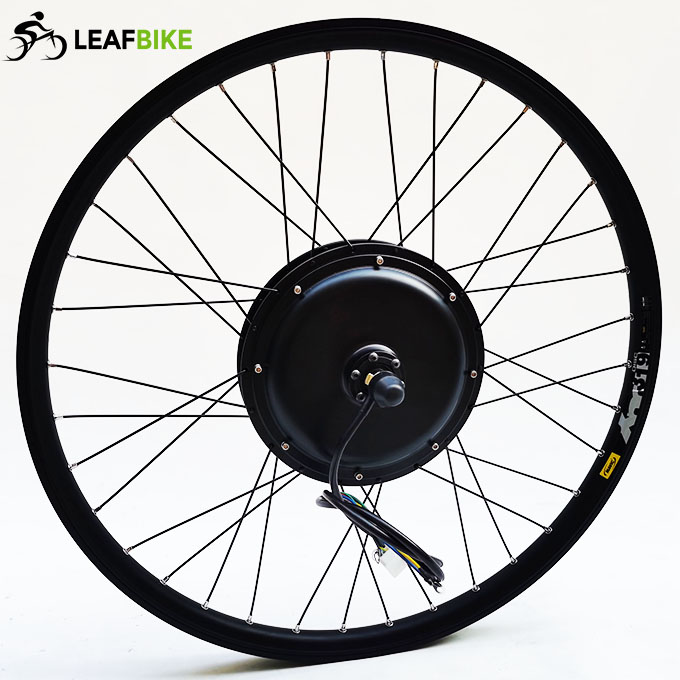

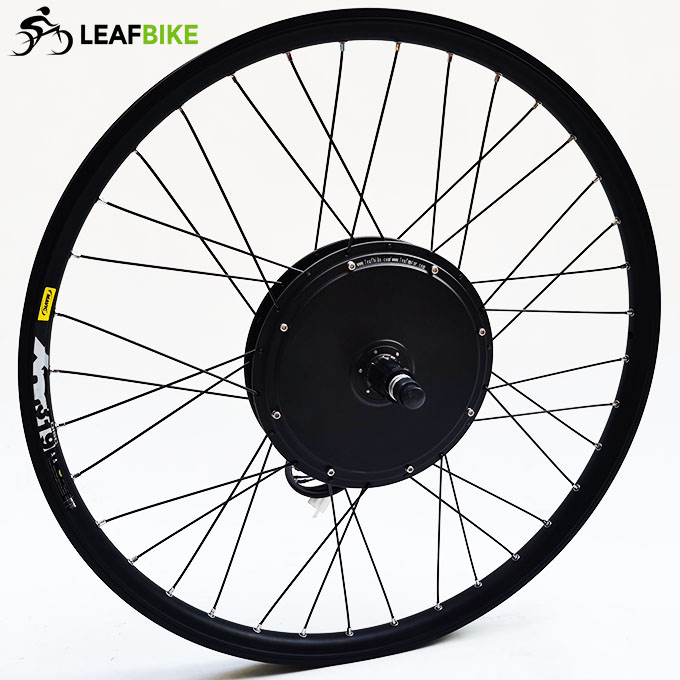

1 x 29 inch 48V / 52V 1500W rear hub motor wheel -- Cable length: 900mm
1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD - Cable length: 1800mm
1 x Twist throttle -- Cable length: 1800mm
 1 x Brake levers -- Cable length: 1800mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1800mm
1 x Pedal assist -- Cable length: 1000mm

Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).

Share Video:
Wire Diagram:
29-inch-rear-hub-motor-electric-bike-conversion-kit-wire-diagram
1500w Freewheel Drw.
1500w-rear-electric-bike-motor-drawing
1500W Cassette Drw.
Performance Data:
1500w-electric-hub-motor-performance-data-curve

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
