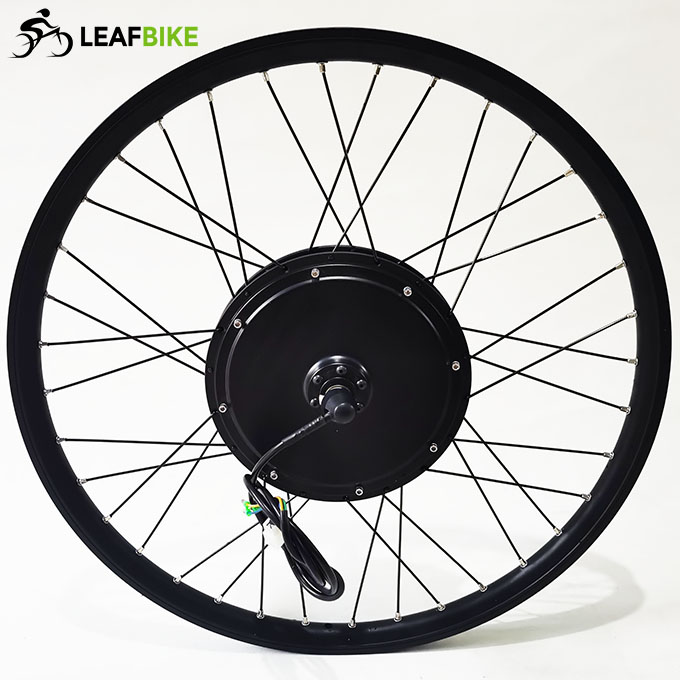

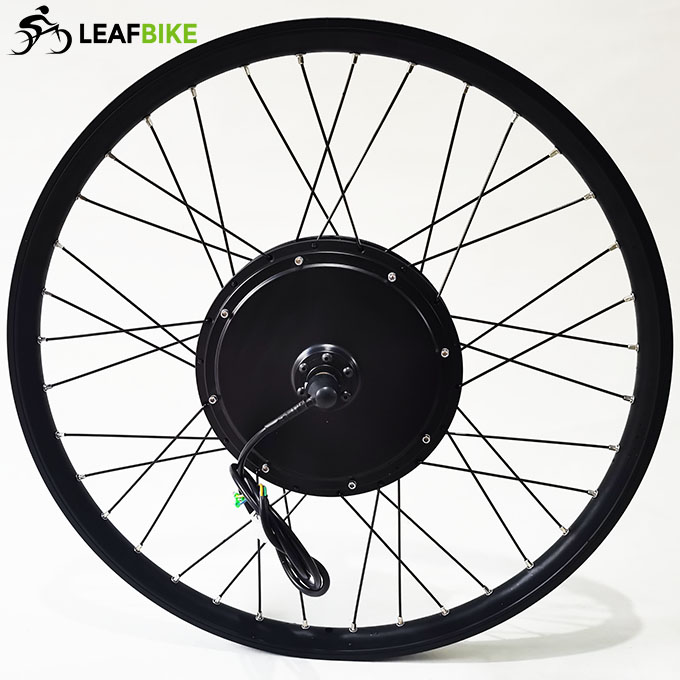

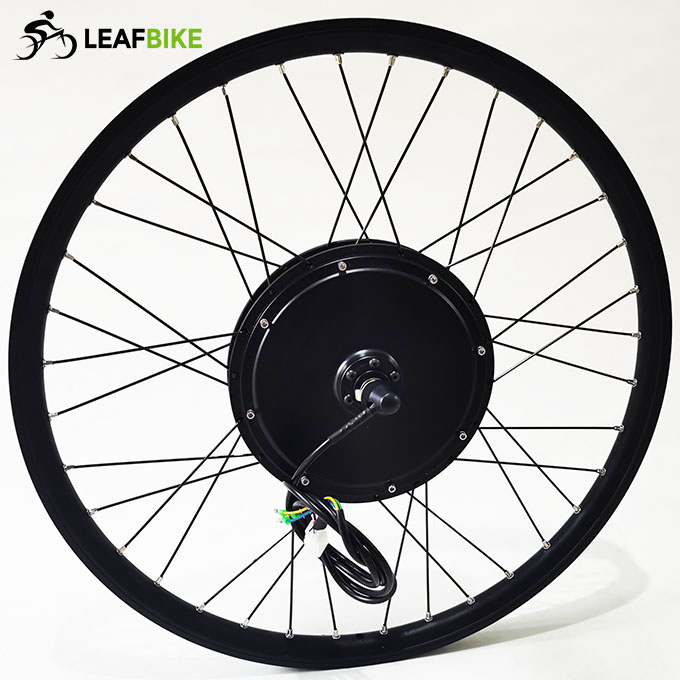

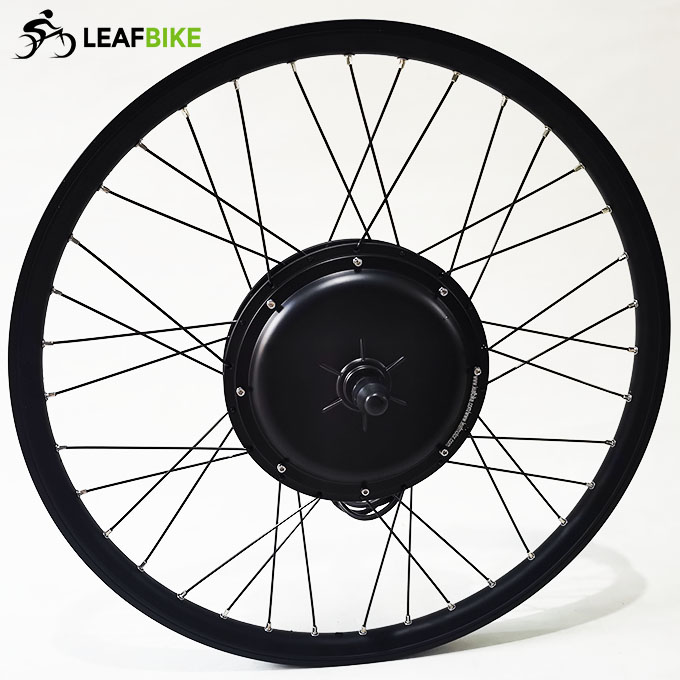

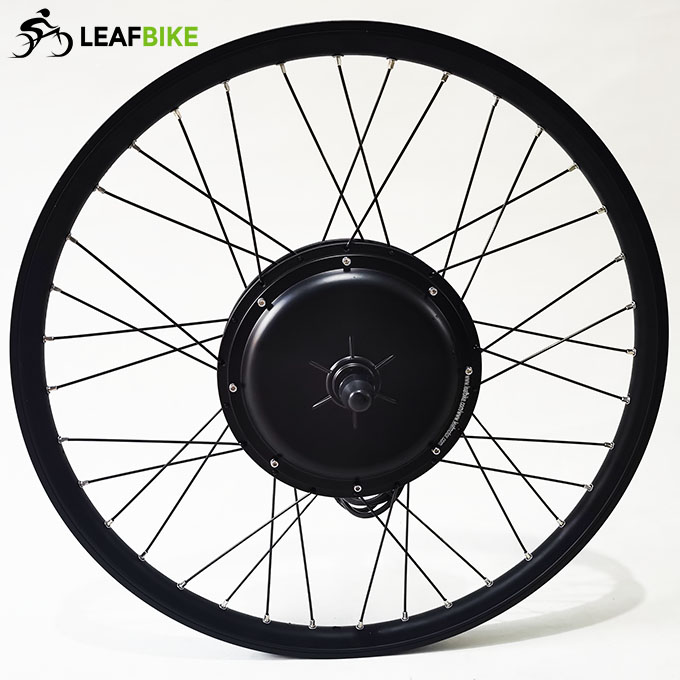

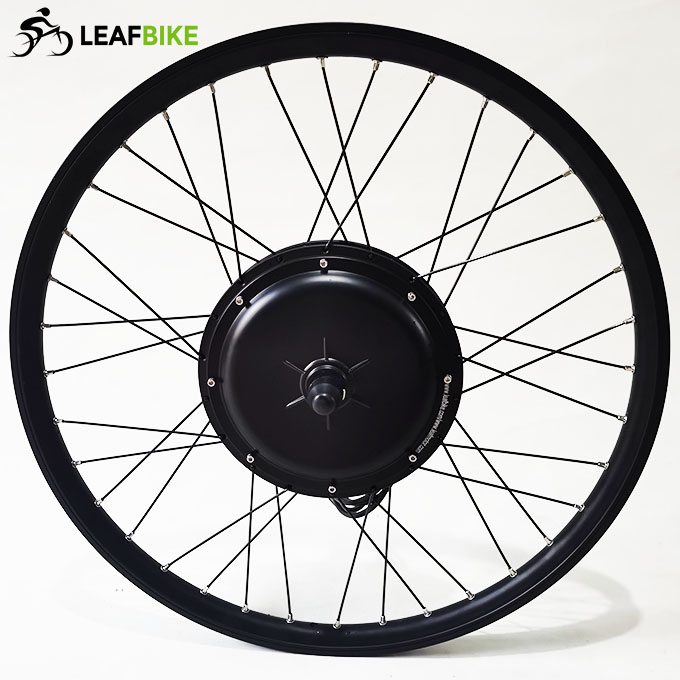

27.5 inch 48V 52V 1000W front wheel - 650b electric hub motor kit

Item ID #LBCK275481000FN
$299.00 $378.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for 27.5 inch 48V 52V 1000W front hub motor 650b electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..
Share Video:
26 inch 48v 1000w front hub motor - ebike conversion kit

* This 27.5 inch 1000W hub motor kit combines the full E-bike technology: direct drive Brushless high torque Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.


Main Features:

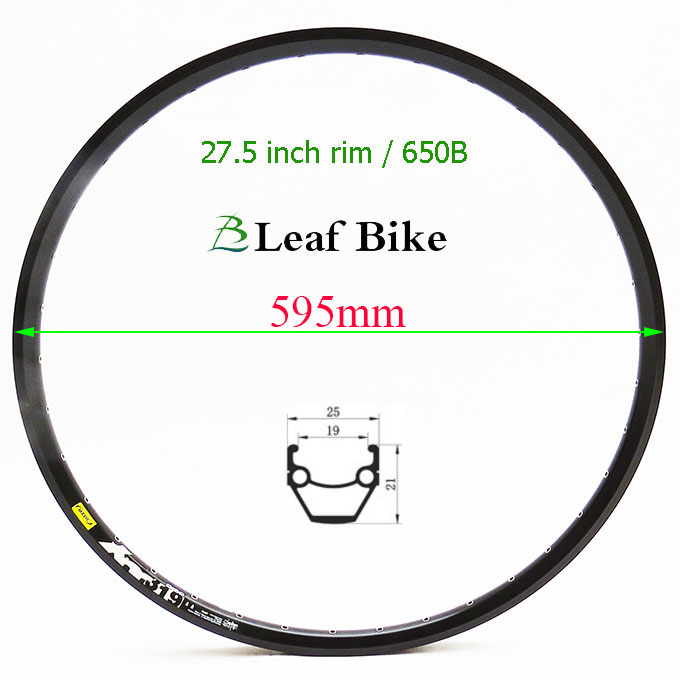

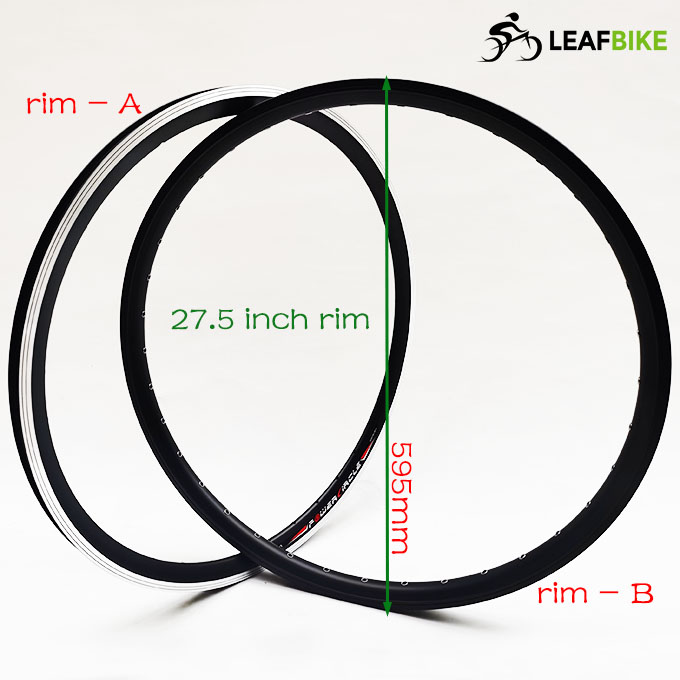

>. Rim: 27.5 inch / 650B double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" tire)
If the width of your tire / tyre is 2.1...(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 173mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1000W
>>.  Efficiency: 90.5%
>>.  Max speed: 70.9 kmh -- 44.0 mph
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, LEFT
>>.  Cable length:150cm / 60"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

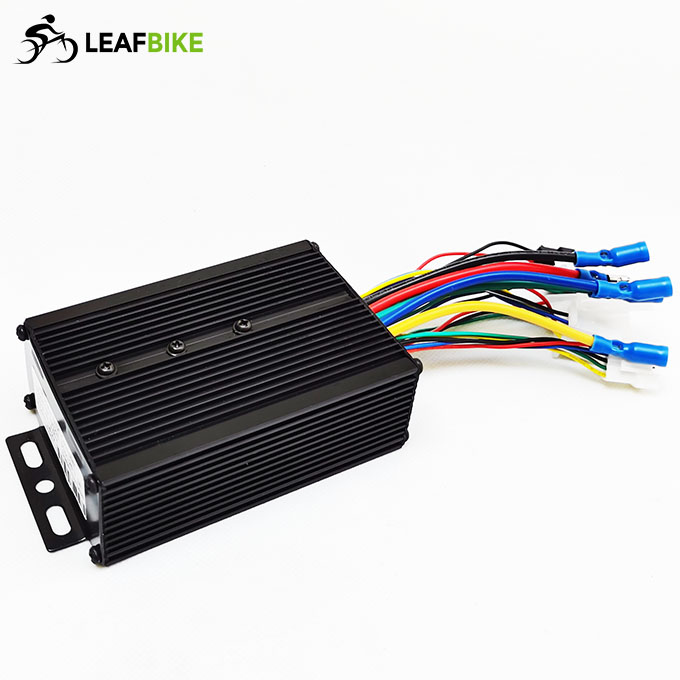

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 26 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 105 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

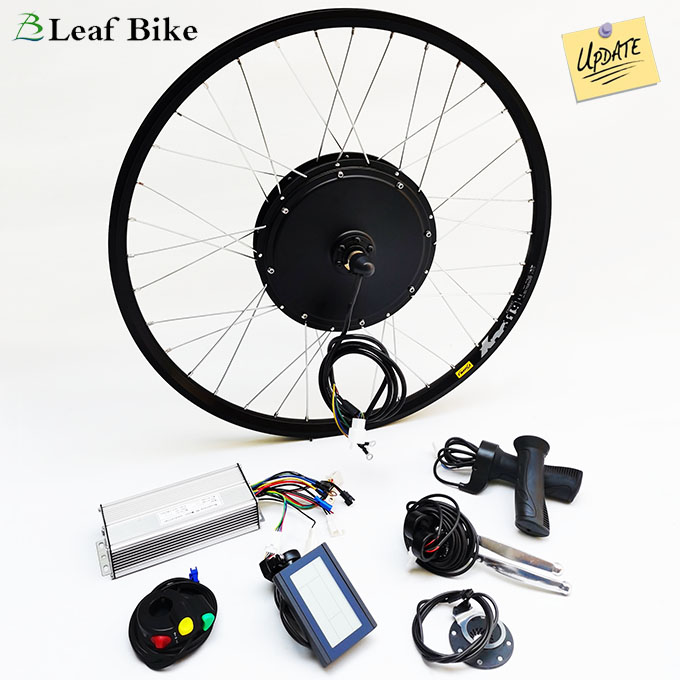

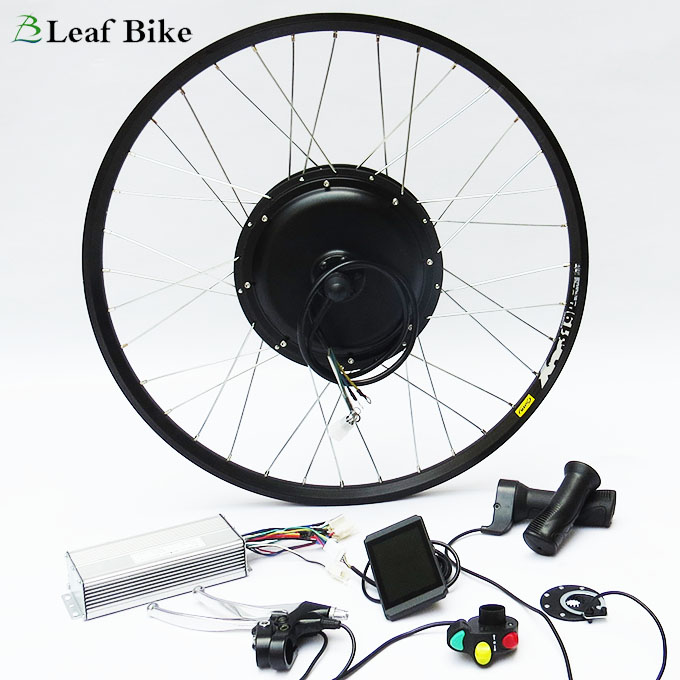

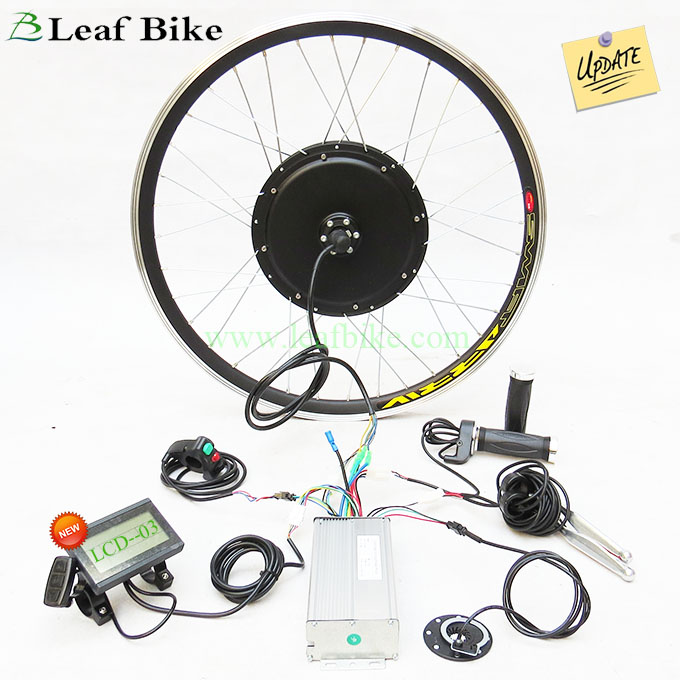

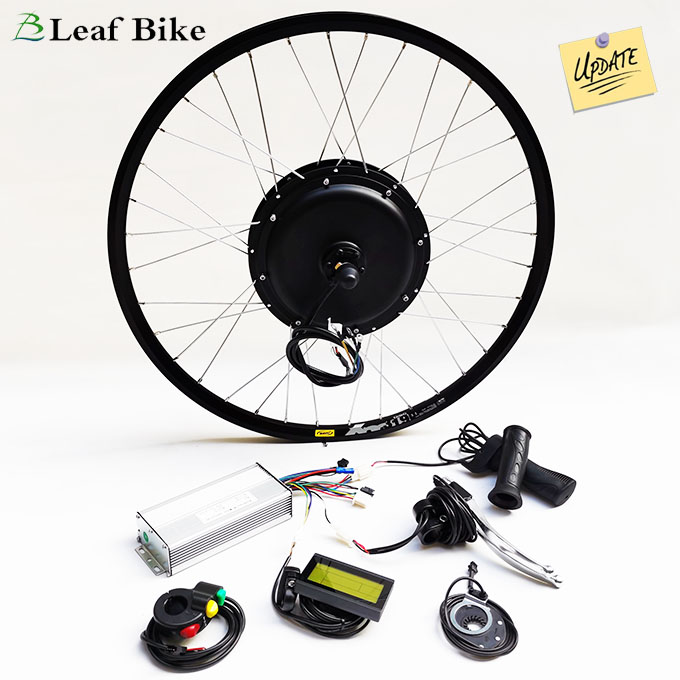

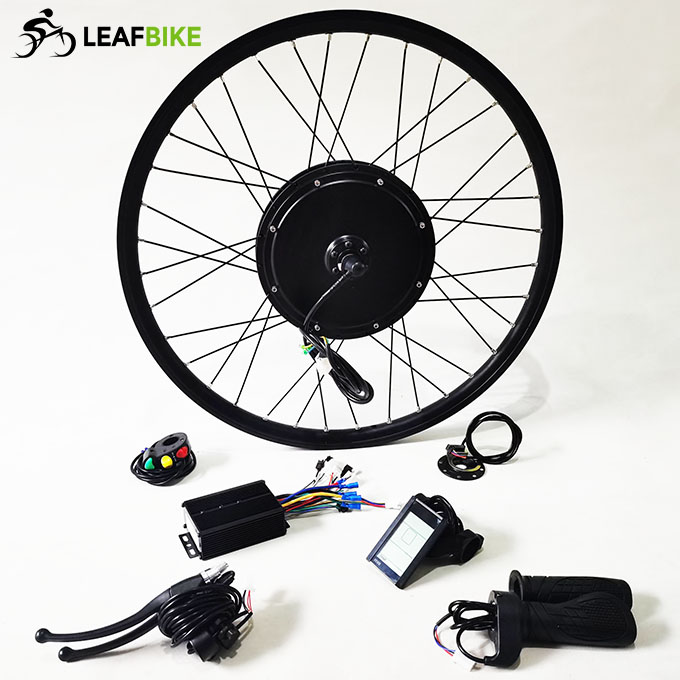

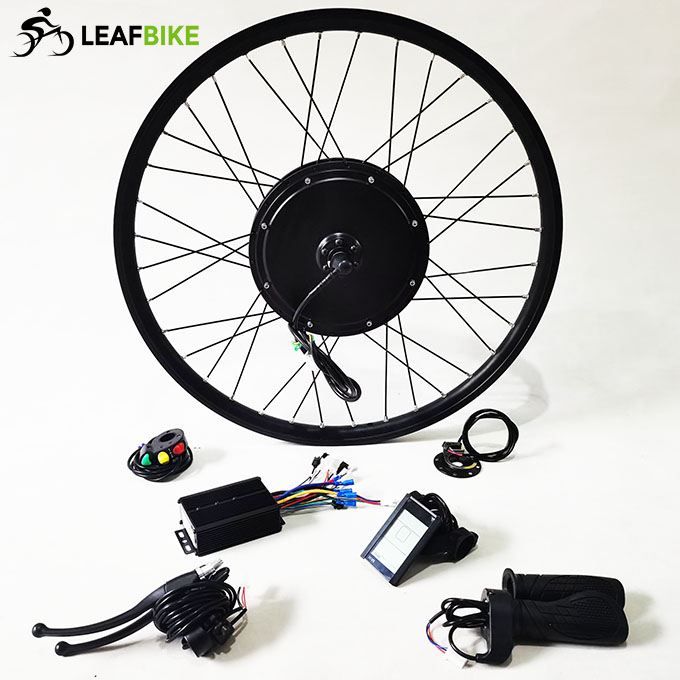

Package Content:

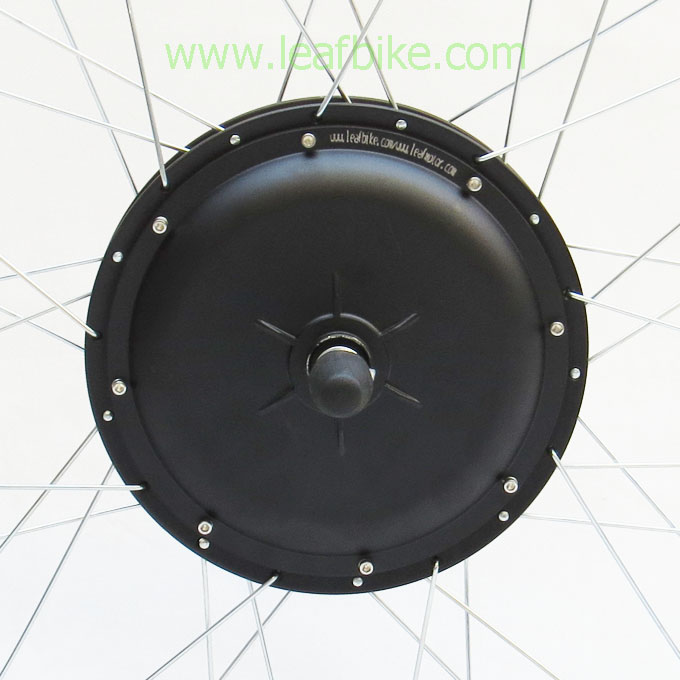

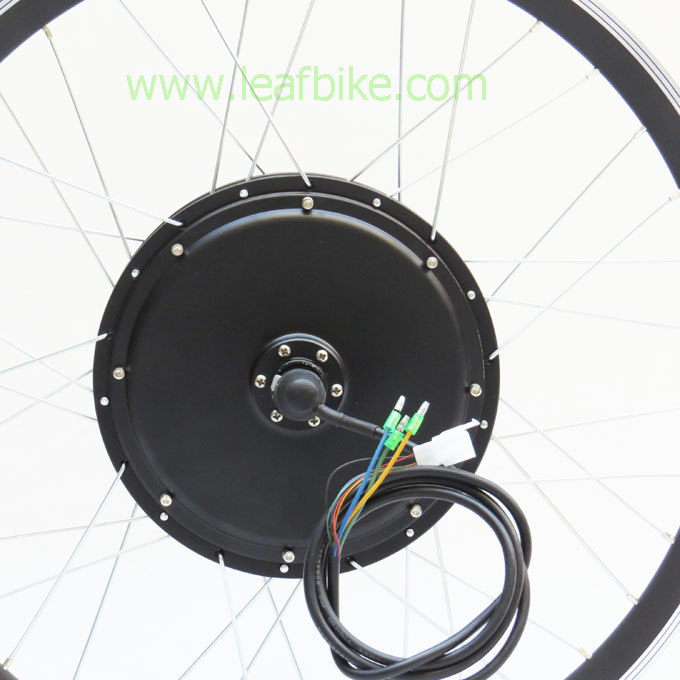

1 x 27.5 inch 650B 48V 52V 1000W front hub motor wheel
1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise,reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

 Net Weight: 23.8 lbs
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box
Wire Diagram:
front electric hub motor - bike conversion kit - wire diagram
Front Motor Drw.
48v 1000w front hub motor drawing
Performance Data:
1000w-hub-motor-curve-data
