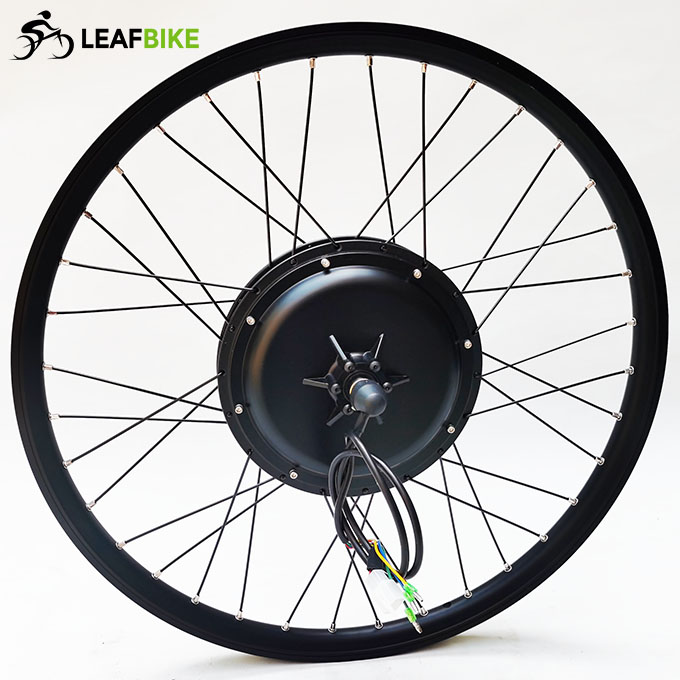

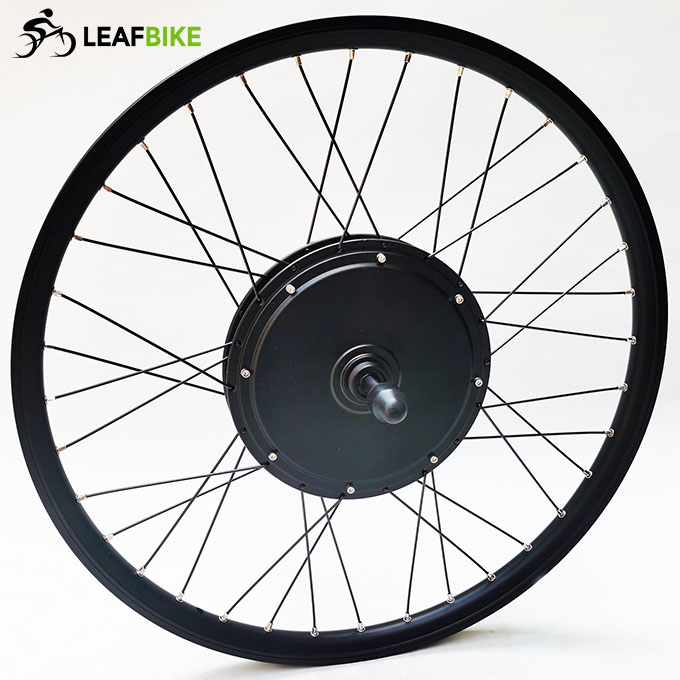

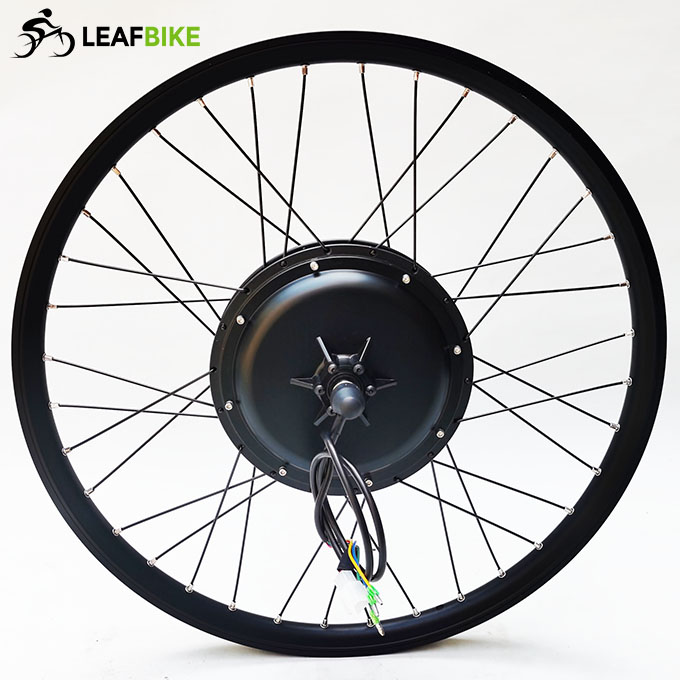

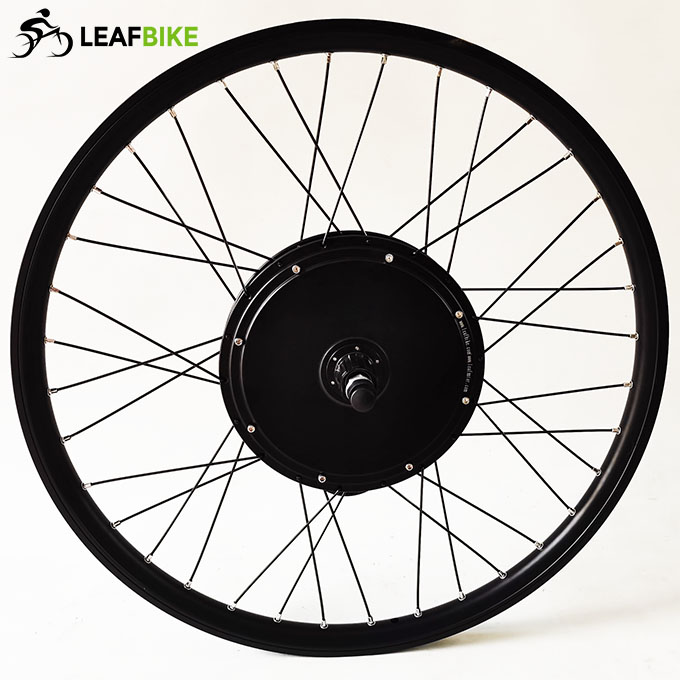

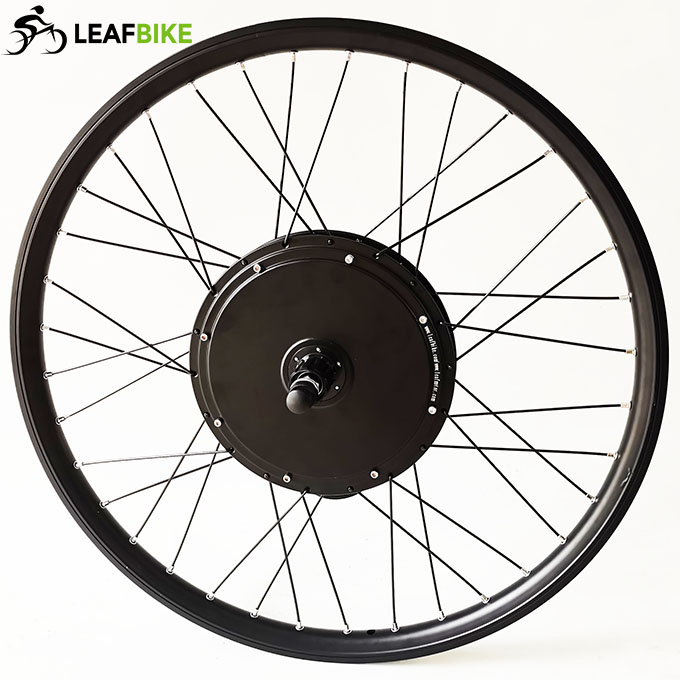

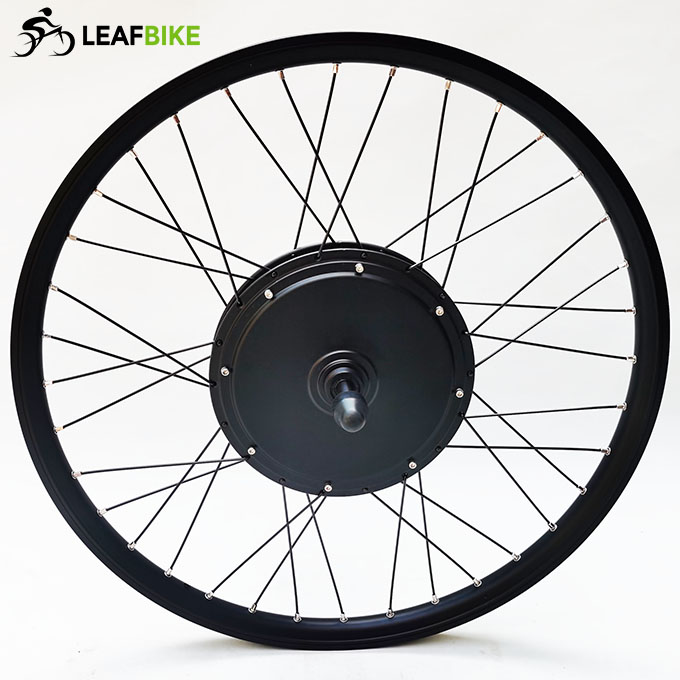

27.5 inch 36V 750W rear wheel - 650b electric hub motor kit

Name: 27.5 inch 36V 750W rear wheel - 650b electric hub motor kit
Brand: Leaf Bike
SKU: LBCK27536750RNK
Price: 350 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK27536750RNK

$350.00 ~~$394.00~~

Please select the information you wantX

Tyre Size :

27.5 x 1.5" / 1.75"

27.5 x 1.95" / 2.0" ~ 2.5"
Sprocket :

Freewheel

Cassette
LCD :

LCD-003

LCD-005

LCD-07U

LCD-08HUP

Quantity :

Maybe You Need These

Description

Please watch video for 27.5 inch 36V 750W rear hub motor 650b electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..

Share Video:

This 27.5 inch bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

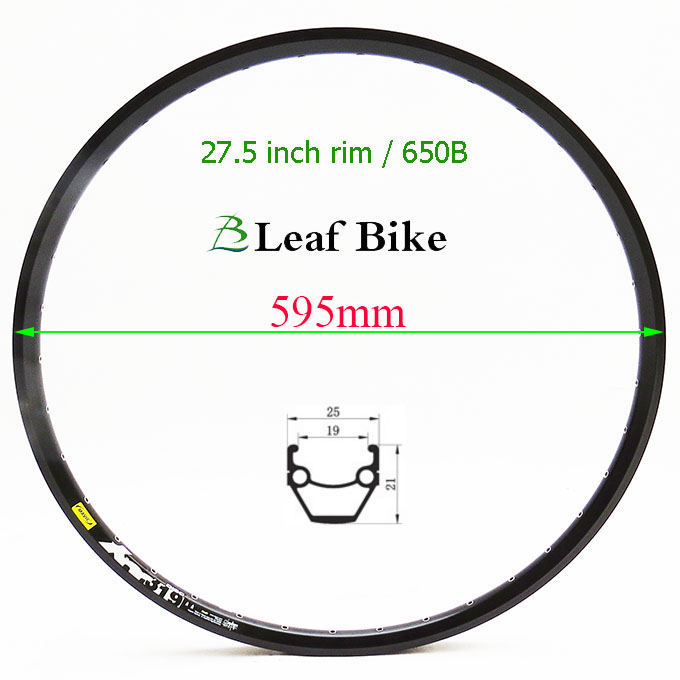

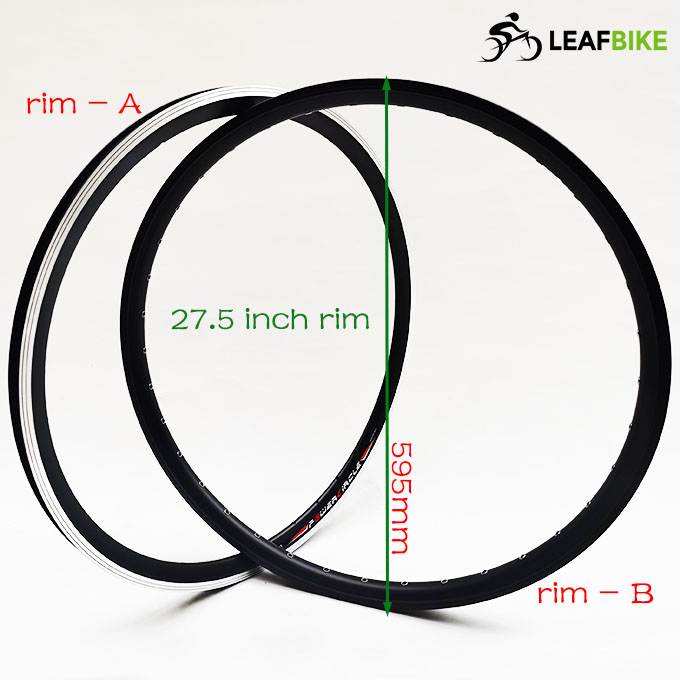

>. Rim A: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" tire)
>. Spoke: Black 12 gauge / 165mm Length × 36 pcs

>. Rim B: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 170mm Length × 36 pcs

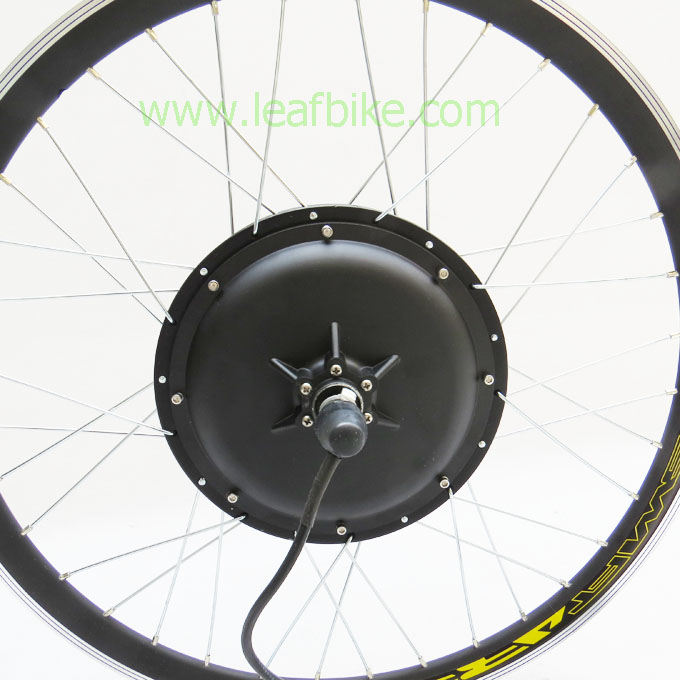

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 69.0 kmh – 43.1 mph
>>. Mechanical brake: Disk or V

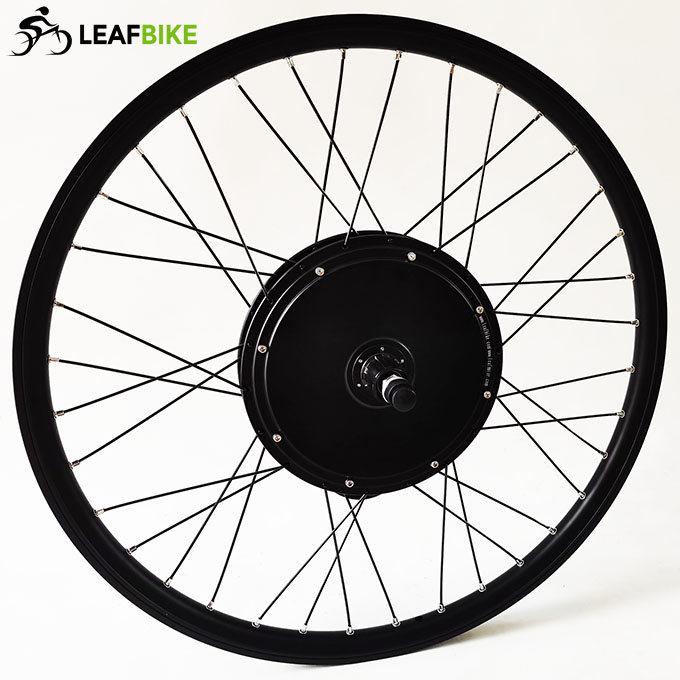

>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

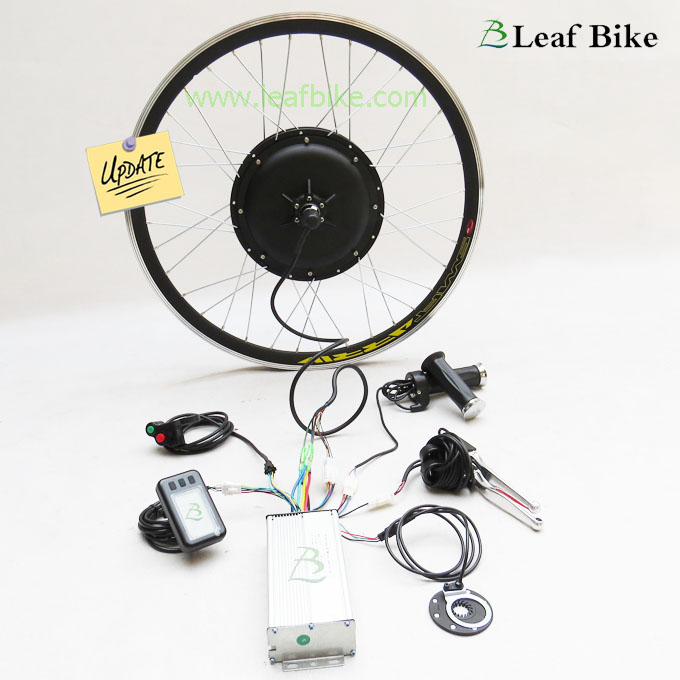

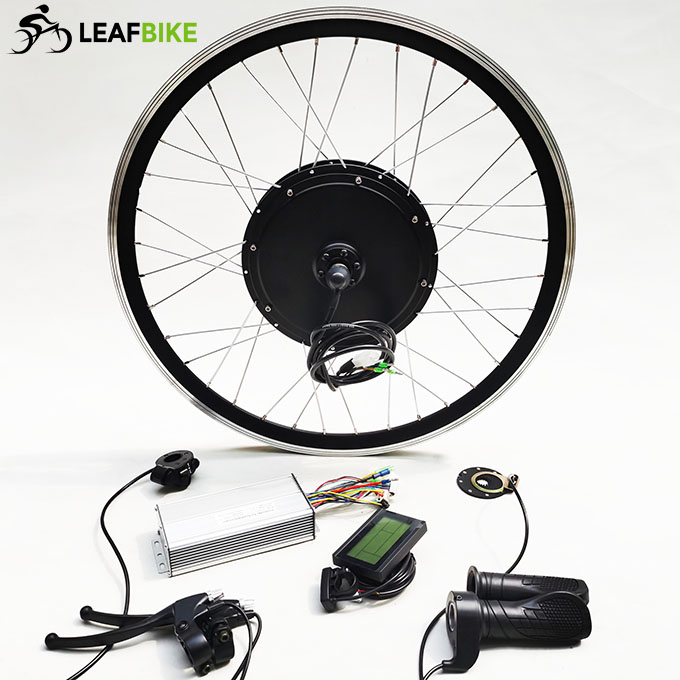

Package Content:

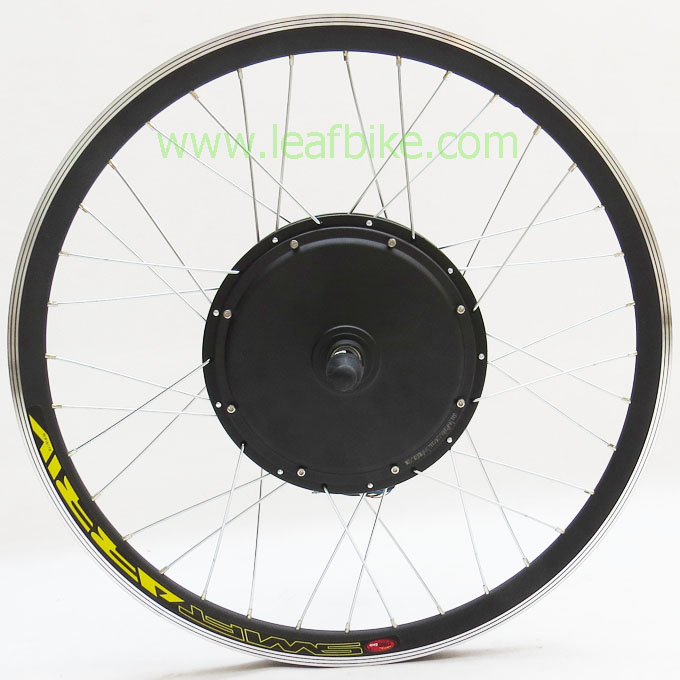

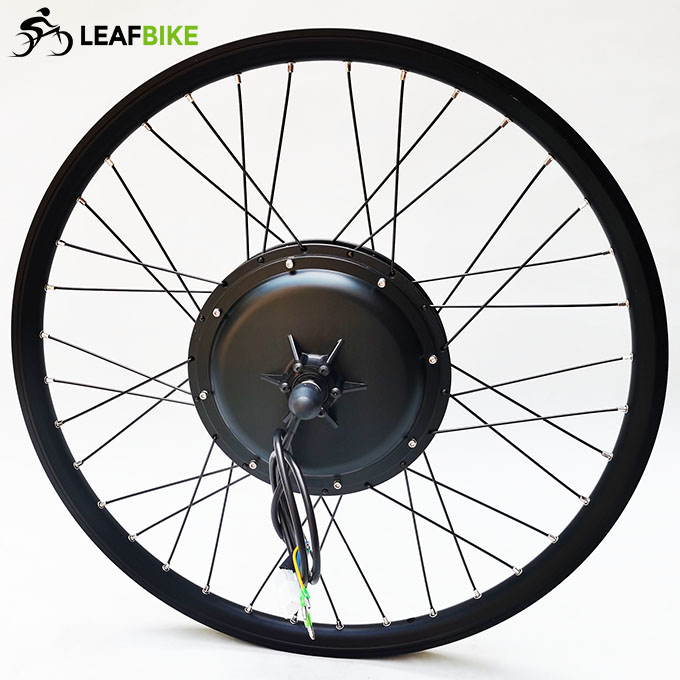

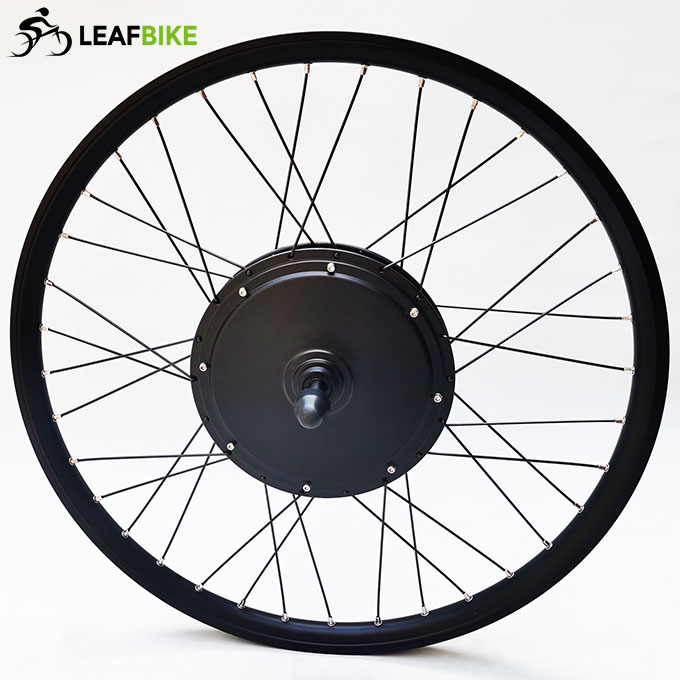

1 x 27.5 inch / 650B 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.9 kg
Package Size: 64cm L x 64cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

750W Rear Drw.

750W Cassette Drw.

Performance Data:
