Please watch video for 27.5 inch 36V 750W front hub motor 650b electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..
Share Video:

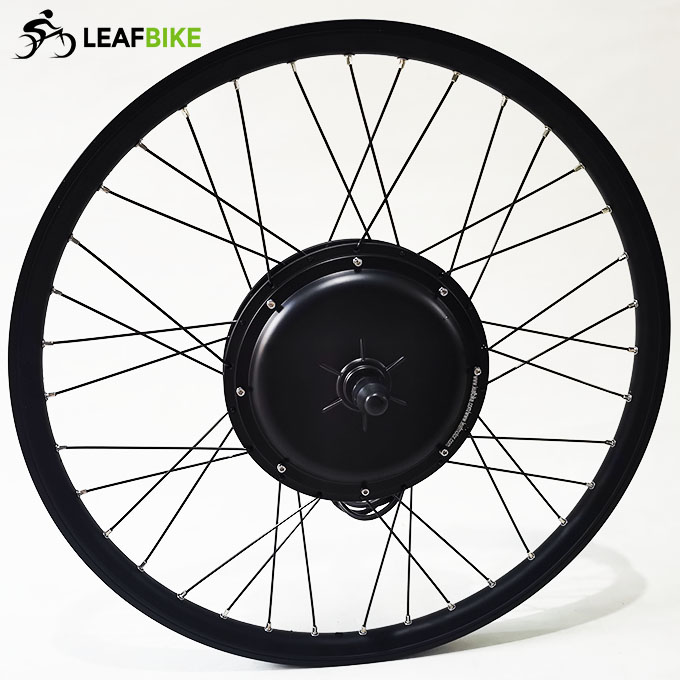

![26 inch 36v 750w front hub motor - ebike conversion kit 26 inch 36v 750w front hub motor - ebike conversion kit](/u_file/images/13_12_12/464a4469d2.jpg)

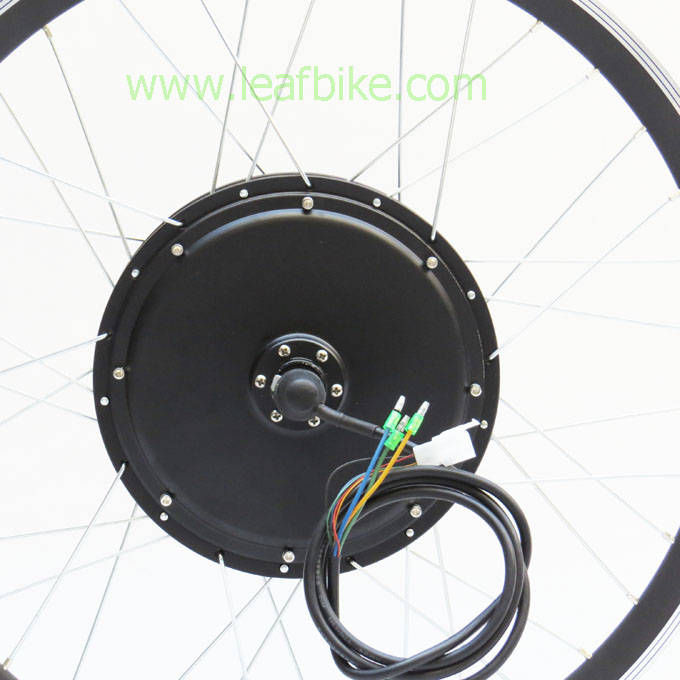

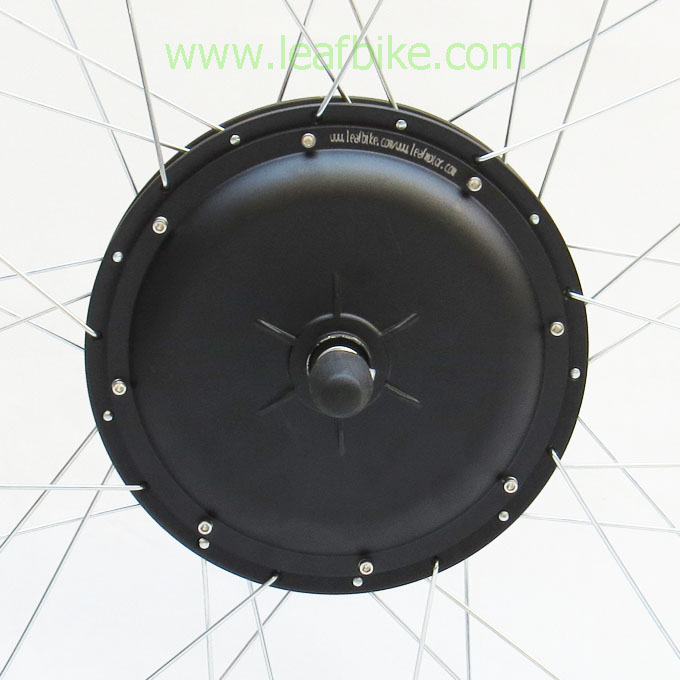

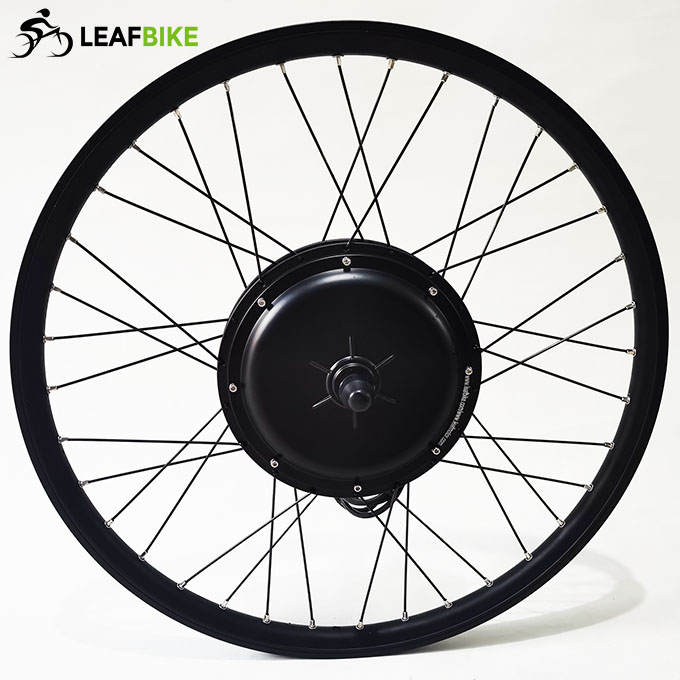

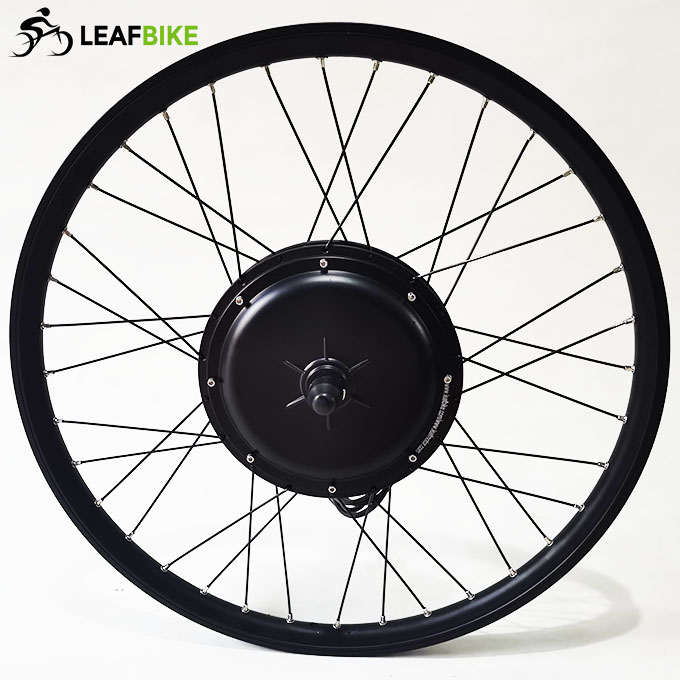

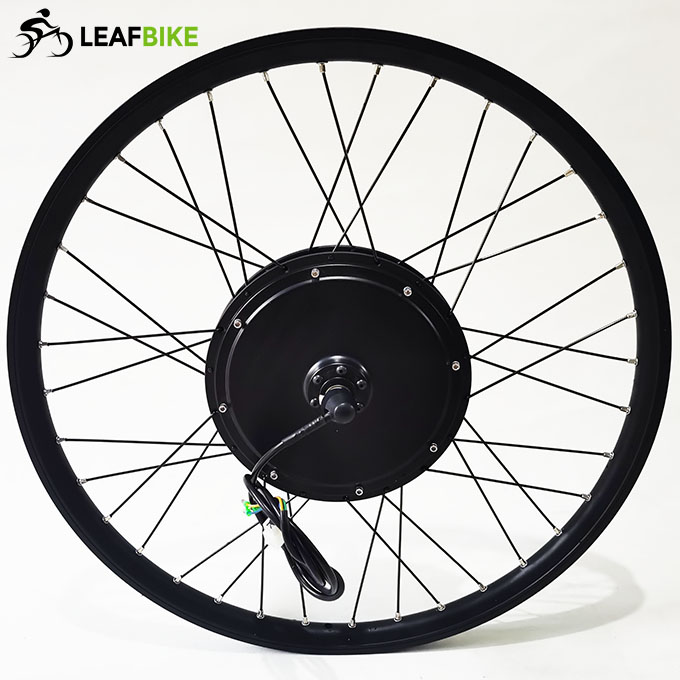

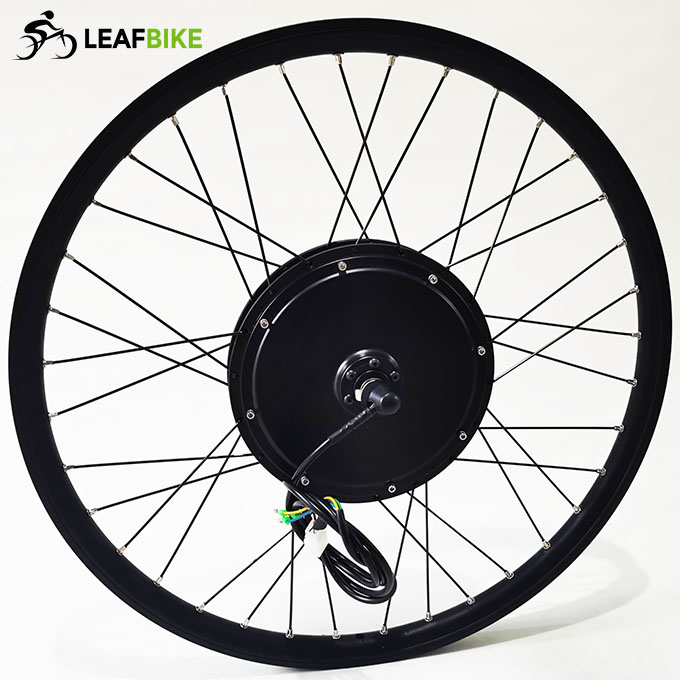

This 650b hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

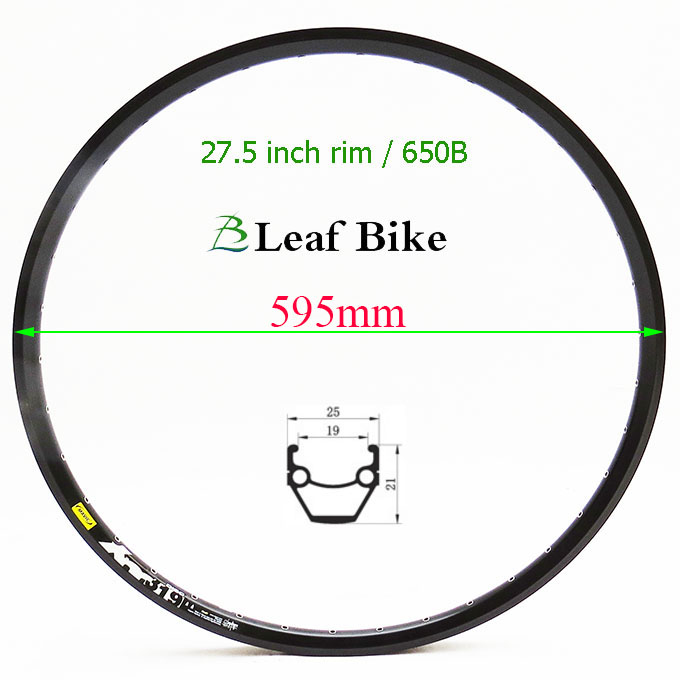

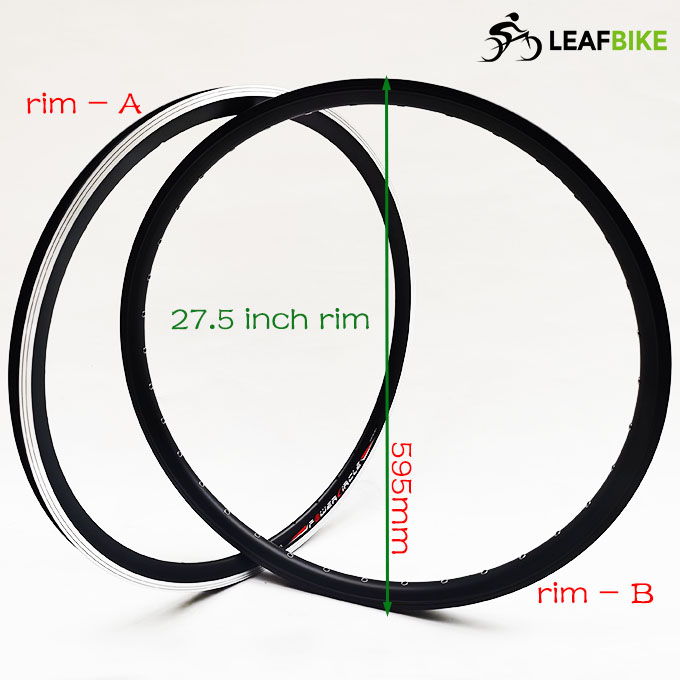

>. Rim: 27.5 inch / 650B double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" tire)
If the width of your tire / tyre is 2.1...(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 173mm Length × 36 pcs
>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 66.1 kmh -- 40.6 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end , LEFT
>>. Cable length:160cm / 63"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H
LCD-003, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

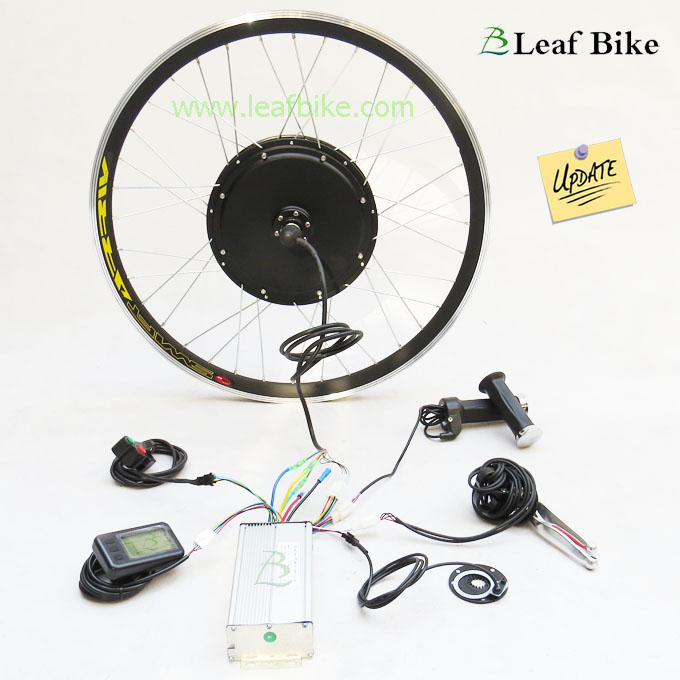

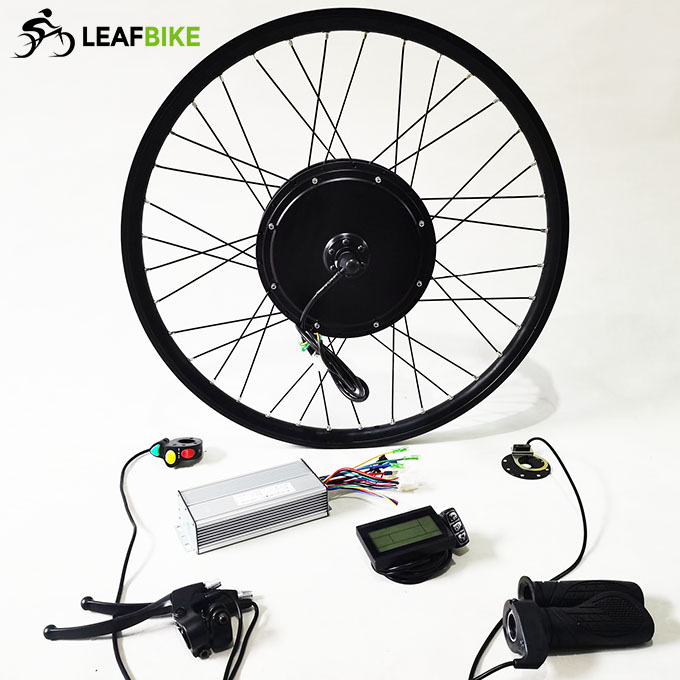

Package Content:

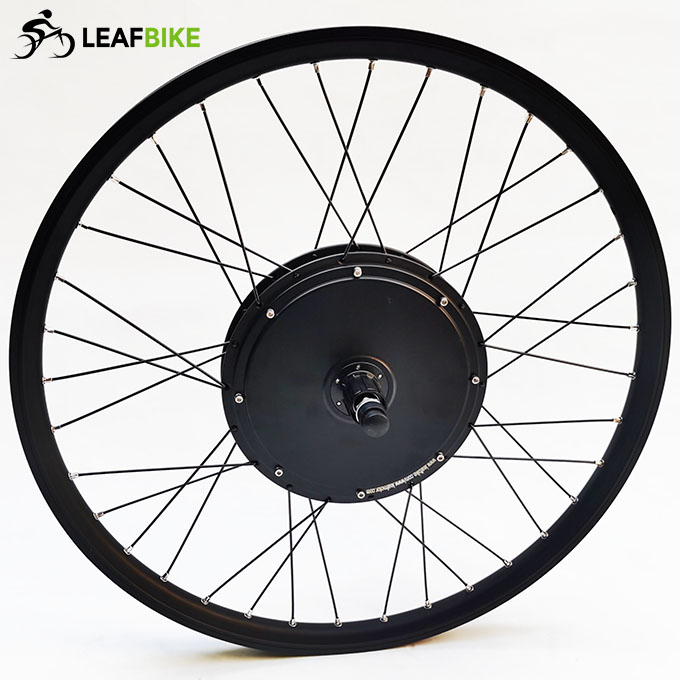

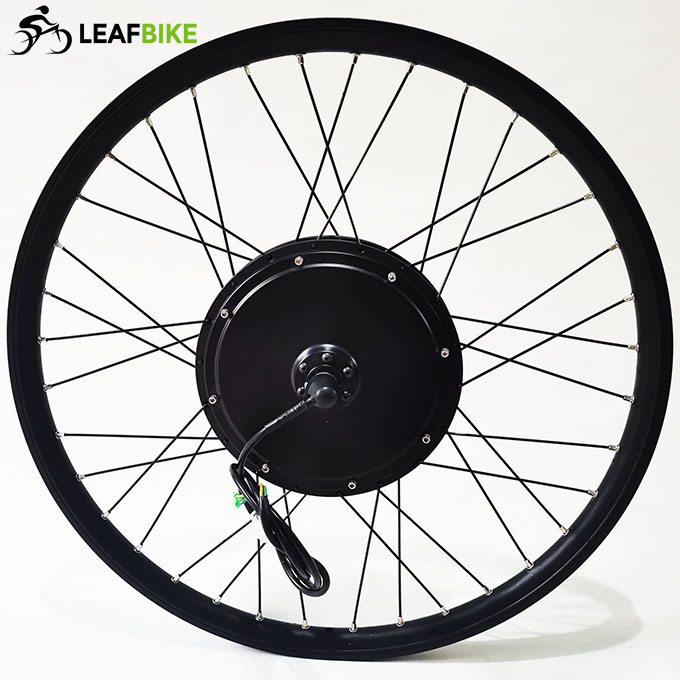

1 x 27.5 inch / 650B 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist
Net weight: 10.7 kg / 23.6 lbs
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box

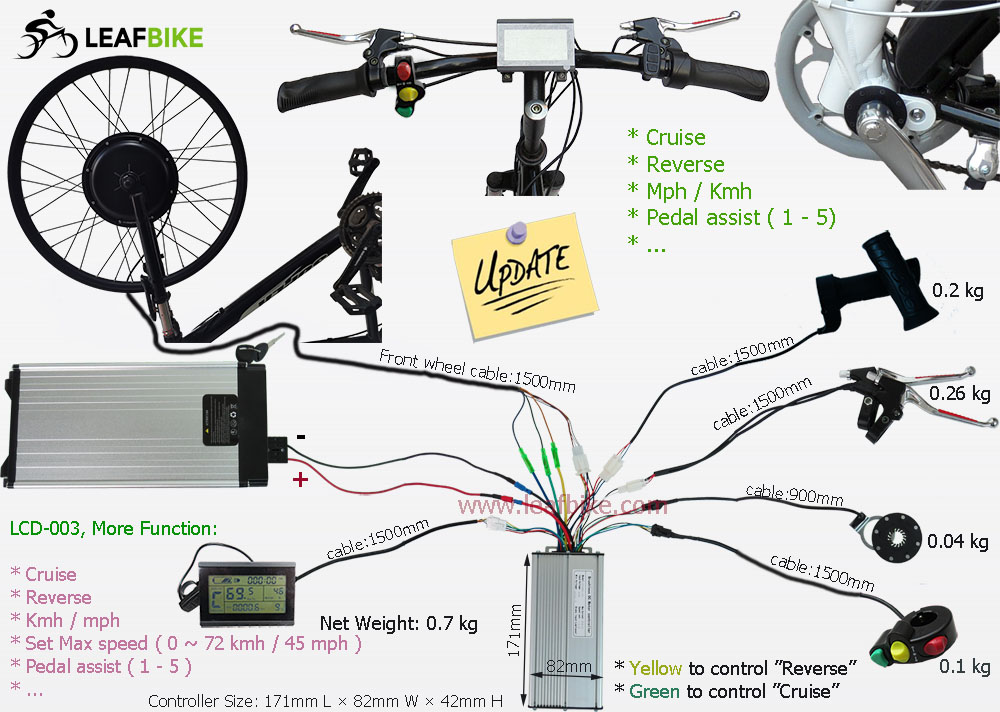

Wire Diagram:
![20-24-26-27-28-29-inch-700c-front-hub-motor-eletric-bike-conversion-kit 20-24-26-27-28-29-inch-700c-front-hub-motor-eletric-bike-conversion-kit](/u_file/images/16_10_18/bb11e72d26.jpg)

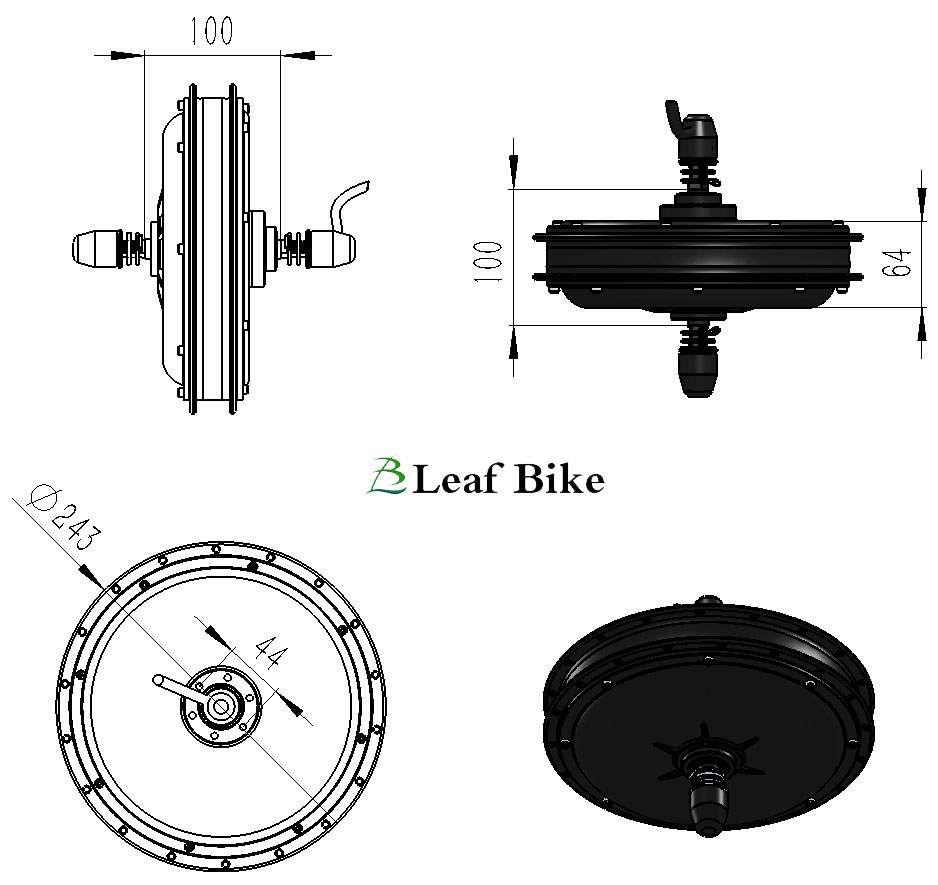

750w Front Drw.
![750w-front-electric-bike-motor-drawing 750w-front-electric-bike-motor-drawing](/u_file/images/20_03_15/0876f37a8e.jpg)
Performance Data:
![750w-electric-hub-motor-performance-data-curve 750w-electric-hub-motor-performance-data-curve](/u_file/images/13_08_28/103712c325.jpg)
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
![torque arm](/u_file/images/12_09_10/4a36a6dfca.jpg)
