The conversion kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

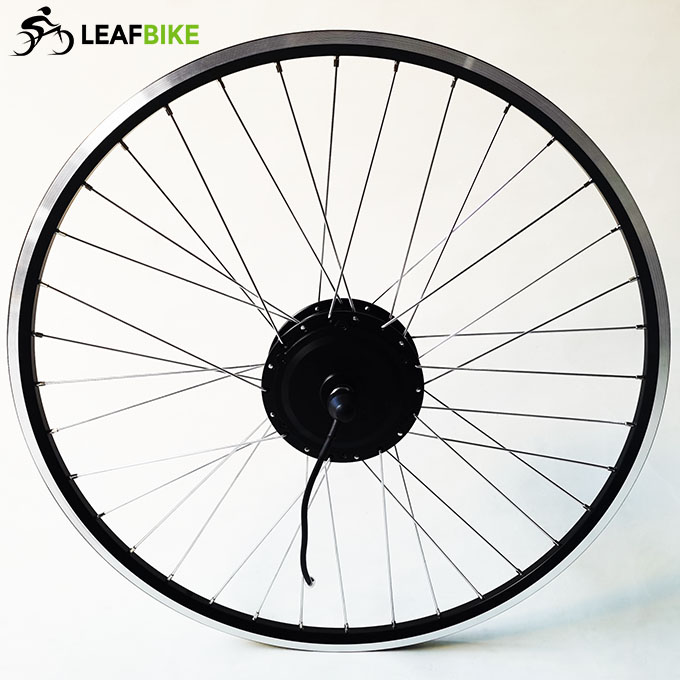

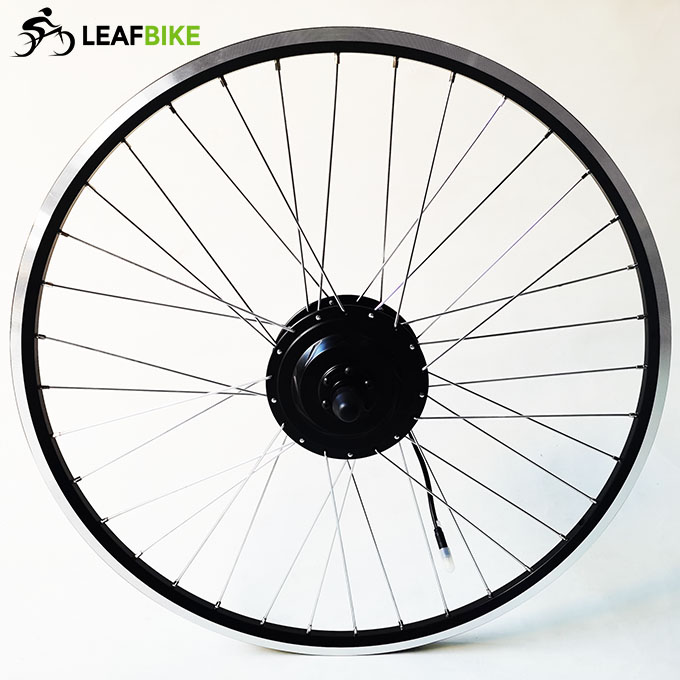

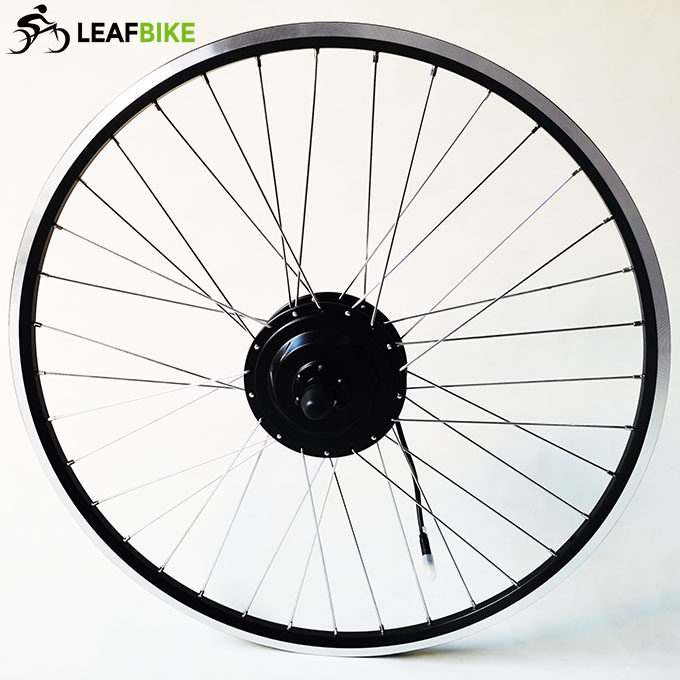

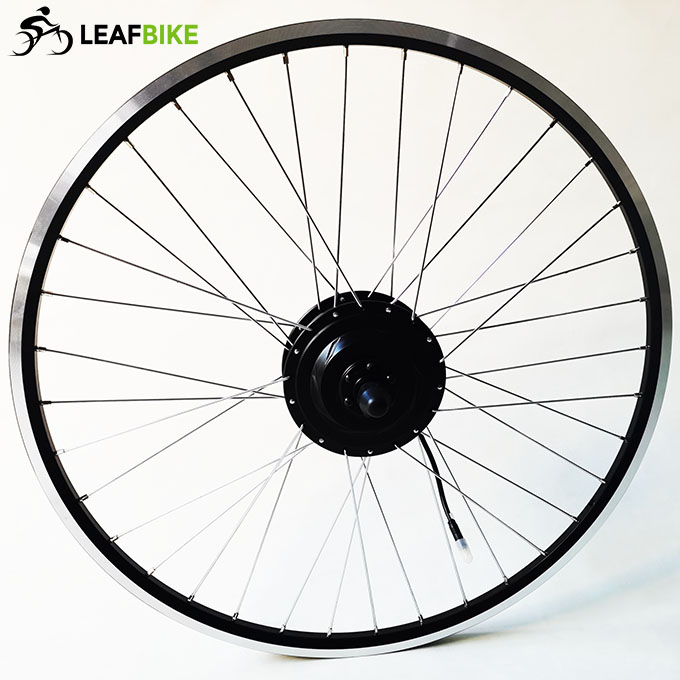

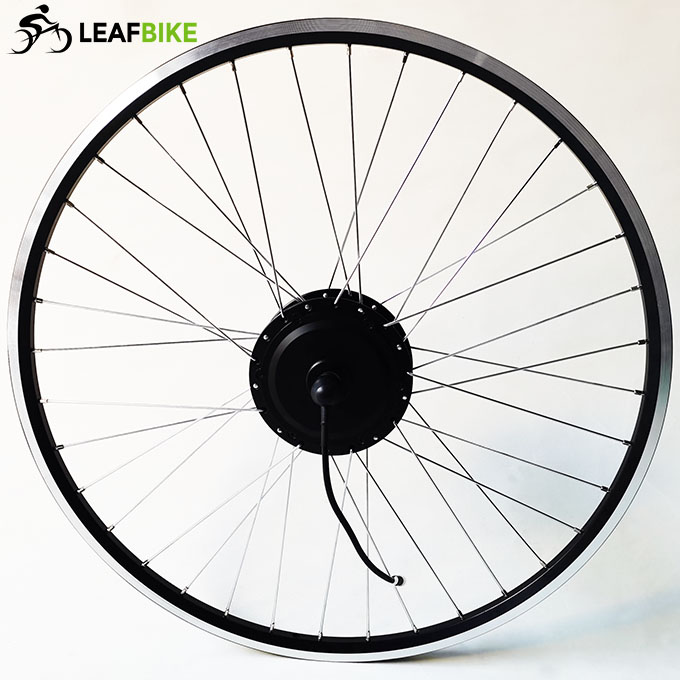

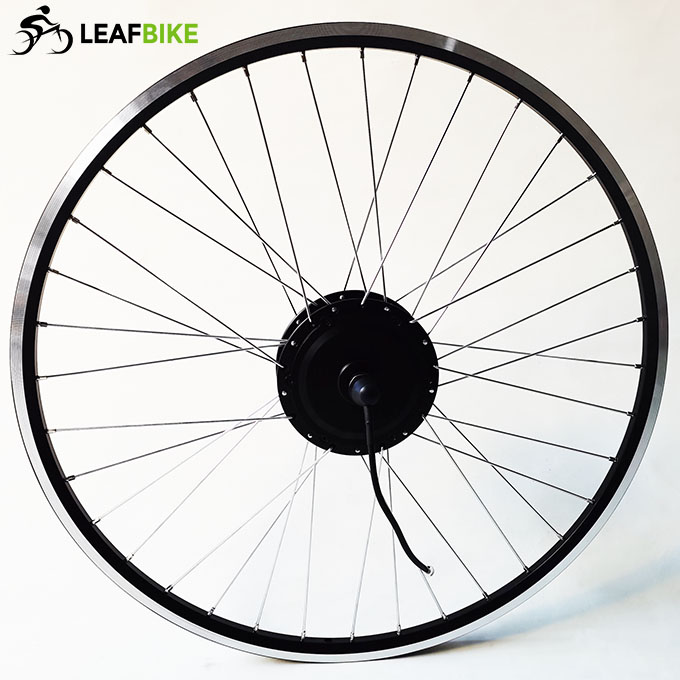

>. Rim: 27 inch double wall Alloy (Rim Fit For: 27 × 1-1/4, 1-3/8 tire)
>. Spoke: 12 gauge / 215 mm Length × 36 pcs
>. Engine : Bldc hub motor -- Brushless Geared
>>. Voltage: 36V
>>. Power: 400W
>>. Efficiency: 78%
>>. Max speed: 17.5 kmh -- 10.8 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 400 Watts
>>. Casing material: aluminium
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H
LCD-003, More Function:
* Cruise
* Reverse ( The motor does not support the reversal )
* Regen brake
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

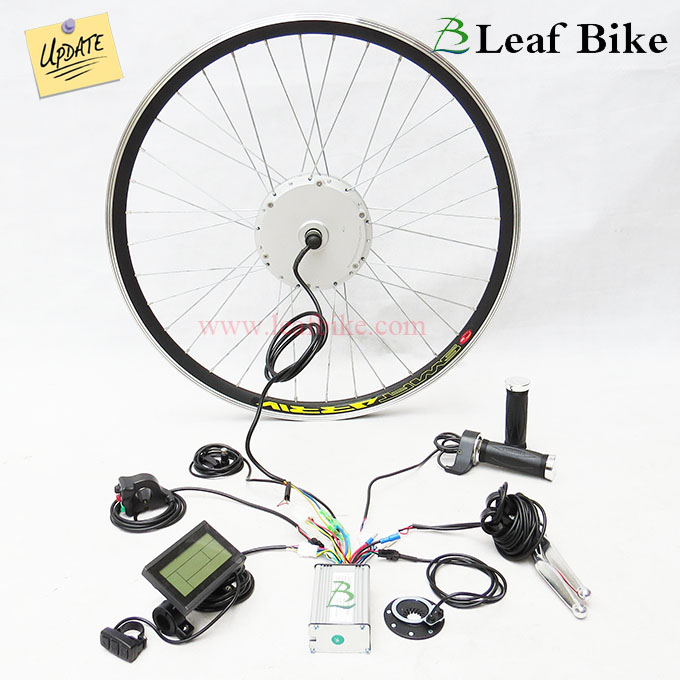

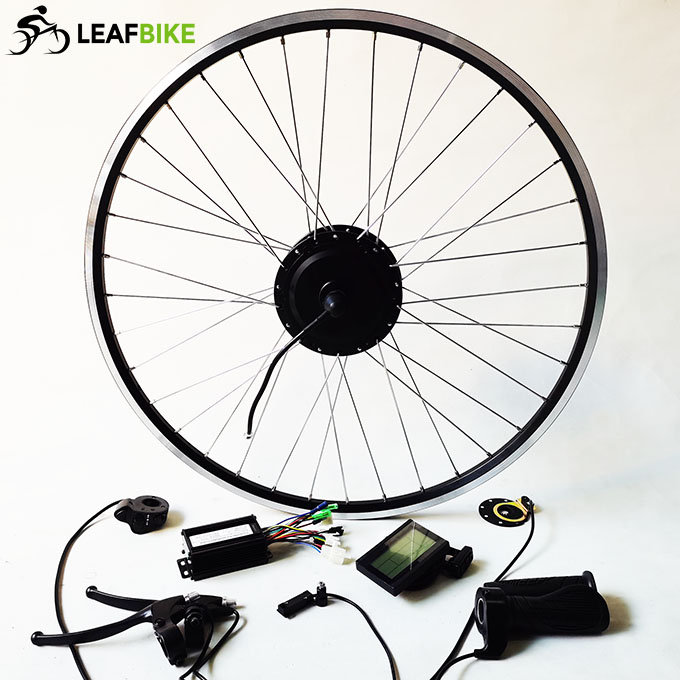

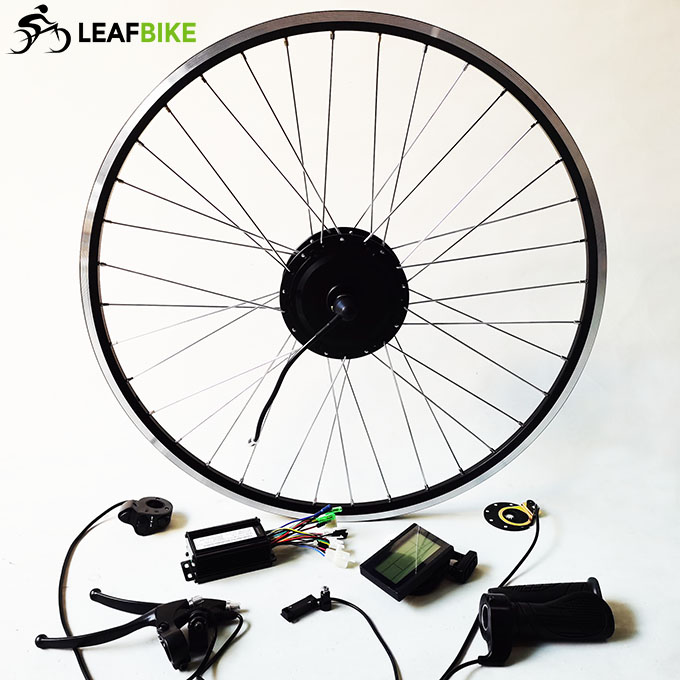

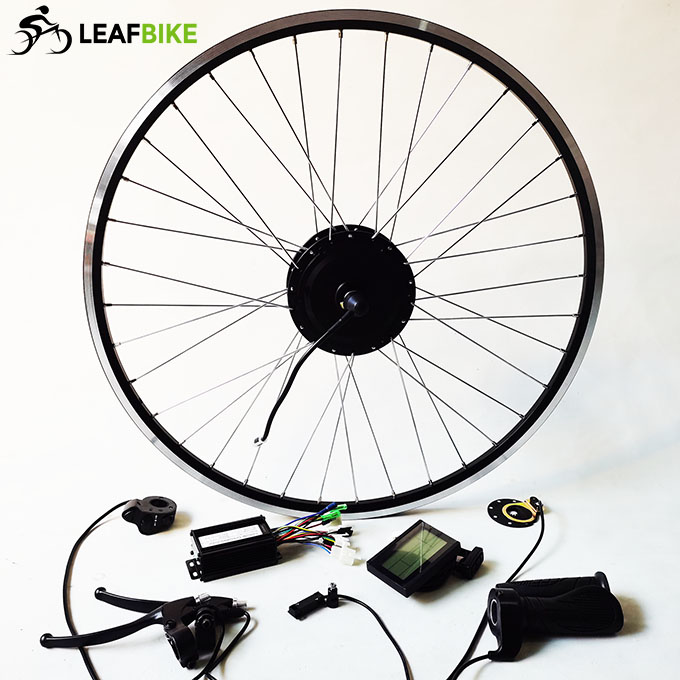

Package Content:
1 x 27 inch 36V 300W - 500W front bldc hub motor wheel
1 x 36V 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist
Net Weight: 6.12 kg / 13.5 lbs
Package Size: 68cm L x 68cm W x 25cm H
Package Type: Cardboard Box

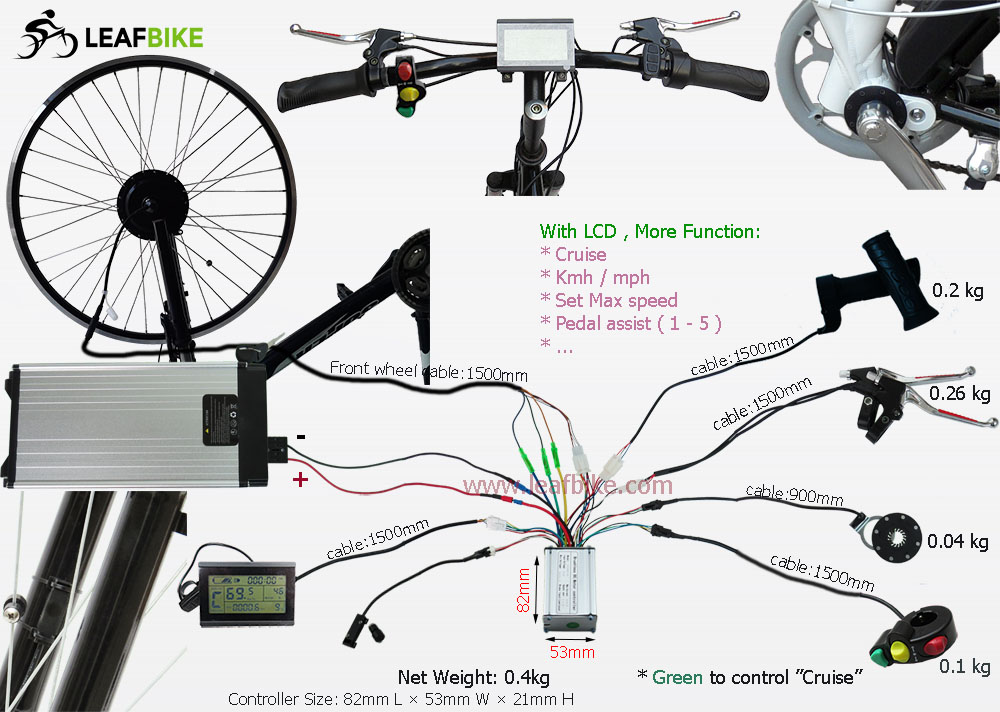

Wire Diagram:
