24 inch 36V 750W rear hub motor - bike conversion kit

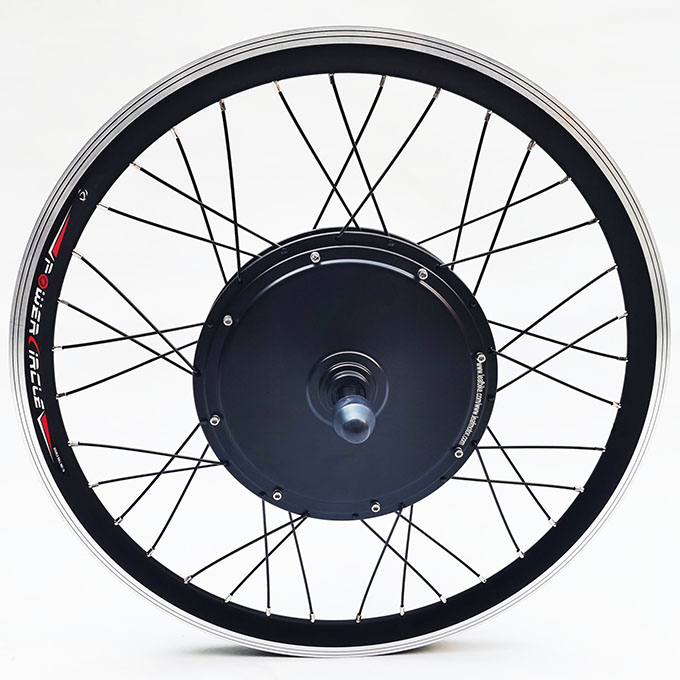

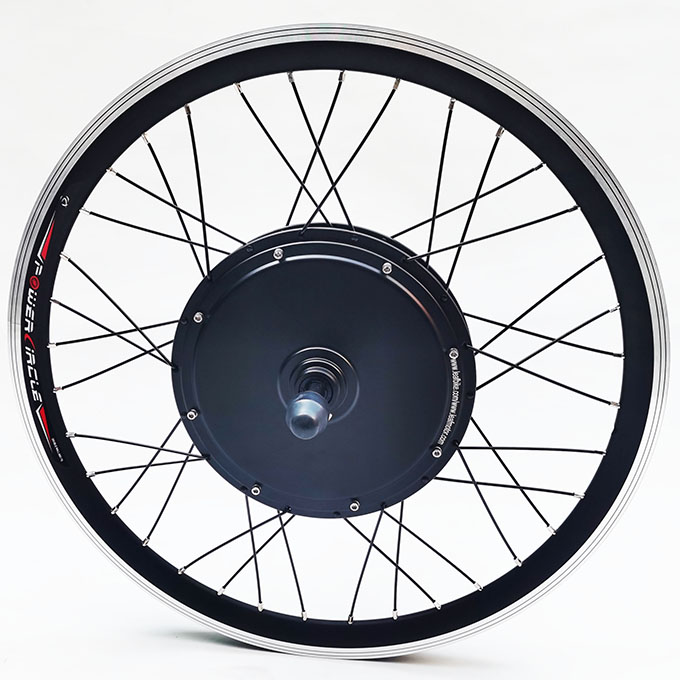

Name: 24 inch 36V 750W rear hub motor - bike conversion kit
Brand: Leaf Bike
SKU: LBCK2436750RN
Price: 315 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK2436750RN

$315.00 ~~$378.00~~

Maybe You Need These

Description

This 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

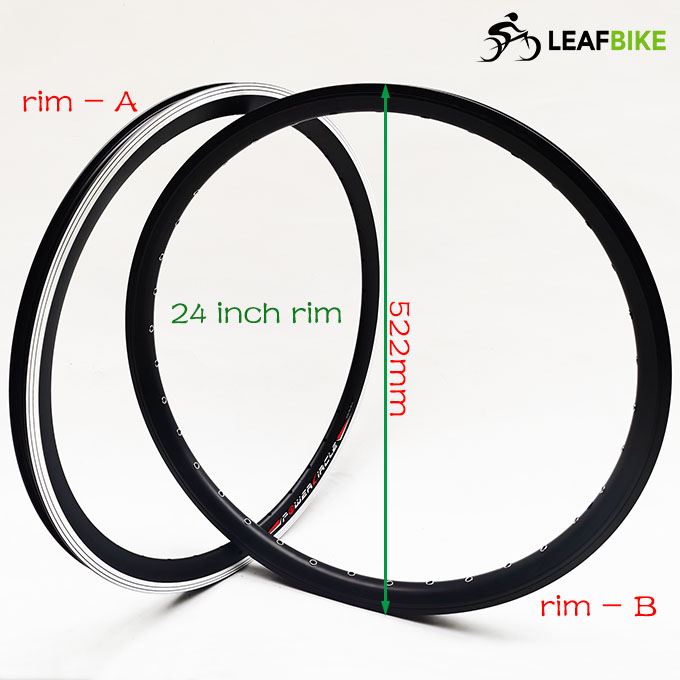

>. Rim: 24 / 507 double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
>. Spoke: 12 gauge / 131mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 50.5 kmh – 31.3 mph
>>. Mechanical brake: Disk or V
>>. Freewheel / Cassette: space for 6 or 7 gears
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

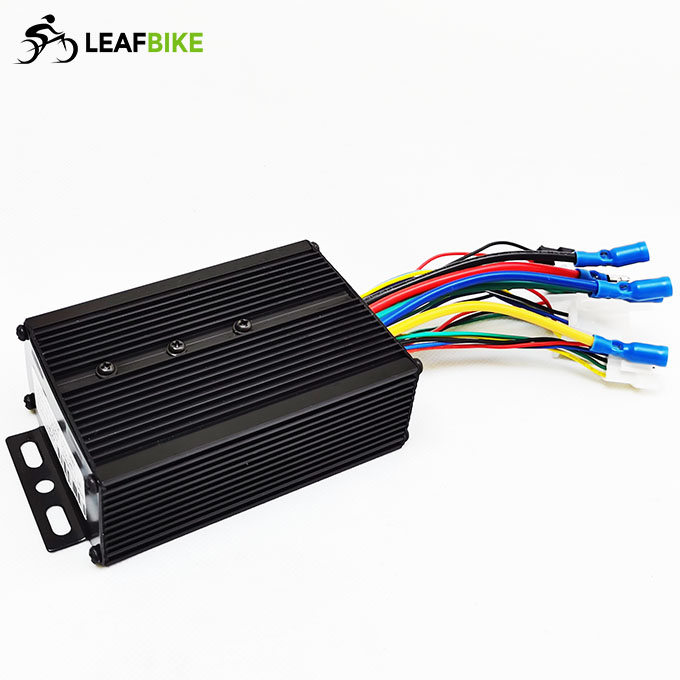

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours. Please click below link:
https://www.leafbike.com/products/diy-bike-conversion-kit/24-inch-36v-750w-rear-hub-motor-kit-1547.html
* ...

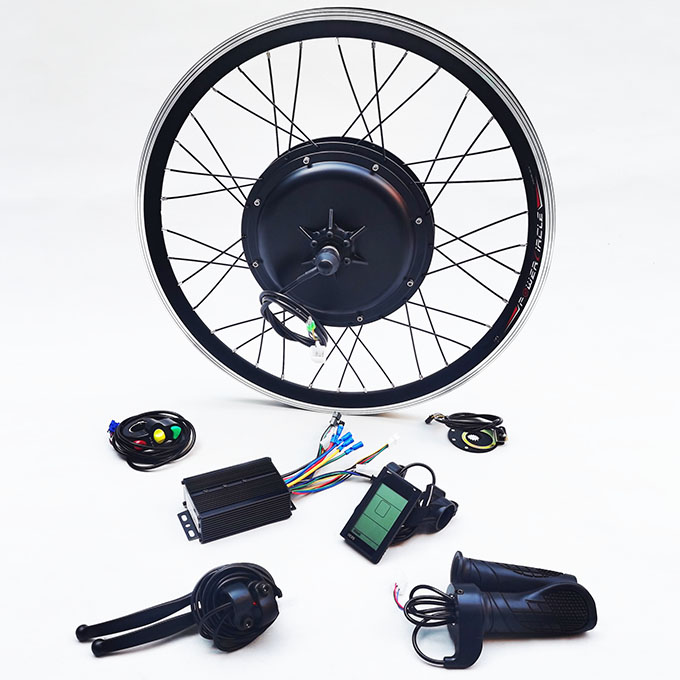

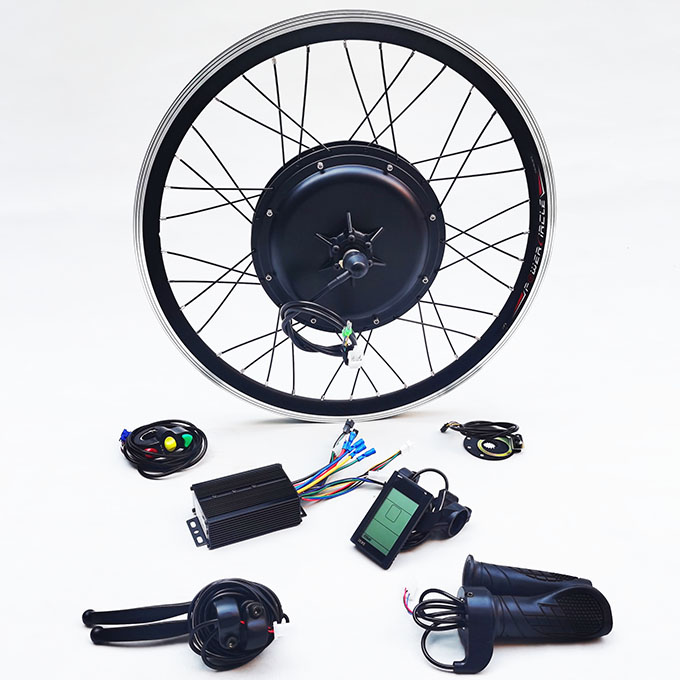

Package Content:

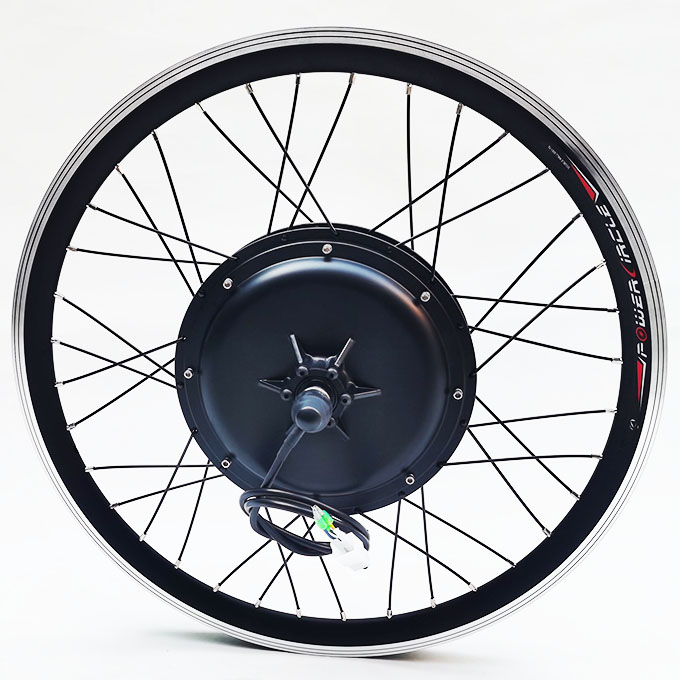

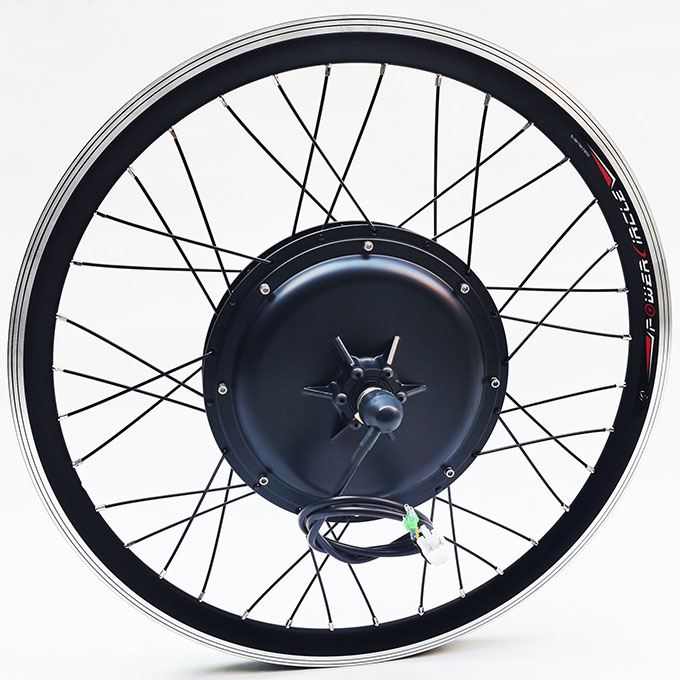

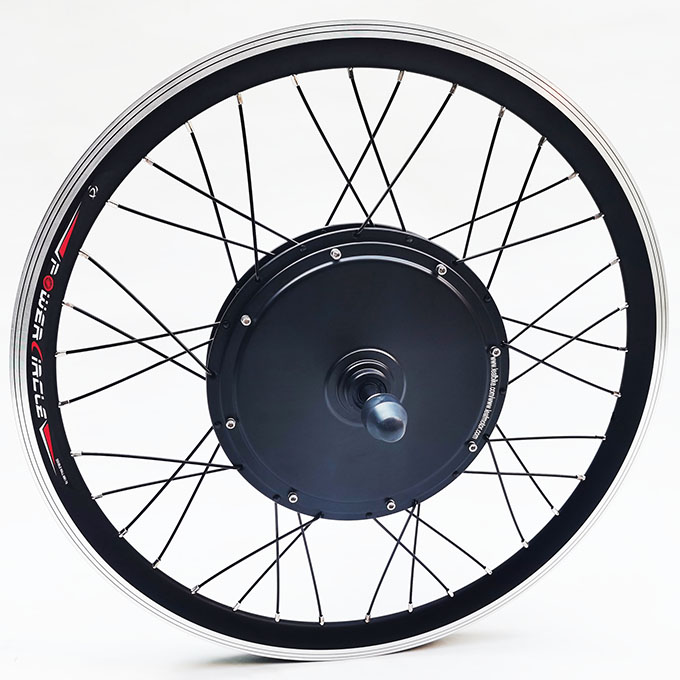

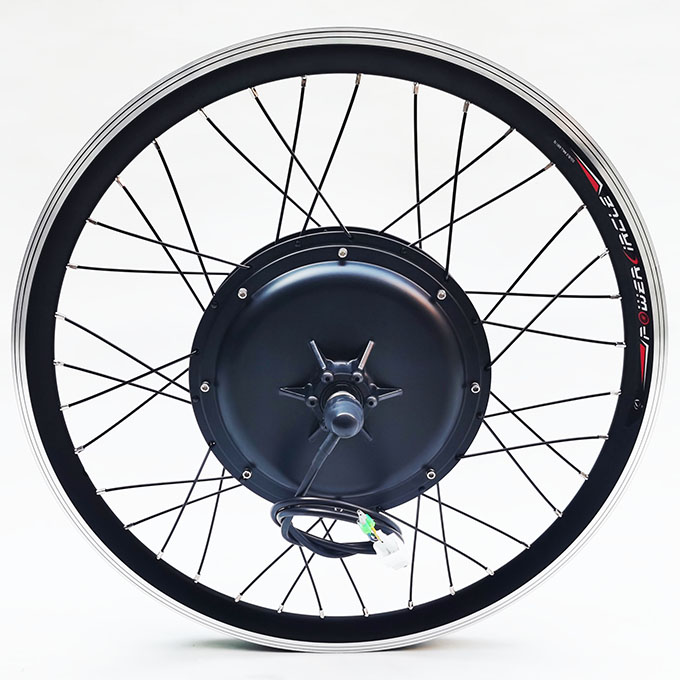

1 x 24 inch 36V 750W rear hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Standard twist throttle
1 x Brake levers
1 x Three button switches ( control cruise.. )
1 x Pedal assist

Net weight: 10.6 kg / 23 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

750W Rear Drw.

750W Cassette Drw.

Performance Data:
