The 18 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

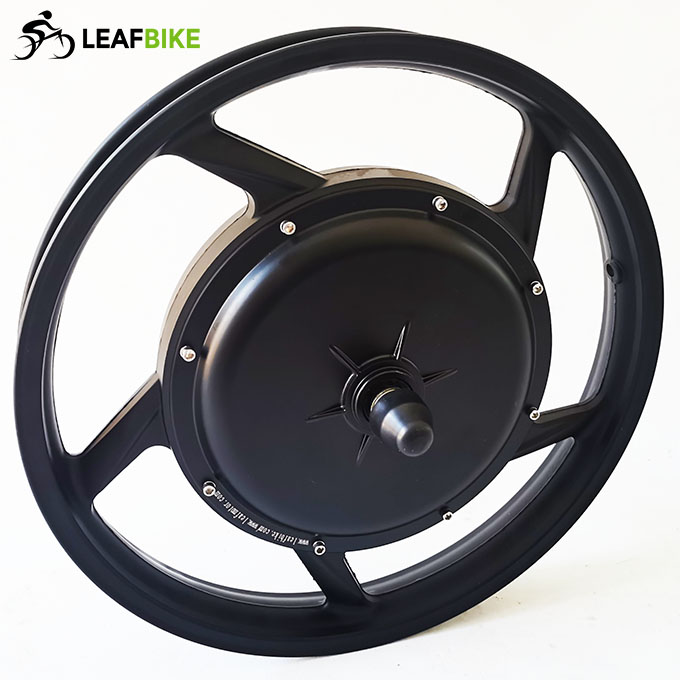

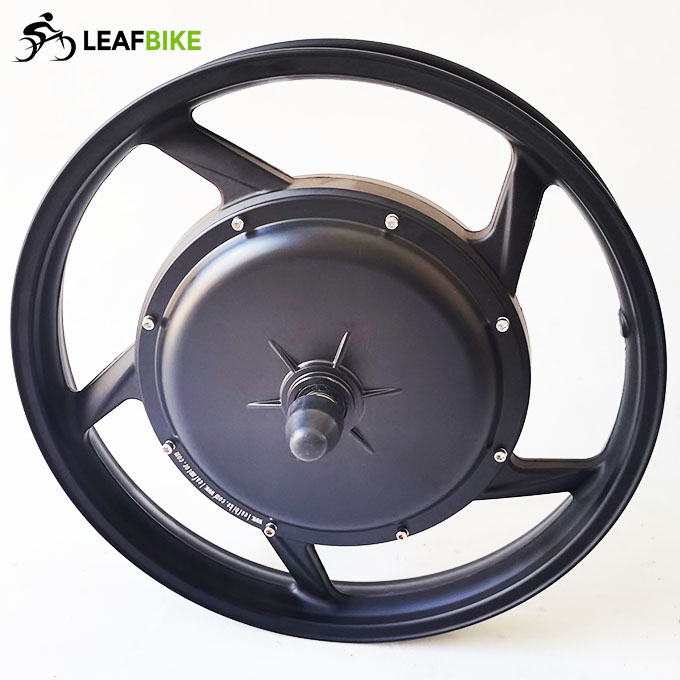

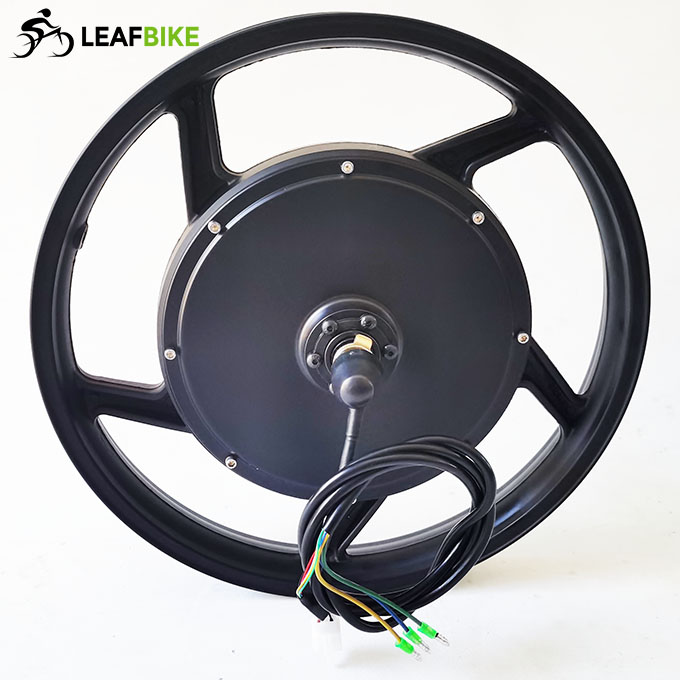

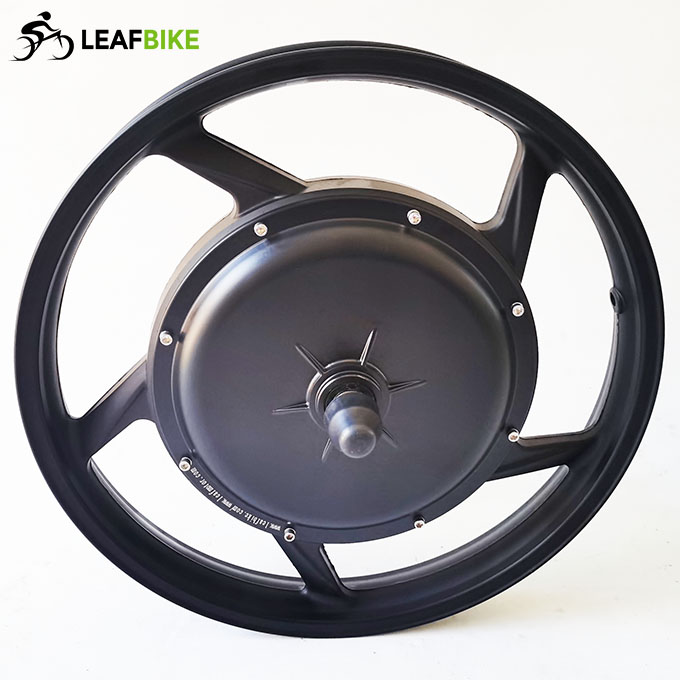

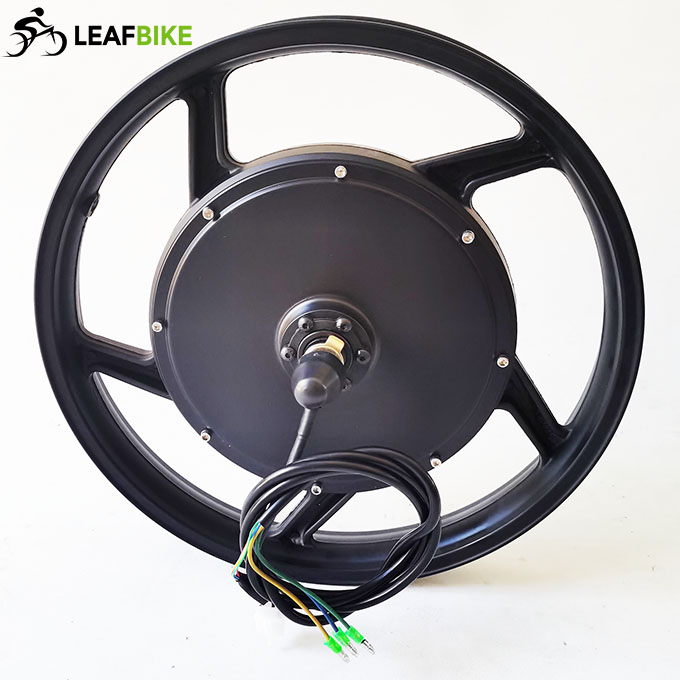

Hub: Ø372mm Casted Alloy (Hub Fit For: 18 × 2.125" / 2.5" scooter tire) - Not fit for 2.5 - 18 inch motorcycle tire
Motor: brushless gearless dc motor
Controller: LCD display
Max speed: 25mph
Mechanical brake: V or Disk
Install: spacing of Min. 100mm ~ Max. 120mm fork
With LCD, More Function:
* Cruise
* Forward & Backwards (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is the off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

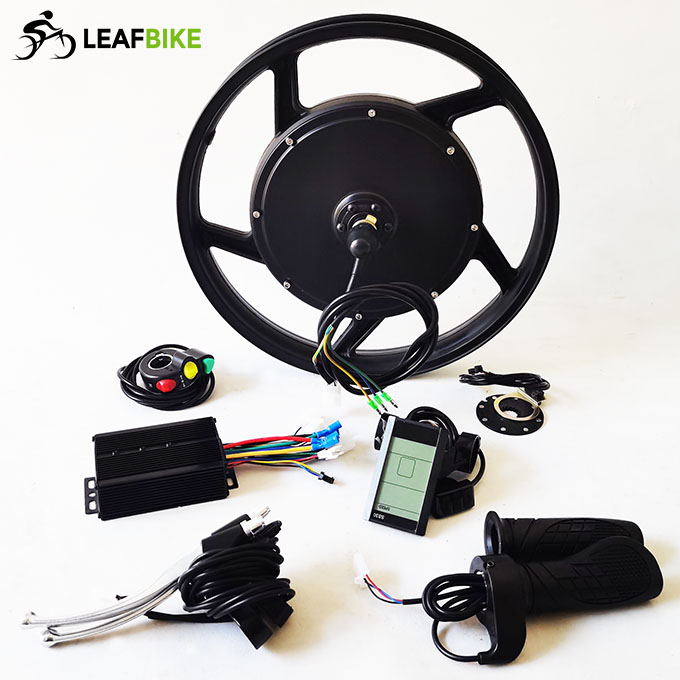

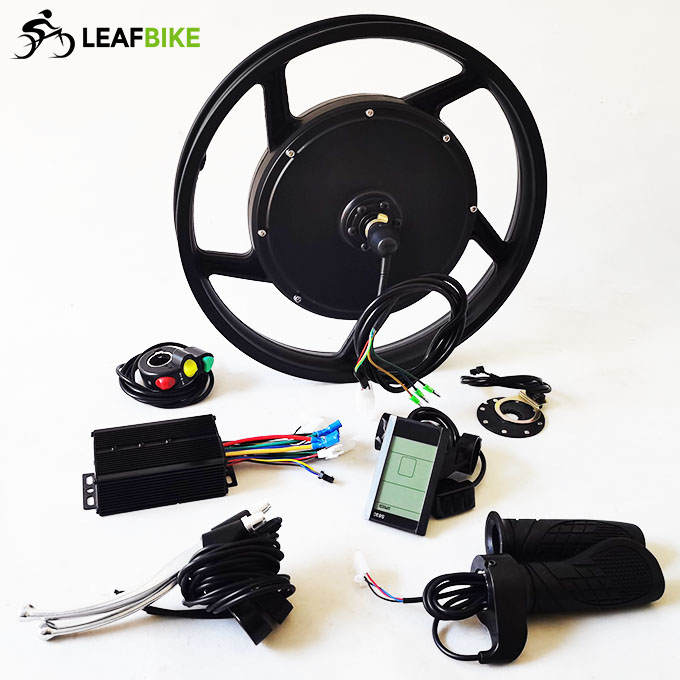

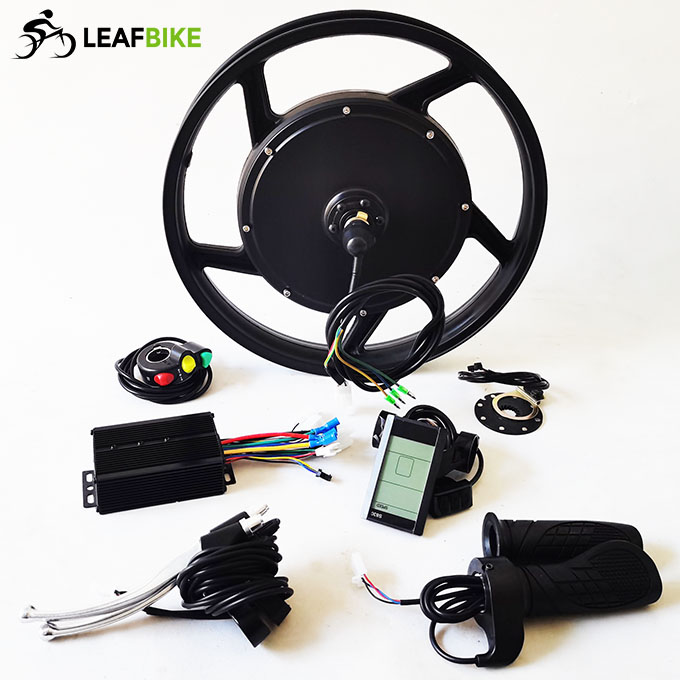

Package Content:

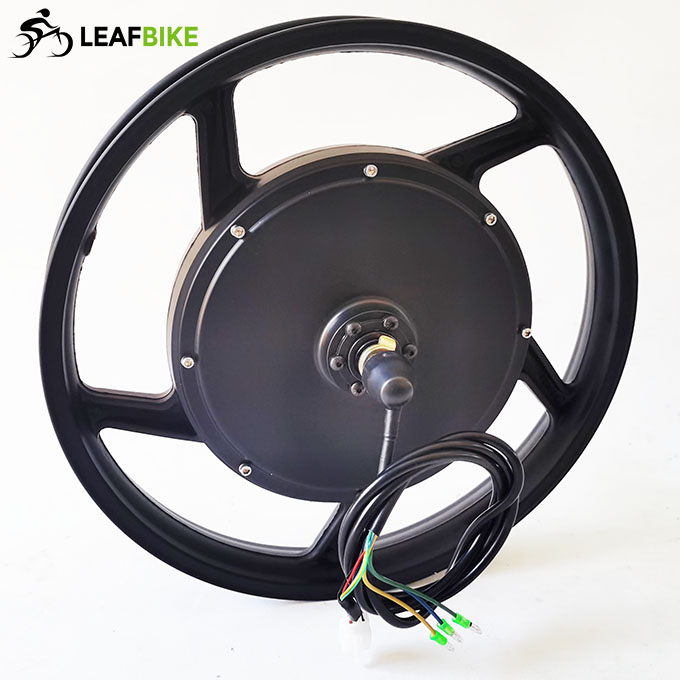

1 x 18 inch 36V 750W front hub motor wheel

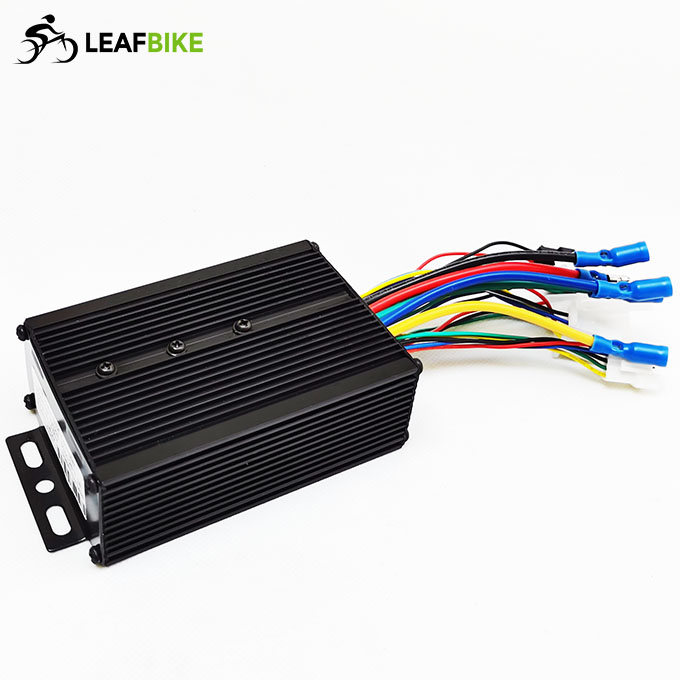

1 x 36V 750W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist
Net Weight: 9.05 kg / Gross Weight: 10.25 kg
Package Size: 46cm L x 46cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
18 inch Front Drw.
Performance Data:
