Please watch video for 13 inch 48V 52V 800W rear bldc hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh..
Share Video:
Main Features:
>. Tire: 13 × 5.00 - 6
>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 800W
>>. Efficiency: 86%
>>. Max speed: 65 kmh / 40mph (No load)
>>. Mechanical brake: Disk
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Install: spacing of 150mm fork ( > 150mm)
>>. Noise: < 60 db
>>. Surface: Bright silver
>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H
LCD-003, More Function:
* Cruise -- Green switch control it
* Forward & Backwards (Optional) -- Yellow switch control it
* Kmh & mph (Optional)
* Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...
Package Content:
1 x 48V 52V 800W scooter motor wheel with 13 × 5.00 - 6 tire
1 x 48V 52V 1000W 12-MOSFET motor controller
1 x LCD - 003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 8.5kg
Package Size: 42cm L × 42cm W × 25cm H
Package Type: Cardboard Box

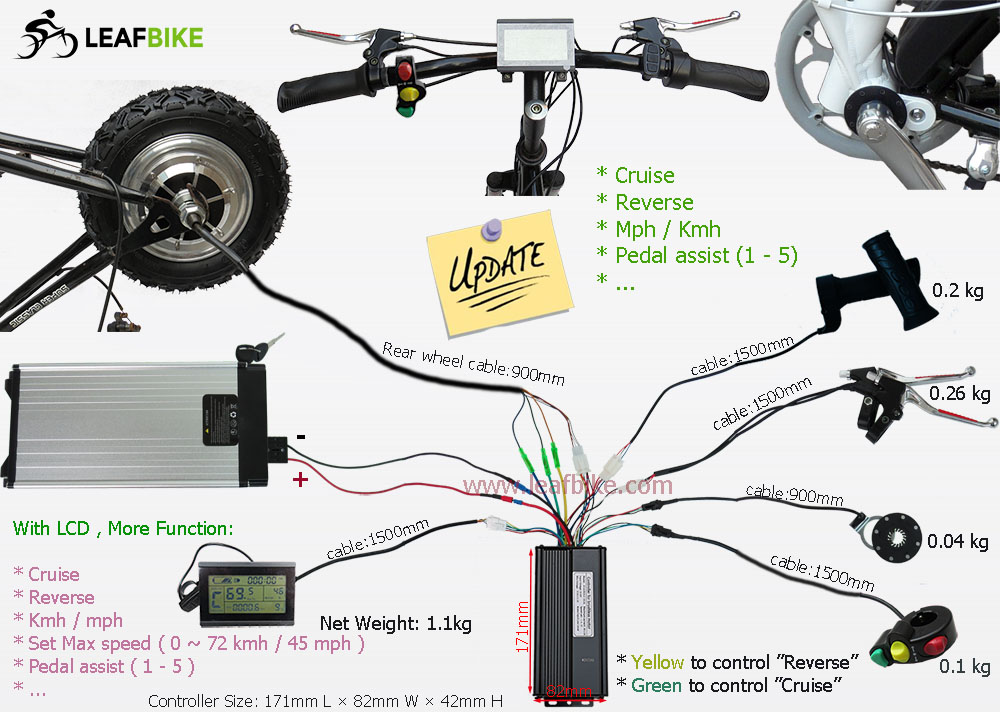

Wire Diagram:
