Please watch video for 12 inch 48V 52V 300W 500W rear bldc hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..
Share Video:

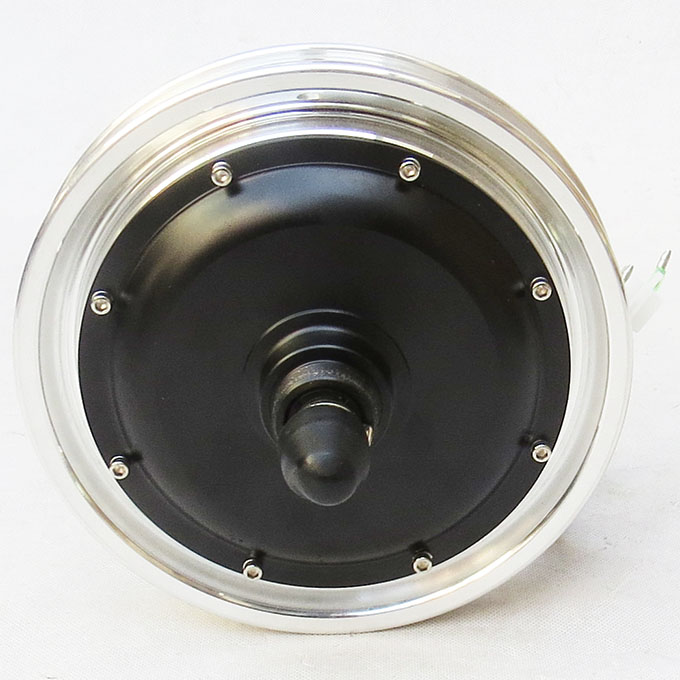

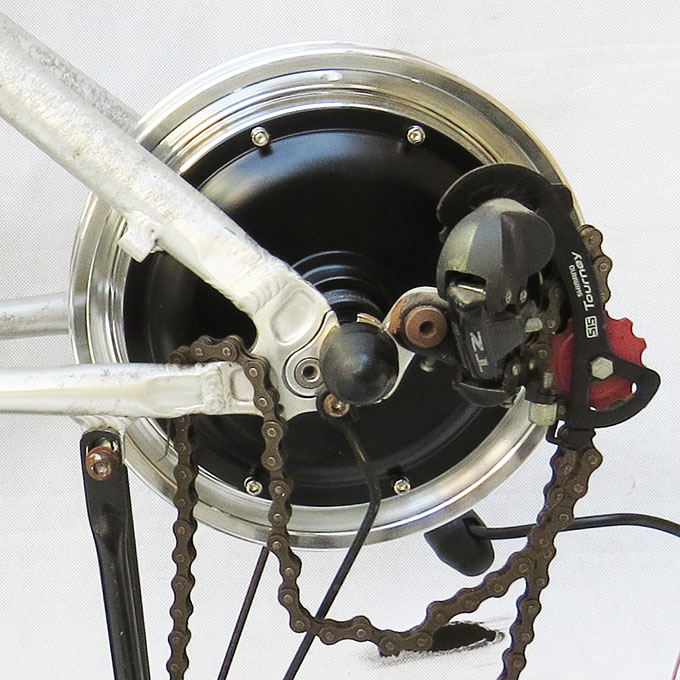

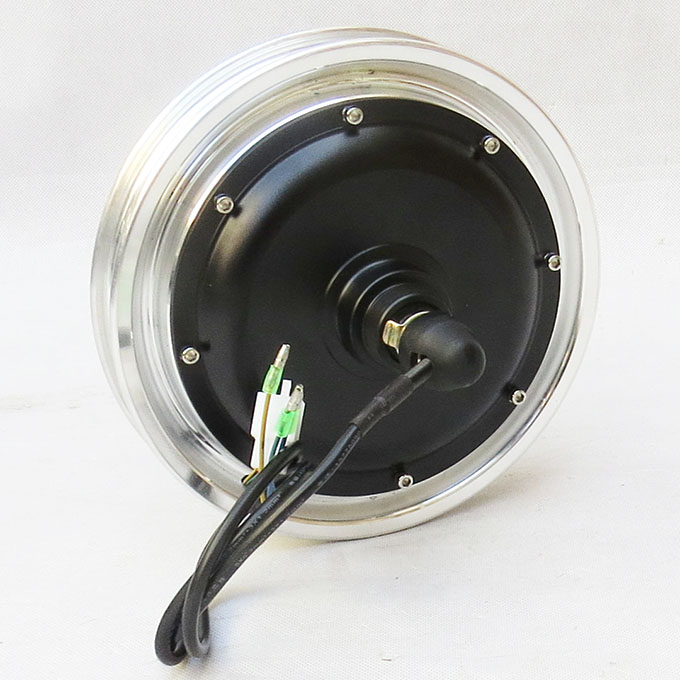

This 12 inch electric scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:
Hub: Ø218mm Casted Alloy (Hub Fit For: 12 × 2.125" ~ 2.5" tire)
Motor: electric scooter motor
Controller: LCD display
Max speed: 32.7 kmh / 20.3 mph
Mechanical brake: V or Disk / Drum
Install: spacing of 135mm fork
LCD-003, More Function:
* Cruise
* Reverse
* Regen brake
* Kmh / mph
* Set Max speed
* Pedal assist ( 1 - 5 )
* ...

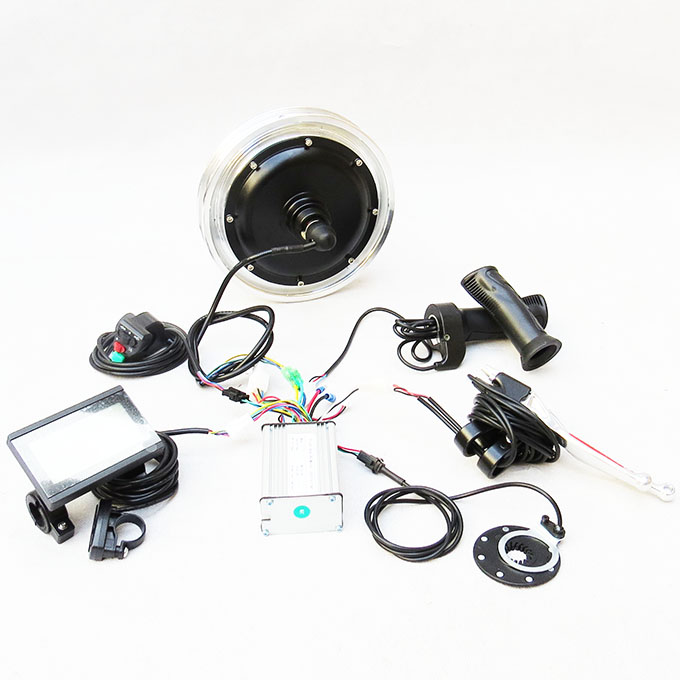

Package Content:
1 x 12 inch 48V / 52V 400W rear hub motor wheel
1 x 48V/ 52V 6-MOSFET motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist
Net Weight: 6.8 kg / 15 lbs
Package Size: 42mm L x 42mm W x 30mm H
Package Type: Cardboard Box
Wire Diagram:
12 inch Rear Drw.
