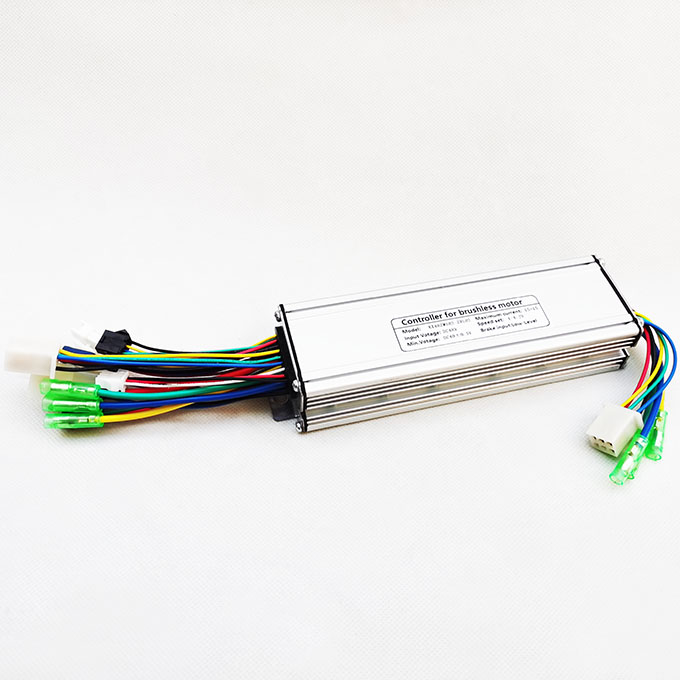

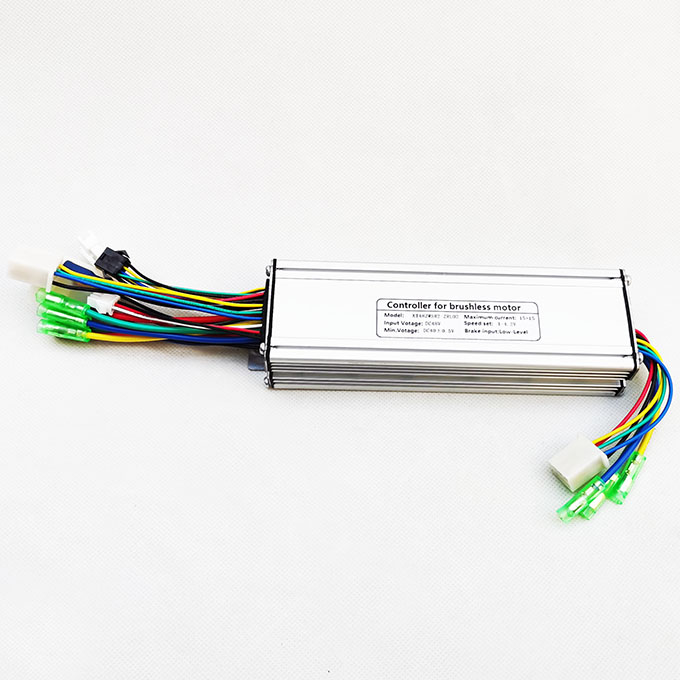

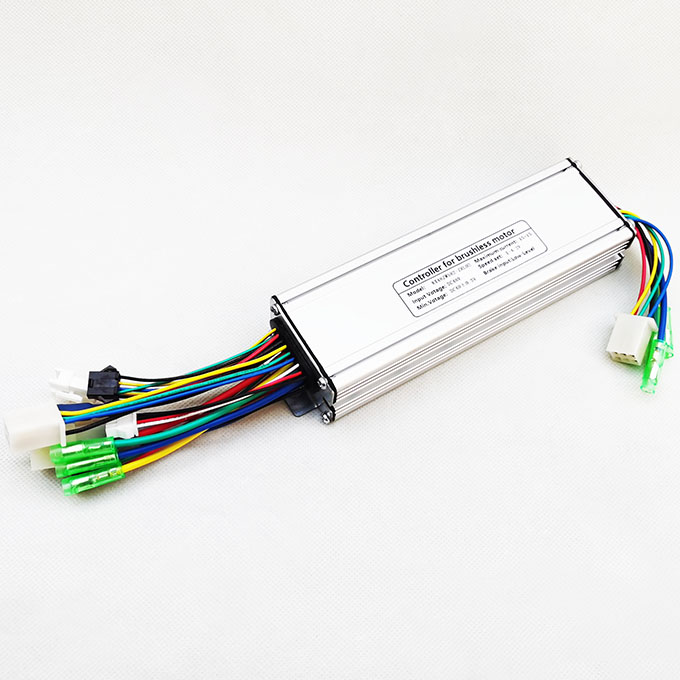

48V 500W Electric Bicycle Dual Drive Controller For E-bike & Scooter.
It's fit to drive 48V 500W brushless with hall sensor hub motors.
Features:
Suitable for Electric for electric bike & scooter
>>. MOSFET: 6 PCS + 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Power: 500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 15 A + 15 Amps
>>. Thermal: aluminum shell and the substrate - Black color
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 164 mm L × 53 mm W × 33 mm H
>>. Weight: 0.65 kg

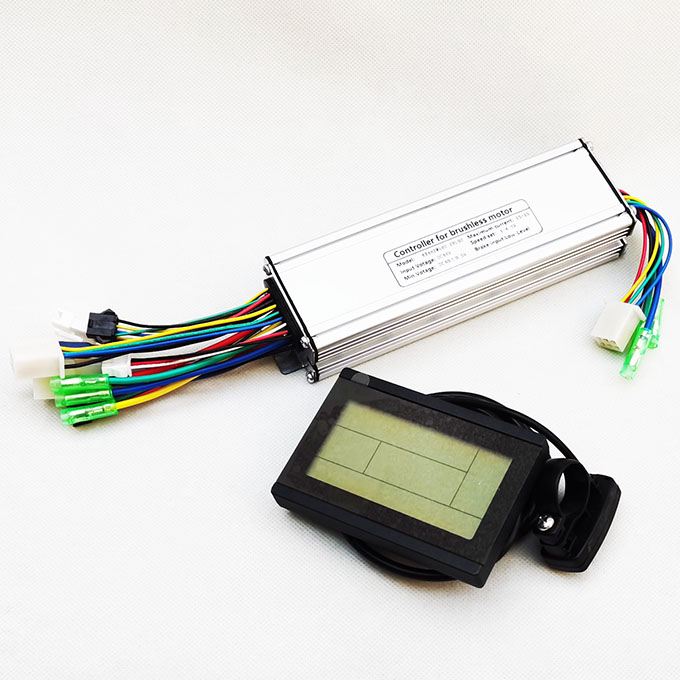

Working with LCD
Display: speed, mileage, battery gauge...
Functions:
. Mute when start
. Speed limit
. Power cut brake
. Blockage protection
. Current limit protection
. E-ABS brake
. Short circuit protection
. Avoid out of control
. 1:1 pedal assist function
. Undervoltage protection
Additional features:
* Cruise
* Reverse
* Pedal assist ( 1 - 5 )
* Mph / kmh
* ....
