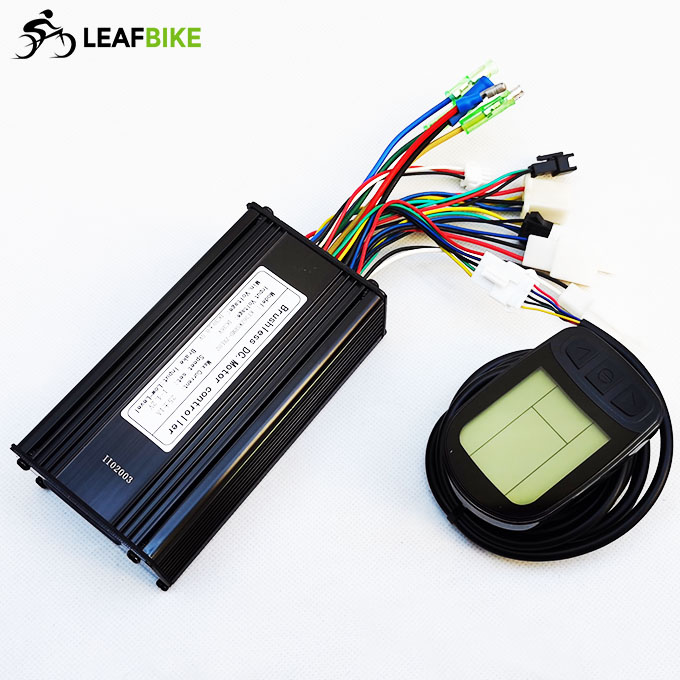

36V 750W electric bike motor controller - Small Black color

Name: 36V 750W electric bike motor controller - Small Black color
Brand: Leaf Bike
SKU: LBC36750MBS
Price: 115 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBC36750MBS

$115.00 ~~$109.00~~

Maybe You Need These

Description

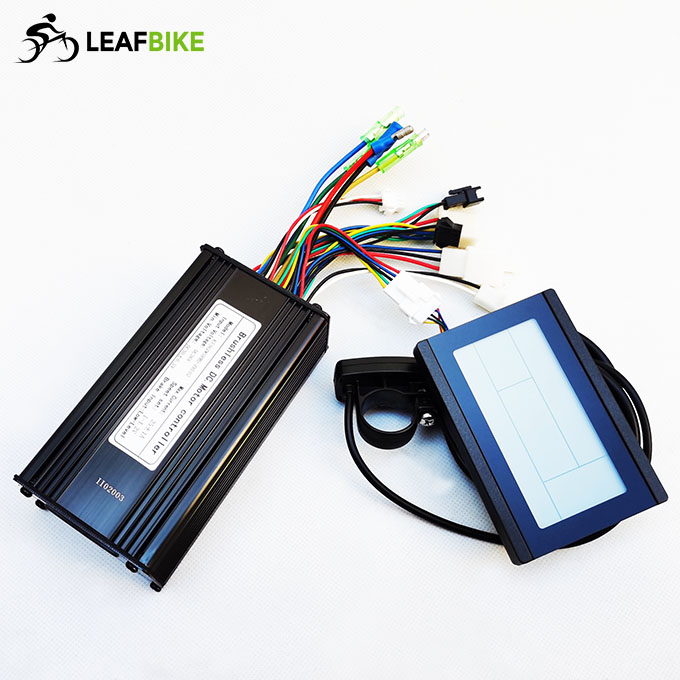

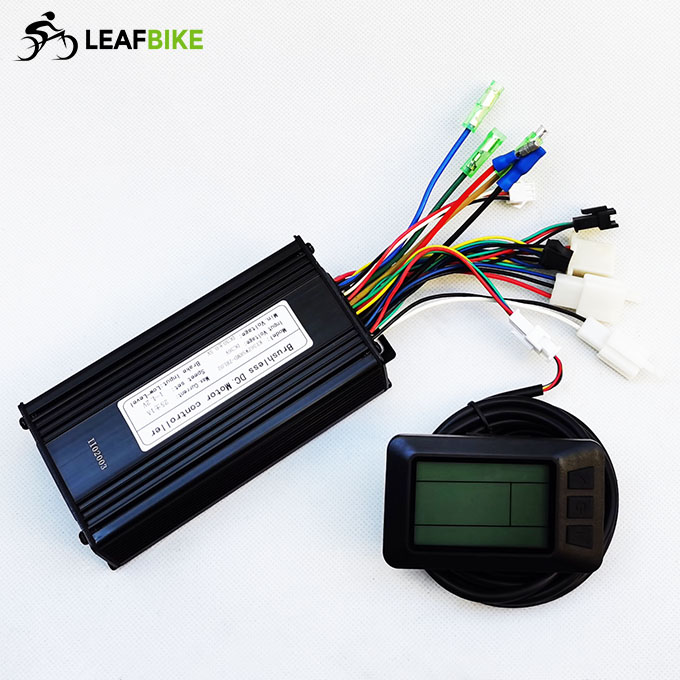

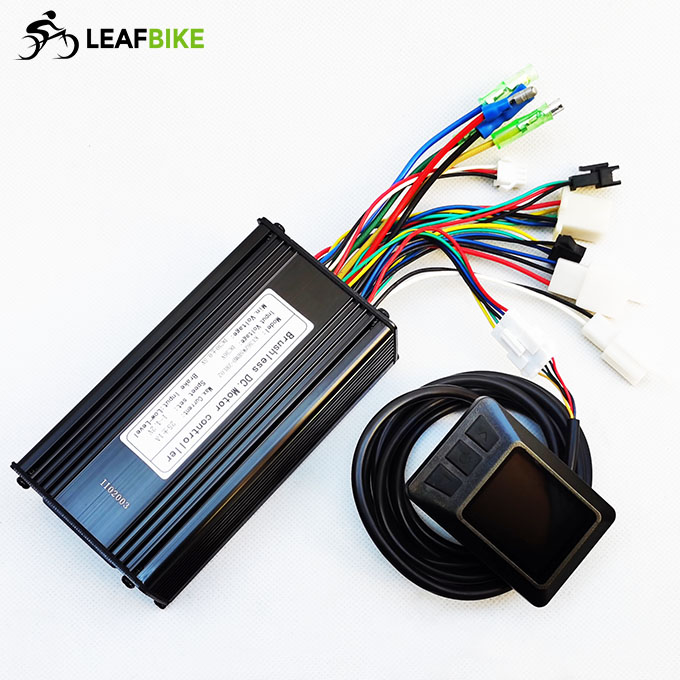

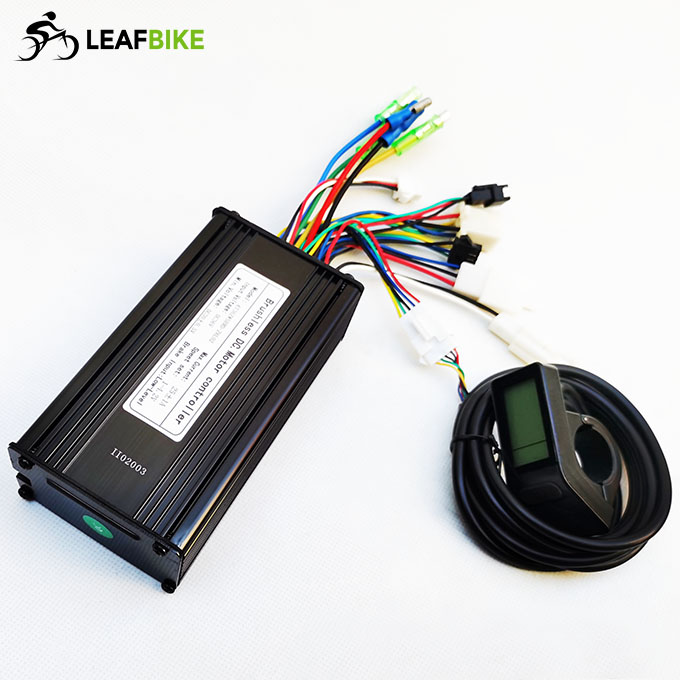

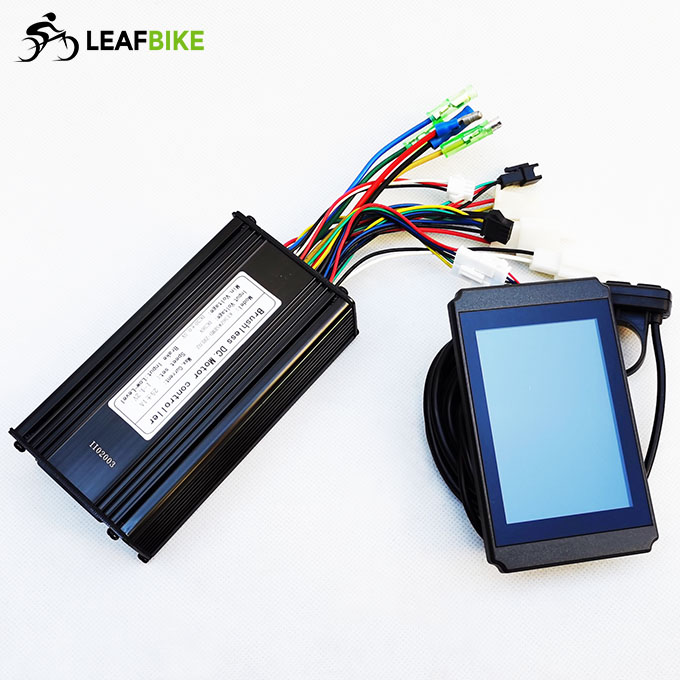

36V 750W Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 9 - MOSFET
It's fit to drive 36V 450 ~ 800W brushless with hall sensor hub motor.

Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 36 Volts
Min. Voltage: DC 30 ± 0.5 V
Rated power: 750 Watts
Casing material: aluminium
Maximum Current: 25 A ± 1 Amps
Thermal: aluminum shell and the substrate - Small Black color

3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 125 mm L × 66 mm W × 39 mm H
Weight: 0.55 kg

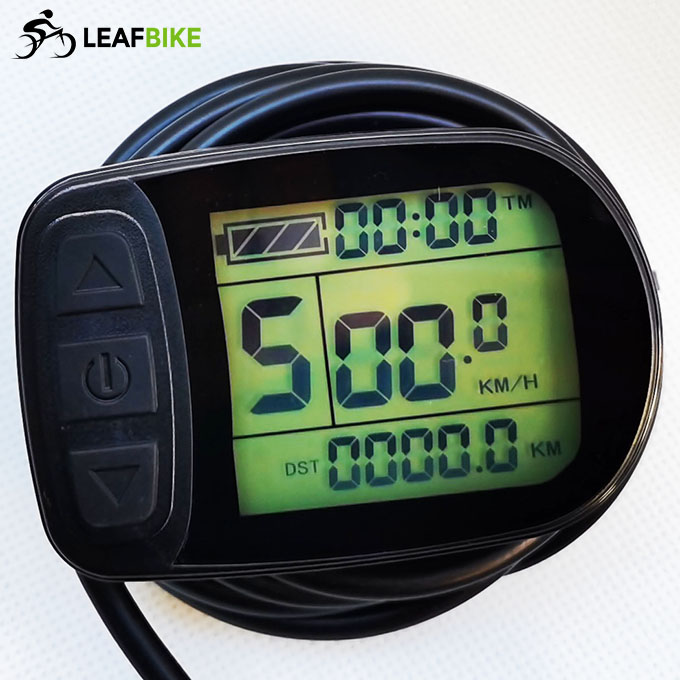

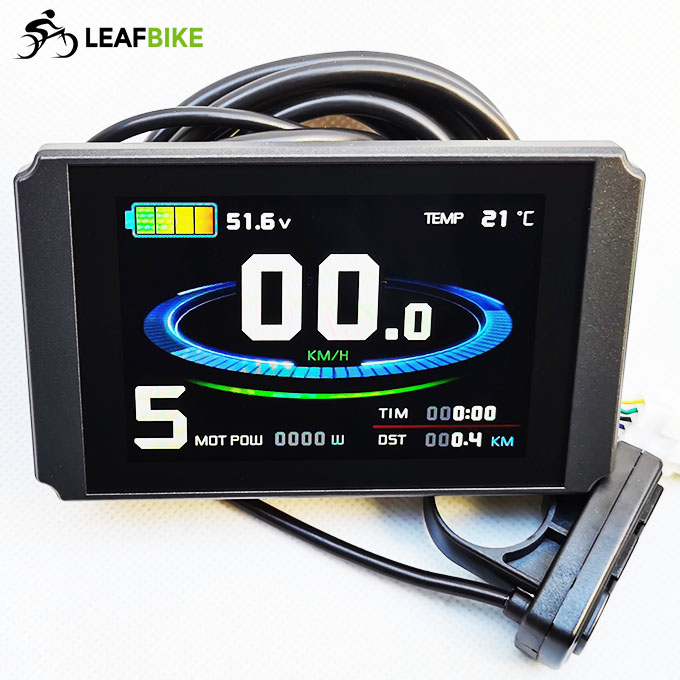

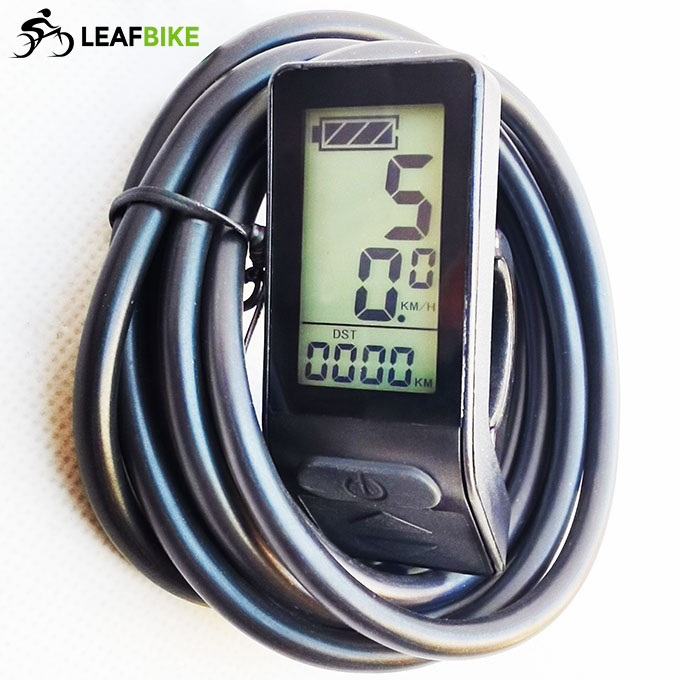

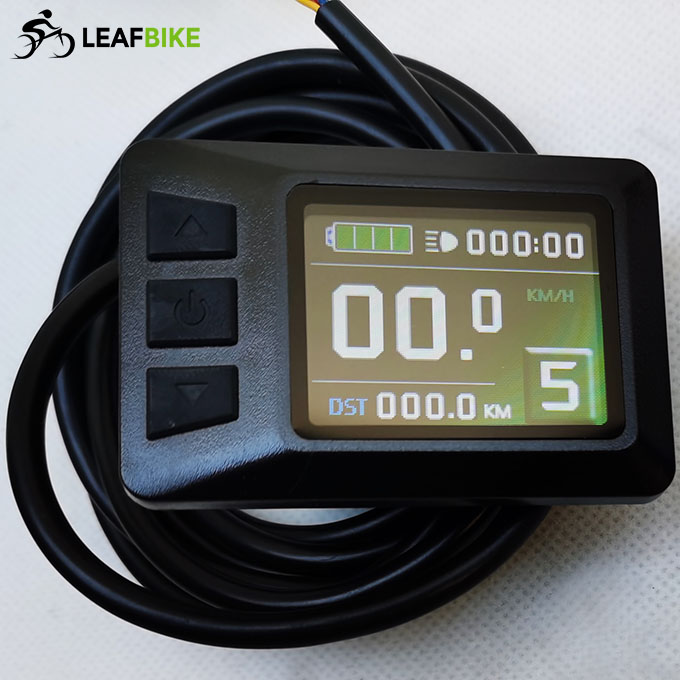

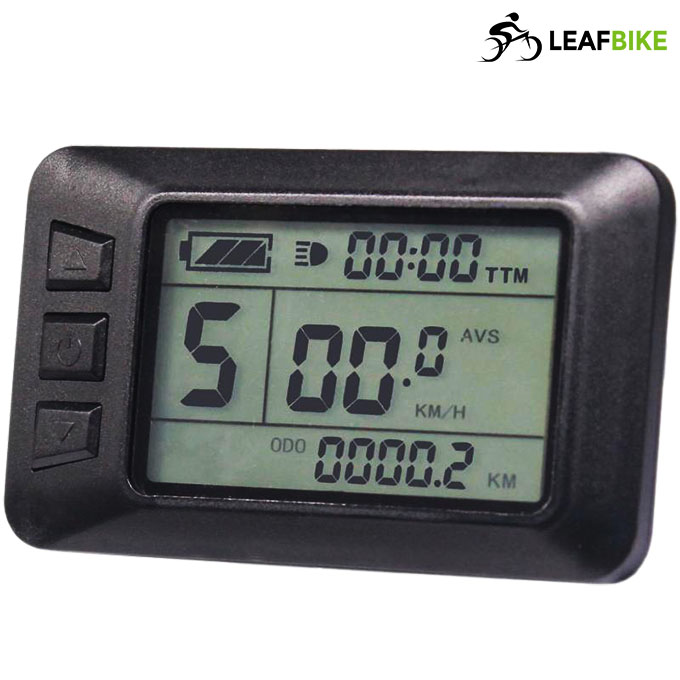

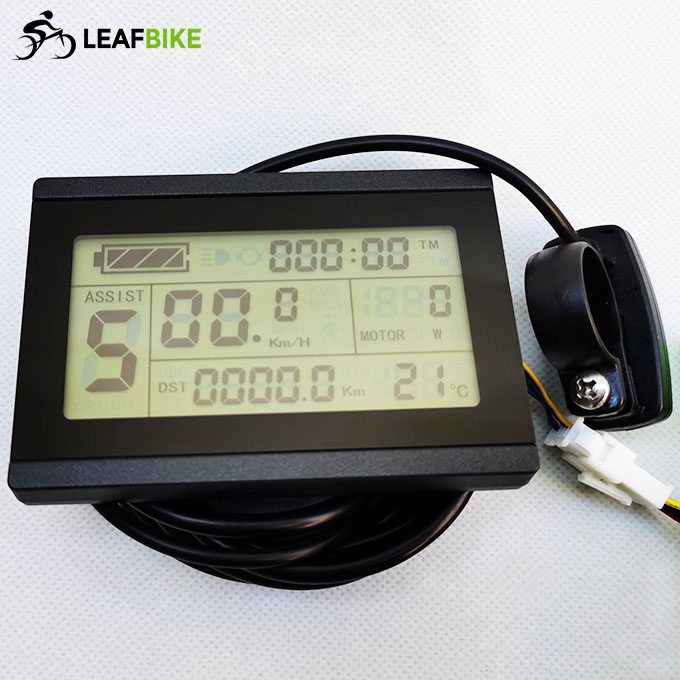

Working with LCD
Display: speed, mileage, battery gauge...

Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection

Additional features:
* Cruise
* Reverse
* Regen brake
* Pedal assist ( 1 - 5 )
* Mph / kmh
* ....
