26 inch 60V 2500W front hub motor - Beach Snow Fat Tire bike conversion kit

Name: 26 inch 60V 2500W front hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK26602500FS
Price: 525 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK26602500FS

$525.00 ~~$554.00~~

Maybe You Need These

Description

The 26 inch fat bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

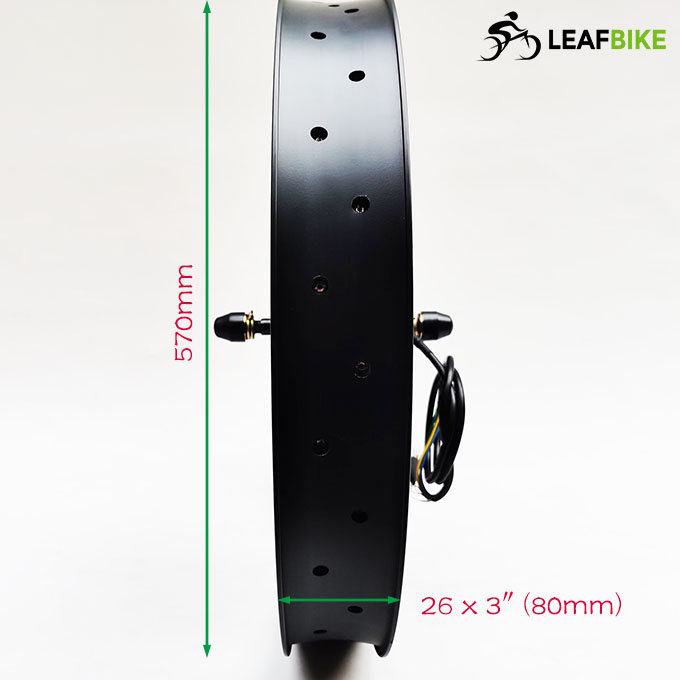

>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 4.00" tire)
>. Spoke: Black 10 gauge / 160mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2500W
>>. Efficiency: 90.5%
>>. Max speed: 99.9 kmh Default (Optional other speed: 50mph, 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40" (5mm phase wires + 2 sets of hall sensors)
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 45 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours. Please click below link:
https://www.leafbike.com/products/beach-snow-fat-bike-kit/26-inch-60v-2500w-front-electric-hub-motor-fat-bike-conversion-kit-1493.html
* ...

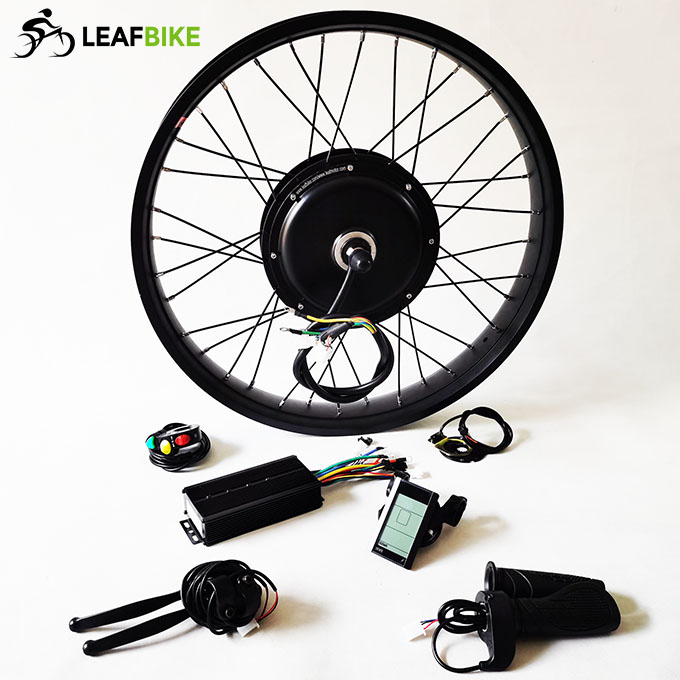

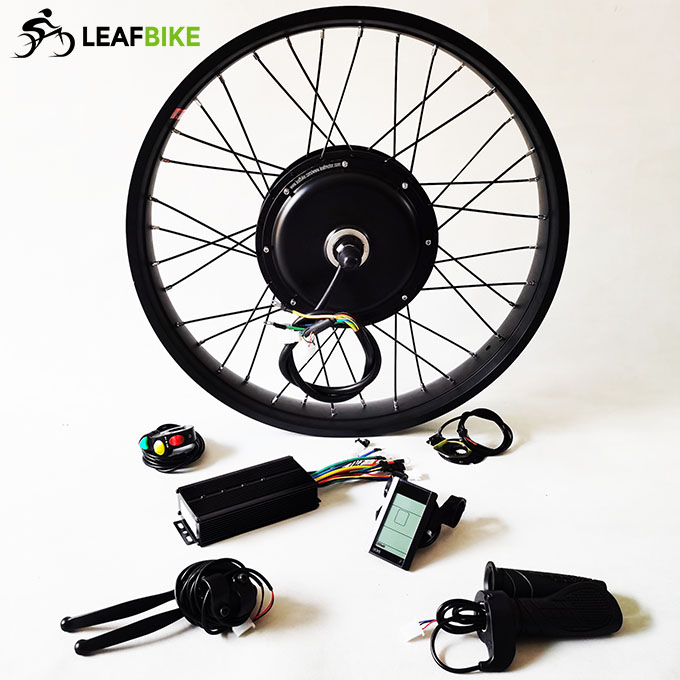

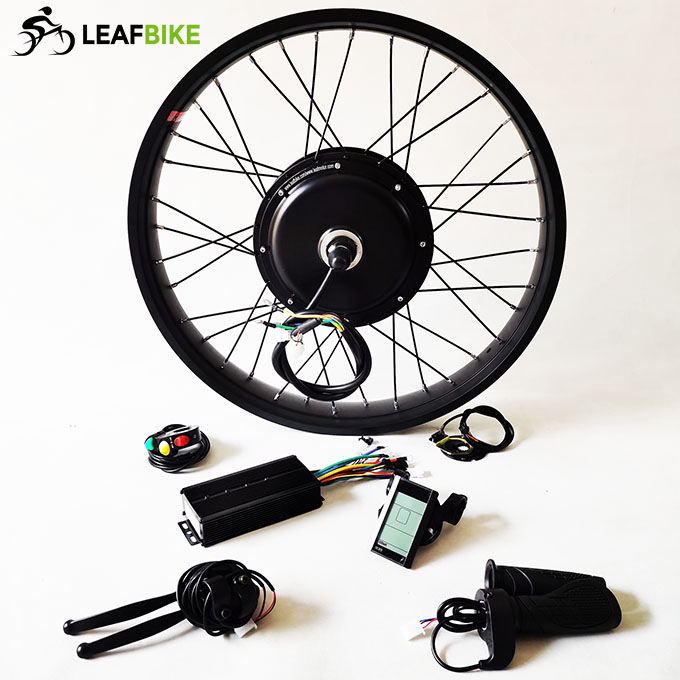

Package Content:

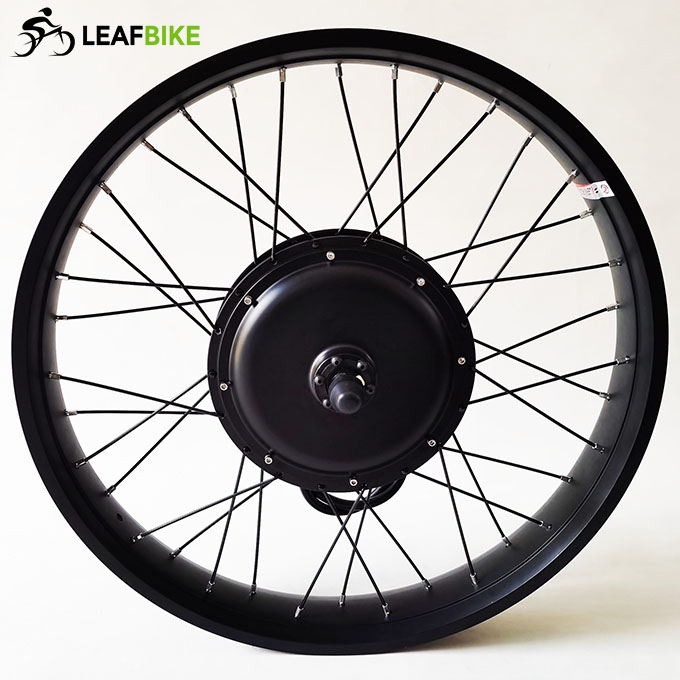

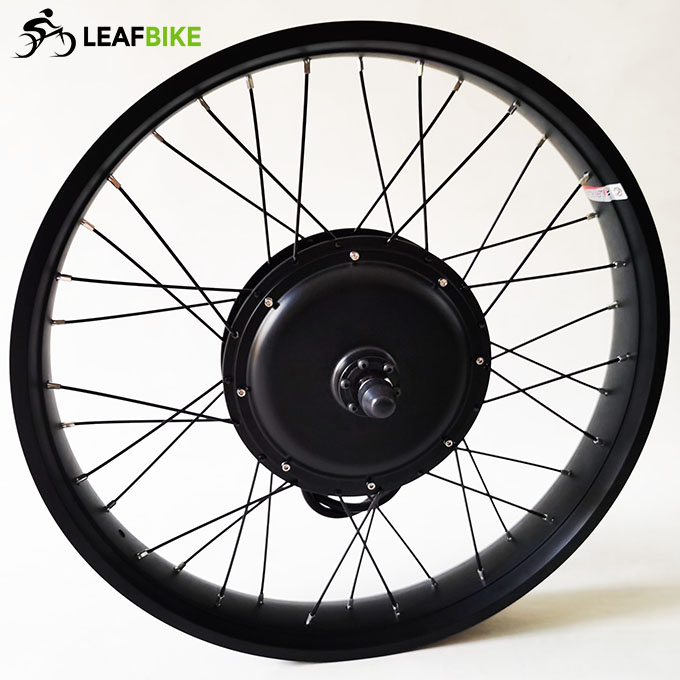

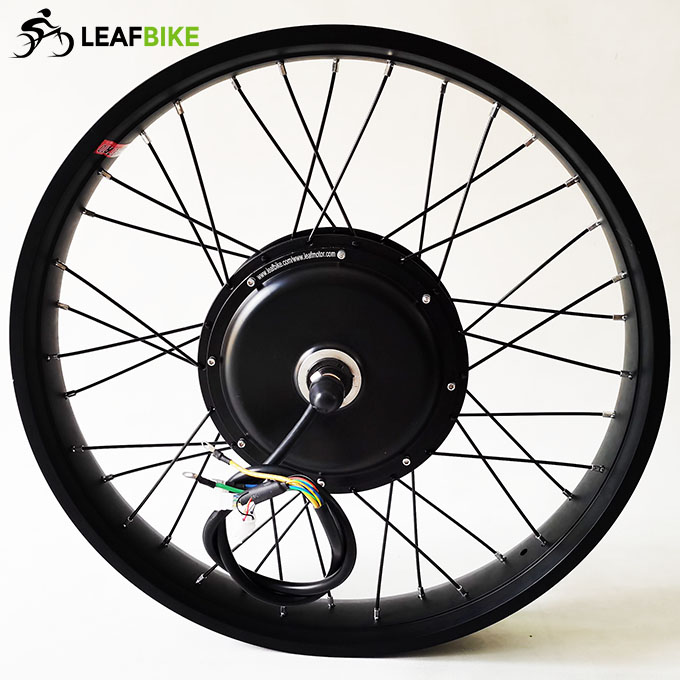

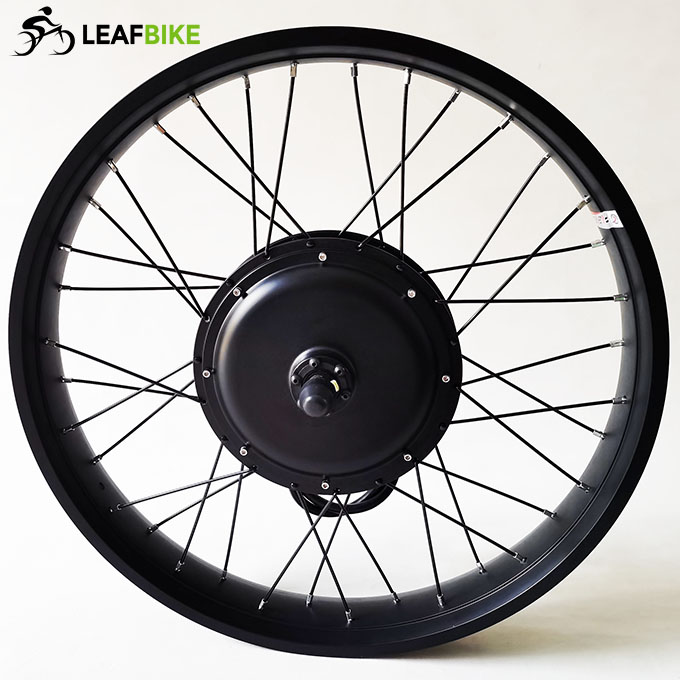

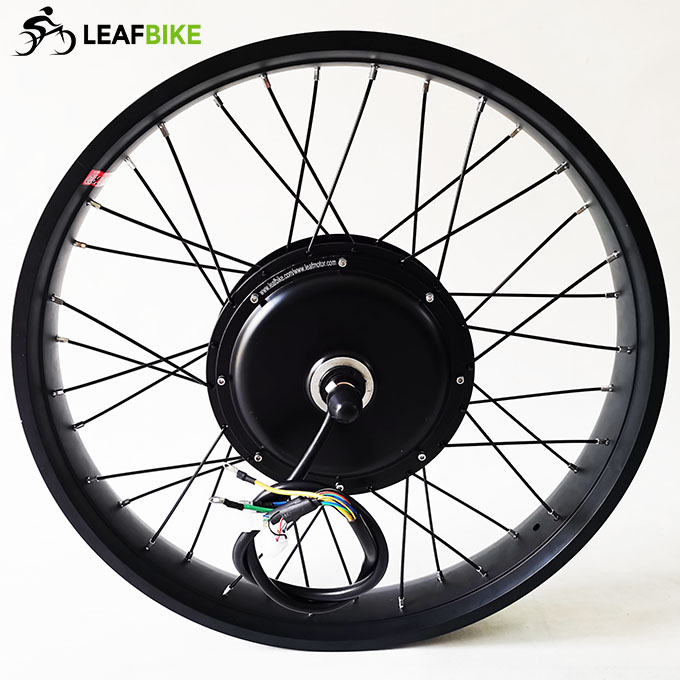

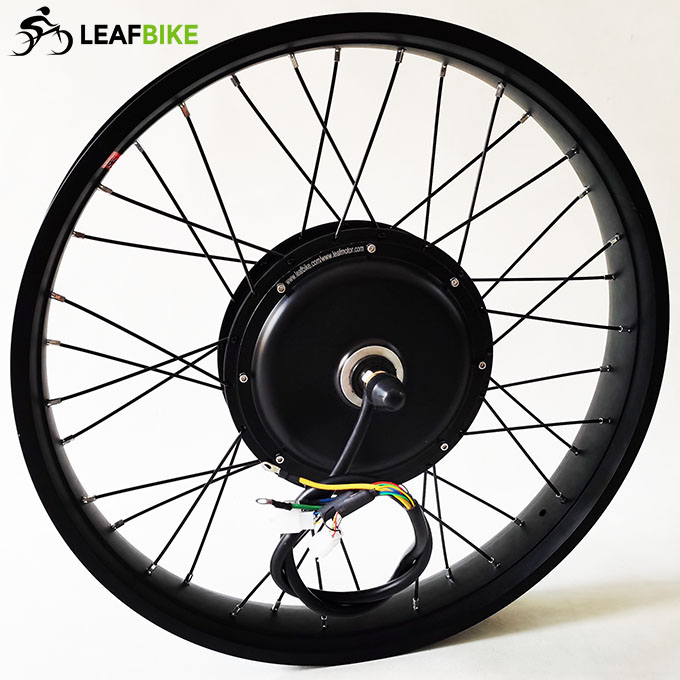

1 x 26 inch 60V 2500W front fat beach snow hub motor wheel - (Rim Fit For: 26 × 4.00" tire)
1 x 60V 18-MOSFET 45A motor controller

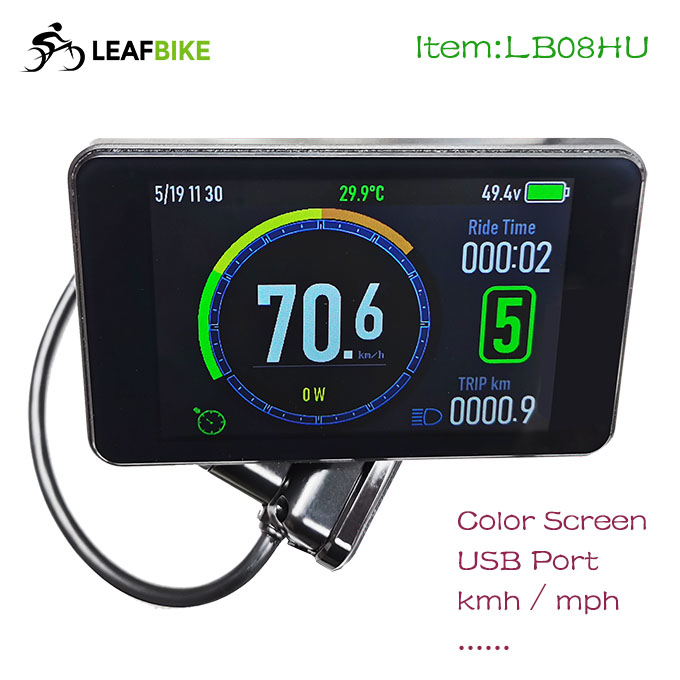

1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12.6 kg
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

Fat Snow Front Drw.

2500w front beach snow fat bike motor drawing
