26 inch 48V / 52V 2000W rear hub motor - Beach Snow Fat Tire bike conversion kit

Item ID #LBCK26482000RS
$499.00 $570.00
    Please select the information you wantX
  • Dropout :
    190mm
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* This 26 inch 48V / 52V 2000W rear beach snow fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 3.45" or 26 × 4.00" tire)
>. Spoke: Black 12 gauge / 160mm Length × 36 pcs
>. Hub: 55mm Wide

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 99.9 kmh -- 60 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cassette: 7 speed
>>.  Cable location: shaft end, LEFT
>>.  Cable length:100cm / 40" (6mm phase wire with 2 sets of hall sensor?
>>. Rear frame fork / Install: spacing of 190mm
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

LCD-830, More Function:
* Cruise
* Forward & Backward (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

Package Content:

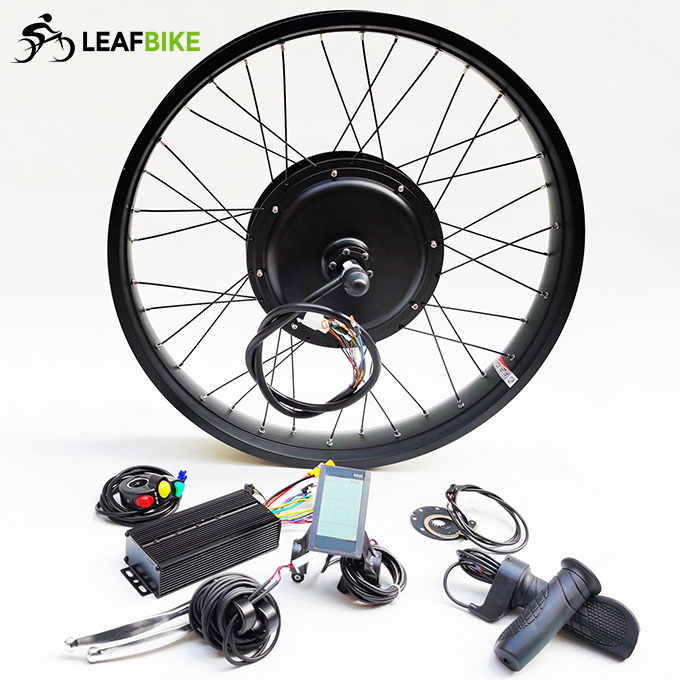

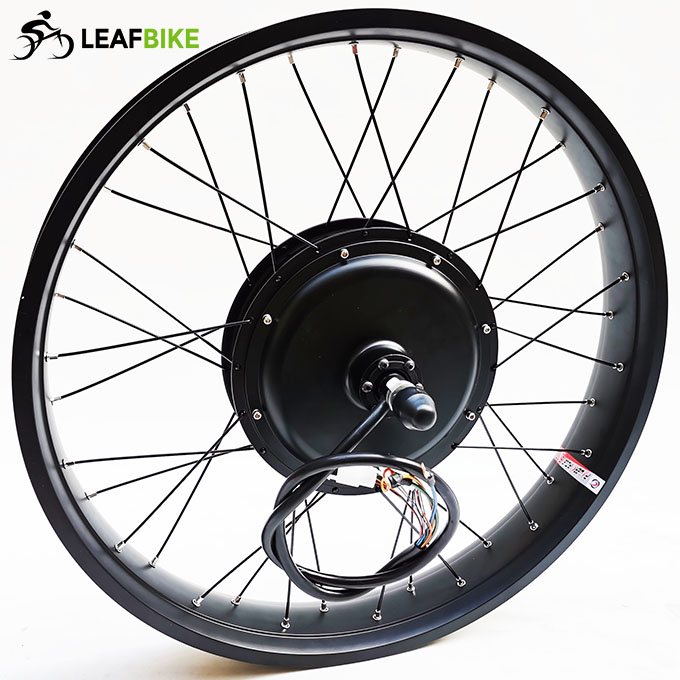

1 x 26 inch 48V / 52V 2000W rear 190mm dropout cassette hub motor wheel - (Rim Fit For: 26 × 3.45" / 4.00" fat tire)
1 x 48V / 52V 55A motor controller
1 x LCD-830
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 11 kg   /  24.2 lbs
Package Size: 60cm L x 27cm W x 60cm H  /  23.6"  L x 10.6" W x 23.6" H
Package Type: Cardboard Box

Share Video:
Wire Diagram:
190mm dropout Drw.
