26 inch 48V / 52V 2000W front hub motor - Beach Snow Fat Tire bike conversion kit

Item ID #LBCK26482000FS
$497.00 $570.00
    Please select the information you wantX
  • Snow Bike Front Dropout :
    135mm
  • Max Speed :
    50mph
    40mph
    35mph
    30mph
    25mph
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* The 26 inch beach snow fat bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

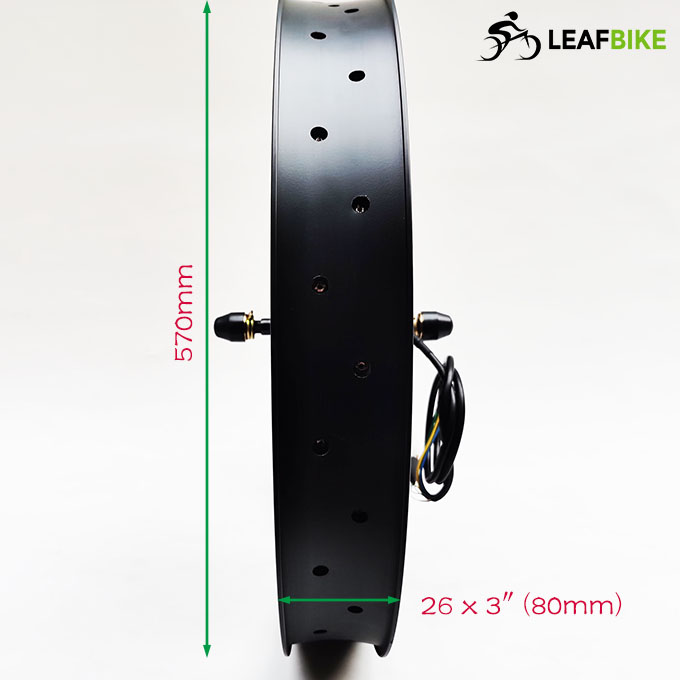

>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 4.00" tire)
>. Spoke: Silver color 10 gauge / 160mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 2000W
>>.  Efficiency: 90.5%
>>.  Max speed: 40 mph Default (Optional other speed: 50mph, 35mph or 25mph,15mph...)
>>.  Mechanical brake: Disk or  V
>>.  Cable location: shaft end, Right
>>.  Cable length:100cm / 40" (5mm phase wires + 2 sets of hall sensors)
>>.  Front frame fork / Install: spacing of 135mm
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 2000 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

LCD-S830, More Function:
* Cruise
* Forward & Backward (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 100 kmh / 60 mph )
* Speed ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

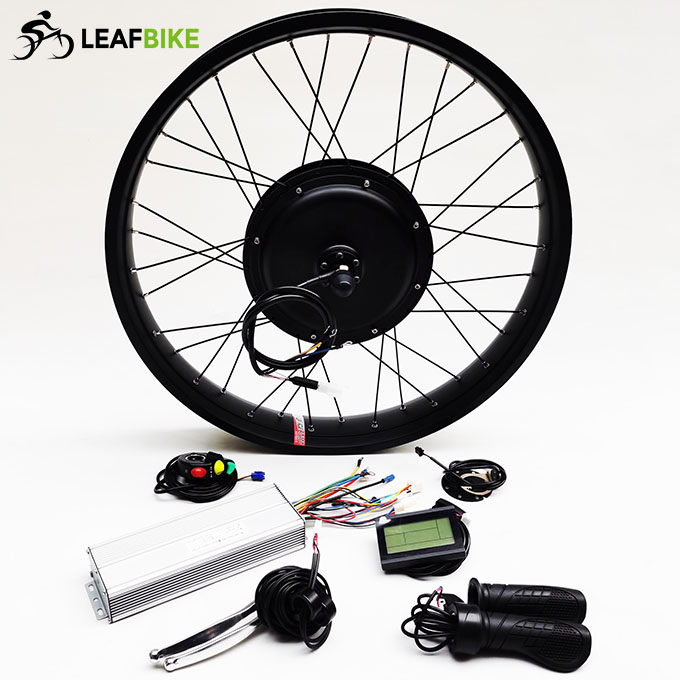

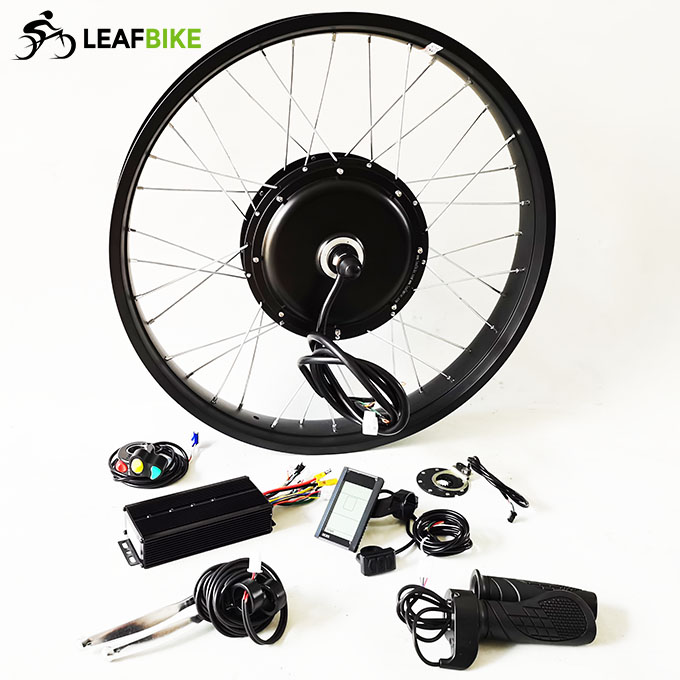

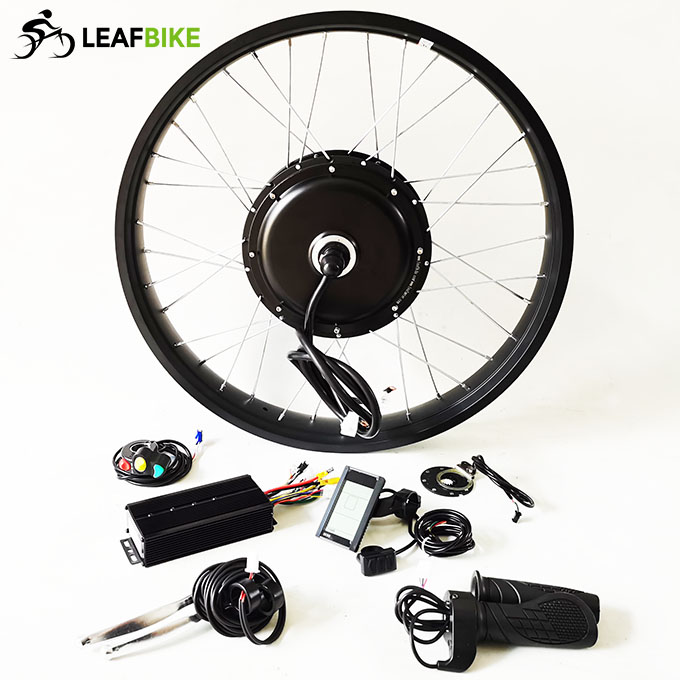

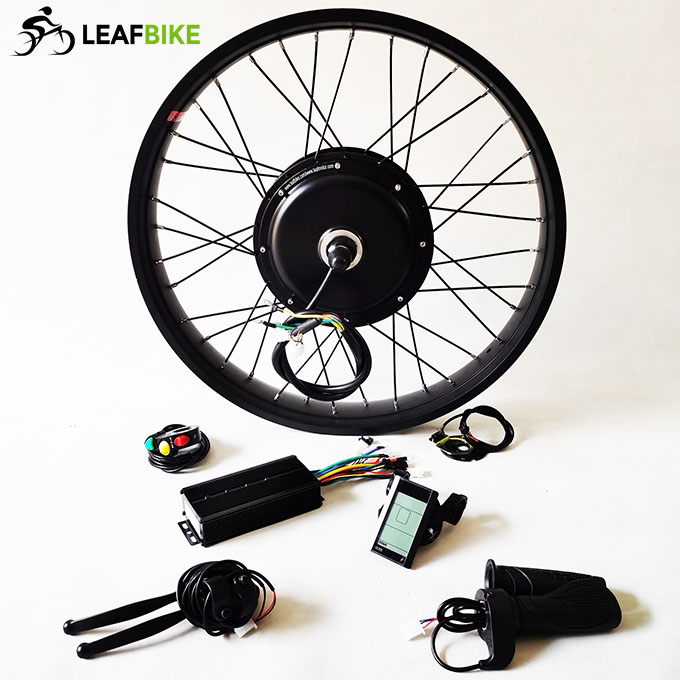

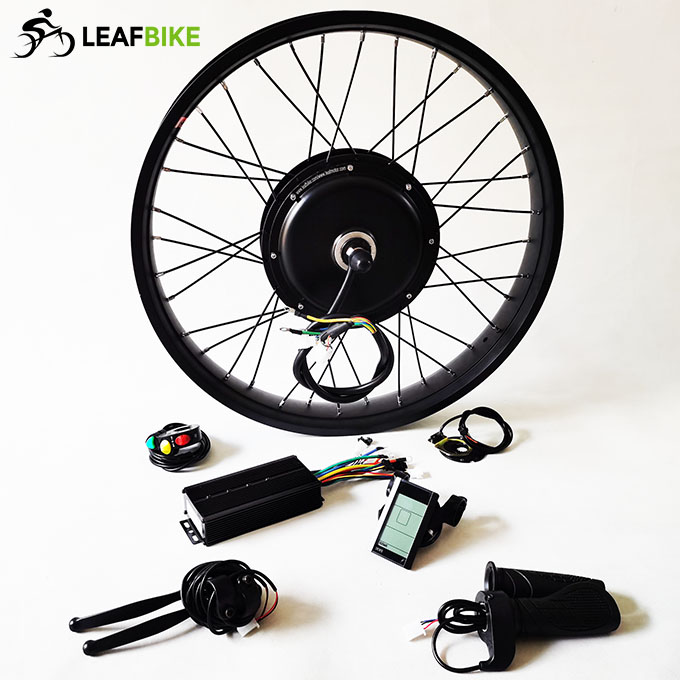

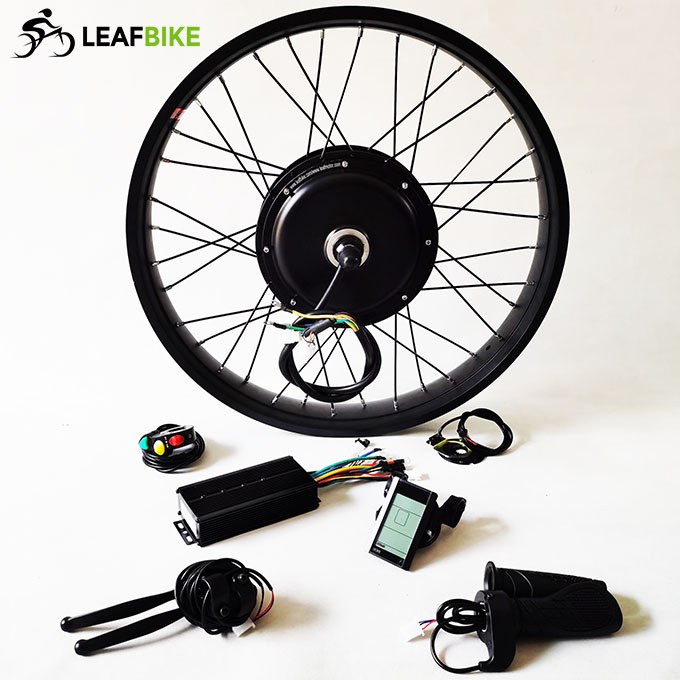

Package Content:

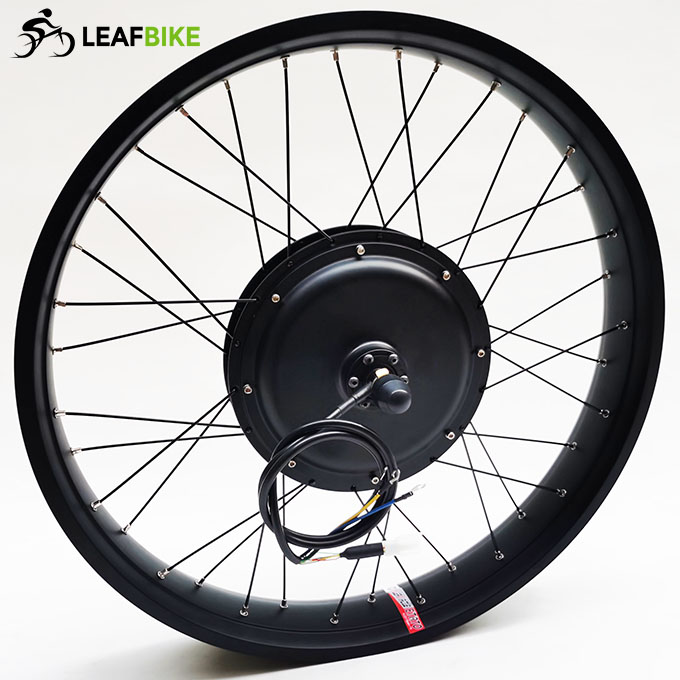

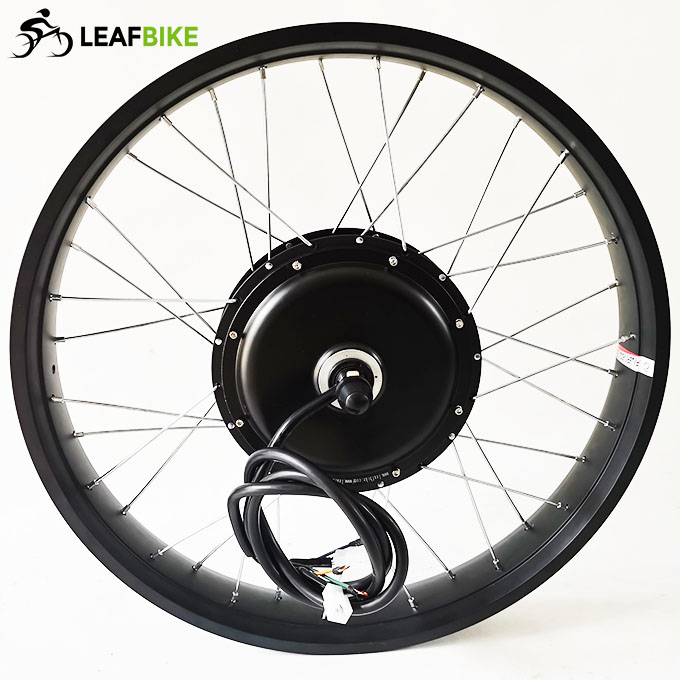

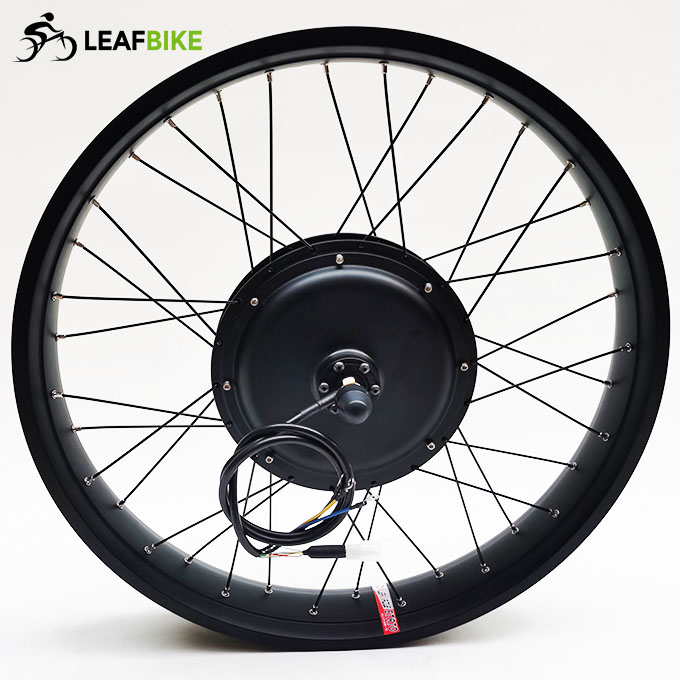

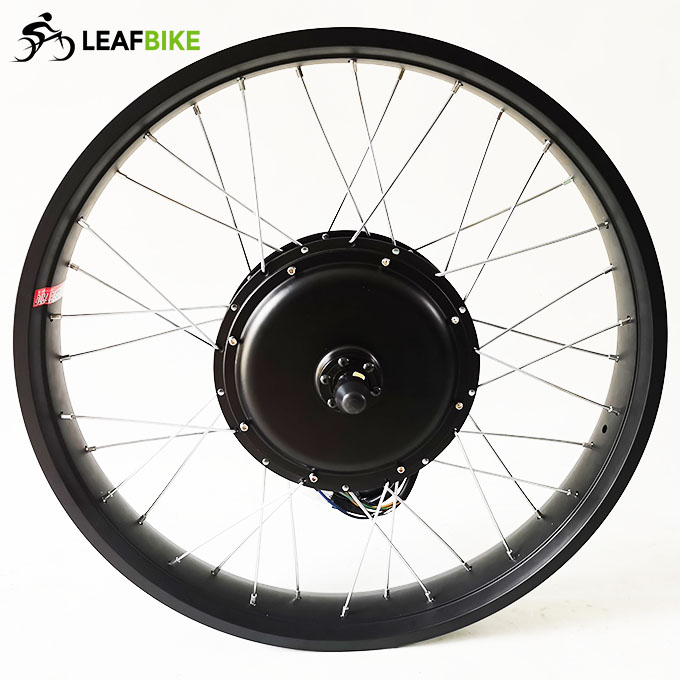

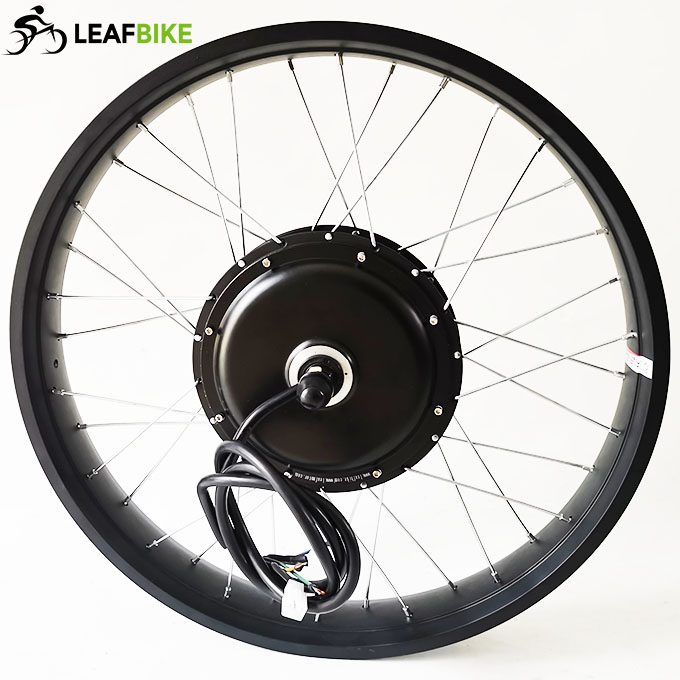

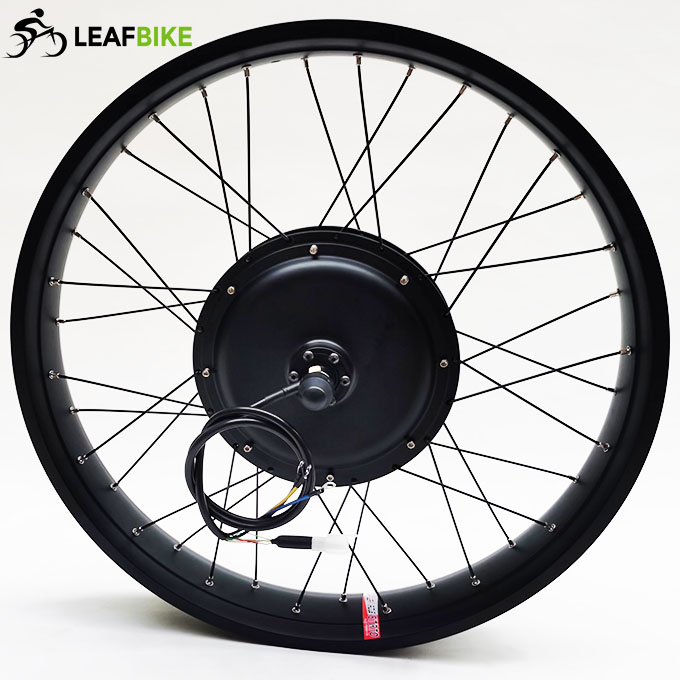

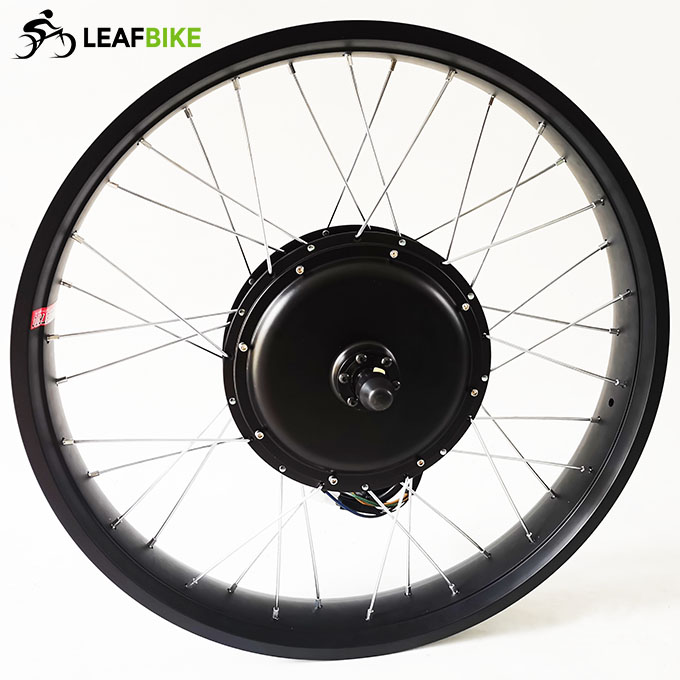

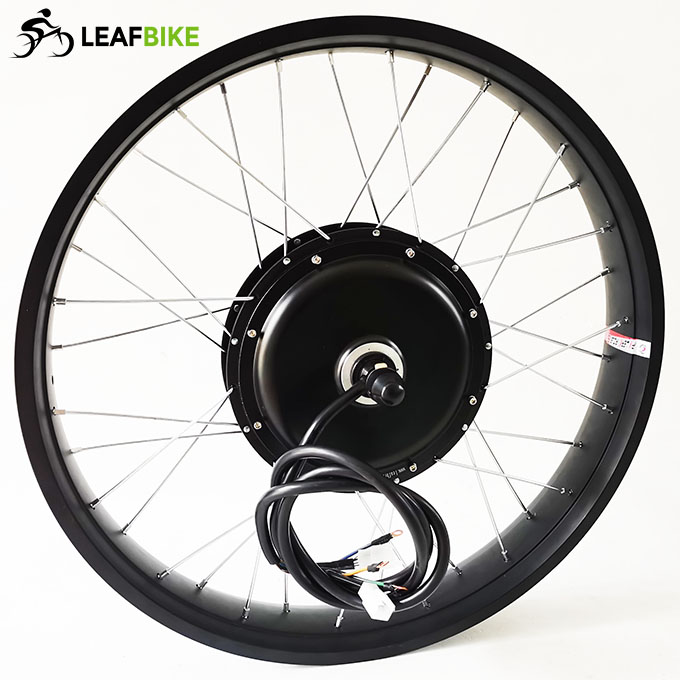

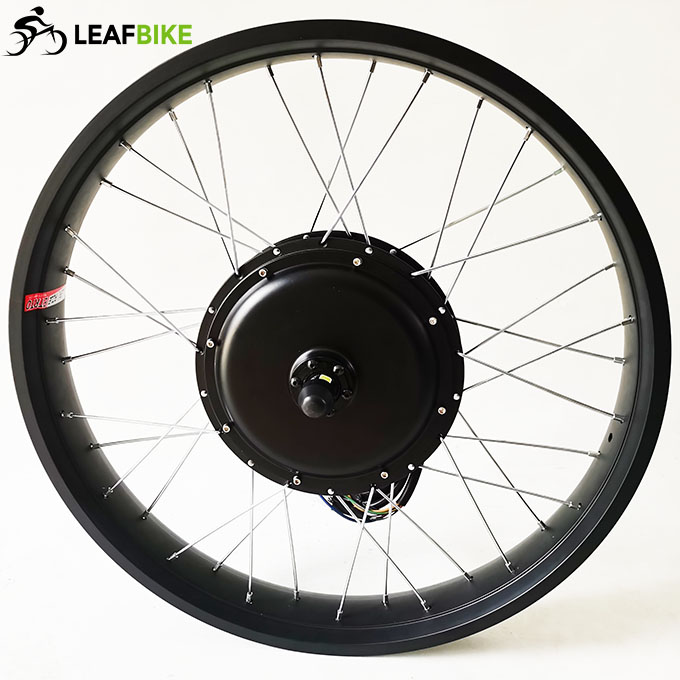

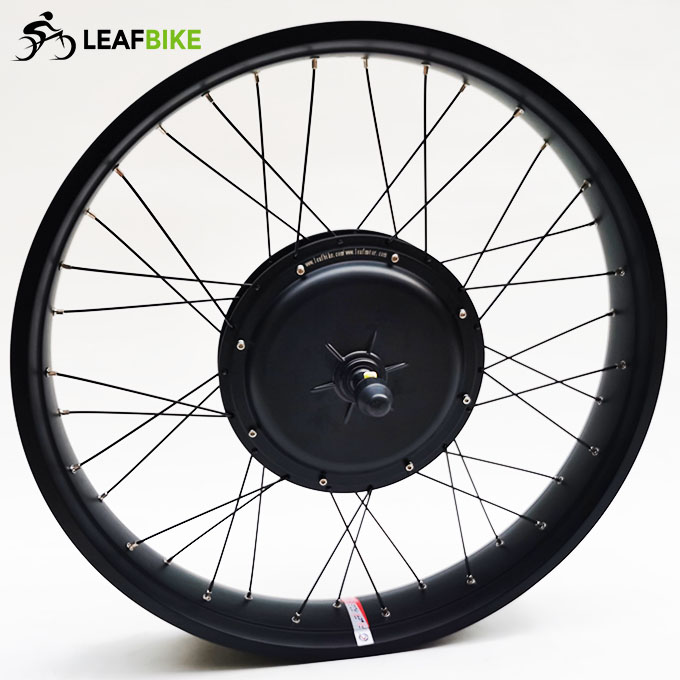

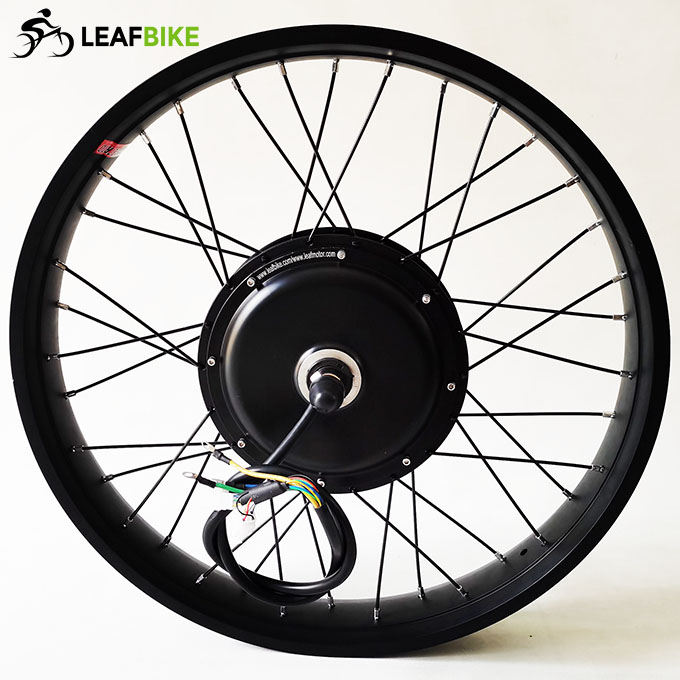

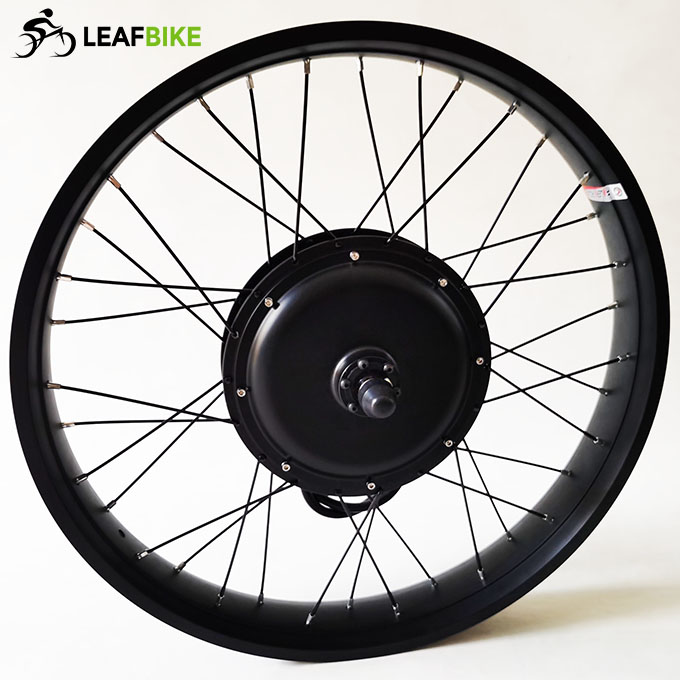

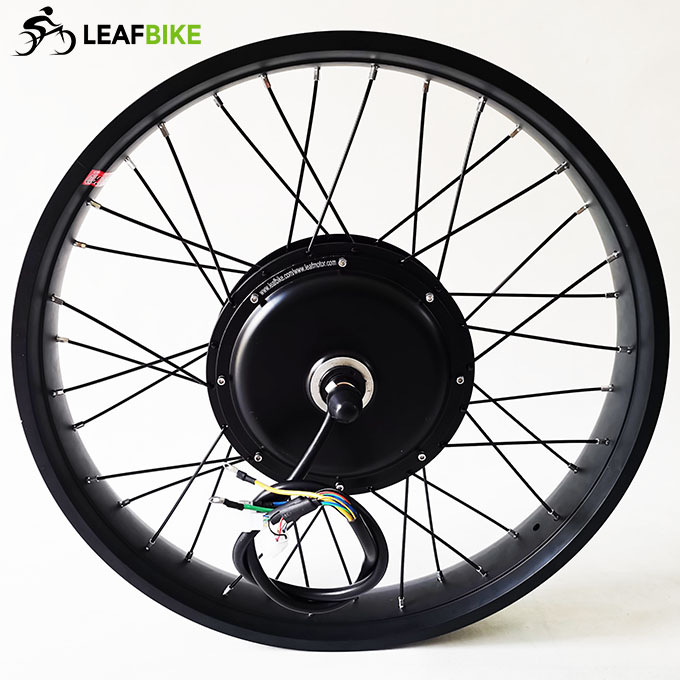

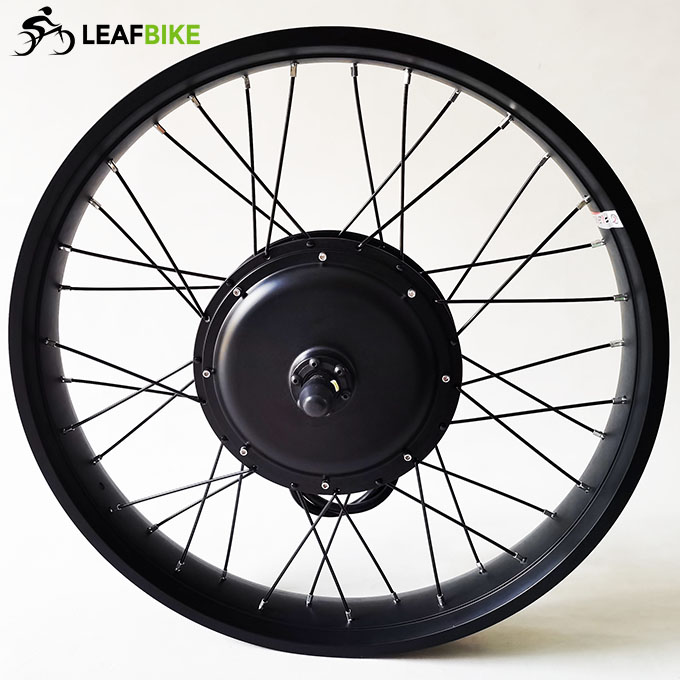

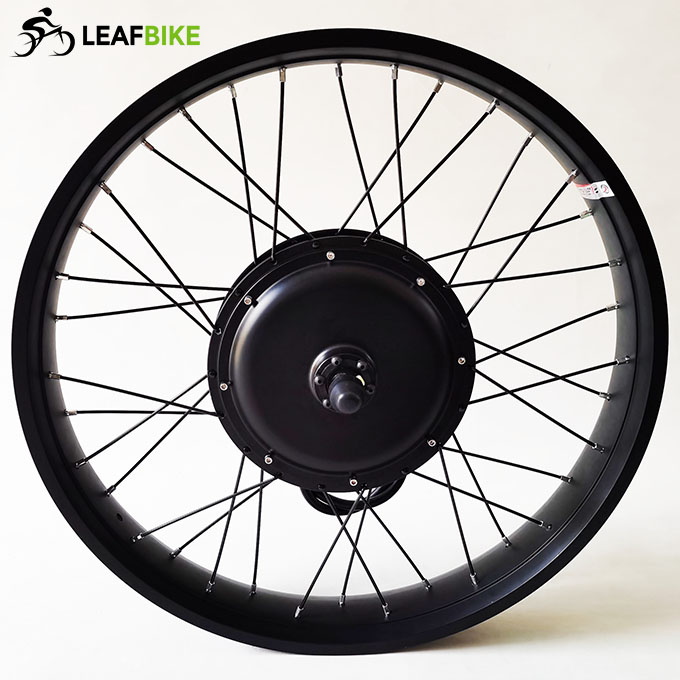

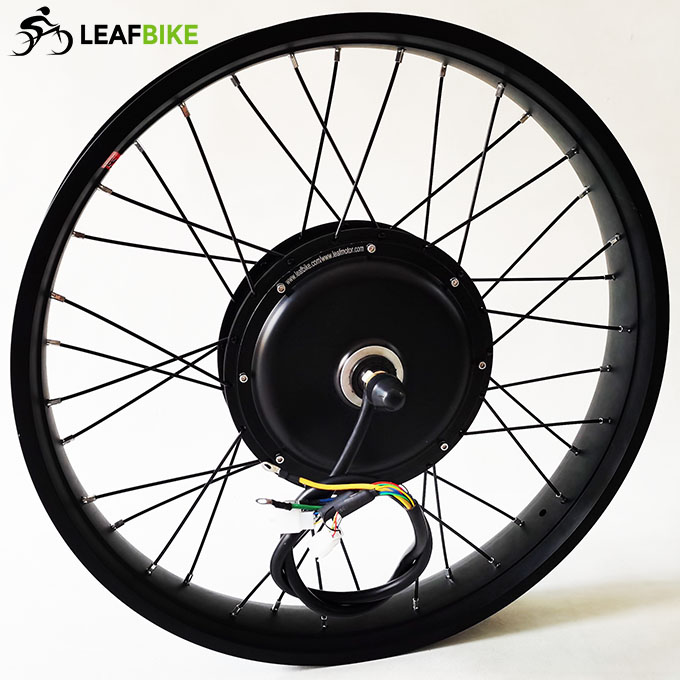

1 x 26 inch 48V / 52V 2000W front fat beach snow hub motor wheel - (Rim Fit For: 26 × 4.00" tire)
1 x 48V / 52V 18-MOSFET 45A motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 12.5 kg   /  27.5 lbs
Package Size: 62cm L x 62cm W x 25cm H  /  24.4"  L x 24.4" W x 9.8" H
Package Type: Cardboard Box

35mph Video:
Wire Diagram:
Fat Snow Front Drw.
Performance Data:
48v-1500w-curve
