26 inch 48V 52V 1500W front hub motor - Beach Snow Fat Tire bike conversion kit

Name: 26 inch 48V 52V 1500W front hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK26481500FS
Price: 417 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK26481500FS

$417.00 ~~$466.00~~

Maybe You Need These

Description

Please watch video for 26 inch 48V 52V 1500W front hub motor electric bike conversion Beach Snow Fat Tire kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..

Share Video:

* This 26 inch fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

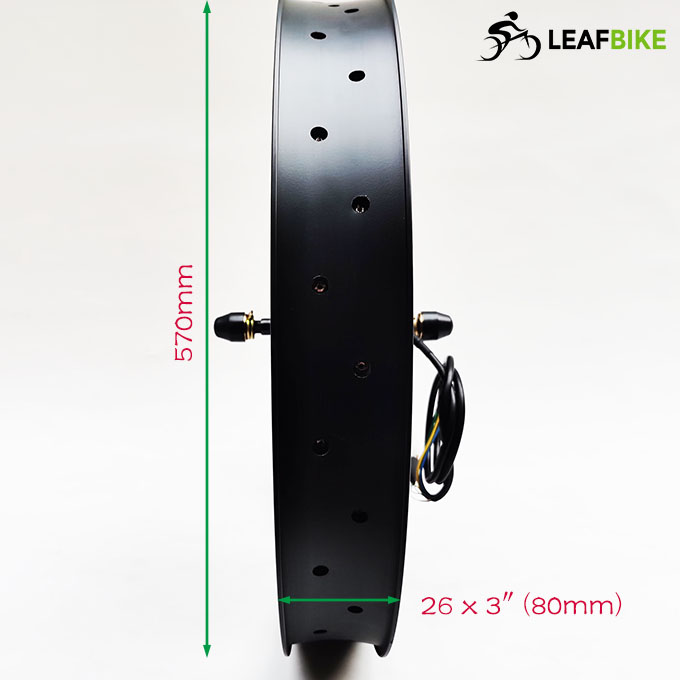

>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 4.00" tire)
>. Spoke: 12 gauge / 160mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 72.9 kmh -- 44.4 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is the off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

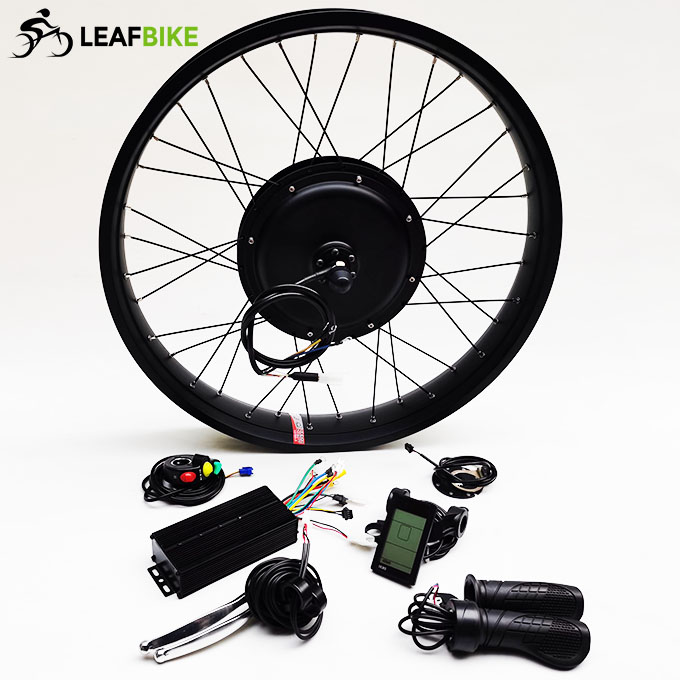

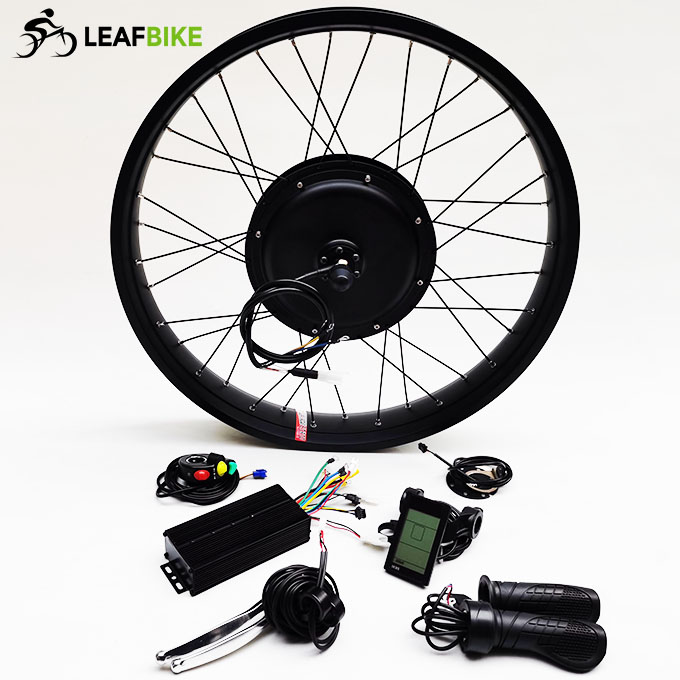

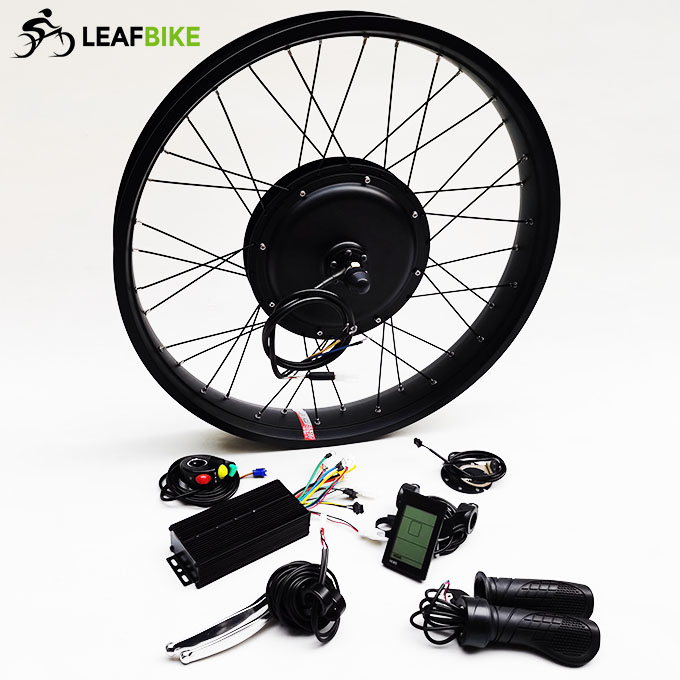

Package Content:

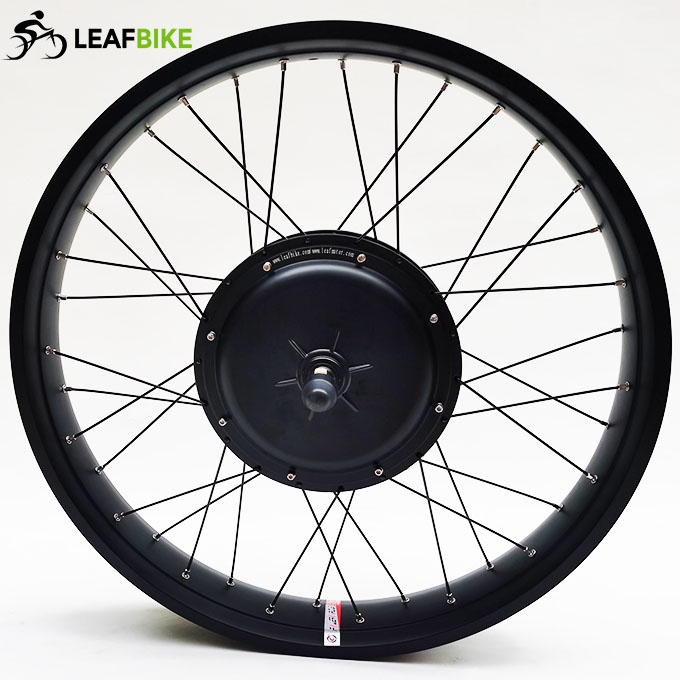

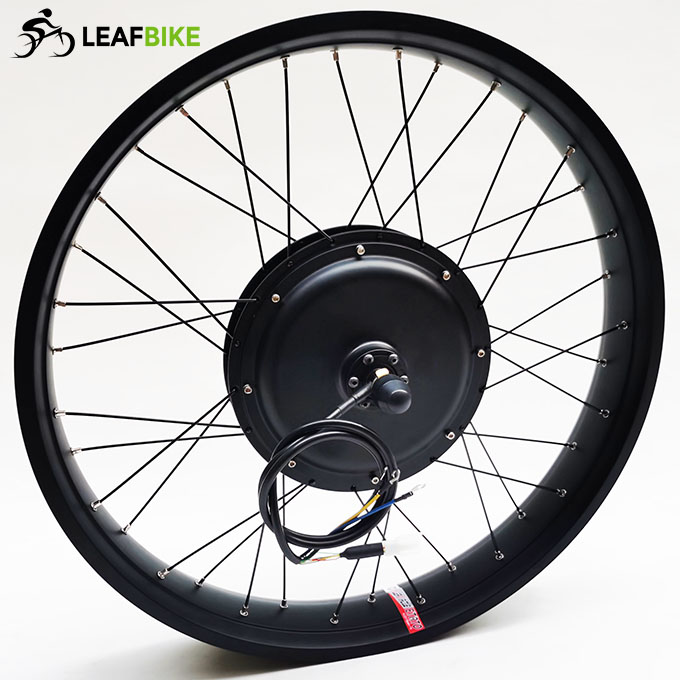

1 x 26 inch 48V / 52V 1500W front fat beach snow hub motor wheel - (Fit for 26 × 4.00" ...)
1 x 48V / 52V 18-MOSFET motor controller

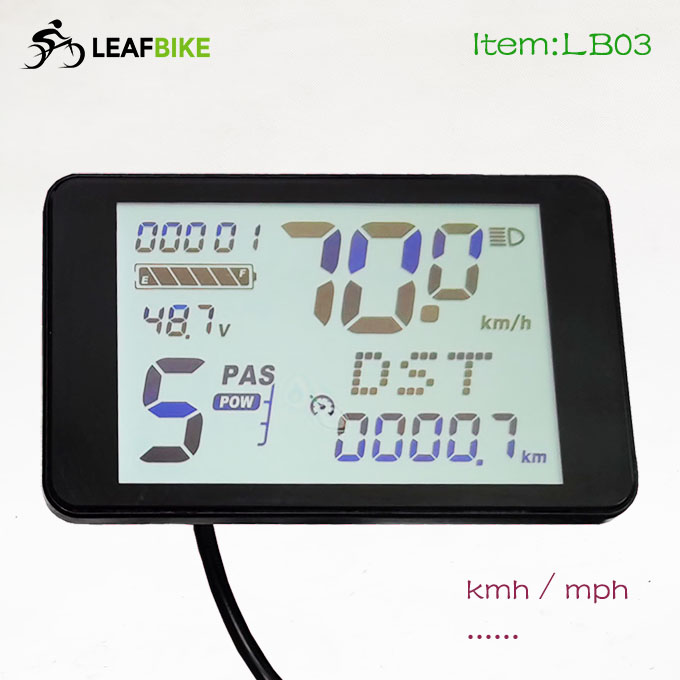

1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box

Wire Diagram:

Fat Snow Front Drw.

1500W front beach snow fat bike motor drawing

Performance Data:
