Please watch videos for 24 inch 48V 52V 1000W front hub motor electric bike conversion Beach Snow Fat Tire kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh..
S830 Video:
SW900 Video:
08HU Video:
* This 24 inch 1000w beach snow fat bike conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
>. Rim: 24 × 3 inch double wall Alloy (Rim Fit For 24 × 4.00" tire)
>. Spoke: 12 gauge / 135mm Length × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 40mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Surface: Black painted
>. Driver: sine wave controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H
With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...
Package Content:
1 x 24 inch 48V 52V 1000W front hub motor wheel - 24 x 4.00" fat tire / snow / beach
1 x 48V 52V 18-MOSFET 40A motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11 kg / 24.2 lbs
Package Size: 55cm L x 55cm W x 27cm H
Package Type: Cardboard Box

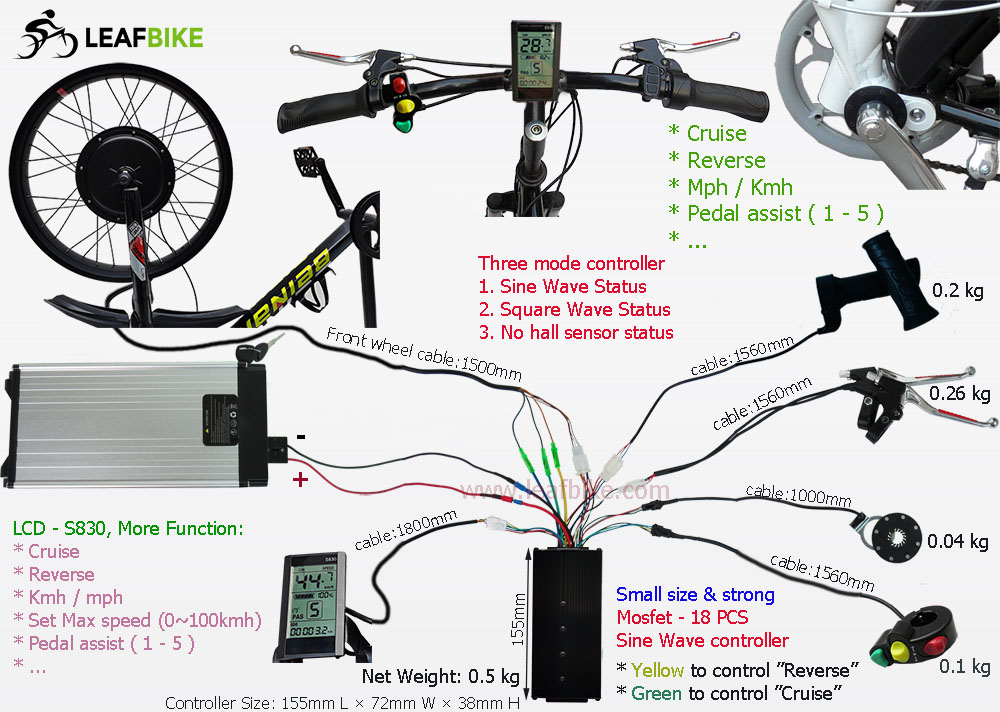

Wire Diagram:

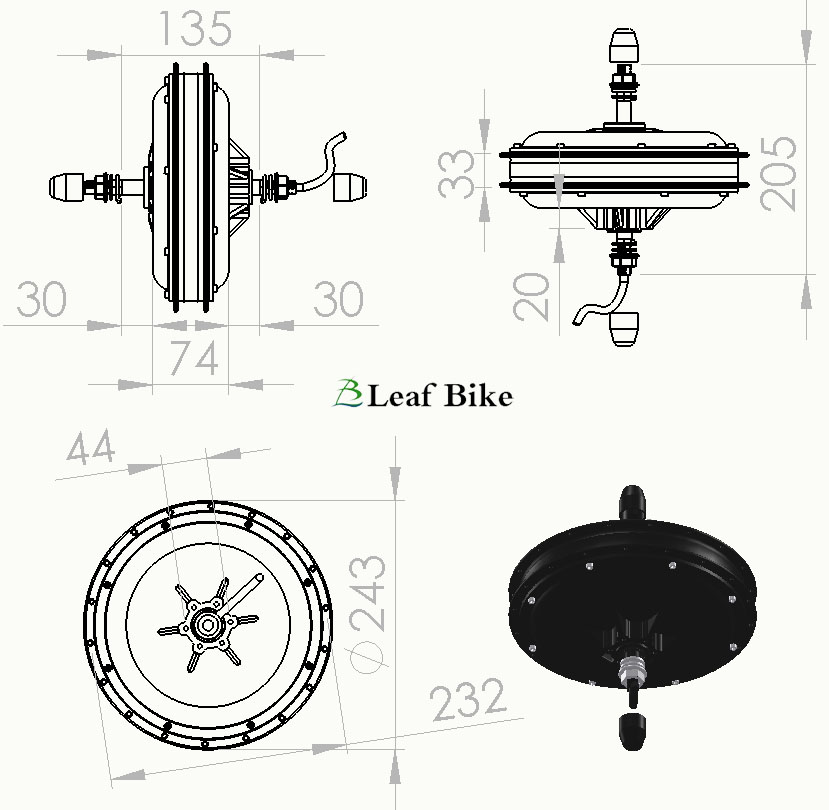

Fat Snow Front Drw.
Performance Data:
