20 inch 60V 2500W rear hub motor - Beach Snow Fat Tire bike conversion kit

Name: 20 inch 60V 2500W rear hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK20602500RS
Price: 508 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20602500RS

$508.00 ~~$557.00~~

Quantity :

Maybe You Need These

Description

Please watch videos for 20 inch 60V 2500W rear fat hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

190mm freewheel:

20 inch 60V 2500W rear fat snow hub motor electric bike conversion kit video

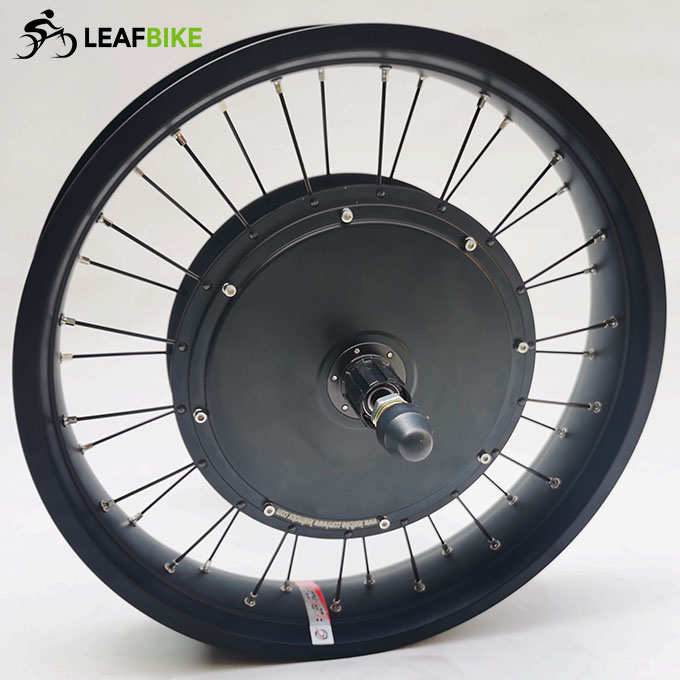

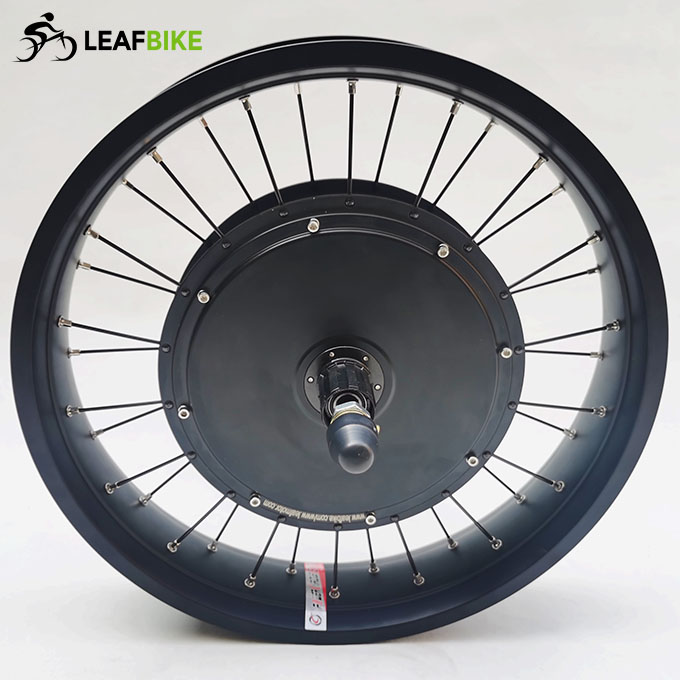

190mm cassette:

20 inch 60V 2500W 190mm dropout cassette fat bike motor conversion kit video

Share Video:

* The 20 inch fat bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

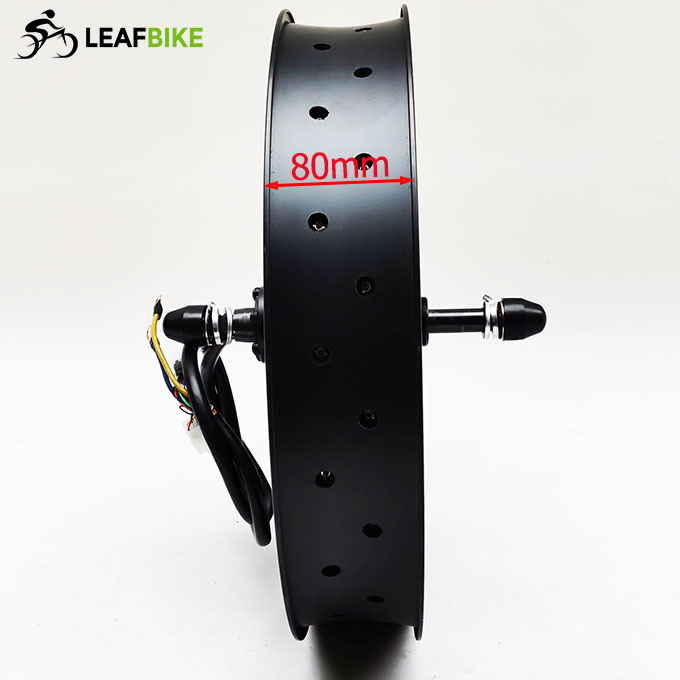

>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 60V
>>. Power: 2500W
>>. Efficiency: 90.5%
>>. Max speed: 88.3kmh -- 54.6mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm or 190mm
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 45 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours.
* ...

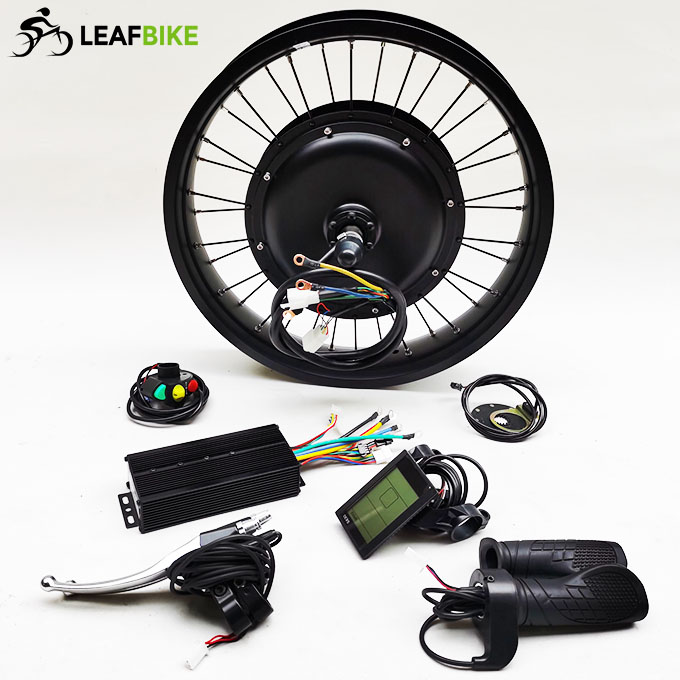

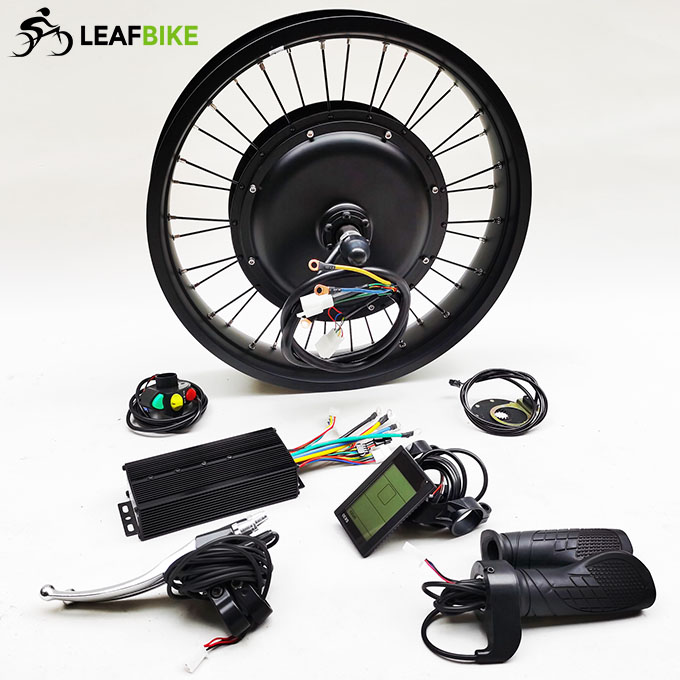

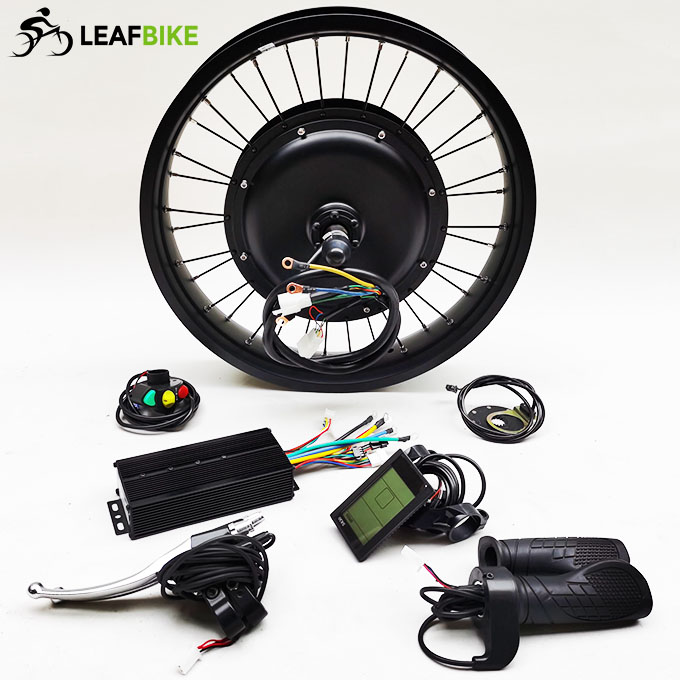

Package Content:

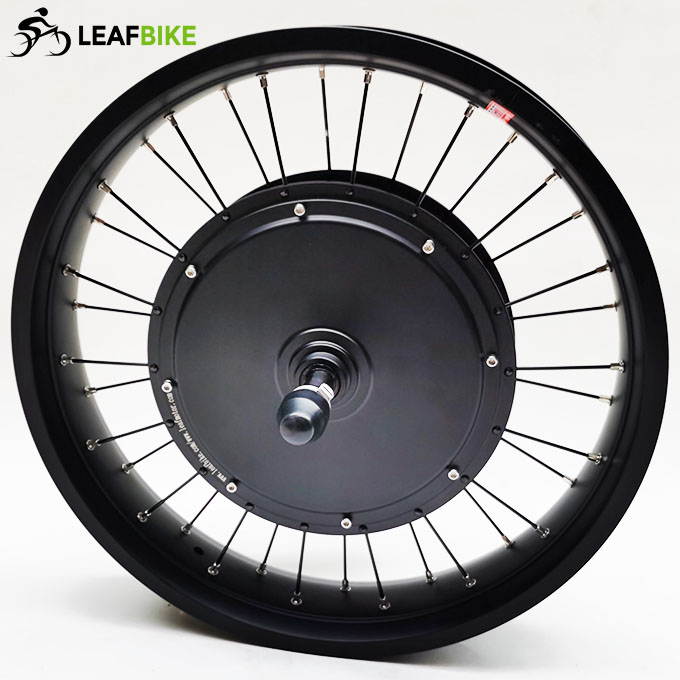

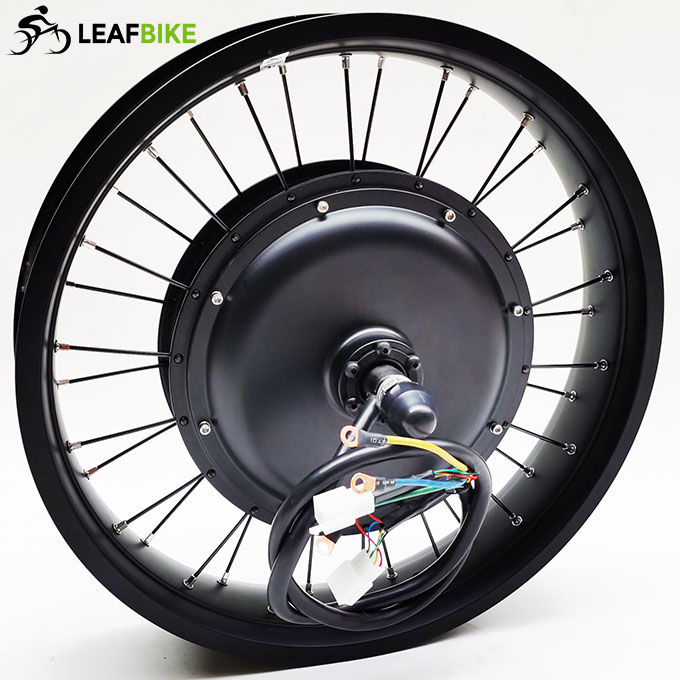

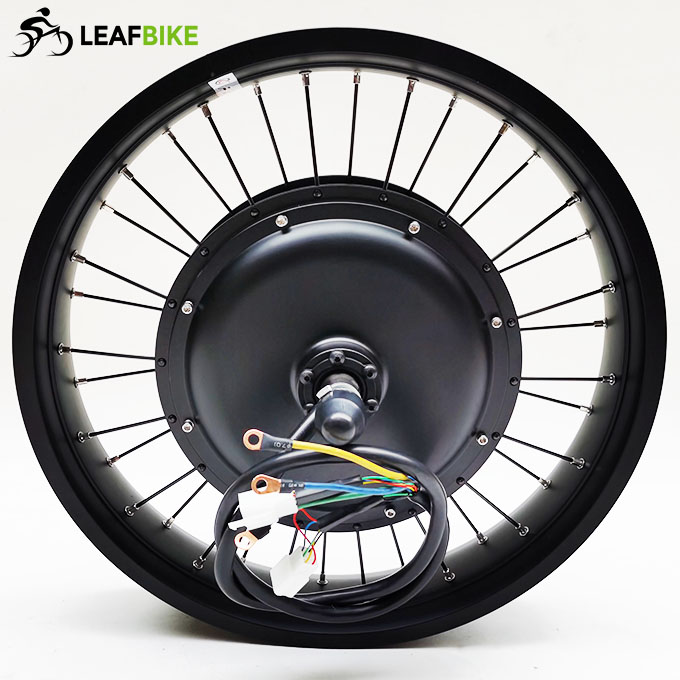

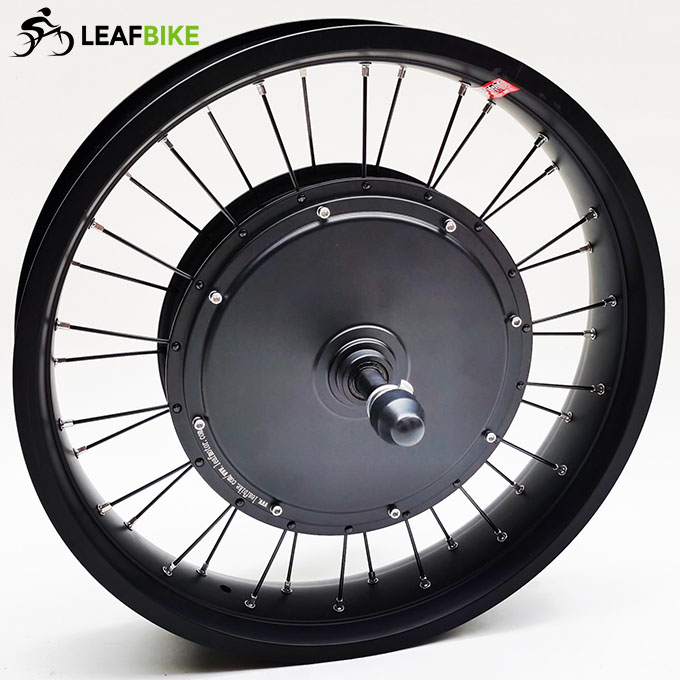

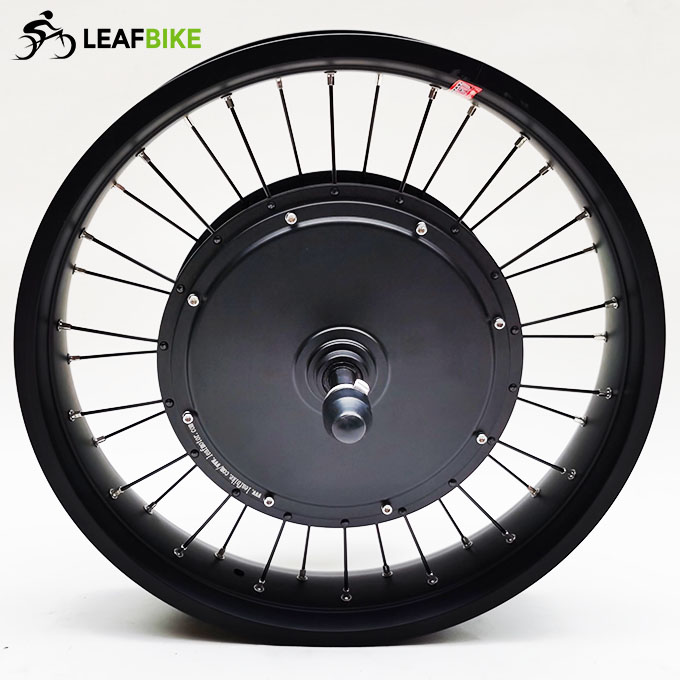

1 x 20 inch 60V 2500W rear hub motor wheel - 20 * 4.00 fat tire / snow / beach
1 x 60V 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box

Wire Diagram:

20 inch rear beach snow fat bike conversion kit

170mm Drw.

170mm dropout beach snow fat bike motor drawing

170mm Cassette:

190mm dropout Drw.

190mm dropout beach snow fat bike motor wire diagram
