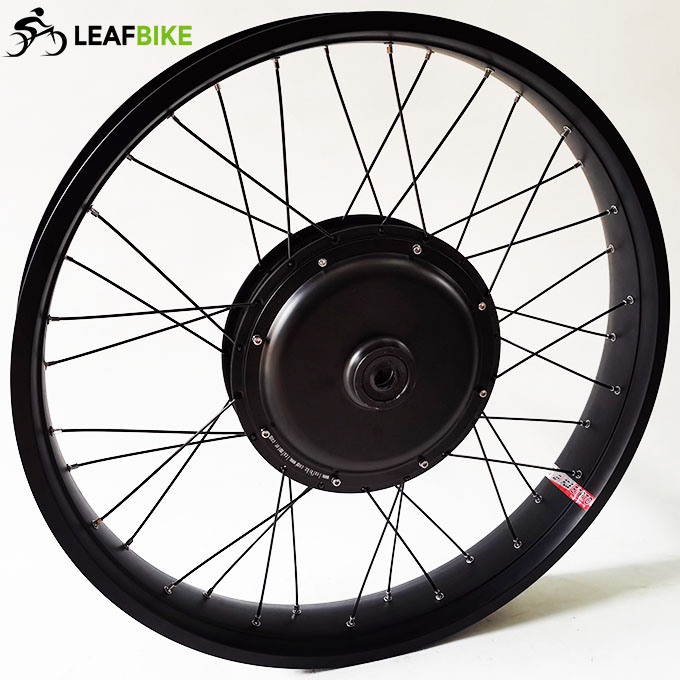

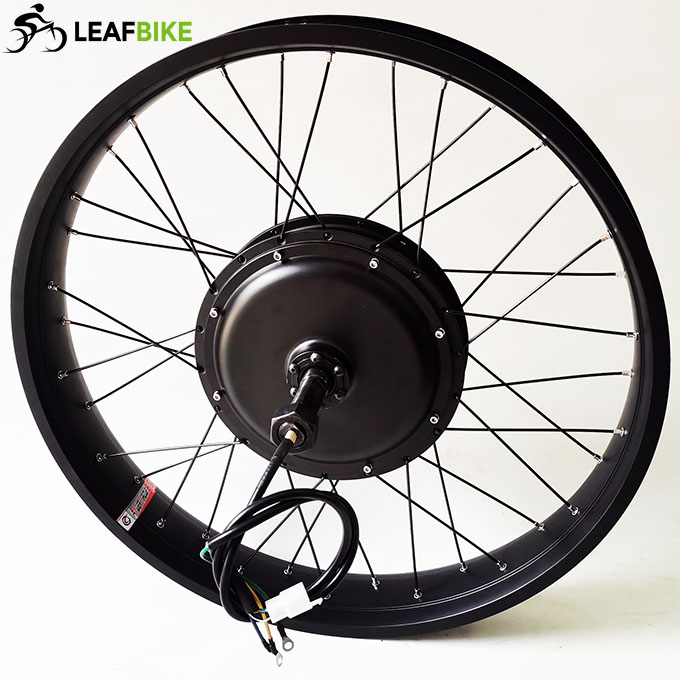

This 26 inch 48V 52V 2000W beach snow fat tire single side shaft motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
>. Rim: 26 × 3 inch double wall Alloy (Rim Fit For: 26 × 4.00" tire)
>. Spoke: 12 gauge / 160mm Length × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 15kmh 25kmh 32kmh 45kmh...(other slower and faster speeds,please choose other speeds,then send an email to us)
>>. Mechanical brake: Disk
>>. Cable location: shaft end
>>. Cable length:100cm / 40"
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H
With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

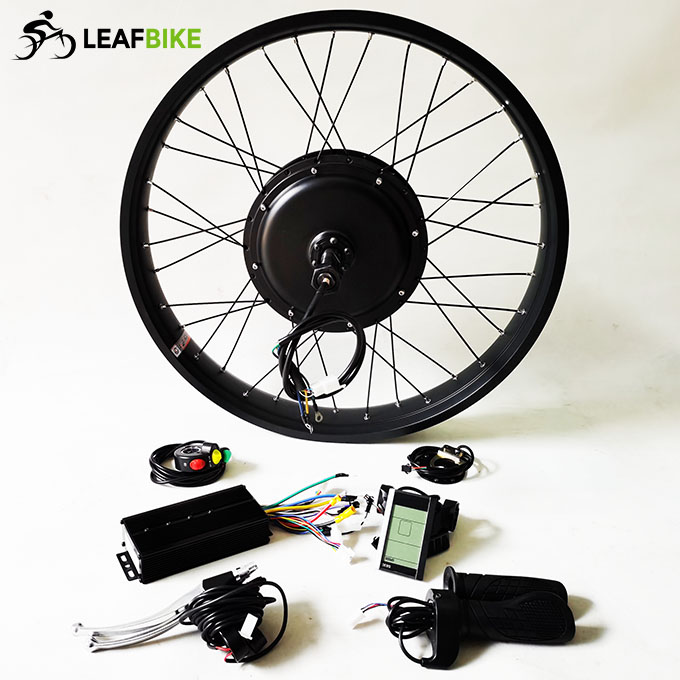

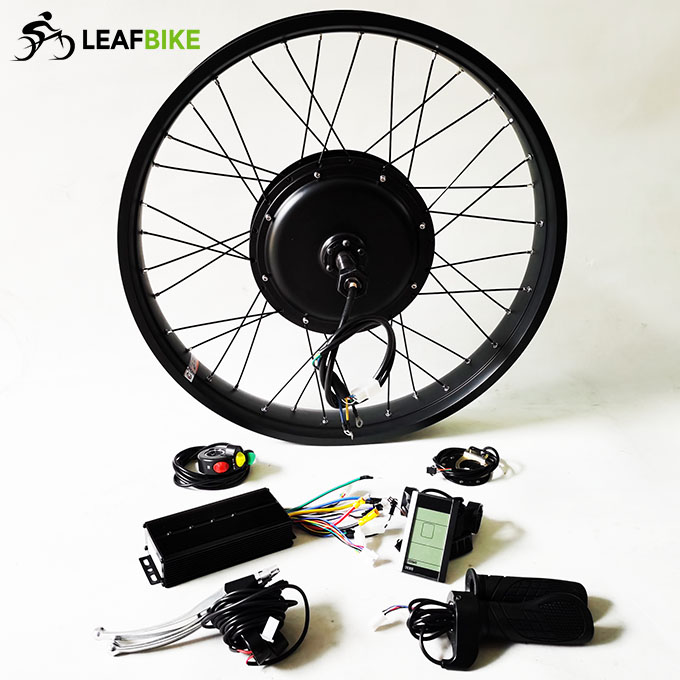

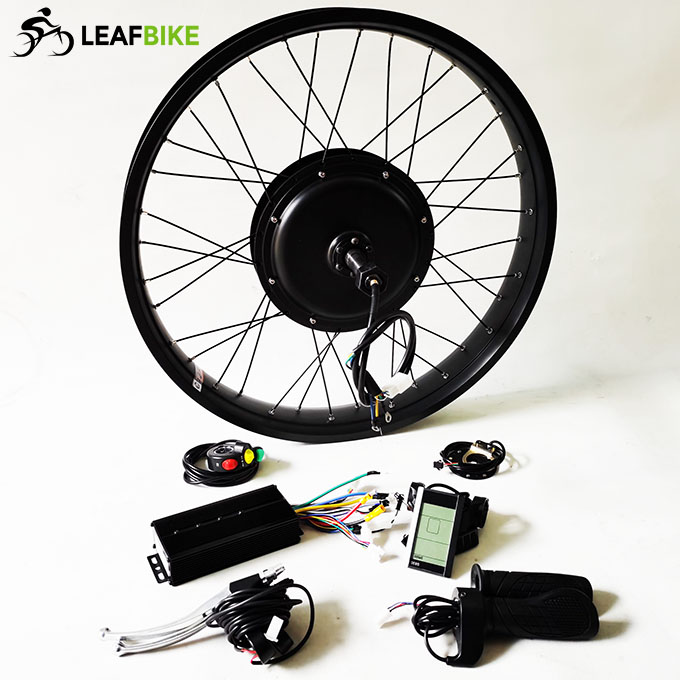

Package Content:

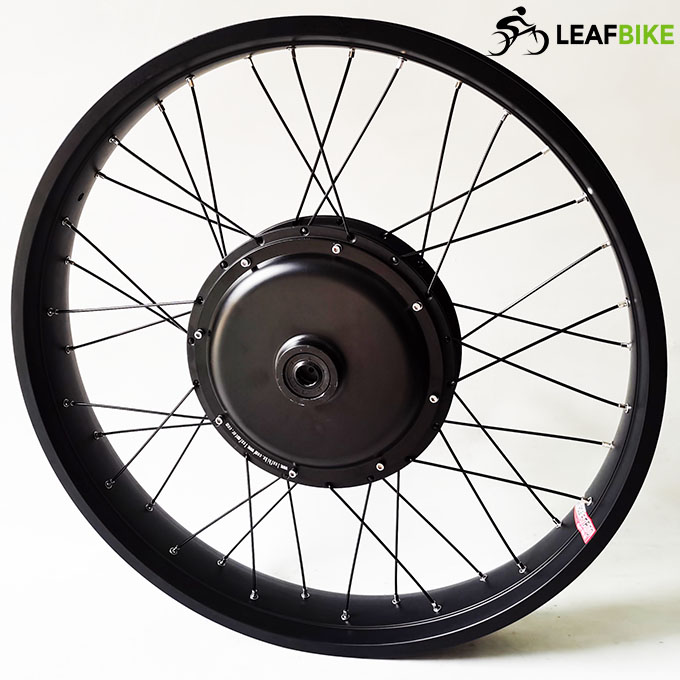

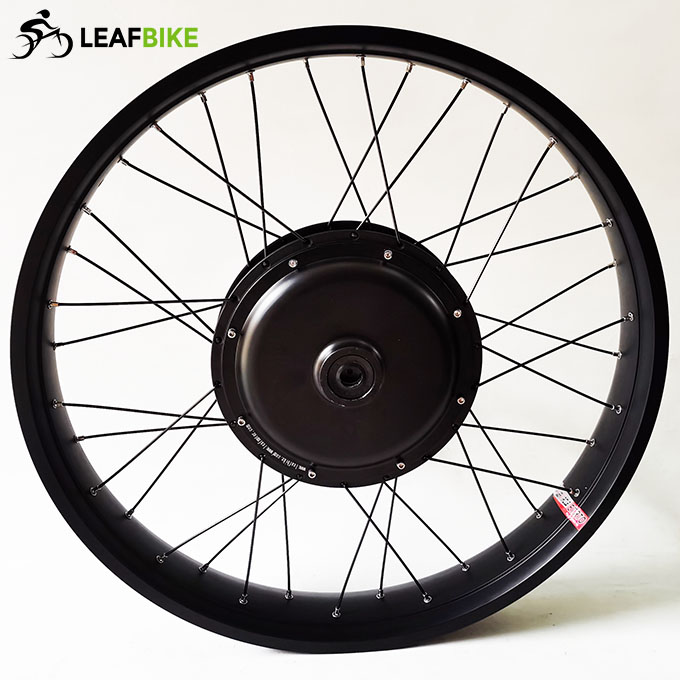

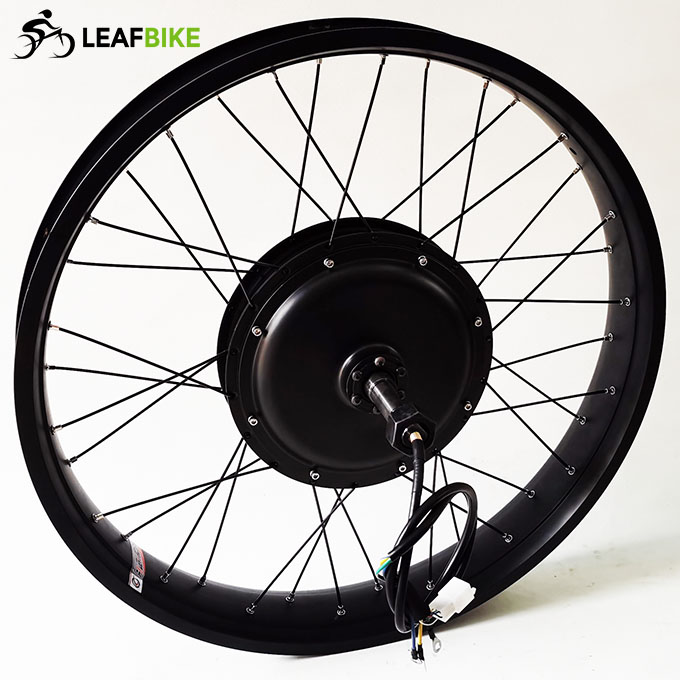

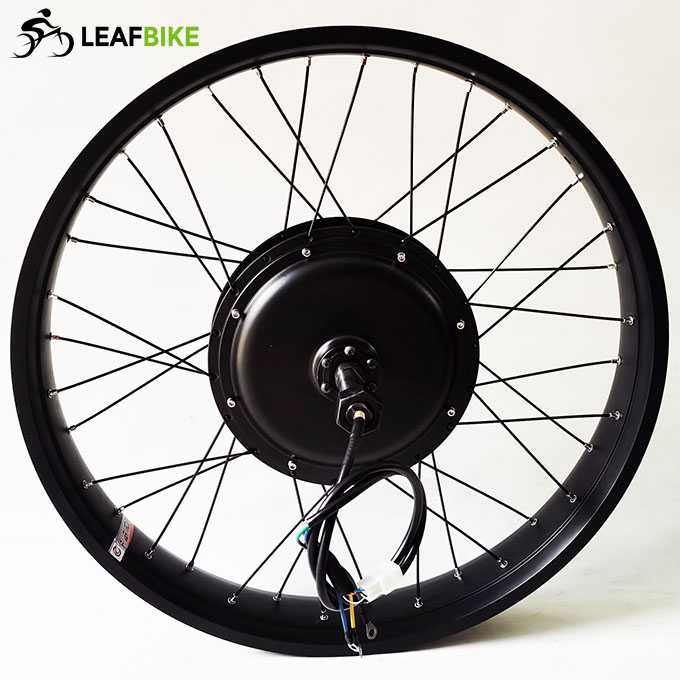

1 x 26 inch 48V / 52V 2000W beach snow fat tire single side shaft motor wheel
1 x 48V / 52V 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 12 kg
Package Size: 62cm L x 62cm W x 27cm H
Package Type: Cardboard Box

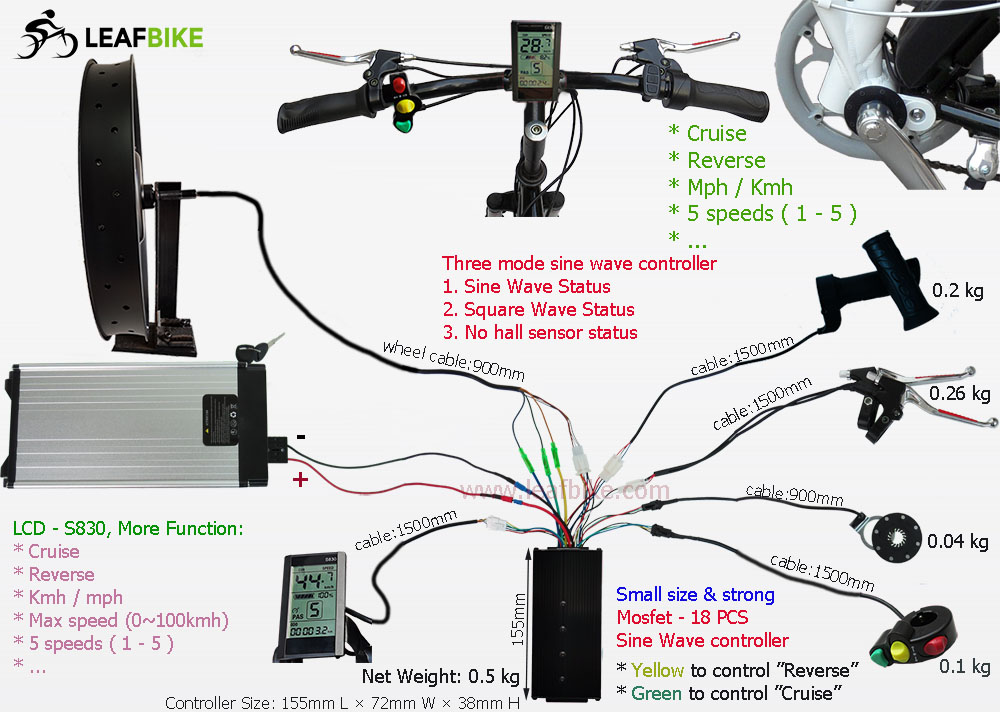

Wire Diagram:
Single Shaft Motor Drw.
