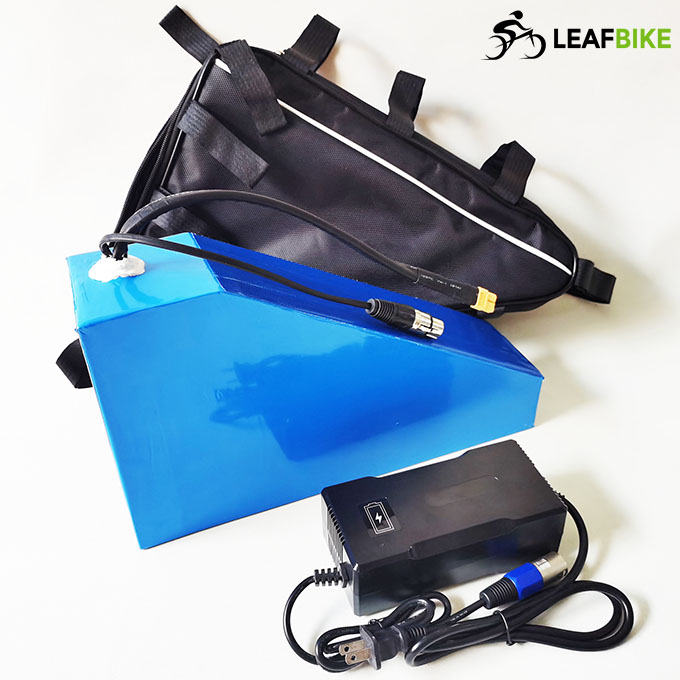

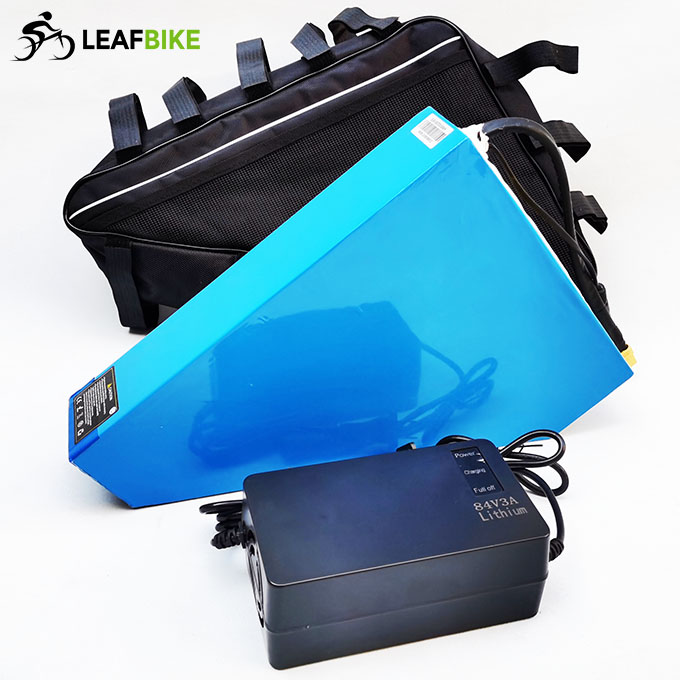

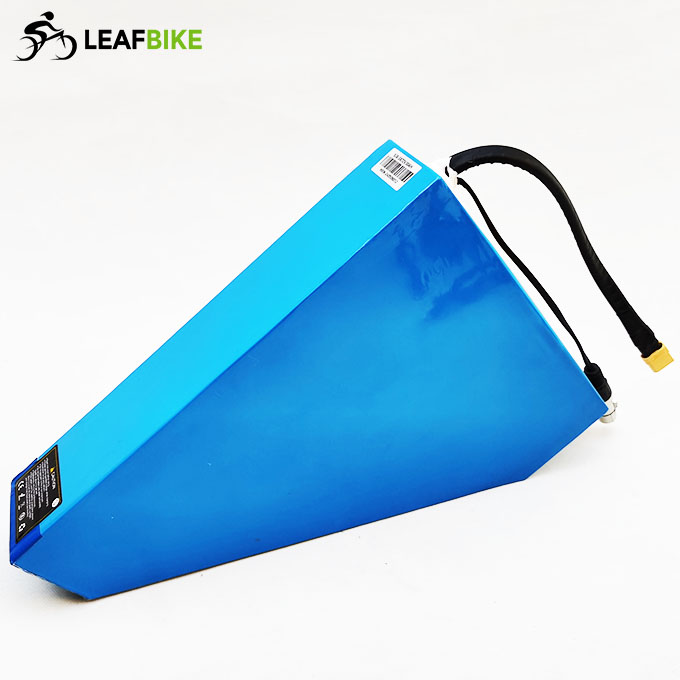

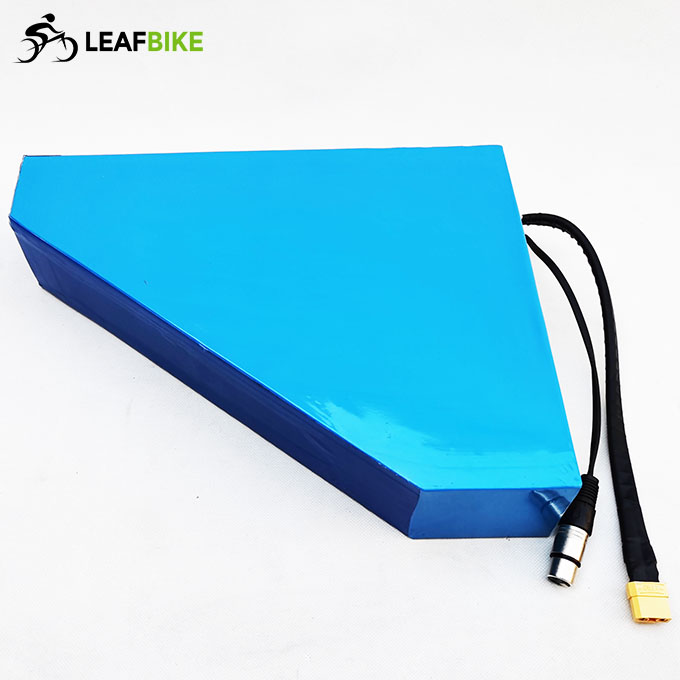

72V 24AH 30AH electric bike battery - triangle battery
$699.00
$748.00
|
* Nominal Voltage (V): ::
|
72
|
|
* Nominal Capacity (Ah):
|
24 or 30
|
|
* Source Resistance (mΩ):
|
40
|
|
* Cell Combination:
|
5 / 6-parallels
|
|
20 - series
|
|
|
*Cell Quantity (parallel*series): )
|
100 / 120
|
|
* Discharge Cut off Voltage (V):
|
63
|
|
* Charge Cut off Voltage (V):
|
84
|
|
* Max Discharge Current (A):
|
50
|
|
* Max Continuous Discharge Current (A):
|
30
|
|
* Charge Mode:
|
CC-CV
|
|
* Standard Charge Current (A):
|
3
|
|
* Charge Time under Standard Charge Current
|
6~8 hours
|
|
* Charge Temperature Range:
|
-20~55 °C
|
|
* Discharge Temperature Range:
|
-20~55 °C
|
|
* Charging Cycles:
|
>1500 times
|
|
* Dimensions:
|
347x264x87x330x65x75mm(30ah)

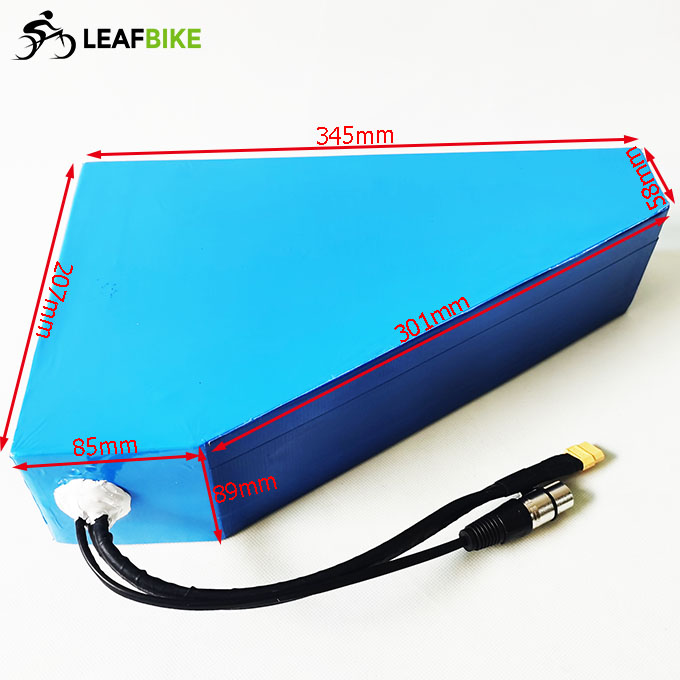

345x207x85x301x58x89mm(24ah) |
|
* Battery Net Weight:
|
9.4 kgs / 7.95kg(24ah)
|
|

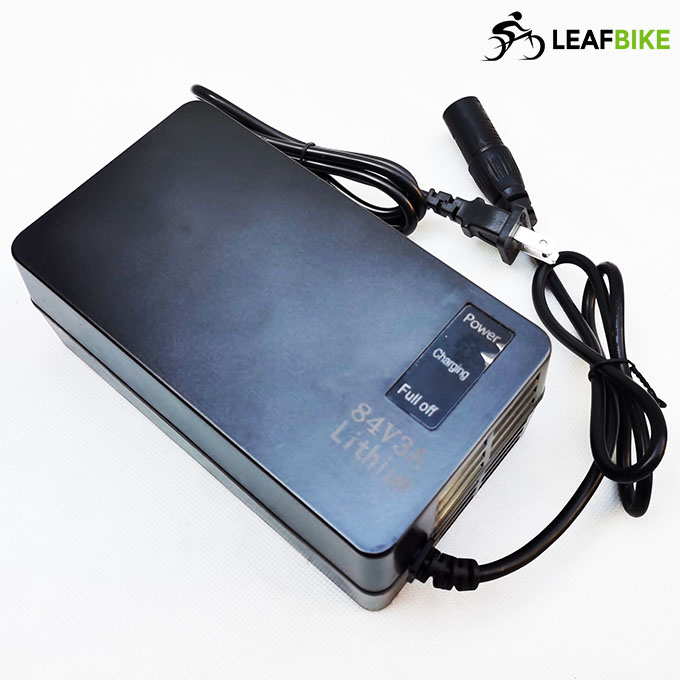

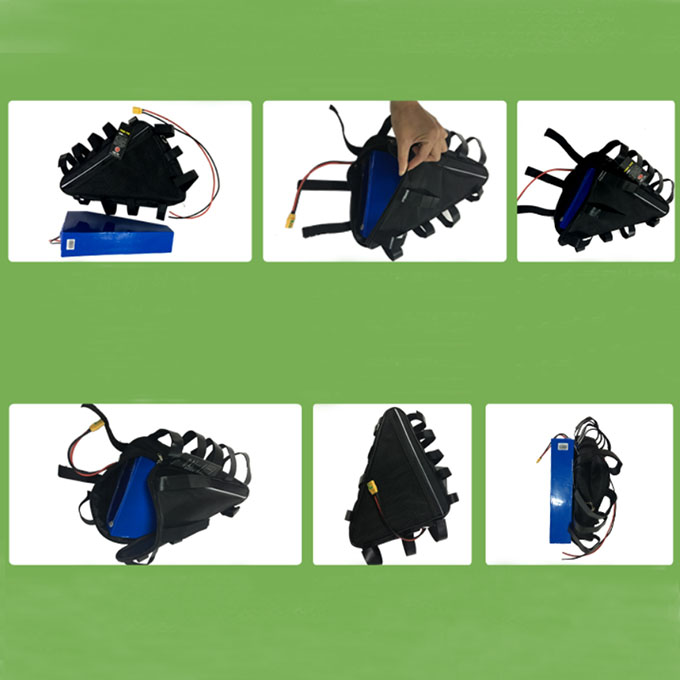

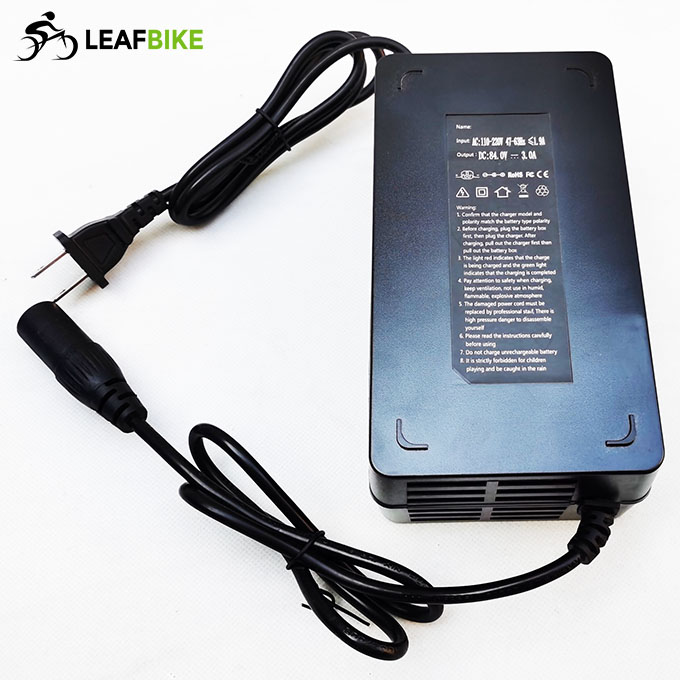

* Battery Gross Weight(with charger & bag):
|
10.3 kgs / 8.9kg(24ah)
|
