1/1
|
* Nominal Voltage (V):
|
52V
|
|
* Nominal Capacity (Ah):
|
10Ah
|
|
* Source Resistance (mΩ):
|
40mΩ
|
|
* Cell Combination:
|
1-parallels
|
|
14-series
|
|
|
*Cell Quantity (parallel*series): )
|
14 pcs
|
|
* Discharge Cut off Voltage (V):
|
28V
|
|
* Charge Cut off Voltage (V):
|
58V
|
|
* Max Discharge Current (A):
|
50A
|
|
* Max Continuous Discharge Current (A):
|
30A
|
|
* Charge Mode:
|
CC-CV
|
|
* Standard Charge Current (A):
|
1.8A
|
|
* Charge Time under Standard Charge Current
|
6 hours
|
|
* Charge Temperature Range:
|
-20~55°C
|
|
* Discharge Temperature Range:
|
-20~55°C
|
|
* Charging Cycles:
|
>1000 times
|
|

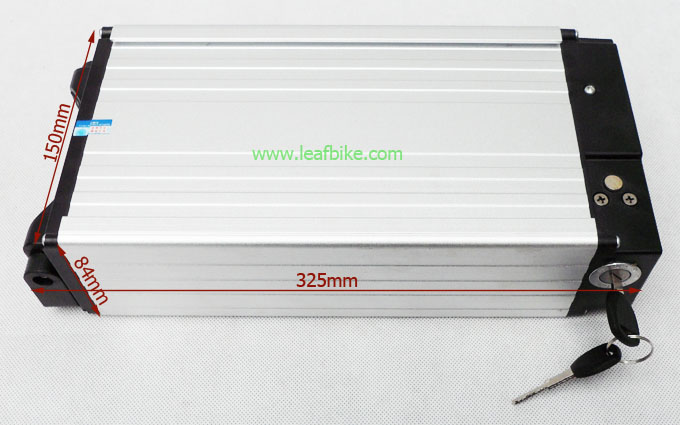

* Dimensions:
|
325mm L × 150 mm W × 84 mm H HHHh h
|
|
* Battery Net Weight:
|
5.4 kgs
|
|
* Battery Gross Weight(with all parts and package):
|
7.2 kgs
|
