Please watch video for 10 inch 72V 3000W rear electric motorcycle motor kit that show one kind of default speed.
Share Video:
* This 10 inch electric motorcycle motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
>. Tire: 3.50 - 10
>. Rim: 10 inch
>. Engine : Bldc hub motor
>>. Voltage: 72V
>>. Power: 3000W
>>. Efficiency: 90.5%
>>. Max speed: 90 kmh
>>. Mechanical brake: Disk
>>. Cable location: Left side / 6mm phase wire
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 200mm
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 72 Volts
>>. Min. Voltage: DC 63 V
>>. Rated power: 3000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 75 mm W × 38 mm H
With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

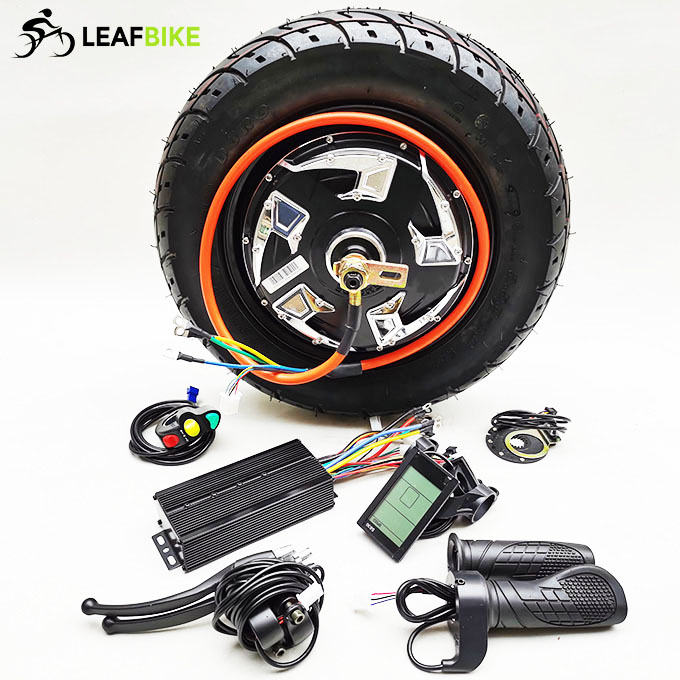

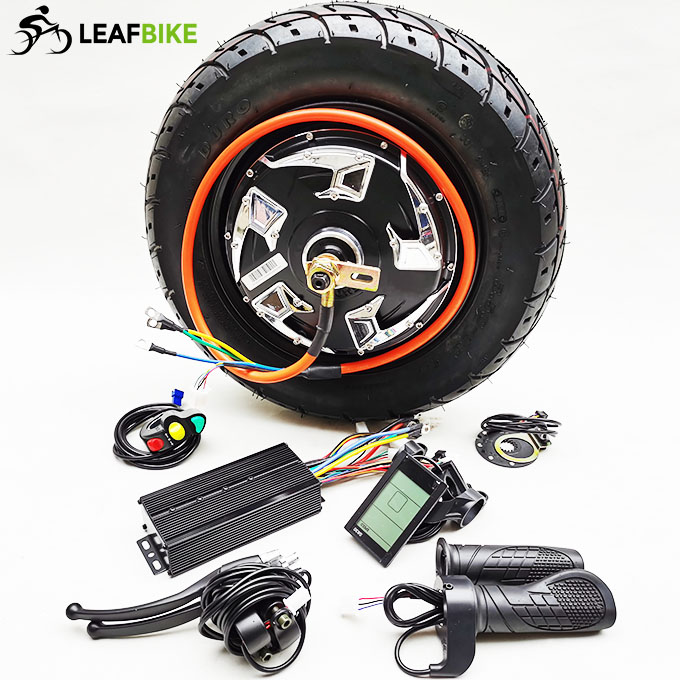

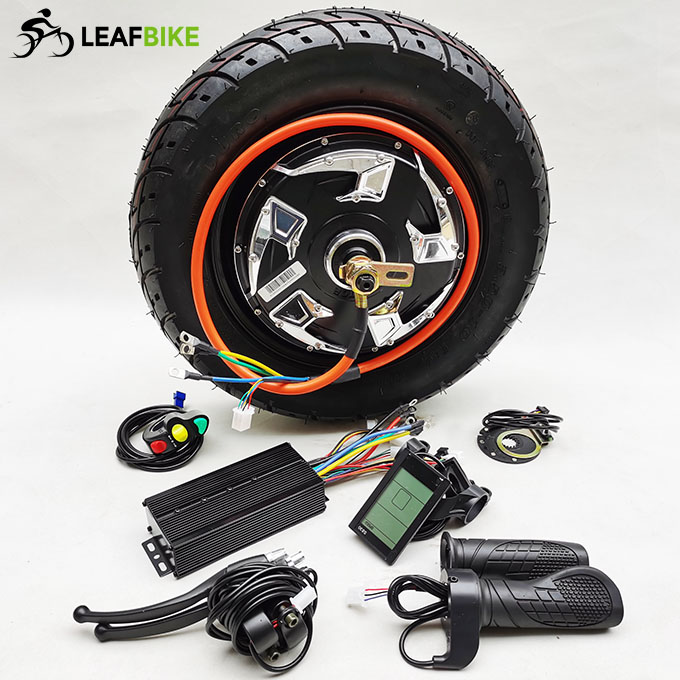

Package Content:

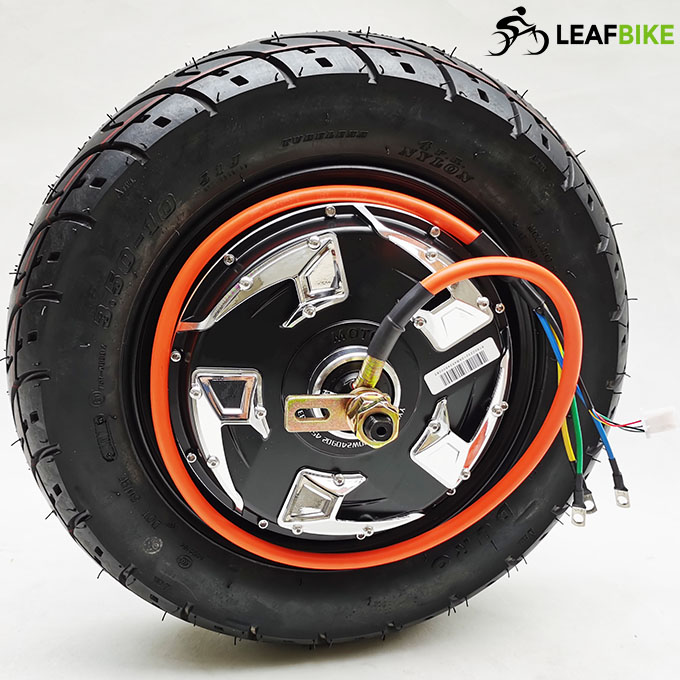

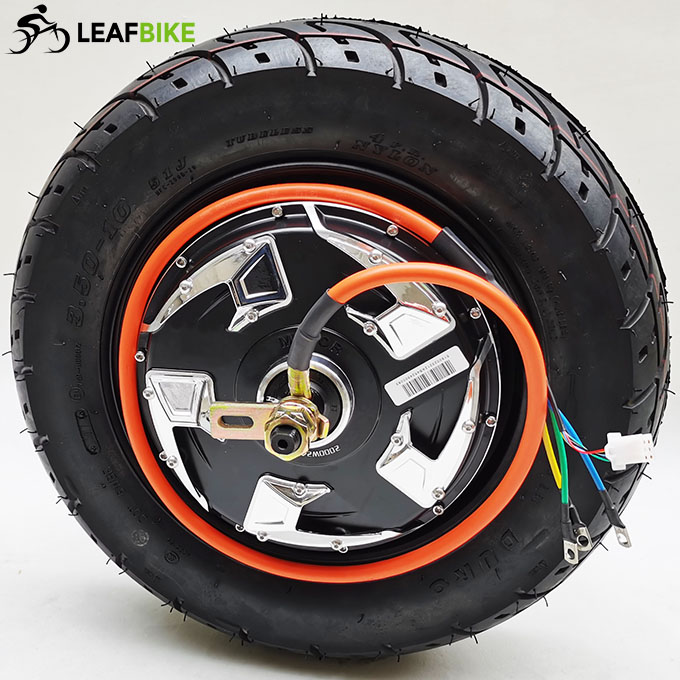

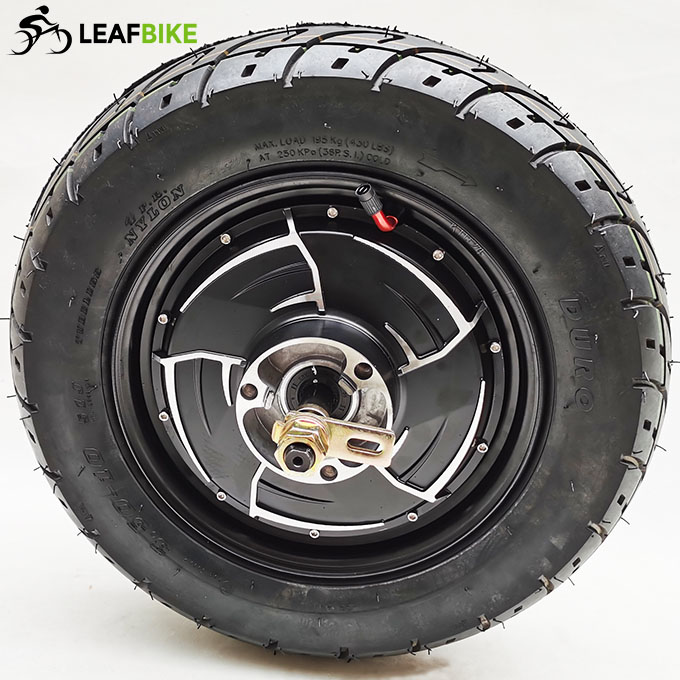

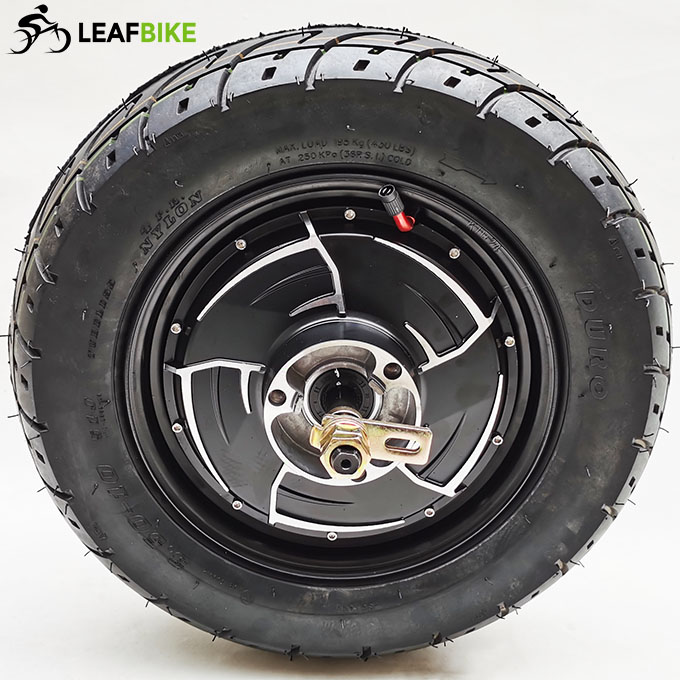

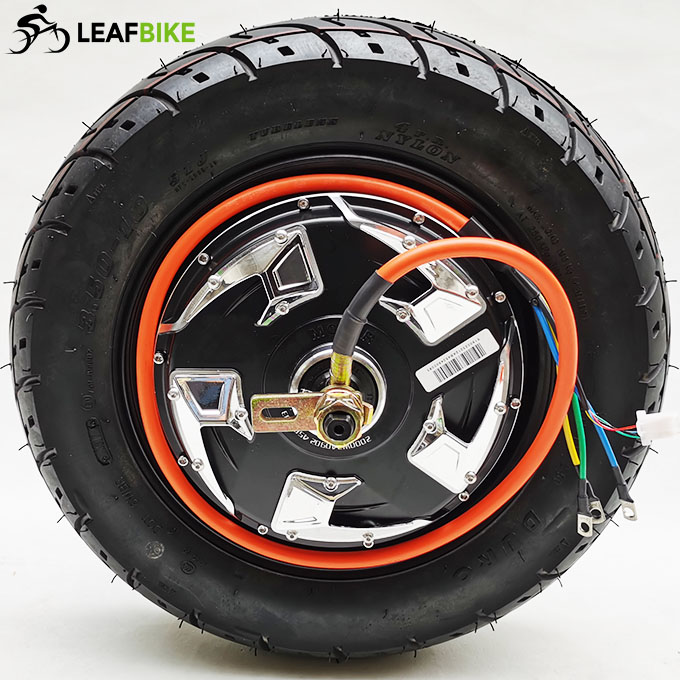

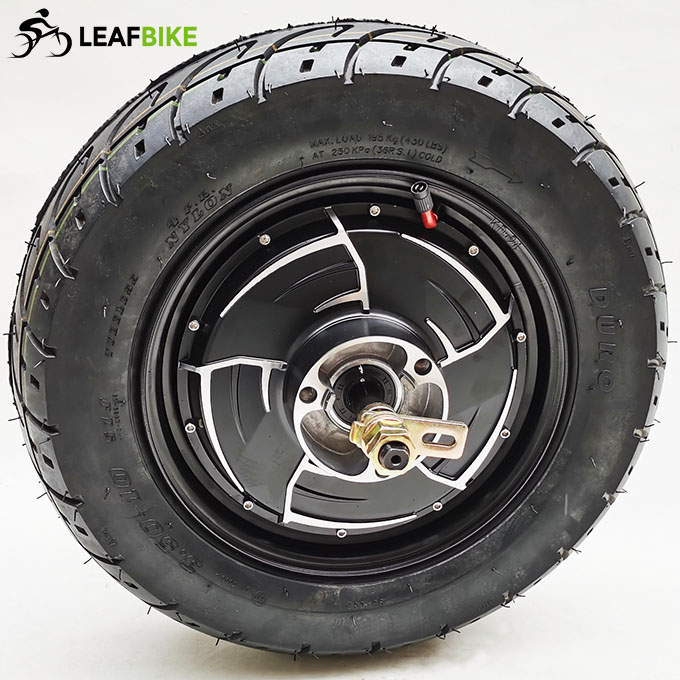

1 x 3.50 - 10 inch 72V 3000W rear electric motorcycle motor wheel
1 x 72V 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 14.5 kg
Package Size: 46cm L x 46cm W x 28cm H
Package Type: Cardboard Box
Wire Diagram:
