16 inch 48V 52V 1500W rear electric motorcycle motor kit

Name: 16 inch 48V 52V 1500W rear electric motorcycle motor kit
Brand: Leaf Bike
SKU: LBCK481500R16
Price: 428 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK481500R16

$428.00 ~~$476.00~~

Quantity :

Maybe You Need These

1.85 - 16 inch 48V / 52V 1500W rear electric motorcycle motor kit +

Description

The 16 inch motorcycle kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
This 16 inch motorcycle motor kit can work with a 48V or 52V battery.

Main Features:

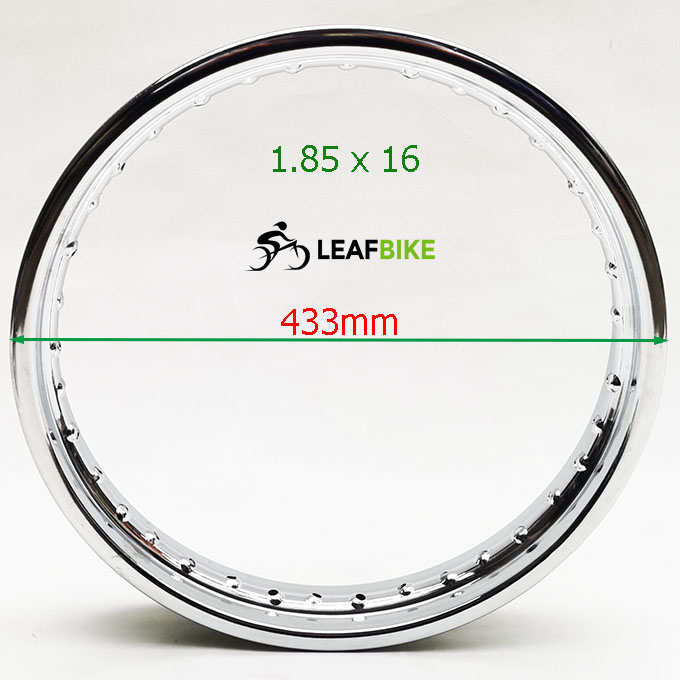

>. Rim: 1.6 - 16 or 1.85 - 16
>. Spoke: 90mm 10 gauge × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 59 kmh -- 36.9 mph @ 48V Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk
>>. Freewheel: Single speed
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 190mm or 170mm (190mm version Default or 170mm optional)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 75 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

Package Content:
1 x 16 inch 48V / 52V 1500W rear electric motorcycle motor wheel
1 x 48V / 52V 18-MOSFET sine wave motor controller
1 x LCD ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11 kg / 24.2 lbs
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box

Wire Diagram:

1.85 - 16 inch 48V 52V 1500W rear electric motorcycle motor kit

170mm Dropout Motor:

170mm 1500w electric motorcycle motor drawing

Performance Data:

190mm Dropout Motor:
