* The 19 inch electric motorcycle motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:

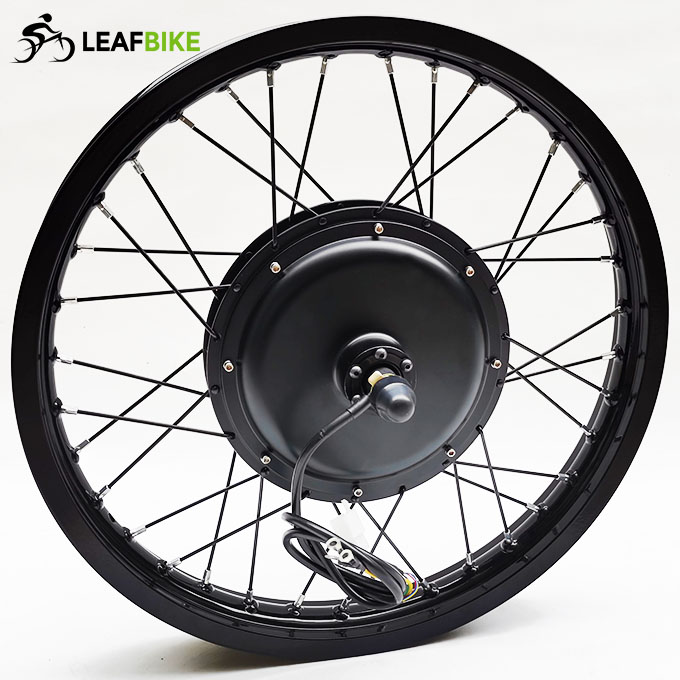

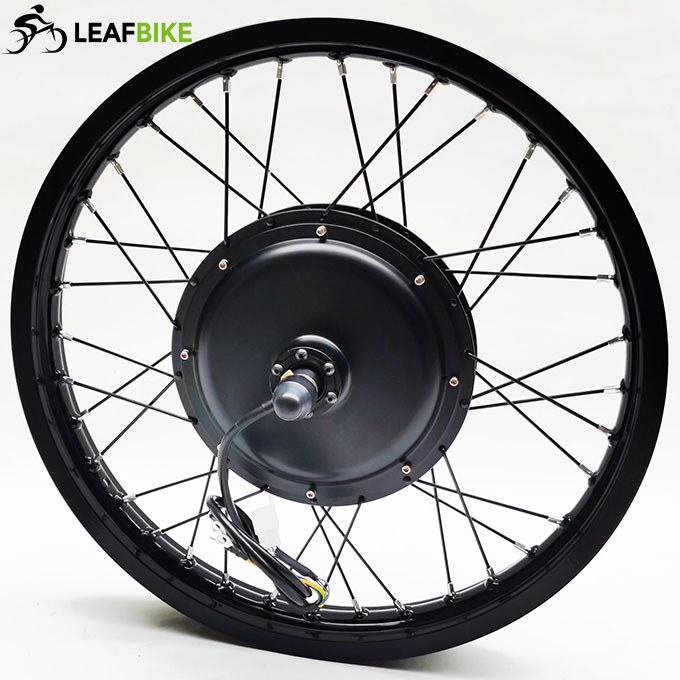

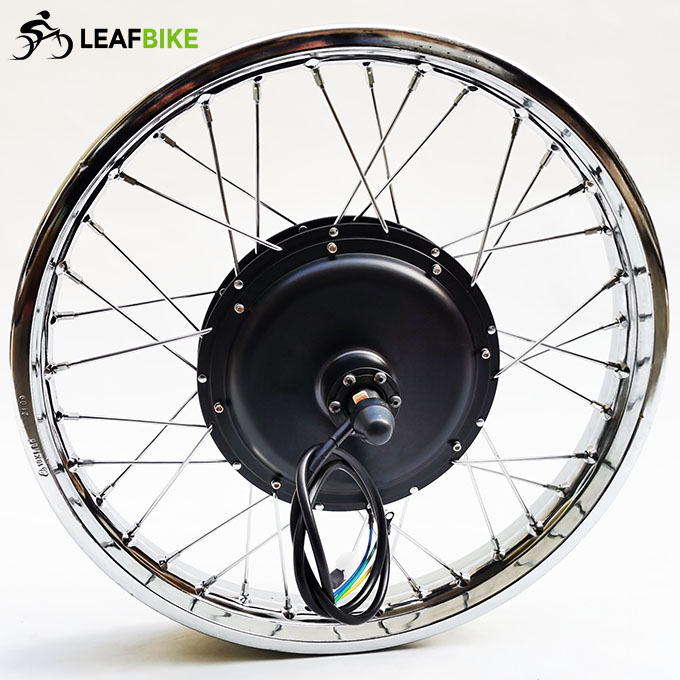

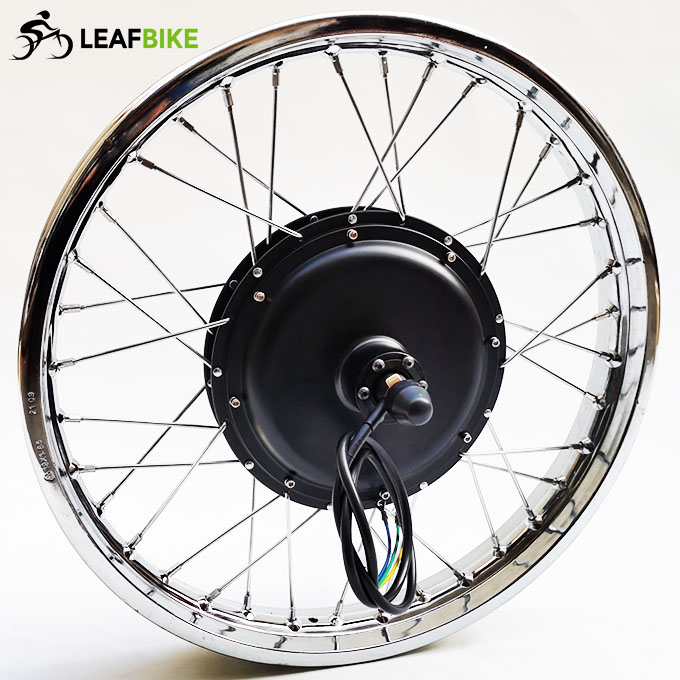

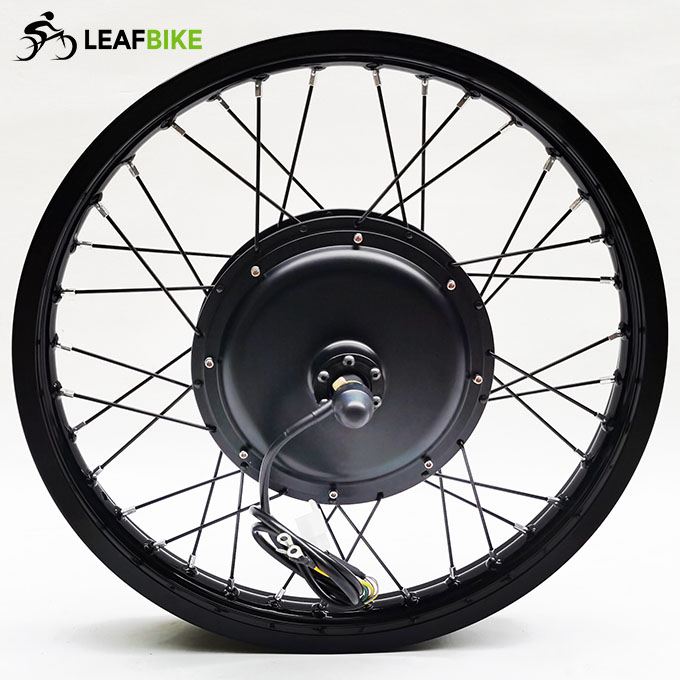

>. Wheel: 1.85 × 19" Black Aluminum Wheel or Chrome Steel Wheel
>. Spoke: 128mm 10 gauge × 36 pcs
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 85kmh / 50mph Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Freewheel: Single speed
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Front frame fork / Install: spacing of 135mm
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H
With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

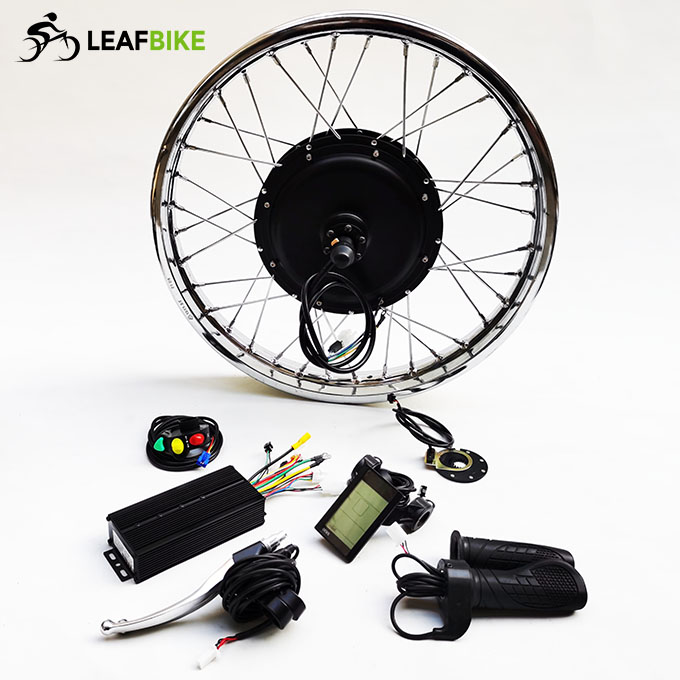

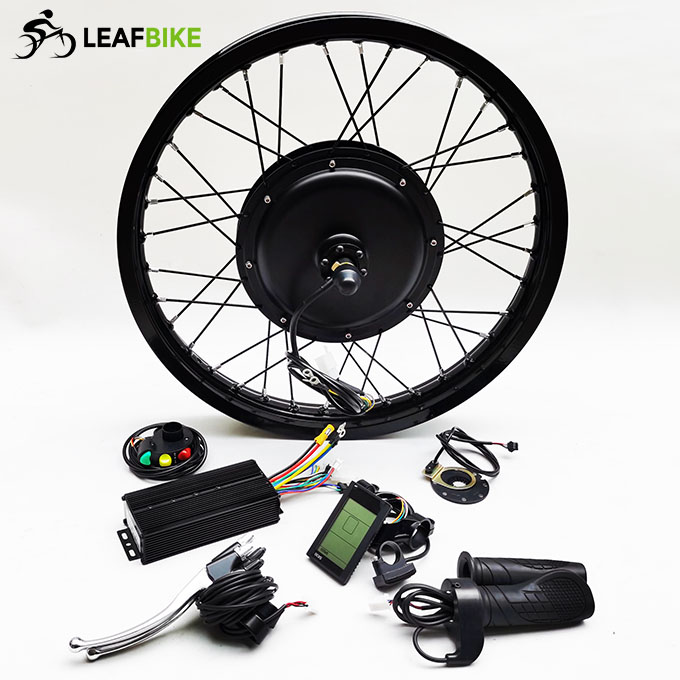

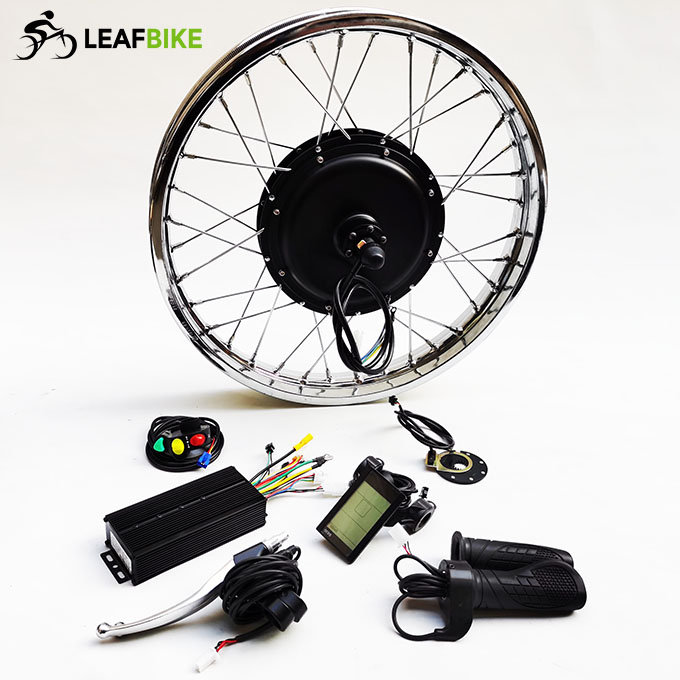

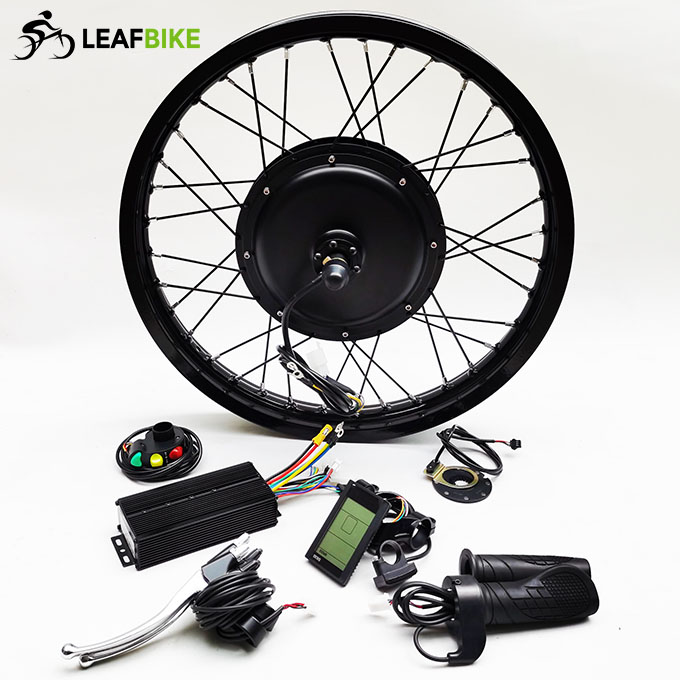

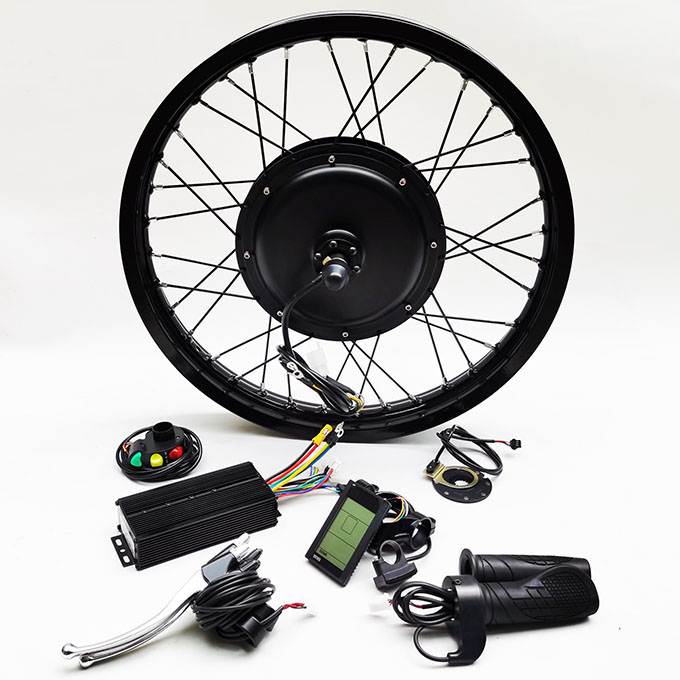

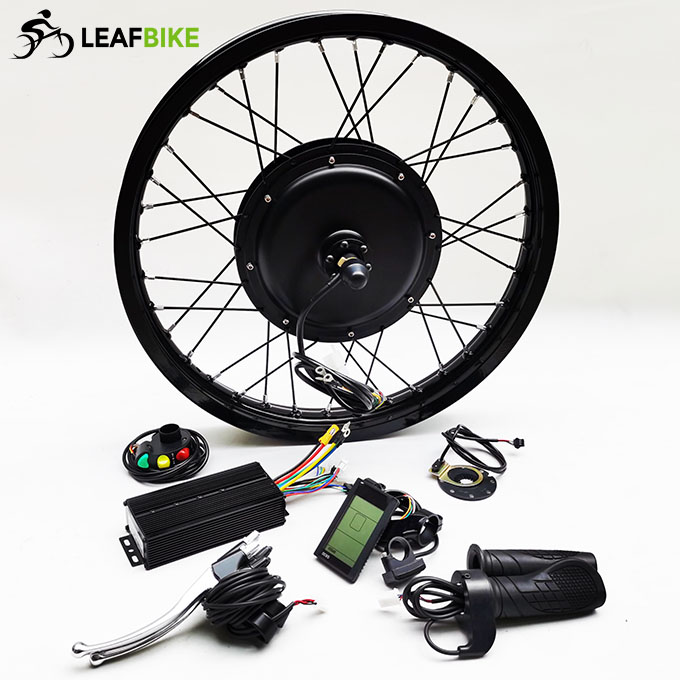

Package Content:
1 x 1.85 x 19 inch 60V 2000W front electric motorcycle motor wheel
1 x 60V 18-MOSFET 40A motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.9 kg
Package Size: 54cm L x 54cm W x 27cm H
Package Type: Cardboard Box
135mm Dropout Motor.
Wire Diagram:
