1.4 - 17 inch 48V 1500W rear electric motorcycle motor kit

Name: 1.4 - 17 inch 48V 1500W rear electric motorcycle motor kit
Brand: Leaf Bike
SKU: LBCK481500RK1.4-17
Price: 455 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK481500RK1.4-17

$455.00 ~~$497.00~~

Maybe You Need These

Description

Please watch video for 1.4 - 17 inch 48V 1500W rear electric motorcycle motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

135mm Front Fork:
17 inch front motorcycle motor kit video

Share Video:

17 inch 48V 52V 1500W rear electric motorcycle motor kit

135mm dropout:

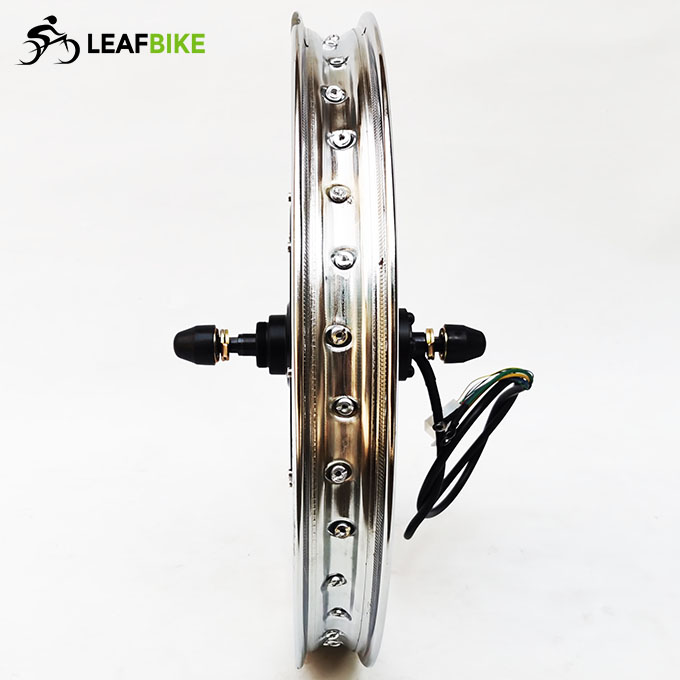

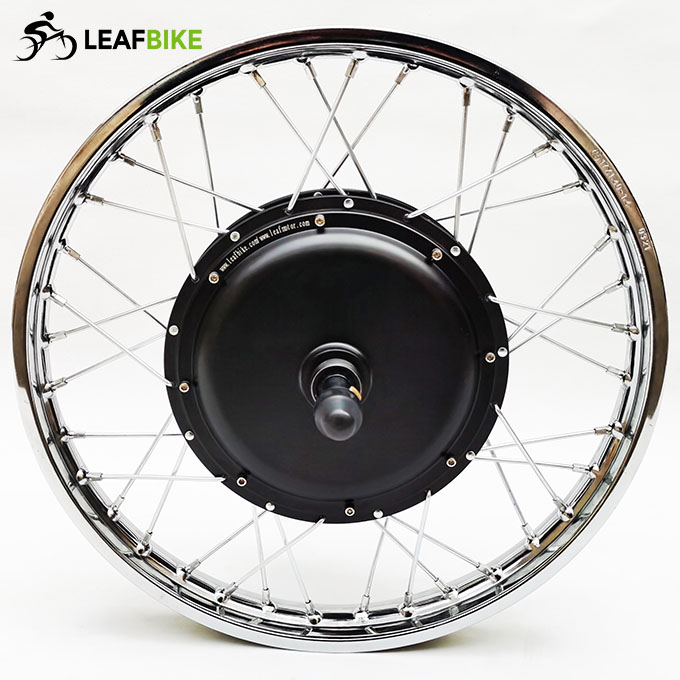

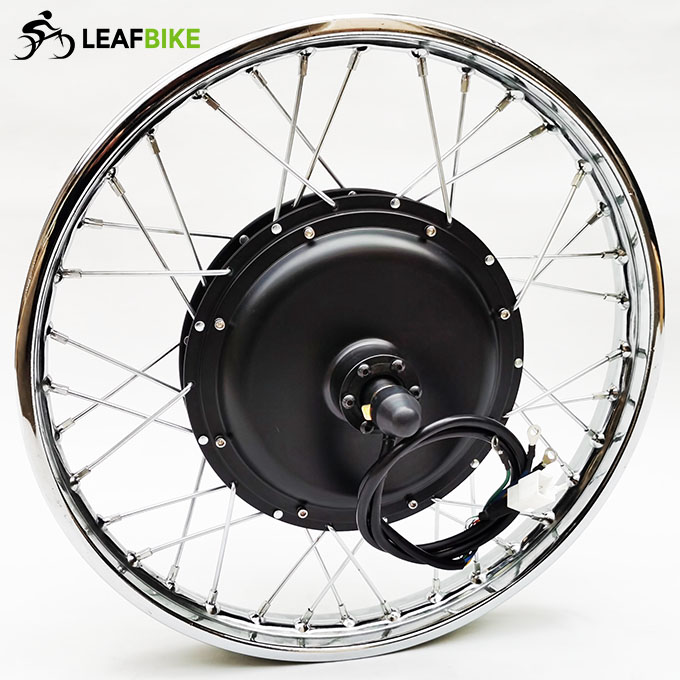

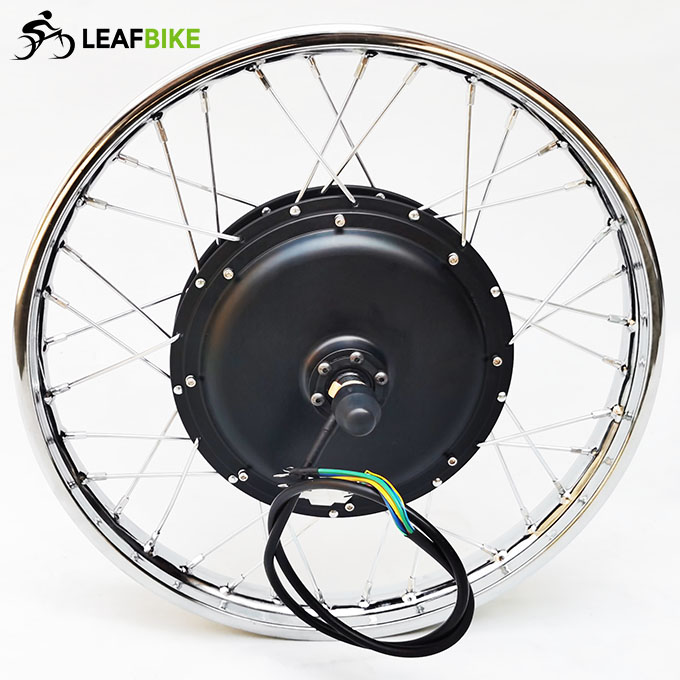

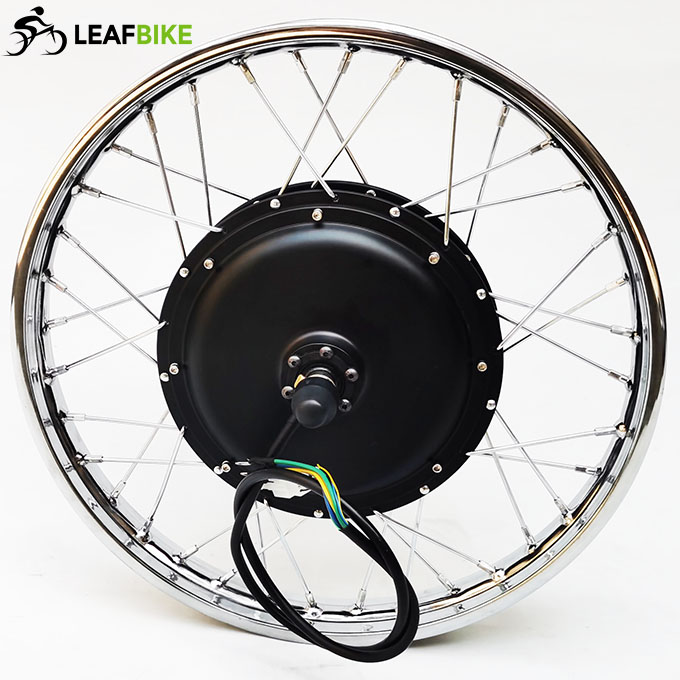

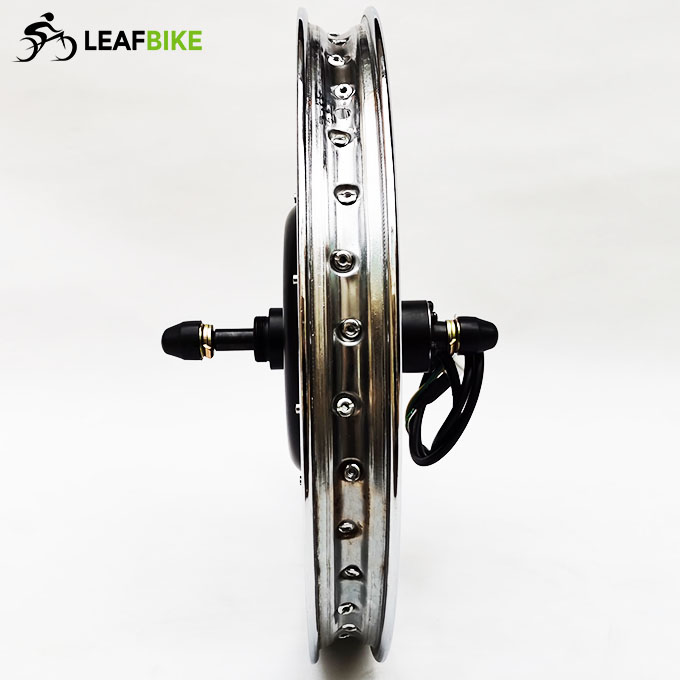

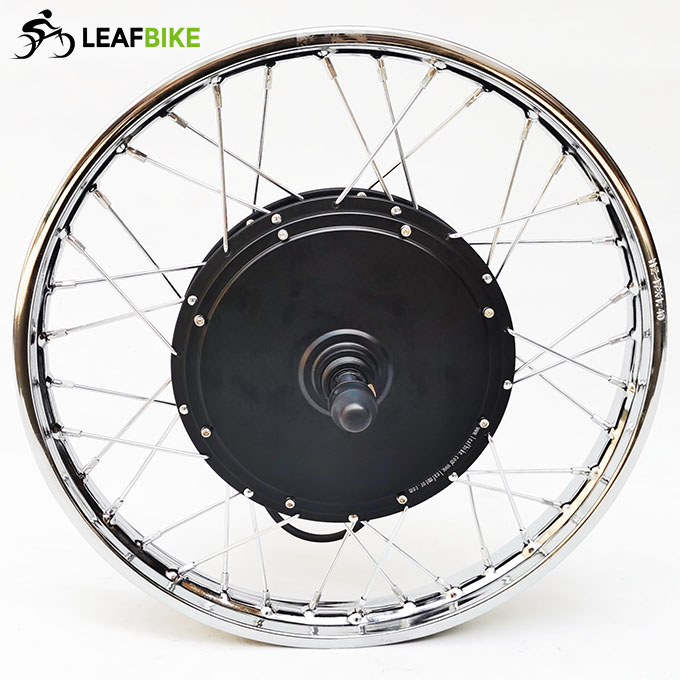

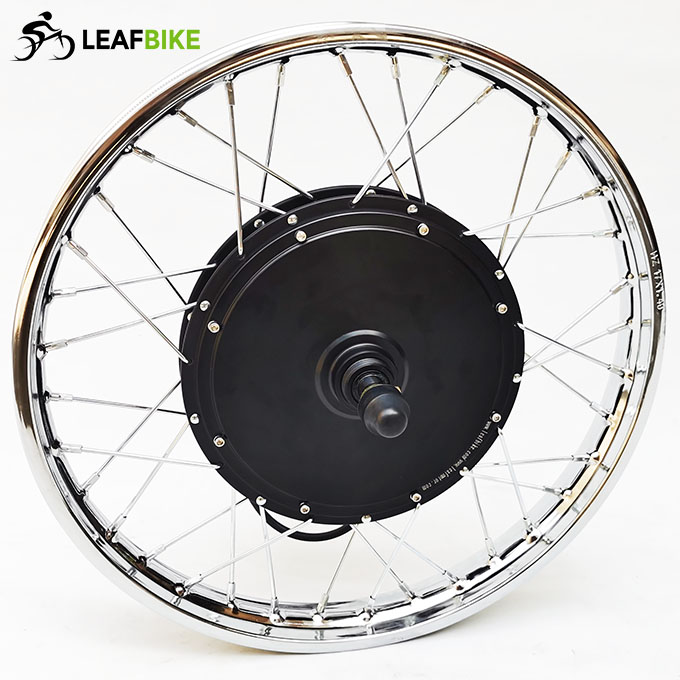

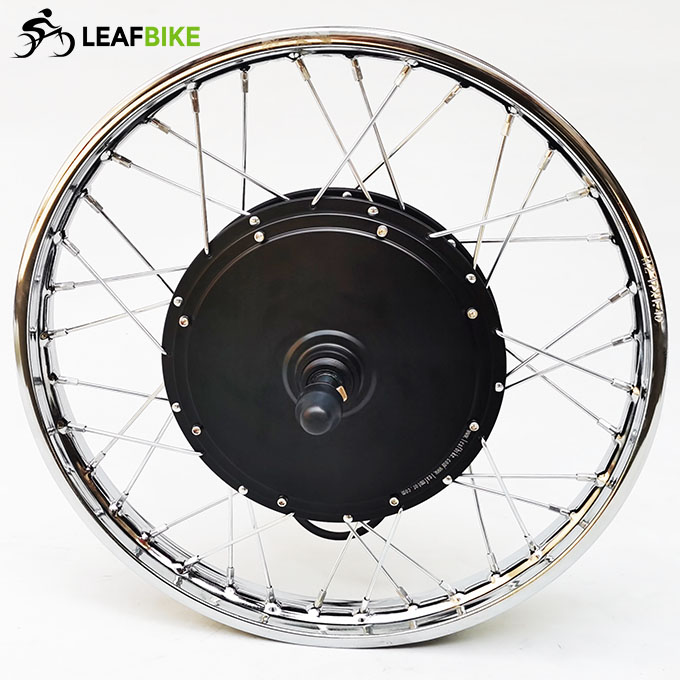

17 inch 48V 52V 1500W rear electric motorcycle motor wheel

* The 1.4 - 17 inch electric motorcycle motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

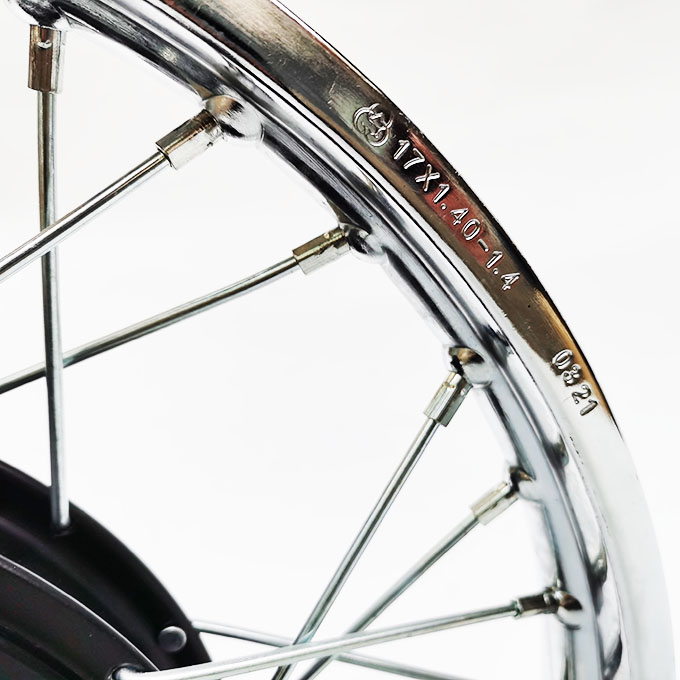

>. Rim: 1.4 × 17" wall Alloy
>. Spoke: 105mm 10 gauge × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 67.9 kmh -- 42.1 mph @ 48V Default (Optional other speed: 30mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Freewheel: Single speed
>>. Cable location: shaft end, Left
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 190mm or 170mm or 135mm (190mm Rear or 170mm rear,135mm front version optional)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh )
* Pedal assist ( 0 - 5 )
* Battery gauge
* ...

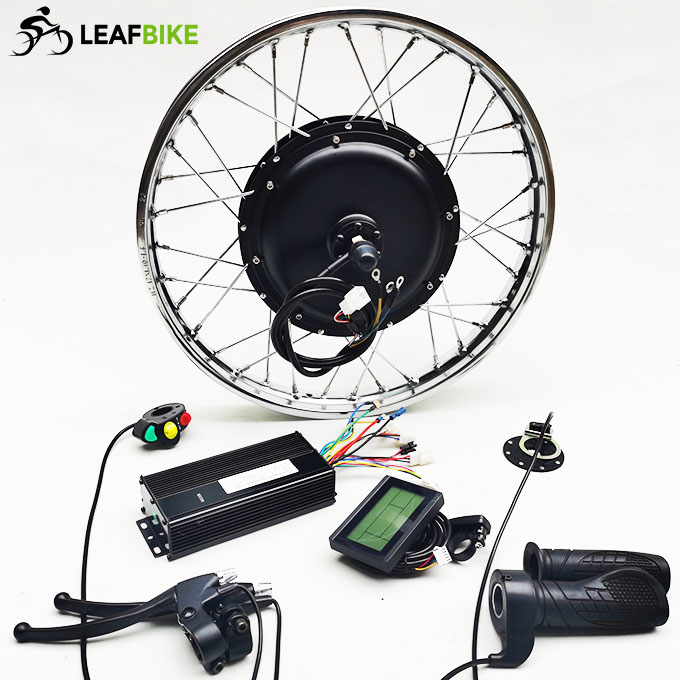

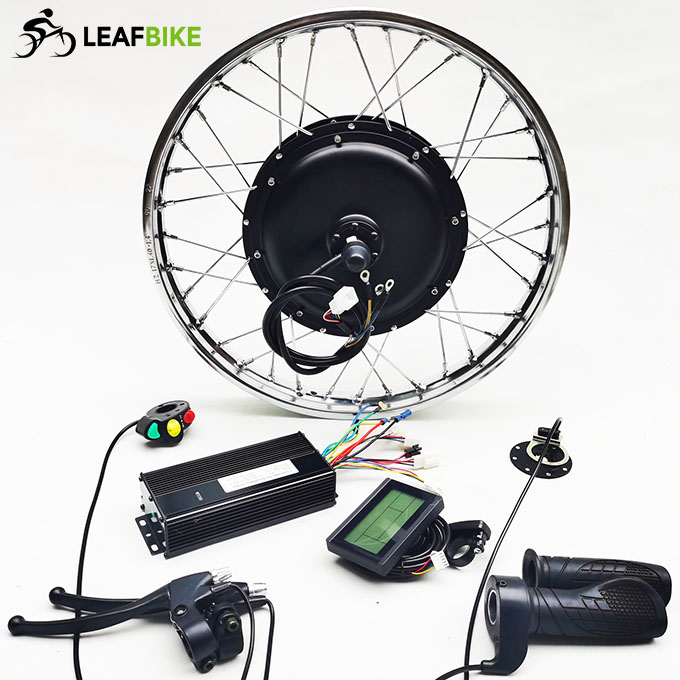

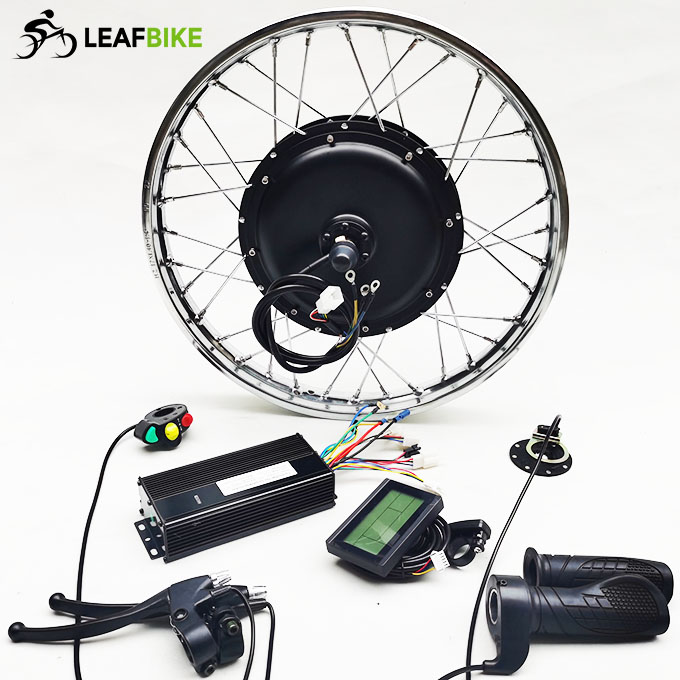

Package Content:
1 x 1.4 - 17 inch 48V 1500W front or rear electric motorcycle motor wheel
1 x 48V 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12 kg
Package Size: 53cm L x 53cm W x 27cm H
Package Type: Cardboard Box

135mm Front Fork:

17 inch 48V 1500W front electric motorcycle motor kit wire diagram

135mm Dropout Motor.

135mm 1500w electric motorcycle motor drawing

170mm Dropout Motor:

170mm 1500w electric motorcycle motor drawing

Performance Data:

190mm Dropout Motor:
