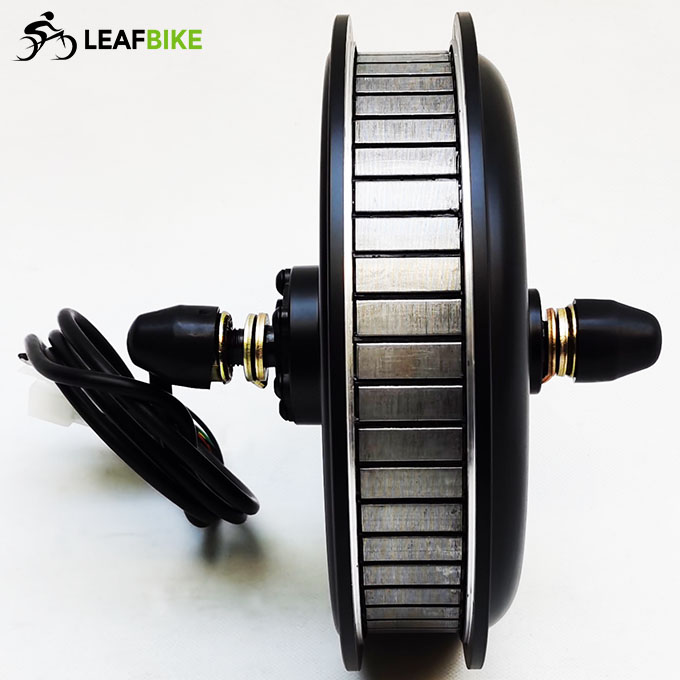

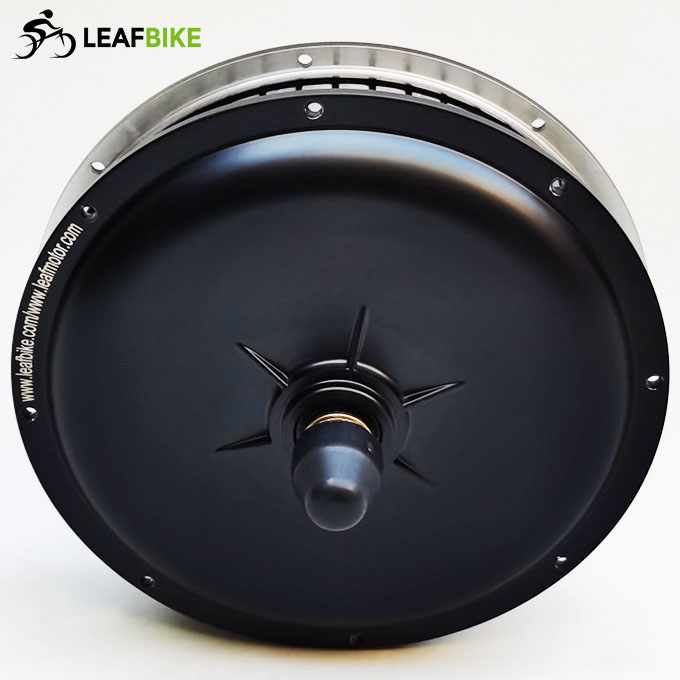

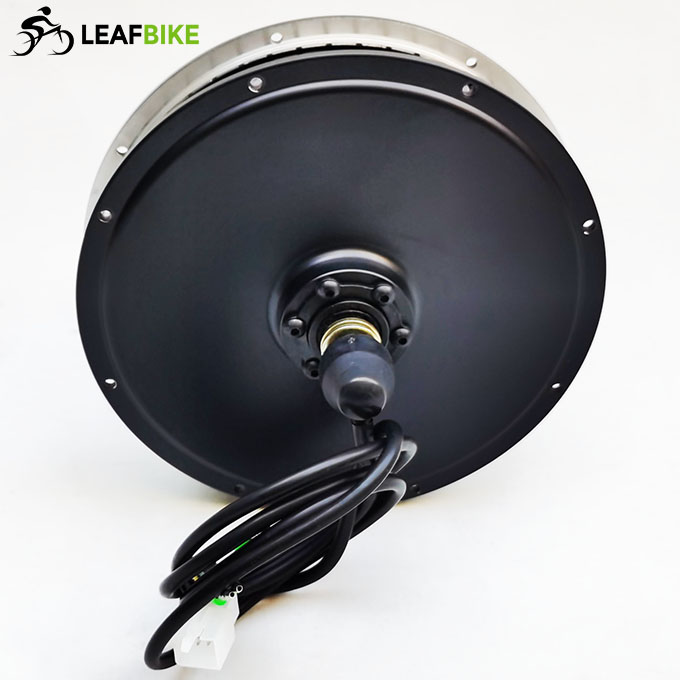

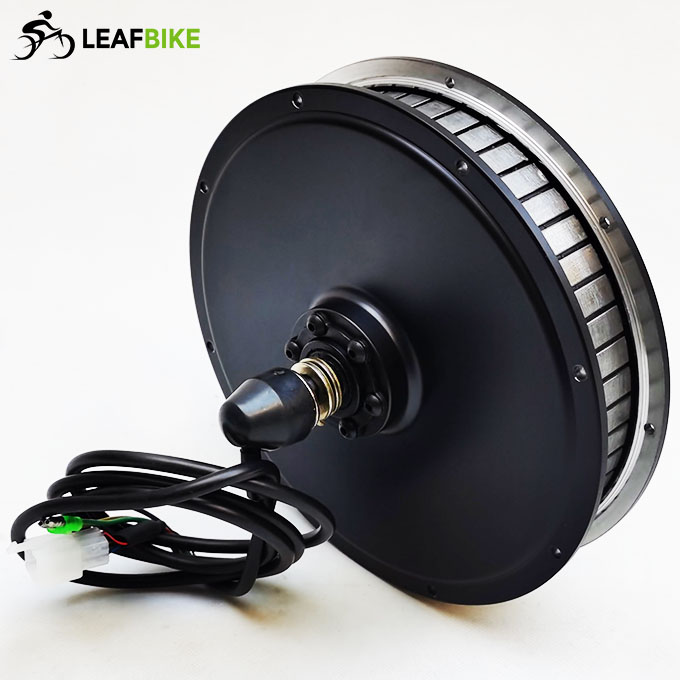

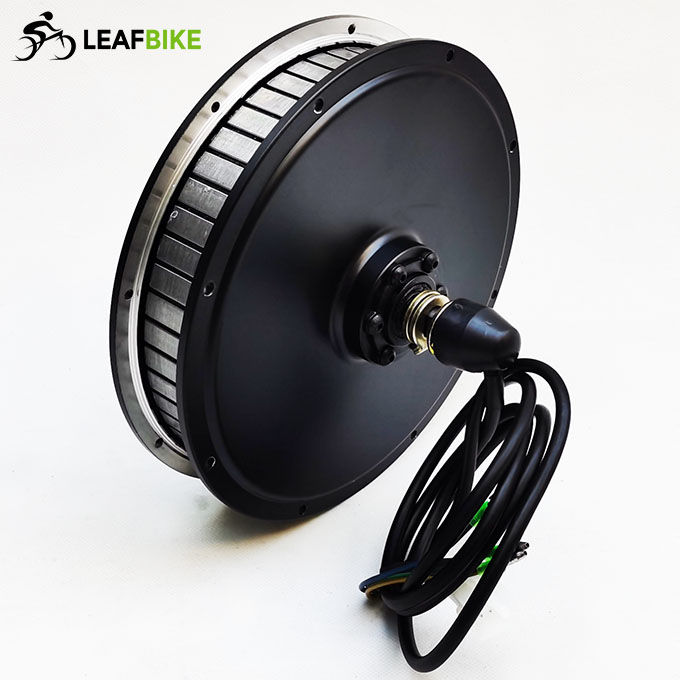

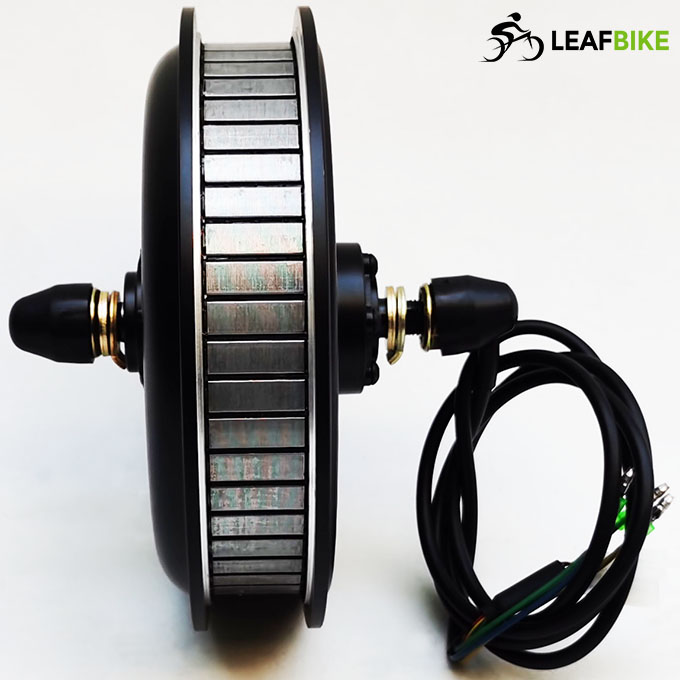

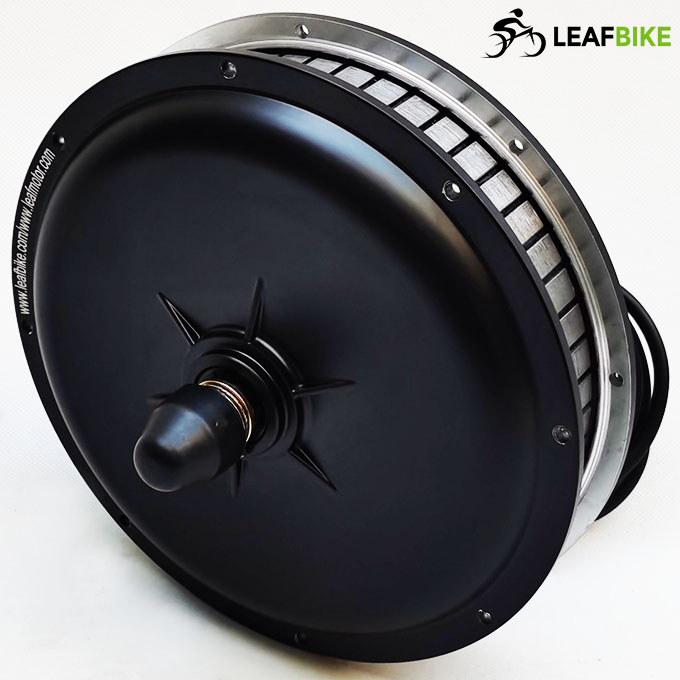

Front Rotor Winding - 48V / 52V 1000W hub motor part

Item ID #LBM481KFN-WRP
$175.00 $175.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
BRAND NEW LEAF BIKE 2022 Version Black Lightning Brushless, Gearless Hub Motor !
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27.5"(650B), 700c, 28" & 29" sizes are available.

Detail:
Motor type: electric bike motor
Voltage: 48V / 52V
Power: 1000W
Efficiency: ≥ 90%
RPM: 731
Mechanical brake: Disk or V
Cable location: shaft end , Left
Cable length:110cm / 43"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 4.0 kg / 8.8 lbs
Gross weight: 4.6 kg ( after packing )

Package Content:
1 x 48V / 52V 1000W front rotor winding with two front covers - #LBM481KFN - WRP

Package Size: 25cm L x 25cm W x 25cm H
Package Type: Cardboard Box

It takes about 10 minutes to replace. Very easy.
Tool: ONLY ONE M4 Inner hexagon spanner
Do it as below / uninstall:
1. Disconnect 16 pcs of screw nut from your motor (two side) – It takes about 3 minutes to do it.
2. Knock the shaft end (NO cable side) on the ground,then the cover will off from hub – It takes 2 seconds to do it.
3. Two hands hold on hub(Not rim), still knock the shaft end (No cable side) on the ground,then the whole of winding rotor will out of hub.. – It takes 2 seconds to to it.

Do it as below / Install:
1. Put the cover on the hub and put 8 pcs of screw nut on..tight them. – It takes about 2 minutes to do it.
2. Check and make sure no other thing around magnet – It takes 10 seconds to check it.
3. Put the whole of winding rotor into hub – It takes 2 seconds to do it.
4. Put the other 8 pcs of screw nut on – It takes about 2 minutes to do it.
Uninstall Hub Motor:
electric hub motor - bike conversion kit
Install E - Bike Motor:
electric hub motor - bike conversion kits

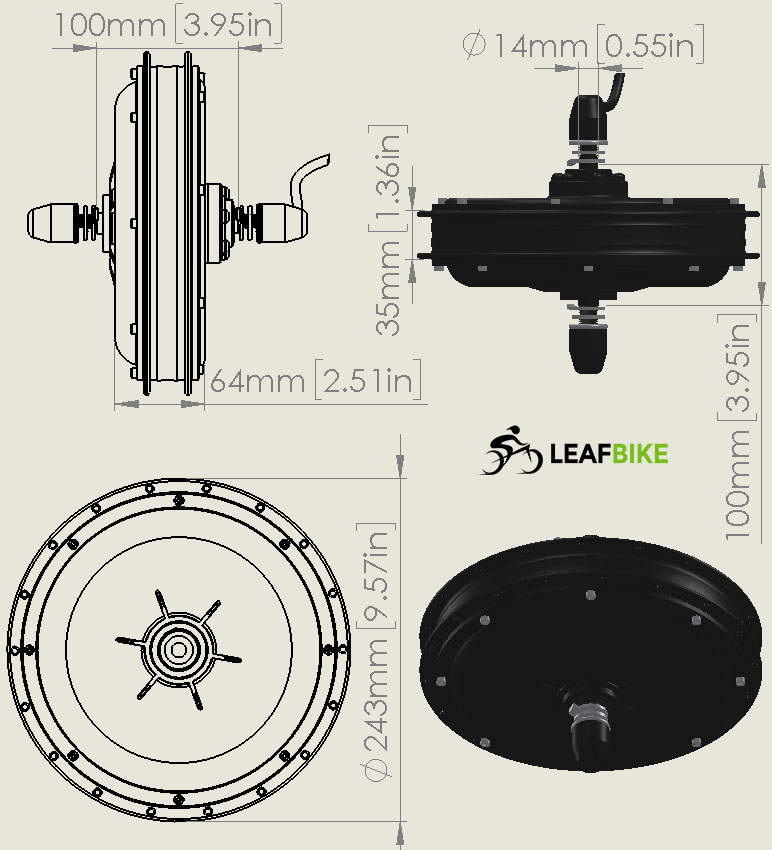

1000W Front Drw.
front-hub-motor

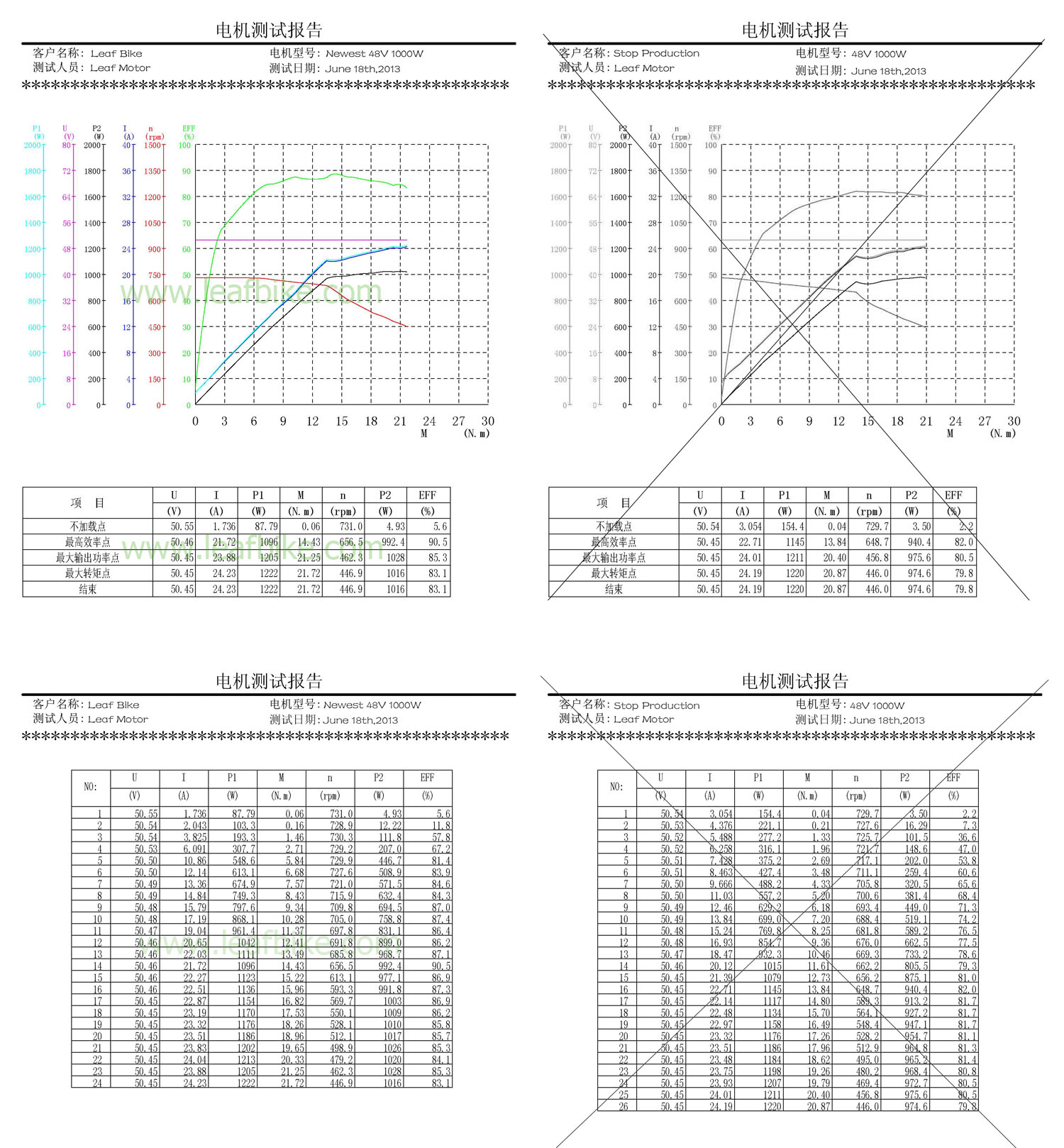

Performance Data:
1000w-hub-motor-curve-data
