Please watch video for 29 inch 36V 750W front hub motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
BRAND NEWEST LEAF BIKE 2025 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
This 29 inch bike motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes. Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" and 29" inch sizes are available.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
>. Rim: 29 inch double wall Alloy (Rim Fit For: 29 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Silver 12 gauge / 188mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.
>. Engine : Bldc electric hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 90.5%
>>. Max speed: 59.7 kmh -- 37 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
Package Content:

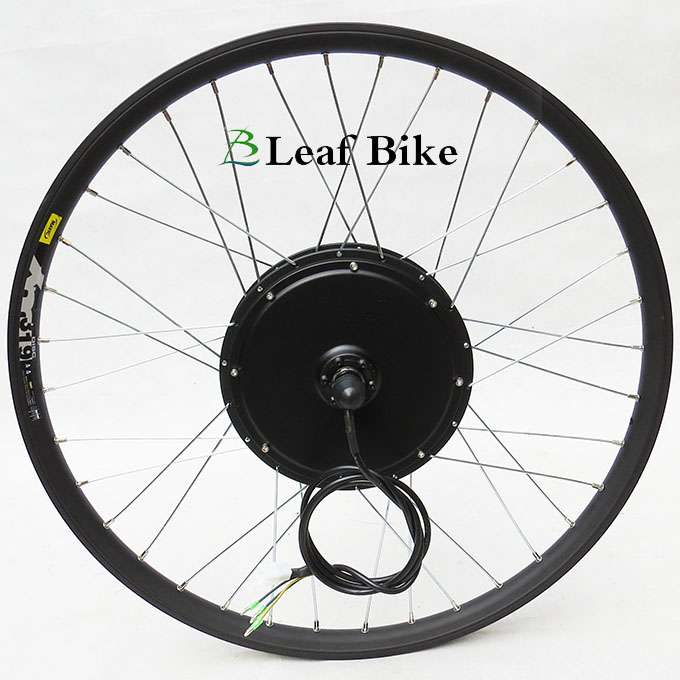

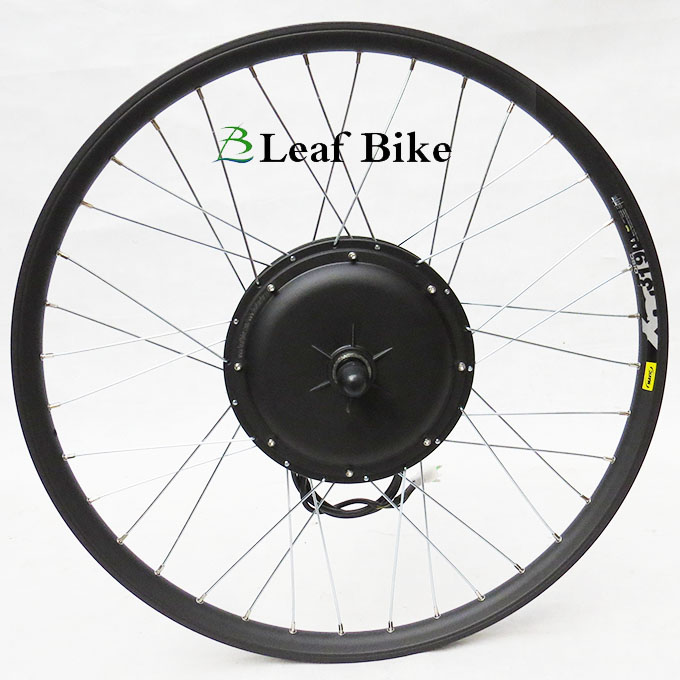

1 x 29 inch 36V 750W front hub motor wheel
Net Weight: 9.0 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
750w Front Drw.
Performance Data:
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
