Please watch videos for 26 inch 36V 750W rear electric bike motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
Share Video:
Share Video:
BRAND NEWEST LEAF BIKE 2025 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
This 26 inch bike motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes. Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" and 29" inch sizes are available.
Main Features:

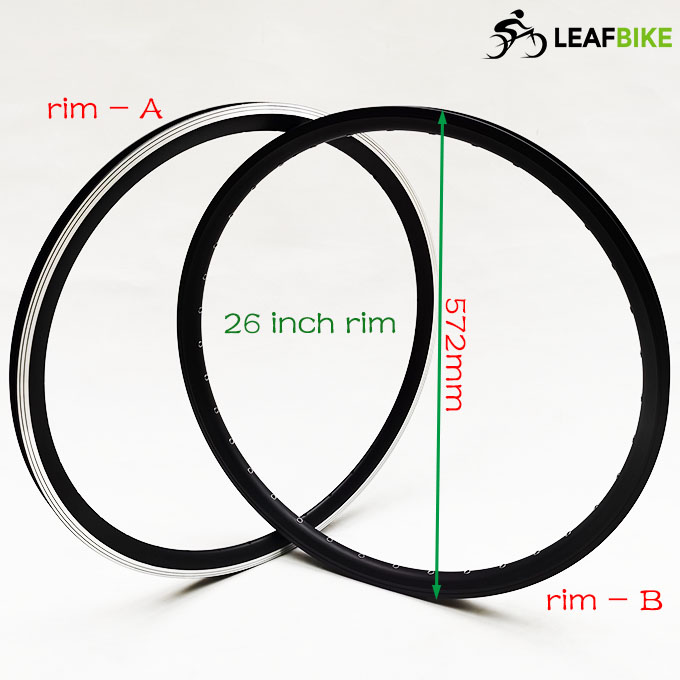

Rim: 26 inch / 559 double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
Spoke: 12 gauge / 154mm Length × 36 pcs

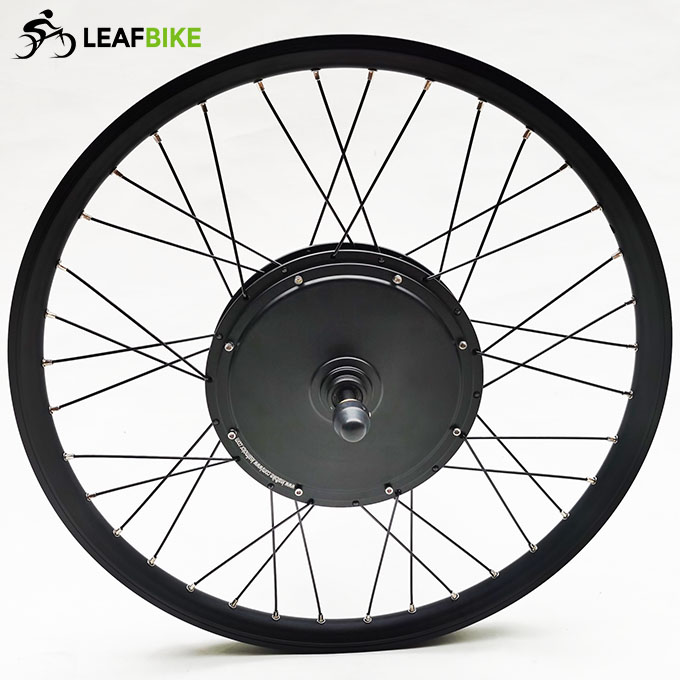

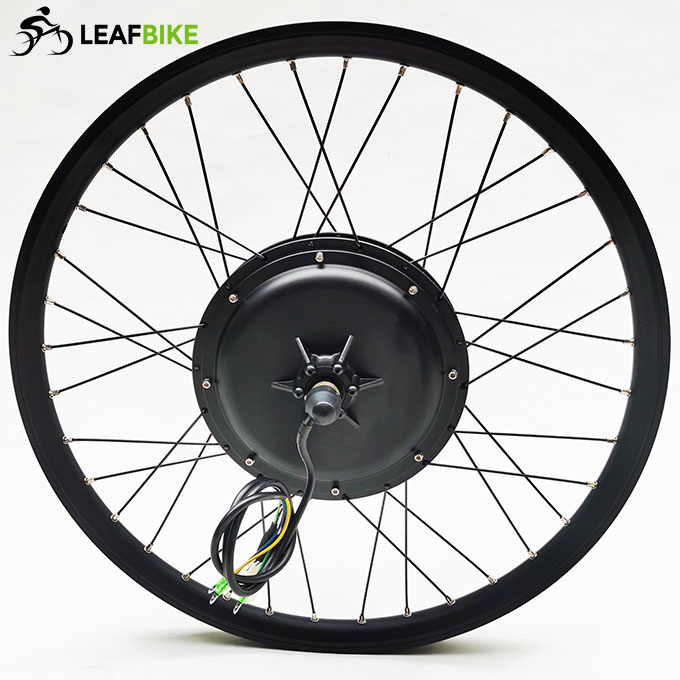

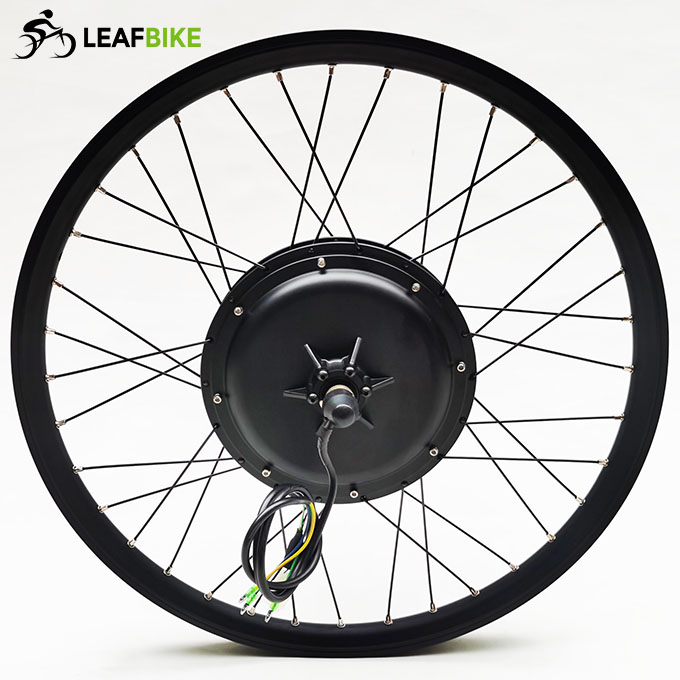

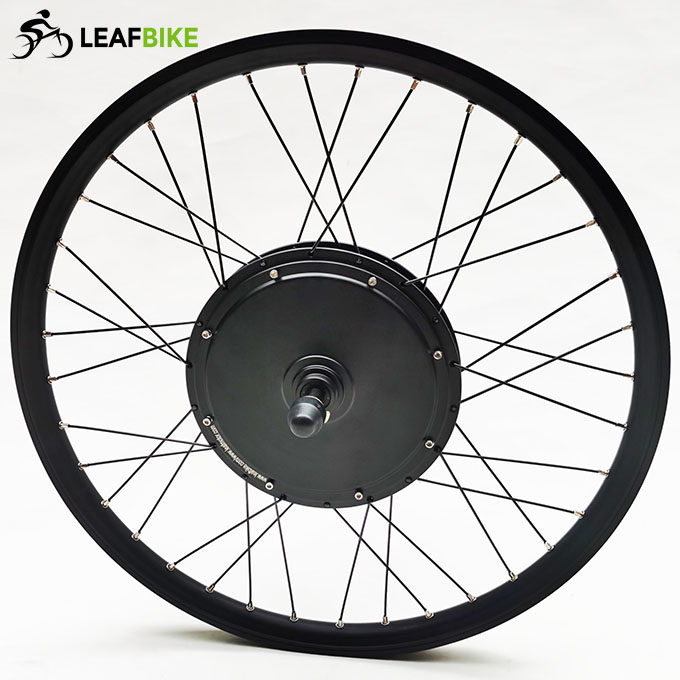

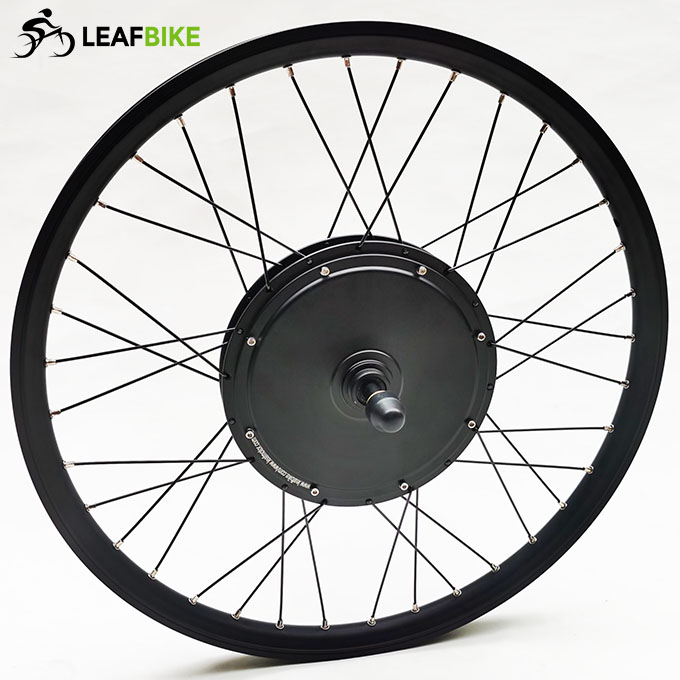

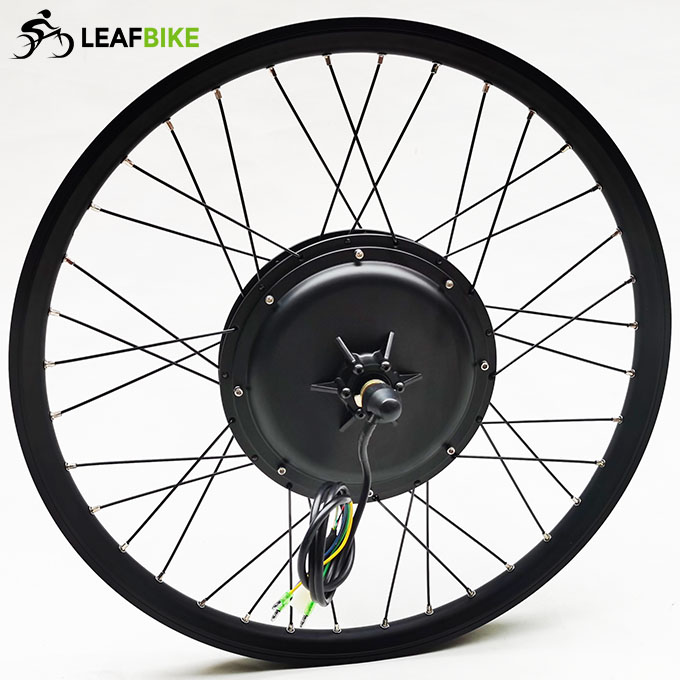

Rim B: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.0" ~ 2.5" tire)
Spoke: Black 12 gauge / 159mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Voltage: 36V
Power: 750W
Efficiency: ≥ 82%
Max speed: 46 km/h -- 28mph
Mechanical brake: Disk / V
Cable location: shaft end, LEFT
Cable length:100cm / 40"
Install: spacing of 135mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.25 kg / 16 lbs
Package Content:

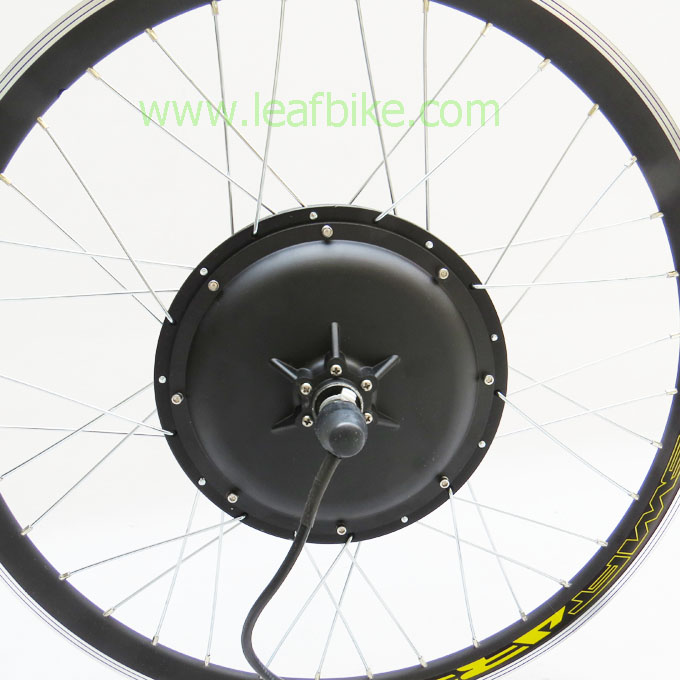

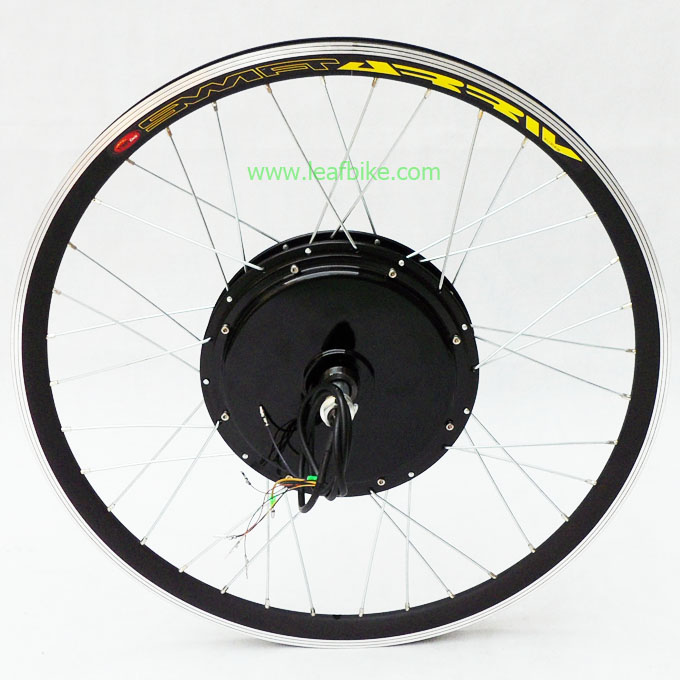

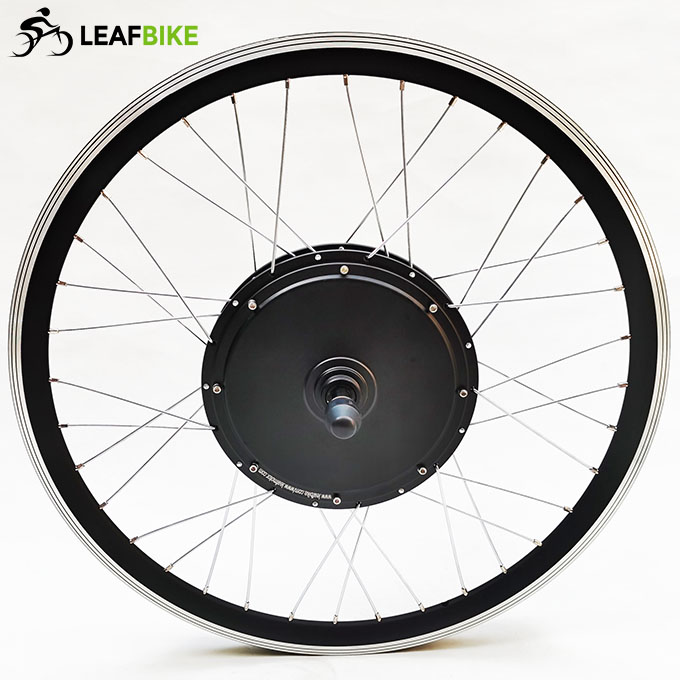

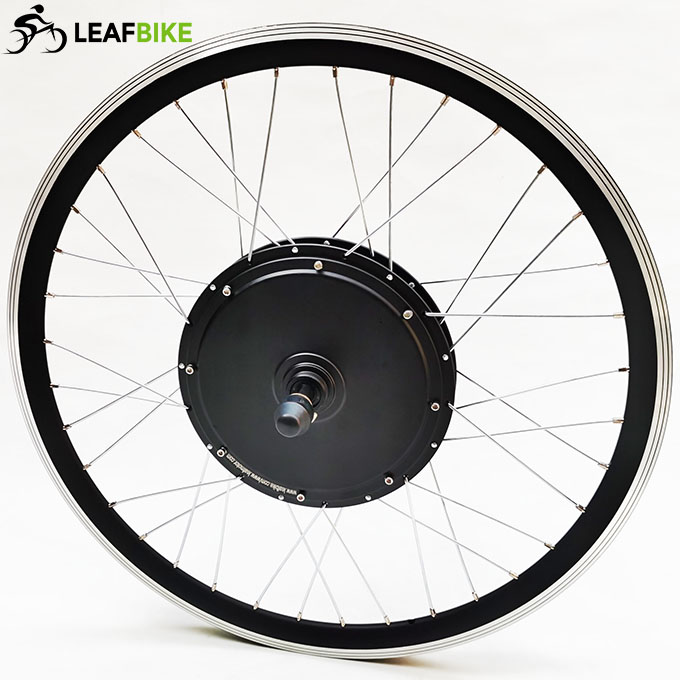

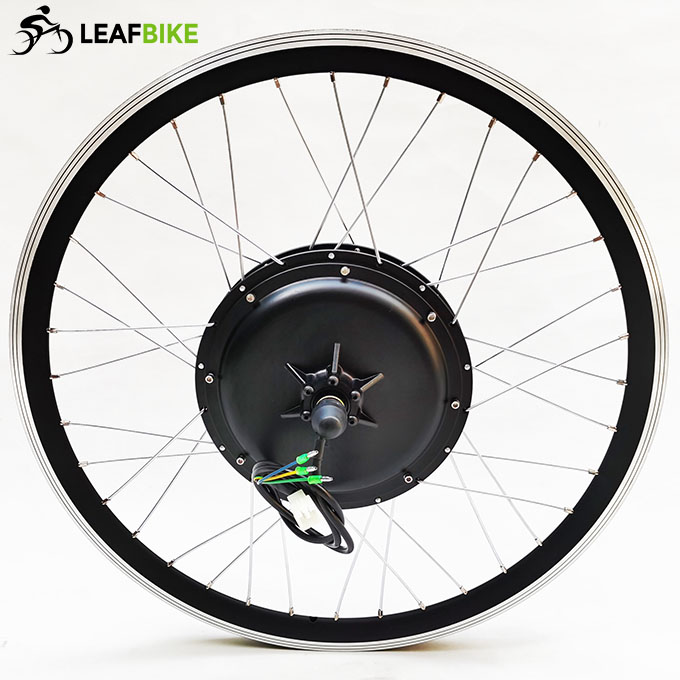

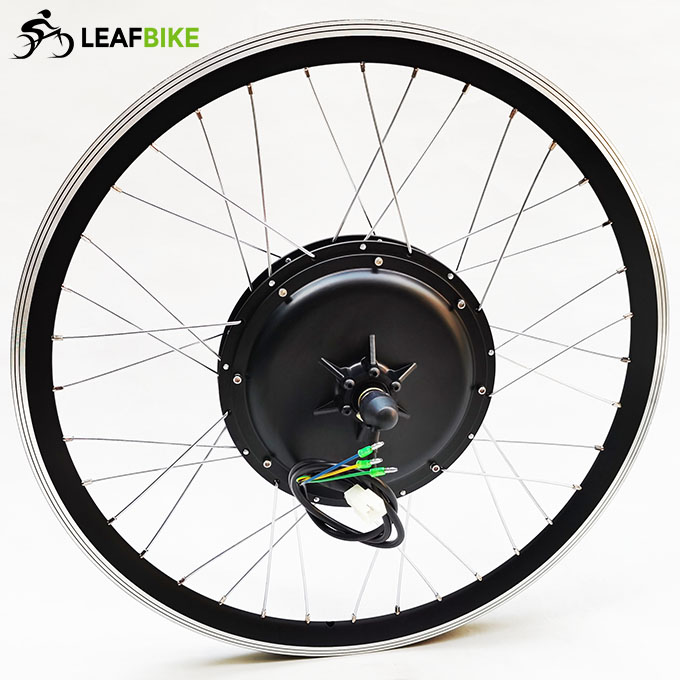

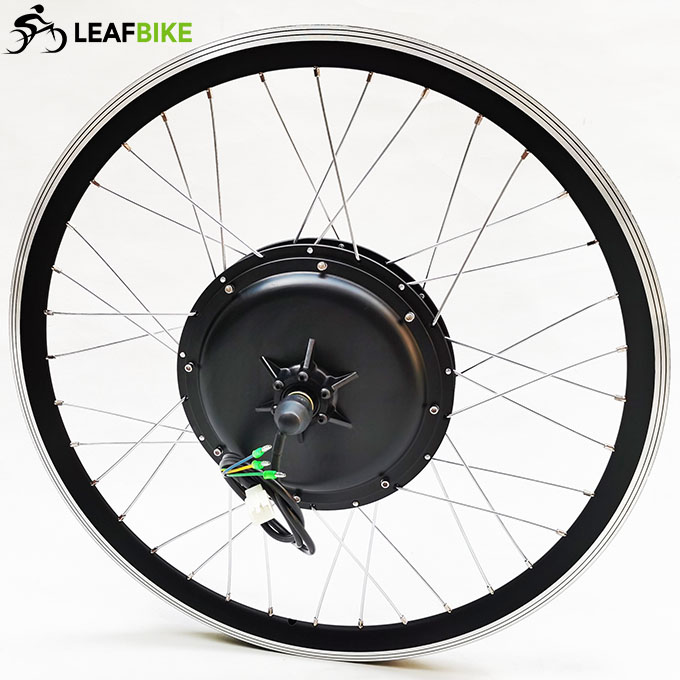

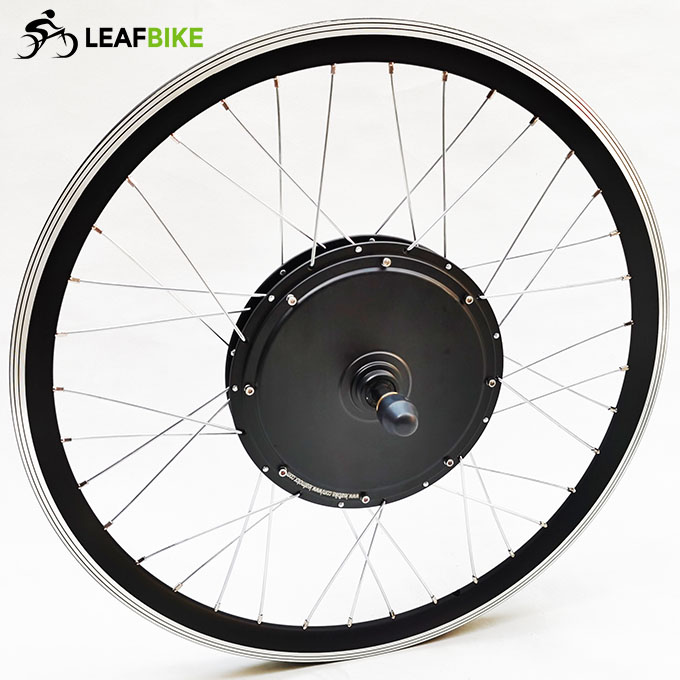

1 x 26 inch 36V 750W rear electric bike motor wheel
Package Size: 62cm L x 62cm W x 25cm H
Package Type: Cardboard Box
750W Rear Drw.
Performance Data:
