Please watch videos for 24 inch 48V 52V 1000W rear electric bike motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
S830 Video:
08HU Video:
Share Video:
Rotor Part 1:
Rotor Part 2:
Install Motor:
BRAND NEWEST LEAF BIKE 2025 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
This 24 inch bike motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes. Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" and 29" inch sizes are available.
Detail:

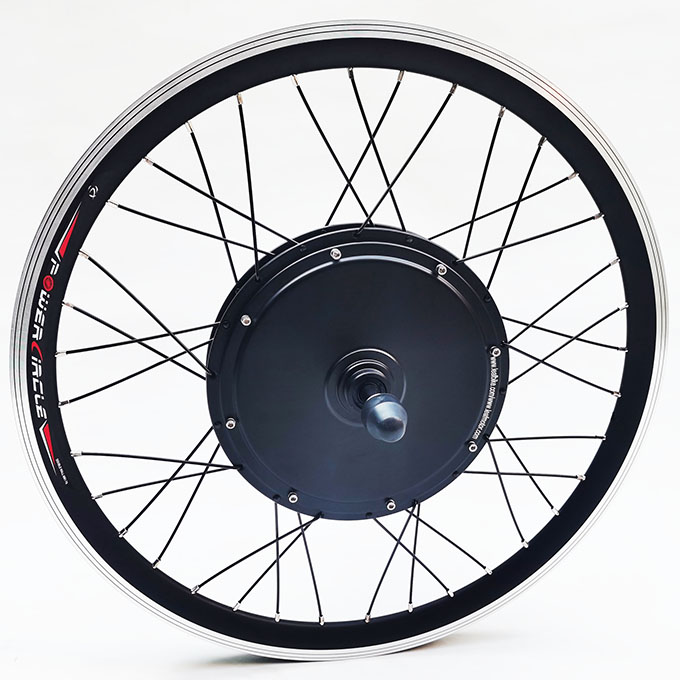

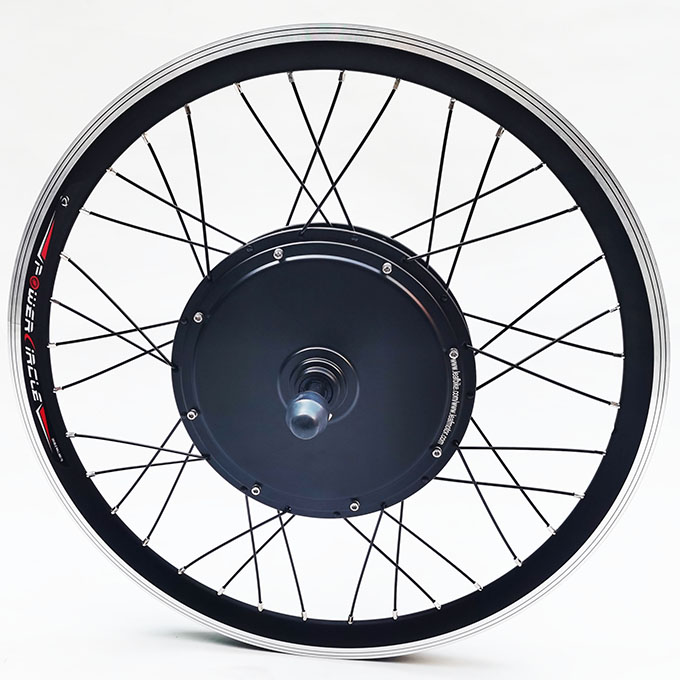

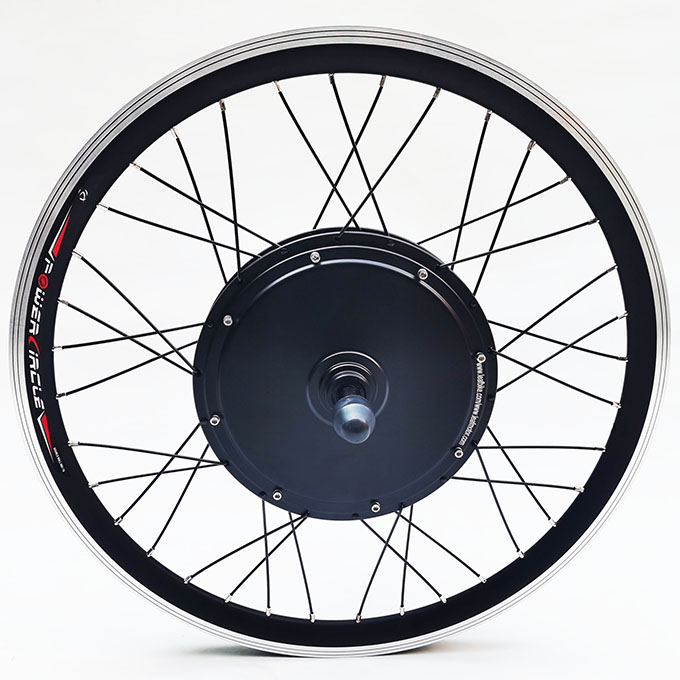

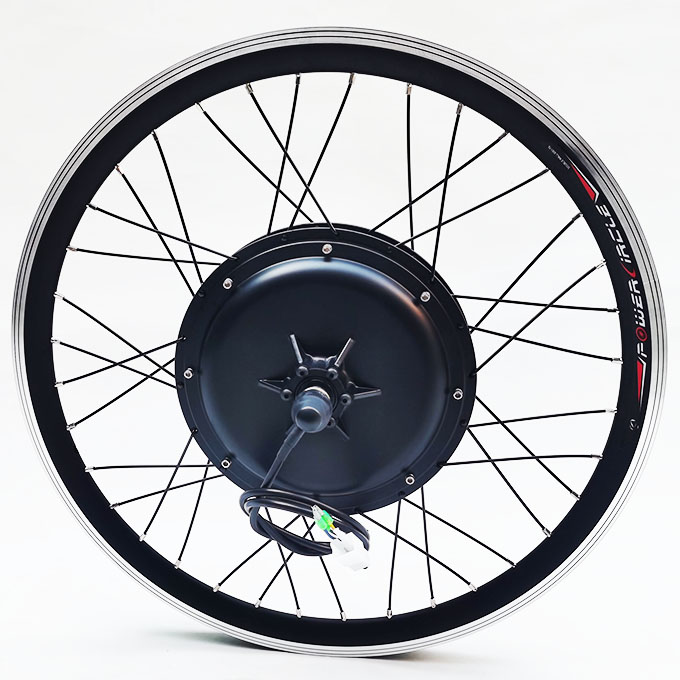

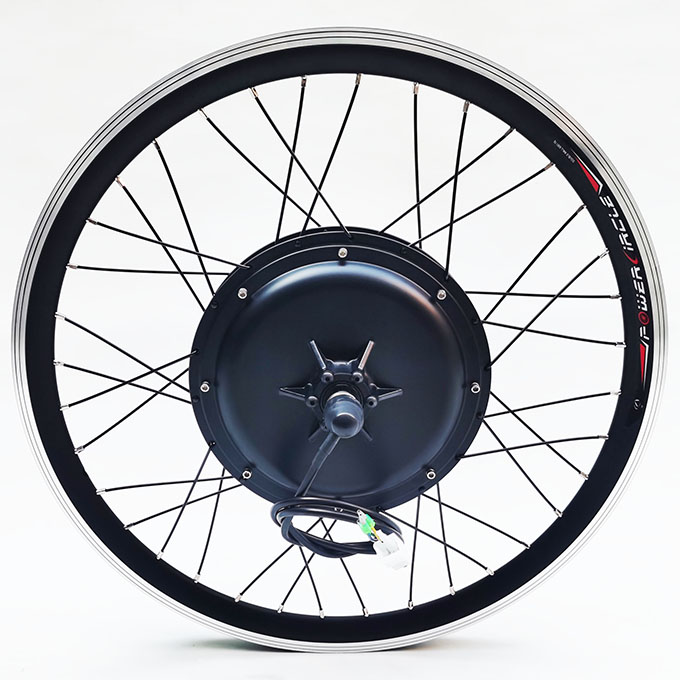

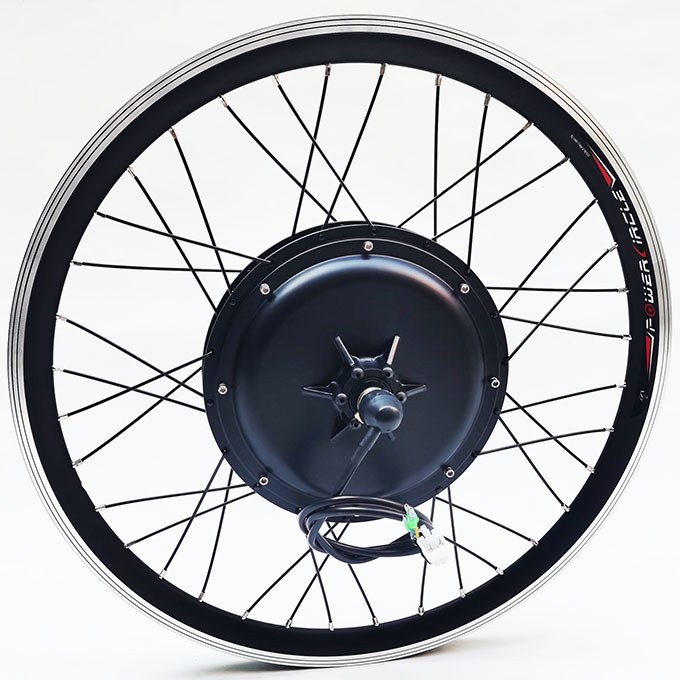

Size: 24 inch rear hub motor wheel

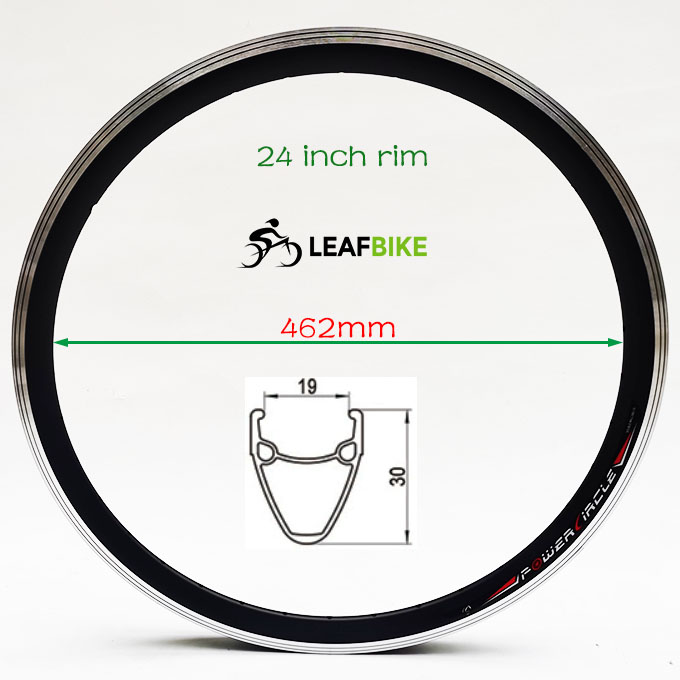

Rim: 24" double wall alloy
Spoke: 12 gauge / 131mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Voltage: 48V
Power: 1000W
Efficiency: 90.5%
Max speed: 731 rpm
Mechanical brake: Disk or V
Cable location: shaft end, Left
Cable length:100cm / 40"
Install: spacing of 135mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.23 kg / 16 lbs
Package Content:
1 x 24 inch 48V / 52V 1000W rear electric bike motor wheel
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
1000w rear Motor Drw.
1000W Cassette Drw.
Performance Data:
