Please watch video for 24 inch 36V 750W rear electric bike motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
BRAND NEW LEAF BIKE 2025 Version Black Lightning Brushless, Gearless bike motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed NSK bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.
This motor has the more acceleration at low end, better mid range, and more top end. These motors can handle up to 50A loads at 72V, and can take higher voltage with the right controller. This motor will go nearly 50 MPH on 74V! Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes. Message us for details. 20", 24", 26", 27.5"(650b), 700c, 28" & 29 inch sizes are available.
Detail:

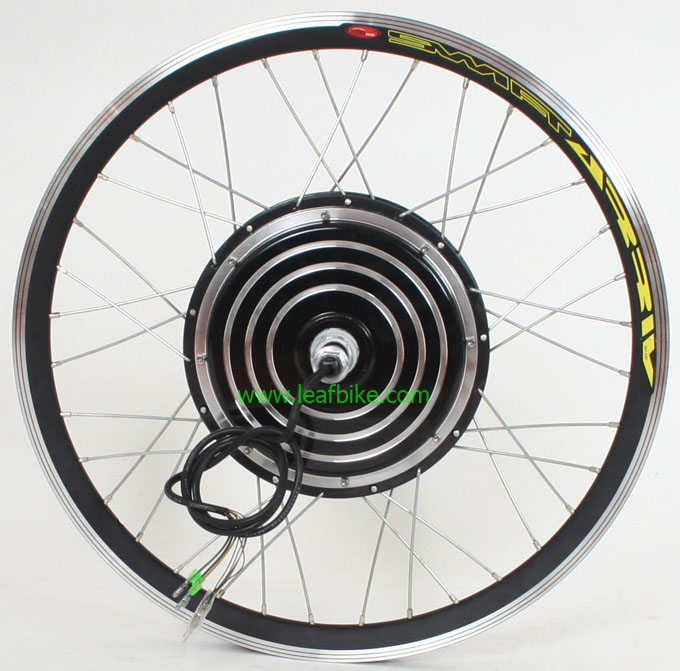

Size: 24 inch rear electric bike motor wheel

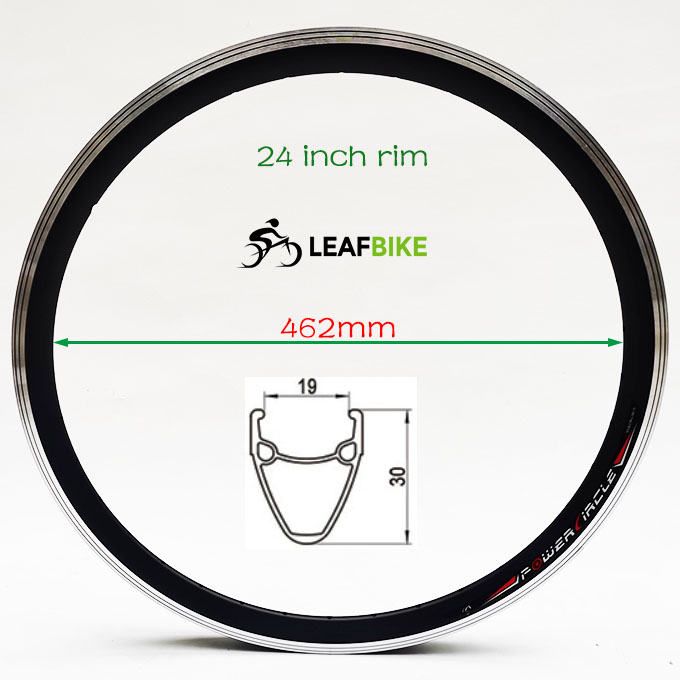

Rim: 24" double wall alloy (Rim Fit For: 24 × 1.5" / 1.75" tire)
Spoke: 12 gauge / 131mm Length × 36 pcs
Motor Type: brushless gearless dc motor
Voltage: 36V
Power: 750W
Efficiency: ≥ 82%
RPM: 345
Mechanical brake: V or drum
Cable location: shaft end, Right
Cable length:100cm / 40"
Install: spacing of 135mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 6.96 kg / 15.3 lbs
Package Content:
1 x 24 inch 36V 750W rear electric bike motor wheel
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box
750W Rear Drw.
Performance Data:
