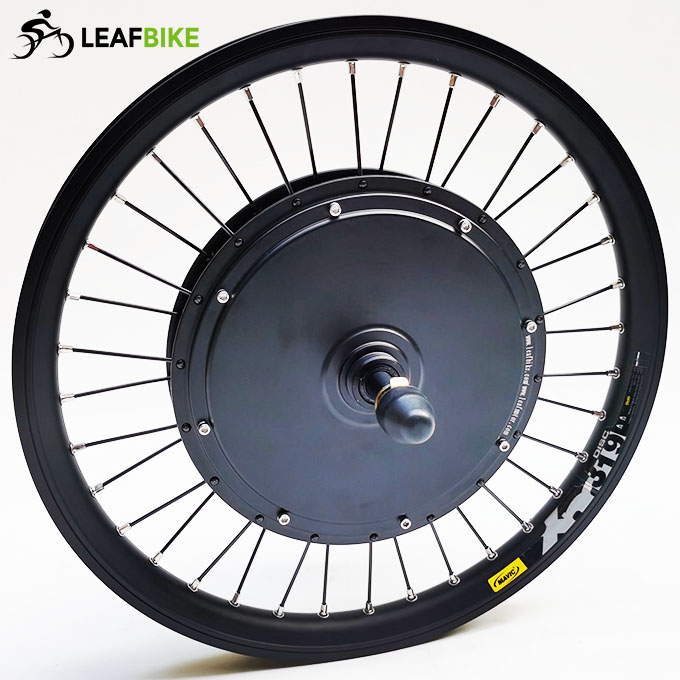

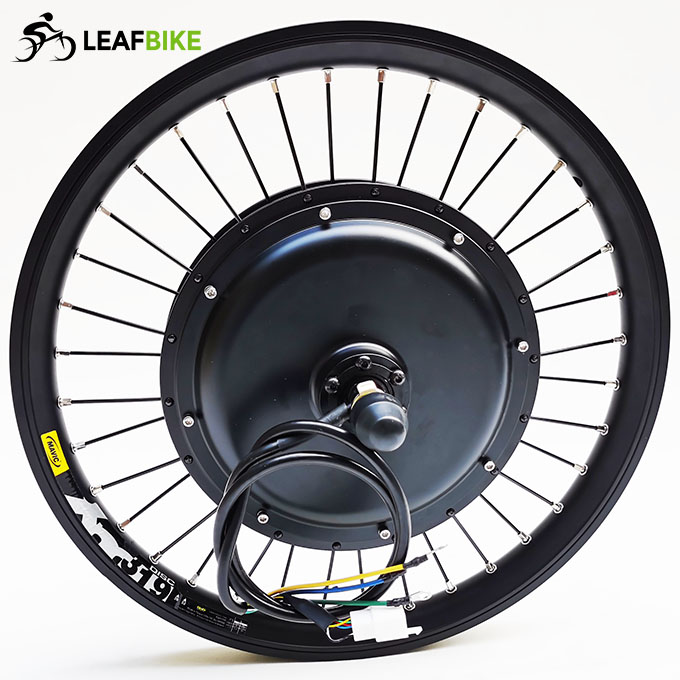

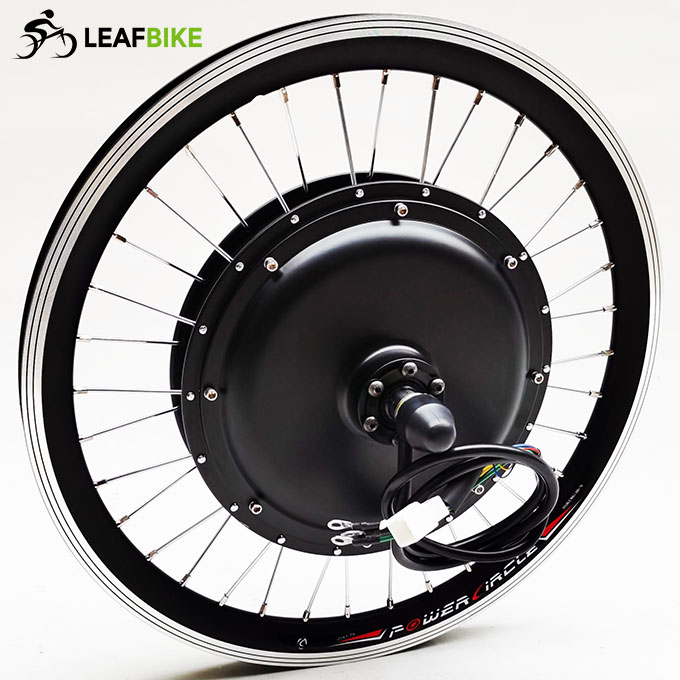

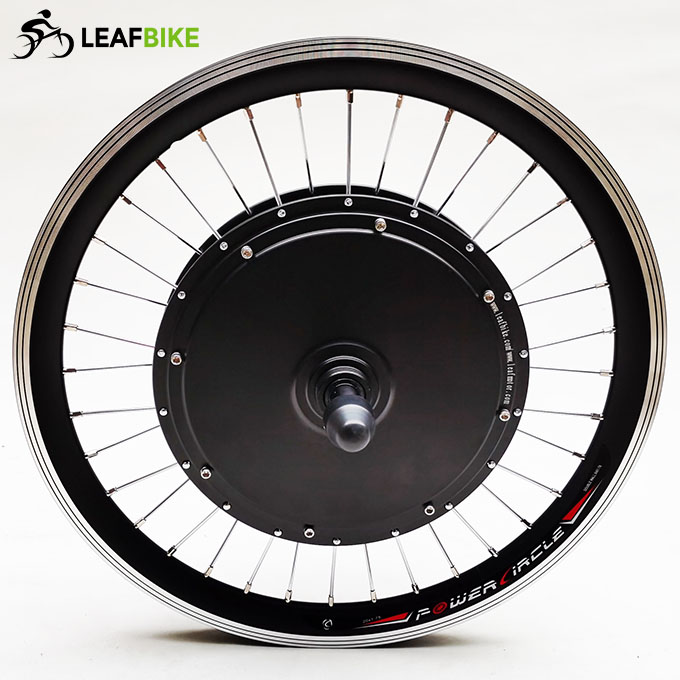

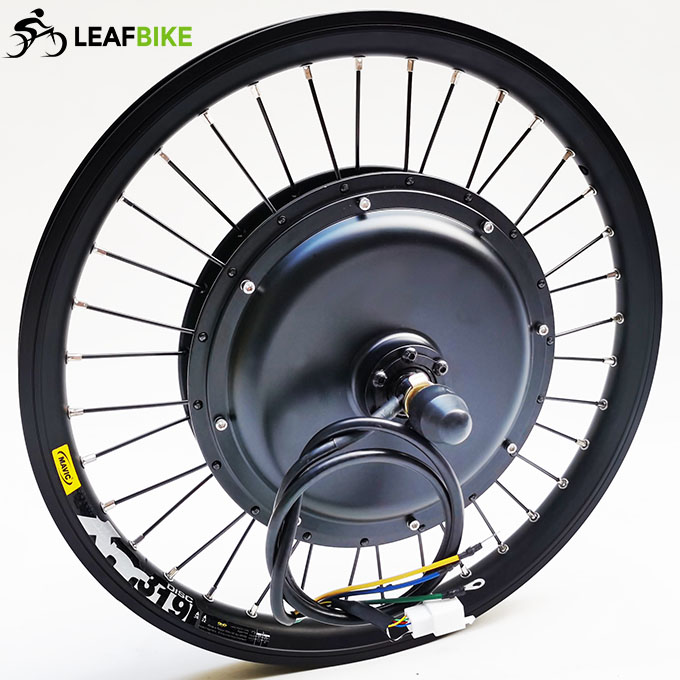

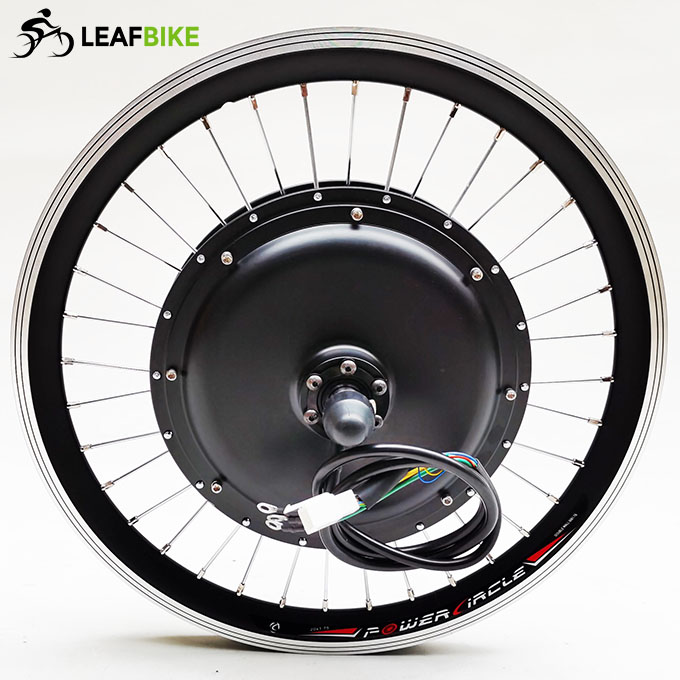

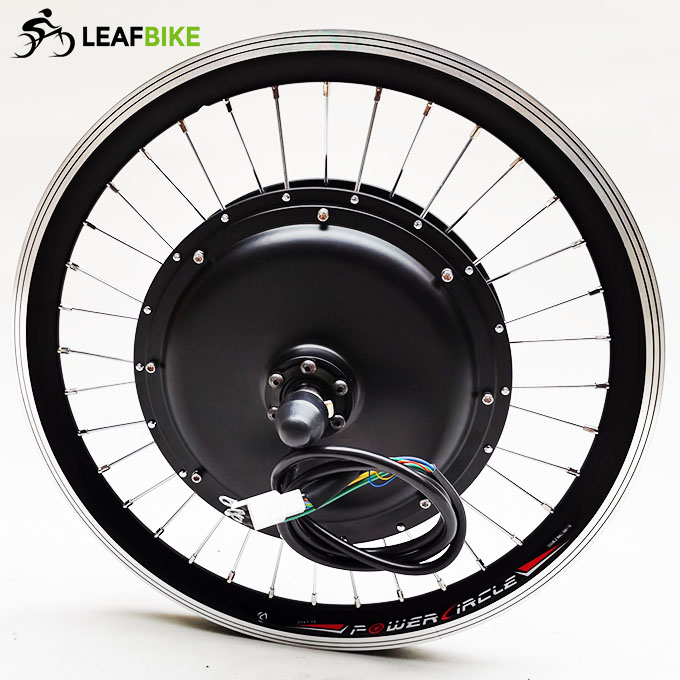

20 inch 48V 52V 1500W rear bike motor wheel

Item ID #LBM20481500RNL
$215.00 $256.00
    Please select the information you wantX
  • Tyre Size :
    20 x 1.5" / 1.75" / 1.95"
    20 x 1.95" / 2.0" / 2.1" ~ 2.5"
    Please select the information you wantX
Quantity :
Maybe You Need These
Maybe You Need These
* This 20 inch bike motor combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

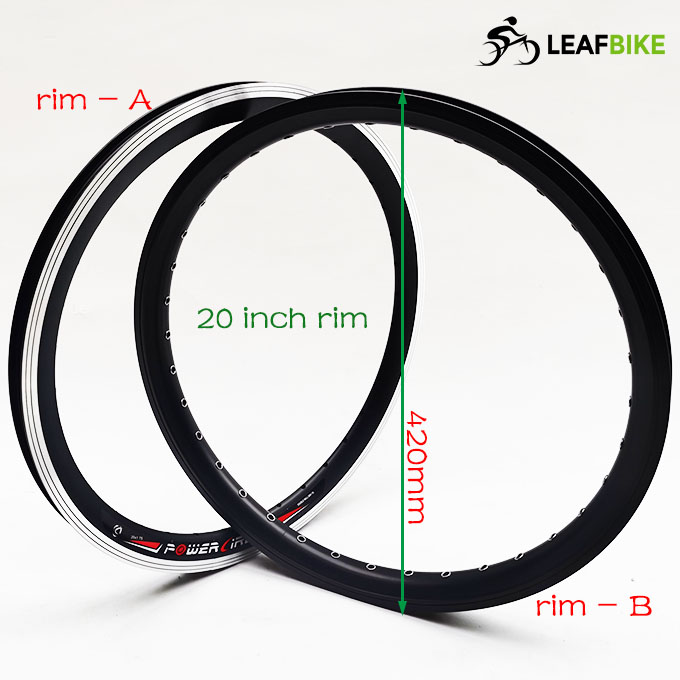

>. Rim A: 20 inch double wall Alloy (Rim Fit For: 20 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: Silver 12 gauge / 68mm Length × 36 pcs

>. Rim B: 20 inch double wall Alloy (Rim Fit For: 20 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 69.9 kmh -- 37.8 mph Default (Optional other speed: 30mph or 25mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel: max 7 speed
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

Package Content:
1 x 20 inch 48V 52V 1500W rear bike motor wheel

Net Weight: 7.8 kg   /  17.3 lbs
Package Size: 50cm L x 50cm W x 25cm H
Package Type: Cardboard Box

Share Video:
20 inch 48v 1500w rear electric bike motor kit
1500W Rear Drw.
1500w rear freewheel hub motor drawing
1500W Cassette Drw.
1500w cassette hub motor drawing
Performance Data:
